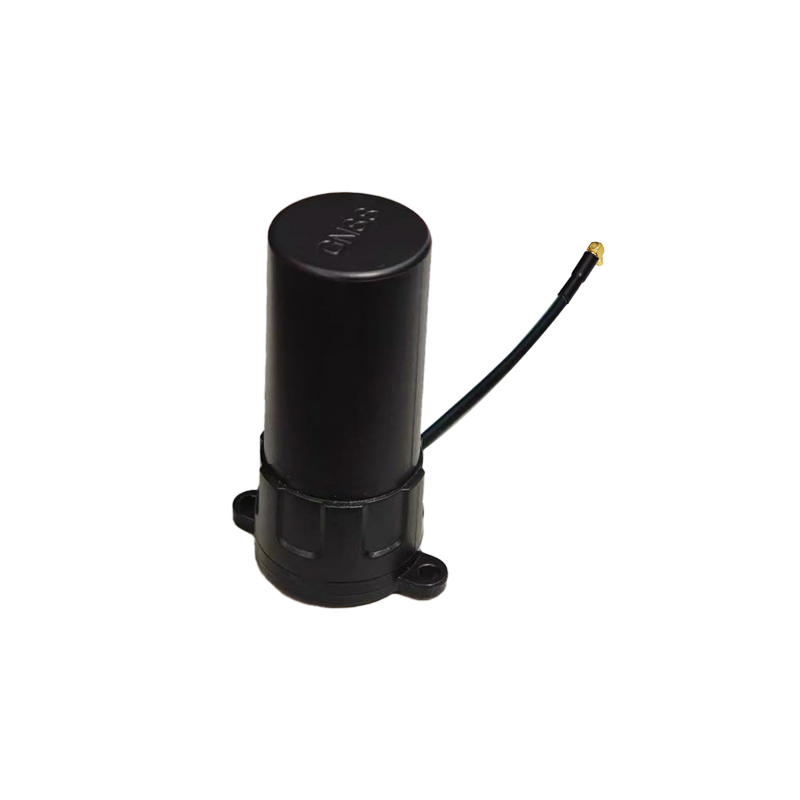

丨 Product Introduction
1. Multi arm spiral: Multi arm spiral design, efficient right-handed circular polarization, optimized signal reception, stable phase center, and improved positioning accuracy.
2. Gain characteristics: high gain with small gain roll off, good reception of low elevation signals, strong signal stability and coverage.
3. Low noise amplification: The amplifier is exquisite, with strong external suppression, reducing noise, increasing signal, resisting interference, and facilitating weak signal reception.
4. Portable and easy to use: compact and lightweight, easy to carry and install, suitable for mobile and rapid deployment scenarios.
丨 Specification parameters
|
Specifications
|
|
Antenna
characteristics
|
1
|
Operating frequency
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
|
2
|
Antenna specifications
|
GPS, BDS，GLONASS,GALILEO，QZSS
|
|
3
|
Frequency rang
|
1176-1278/1559-1612MHz
|
|
4
|
V.S.W.R
|
≤2.0
|
|
5
|
Axial Ratio
|
At elevation angle 90 degrees: ≤3, at elevation angle 15 degrees: ≤5
|
|
6
|
Gain
|
At an elevation angle of 90 degrees: ≥6, at an elevation angle of 20 degrees: ≥0 plane
|
|
7
|
Front to back Power
|
±60 degrees ≥ 15dB
|
|
8
|
Phase center（mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
2.0
|
|
3
|
In-band flatness
|
±2dB
|
|
4
|
Noise Figure
|
＜2.0
|
|
5
|
DC Voltage
|
3.3~16V
|
|
6
|
Current
|
＜35 mA
|
|
Mechanical
structure
|
1
|
Component name
|
SPEC
|
|
2
|
Antenna
|
Four arm spiral
|
|
3
|
Installation method
|
Through connector
|
|
4
|

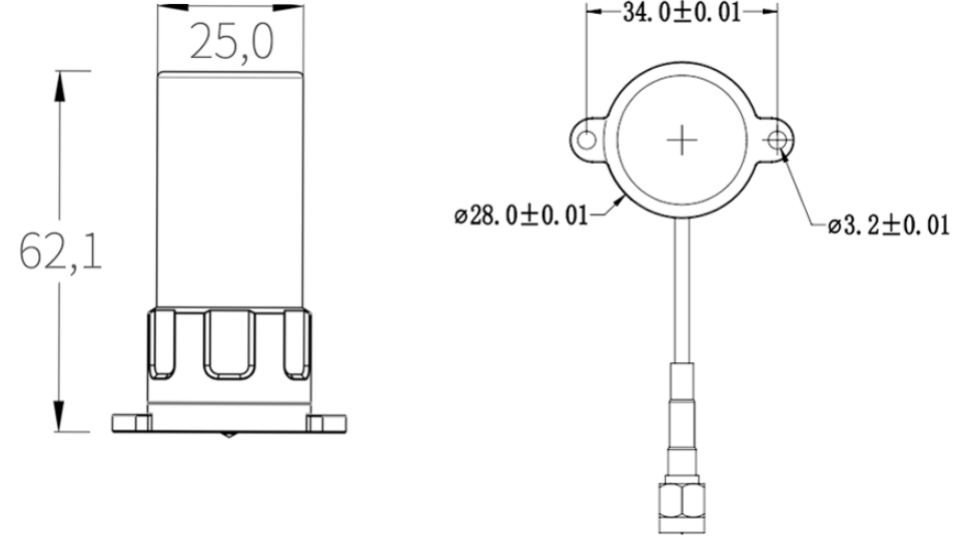

Antenna dimensions
|
Φ62.1*25mm
|
|
5
|
Product weight
|
25.4g
|
|
6
|

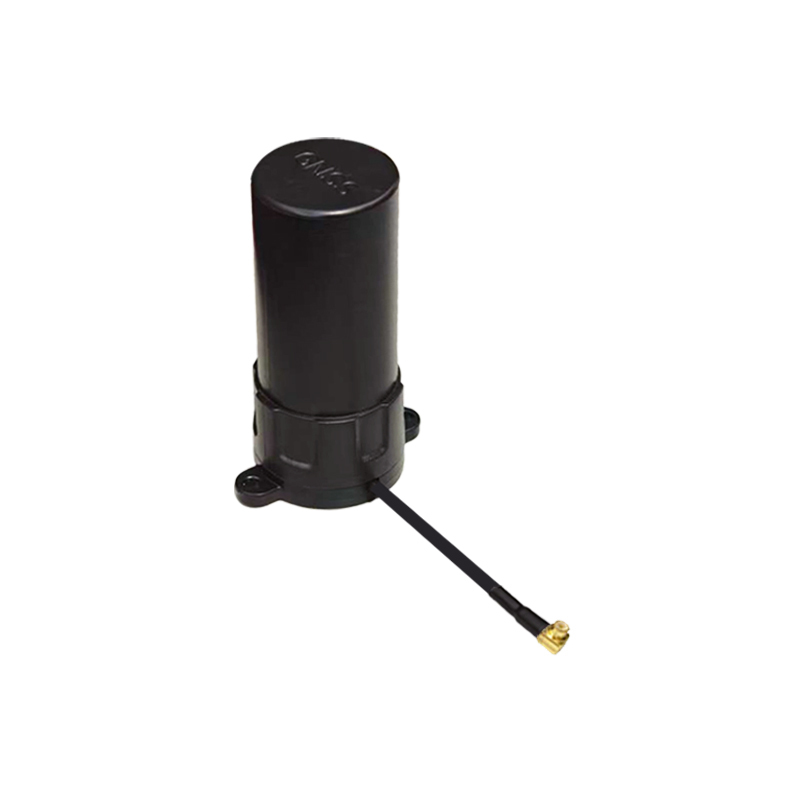

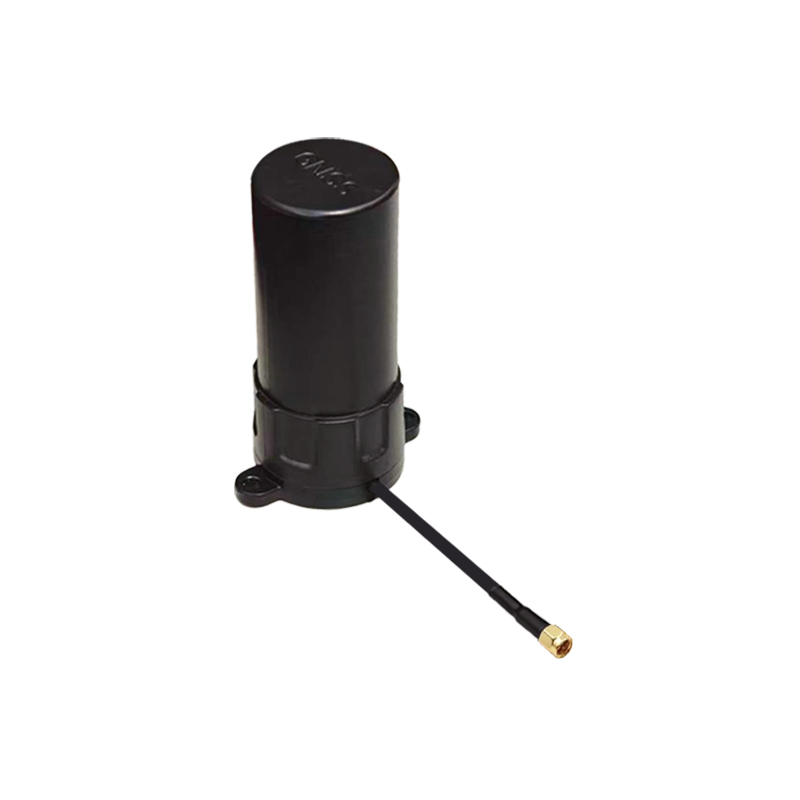

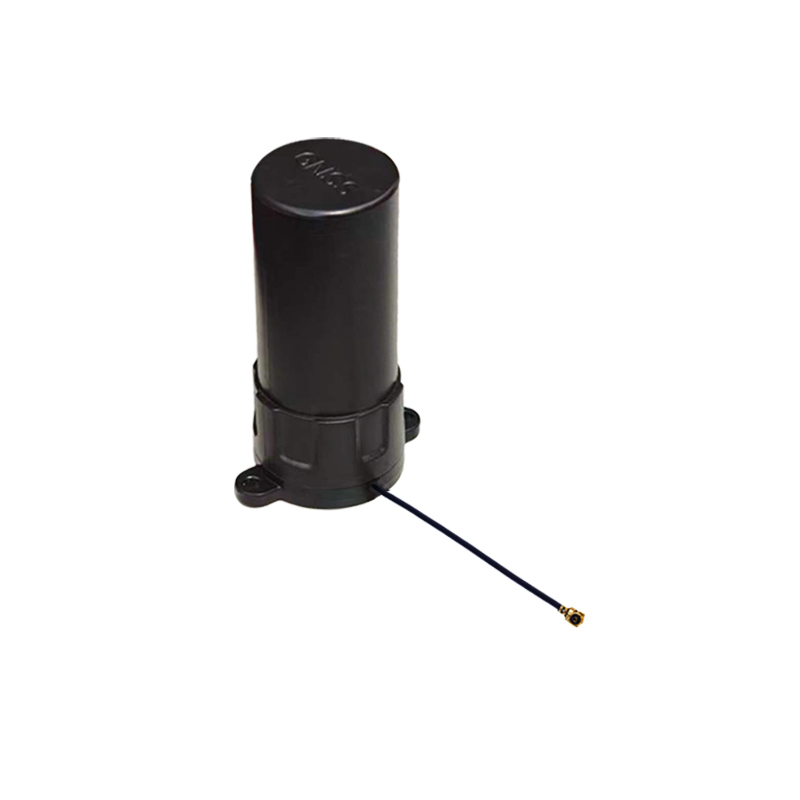

interface
|
SMA-J / IPEX / MCX / MMCX (Customizable)
|
|
7
|
Line type
|
RG316 / RG174 / RG178 / RG1.13(Customizable)
|
|
8
|
Line length
|
15cm / 25cm(Customizable)
|
|
Environmental characteristics
|
1
|
Operating temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Vibration
|
Sine sweep @1.5mmAM
10~55Hz each Axis
|
Packaging and Delivery：
Multi-Band High-Precision GNSS Antenna — DALANG AK161
The DALANG AK161 is a high-performance multi-system GNSS antenna featuring multi-feed point and quad-arm coupling technology. It supports BeiDou, GPS, GLONASS, and Galileo systems, capable of receiving L1, L2, and L5 multi-band signals. Equipped with a built-in low-noise amplifier, it effectively enhances signal quality and anti-interference performance, making it suitable for high-precision applications such as surveying, precision agriculture, and vehicle navigation.
Multi-System and Multi-Band for Comprehensive Signal Reception
The antenna supports multiple systems including BeiDou, GPS, GLONASS, and Galileo, covering operating frequency bands of 1176-1278MHz and 1559-1612MHz, offering excellent signal compatibility and reception capability.
High Gain with Low Gain Roll-Off for Low-Elevation Environments
The antenna features high gain characteristics while maintaining good gain performance even at low elevation angles, making it suitable for stable signal reception in obstructed environments.
Low-Noise High-Gain Amplifier for Enhanced Weak Signal Reception
The built-in low-noise amplifier, combined with excellent out-of-band suppression, effectively reduces background noise and enhances weak signal reception performance, suitable for high-interference environments.
Compact and Lightweight for Easy Installation
With dimensions of Φ62.1×25mm and a weight of only 25.4g, the antenna is compact and lightweight. It supports a standard SMA-J interface for easy integration and rapid deployment.
Key Features
-
Supports BeiDou/GPS/GLONASS/Galileo multi-systems
-
Receives L1/L2/L5 multi-band signals
-
High gain, suitable for low-elevation reception
-
Low-noise amplifier for enhanced signal quality
-
Compact structure for easy installation
If you are selecting a high-performance antenna for surveying equipment, agricultural navigation, or vehicle systems, the DALANG AK161 provides stable and reliable multi-system, multi-band signal reception support.
