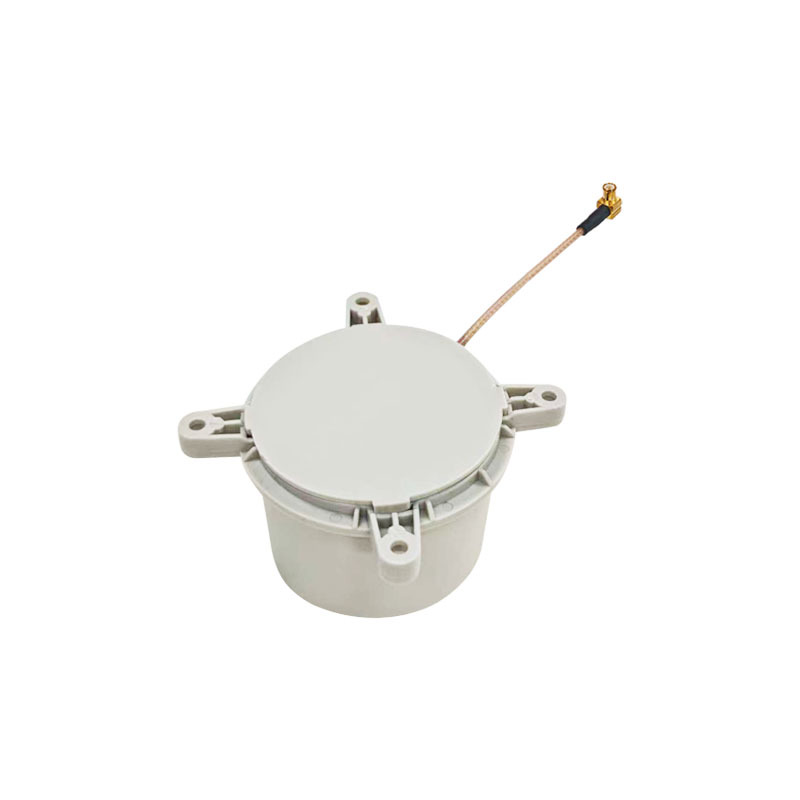

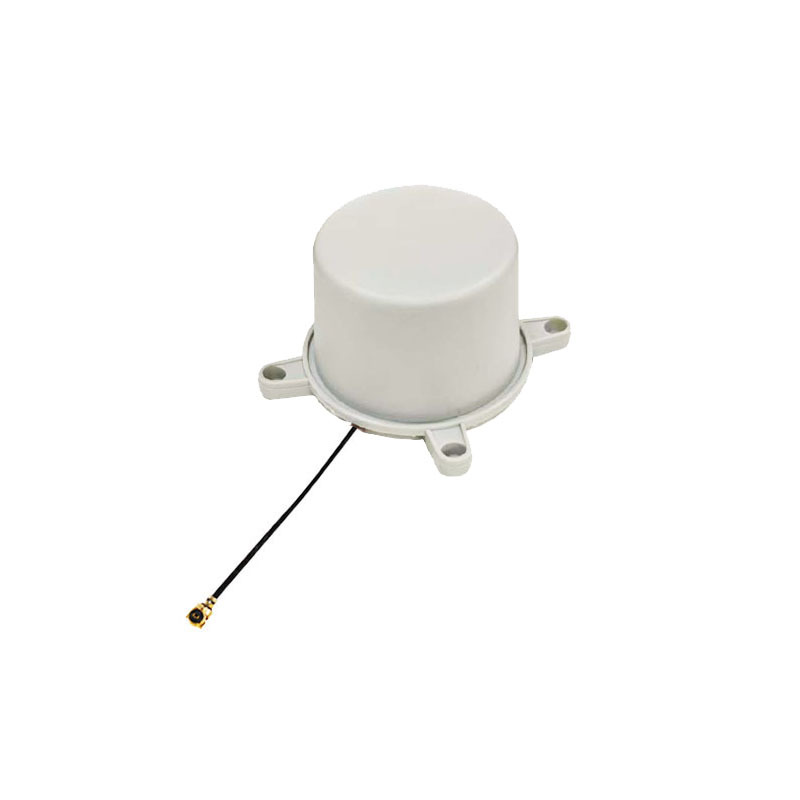

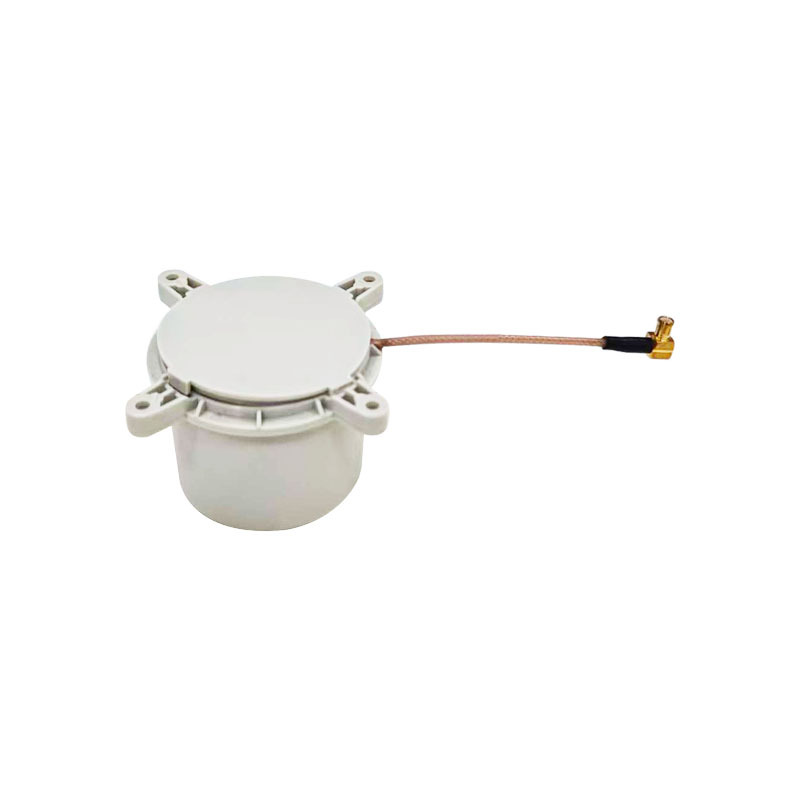

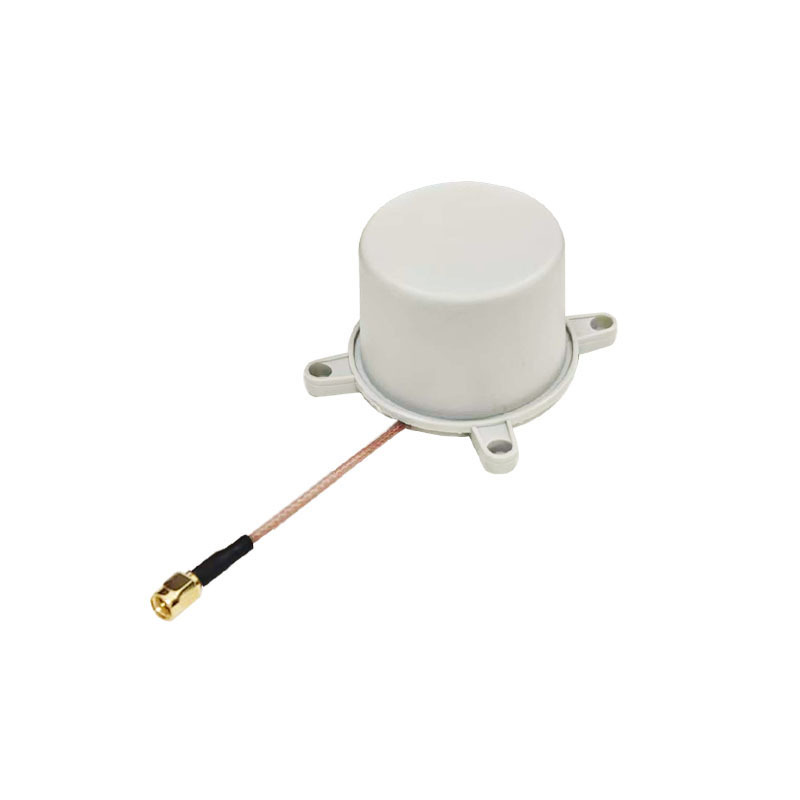

丨 Product Introduction
AK701 multi-system multi-band antenna delivers precise positioning with centimeter-level accuracy for error-free operations; robust anti-interference and lightweight design make it ideal for UAVs in complex working environments.Features：
1. Multi-Arm Helix Tech
Multi-arm helix design enables efficient right-hand circular polarization, optimizing signal reception & phase center stability. Reduces measurement errors, boosting positioning accuracy/reliability.
2. High Gain & Low Roll-Off
High-gain with minimal roll-off: maintains strong reception even for low-elevation satellite signals, enhancing overall signal stability/coverage.
3. Low-Noise High-Gain Amplifier
Precision amplifier + excellent out-of-band suppression cuts background noise & boosts signal strength. Performs well for weak signals in high-interference environments.
4. Compact & Lightweight
Small, lightweight build: easy to carry/install, ideal for mobile/rapid-deployment applications.

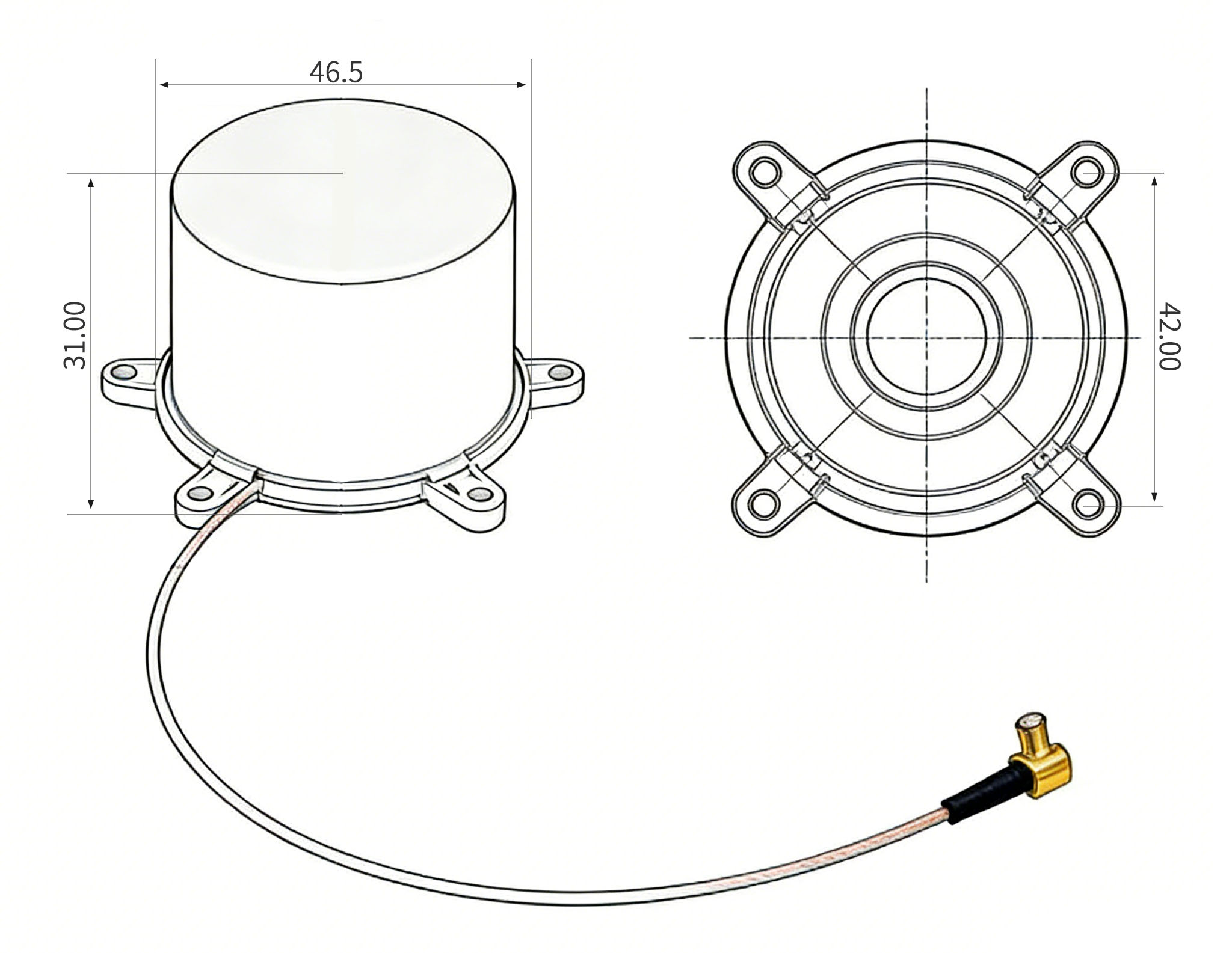

丨 Product Structure
丨 Specifications
|
Specifications
|
|
Electrical Characteristics
|
1
|
Operating Frequency
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
|
2
|
Antenna Specifications
|
GPS, BDS，GLONASS,GALILEO，QZSS
|
|
3
|
Frequency Range
|
1170-1278/1559-1612MHz
|
|
4
|
V.S.W. R
|
≤2.0
|
|
5
|
Axial Ratio
|
Elevation at 90 degrees: ≤ 3 dB, Elevation at 15 degrees: ≤ 5 dB
|
|
6
|
Gain
|
Elevation at 90 degrees: ≥ 6 dB, Elevation at 20 degrees: ≥ 0 dB
|
|
7
|
Front to back Power
|
±60 degrees: ≥ 15 dB
|
|
8
|
Phase Center（mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
11
|
Out-of-Band Suppression
|
1268+100MHZ≥50db,
1170-100MHZ≥50db，
1602+100MHZ≥50db,
1561-100MHZ ≥50db.
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
|
3
|
Noise Figure
|
＜2.0
|
|
4
|
DC Voltage
|
3.3~12V
|
|
5
|
Current
|
＜35 mA
|
|
Mechanical
Structure
|
1
|
Part Name
|
SPEC
|
|
2
|
Antenna
|
FPC
|
|
3
|
Installation Method
|
Through Connector
|
|
4
|
Antenna Dimensions
|
Φ46.5*31mm
|
|
5
|
Product Weight
|
18g
|
|
6
|
RF Output Interface
|
MCX(Customizable)
|
|
7
|
wire rod
|
RG178(Customizable)
|
|
8
|
Line length
|
150mm(Customizable)
|
|
9
|
Antenna Housing
|
ABS+PC
|
|
10
|
PCB Board
|
FR4
|
|
Environmental
Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Humidity
|
Sine sweep @1.5mmAM 10~55Hz each Axis
|
|
4
|
Vibration Resistance
|
95％ No-condensing
|
