L1 L2 L5 Multi Band RTK GNSS GPS Centimeter Level Surveying Mapping Antenna

Product Advantages

Structural and Integration Design Benefits

The AK710’s compact and rugged construction with a mushroom-shaped radome optimizes wind resistance and durability, ensuring minimal signal distortion. Designed as a multi band RTK antenna, it integrates seamlessly with standard survey instruments and UAV platforms thanks to industry-standard connectors and compatible geometry. Its housing protects the internal low-noise amplifier and reactive networks from harsh environments, providing consistent signal quality. These features enable modular system designs and facilitate field deployment without compromising performance or requiring frequent maintenance.

Performance and End-User Usability

This high gain GNSS antenna delivers superior multipath suppression and high front-to-back ratio, critical for maintaining signal clarity in complex environments. Its broad constellation support provides flexibility in various RTK setups, simplifying logistics for users who need reliable, real-time positioning. The antenna’s lightweight and compact dimensions enhance portability for mobile mapping operations and UAV installations. Users benefit from improved accuracy and reduced downtime, optimizing productivity and ensuring trusted positioning data across monitoring and surveying tasks.

丨 Product Introduction

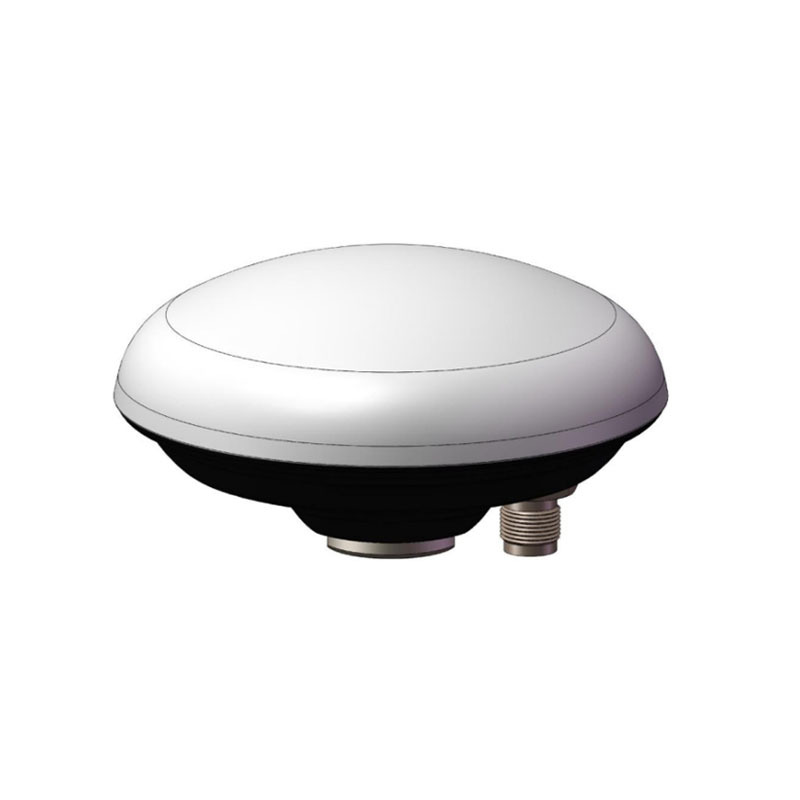

AK710 is a high-performance full band GNSS measurement antenna with a compact size. This antenna adopts advanced technology and design, designed specifically to meet the strict requirements for multi system compatibility and high-precision measurement, ensuring that it can meet the diverse needs of customers. Used for geodetic surveying, oceanographic surveying, precision agriculture, deformation monitoring, and other applications that require high-precision navigation and positioning.


characteristic:
1. Multi system compatibility: Supports Beidou, GPS, GLONASS, GALILEO, QZSS systems to meet various navigation needs.

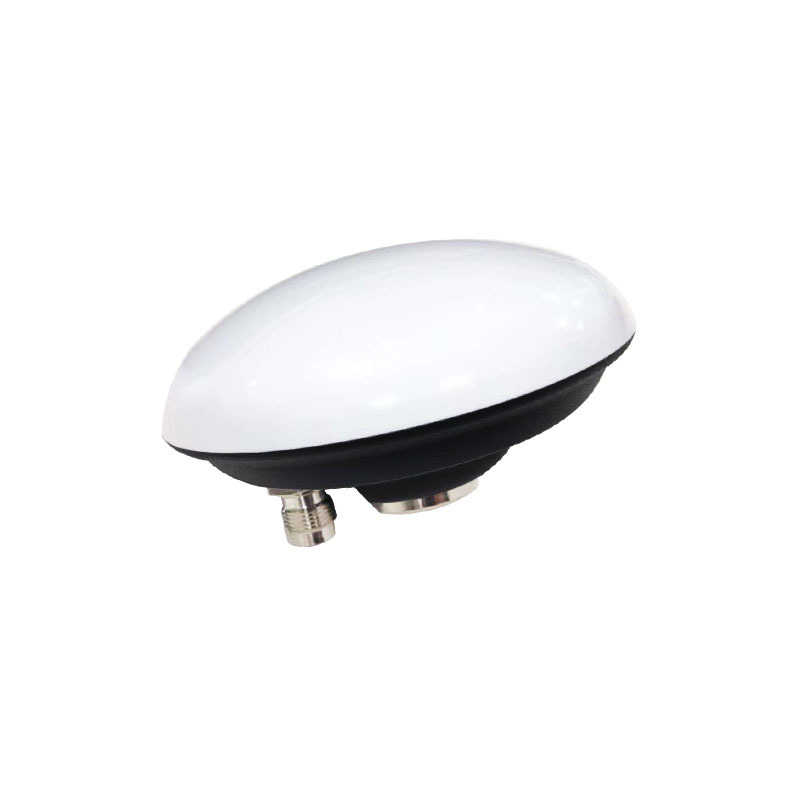

2. High precision design: The upper white hemisphere receives signals and reduces wind resistance; The lower black base is equipped with interfaces and cables, significantly reducing measurement errors.

3. Enhanced reception performance: The antenna unit has high gain and small gain roll off, making it particularly suitable for receiving satellite signals at low elevation angles.

4. Good blocking matching: Reactive network path suppression technology effectively reduces the interference of multipath signals on measurement accuracy.

Suitable for complex environments: Superior design ensures good signal reception even in environments with severe occlusion.

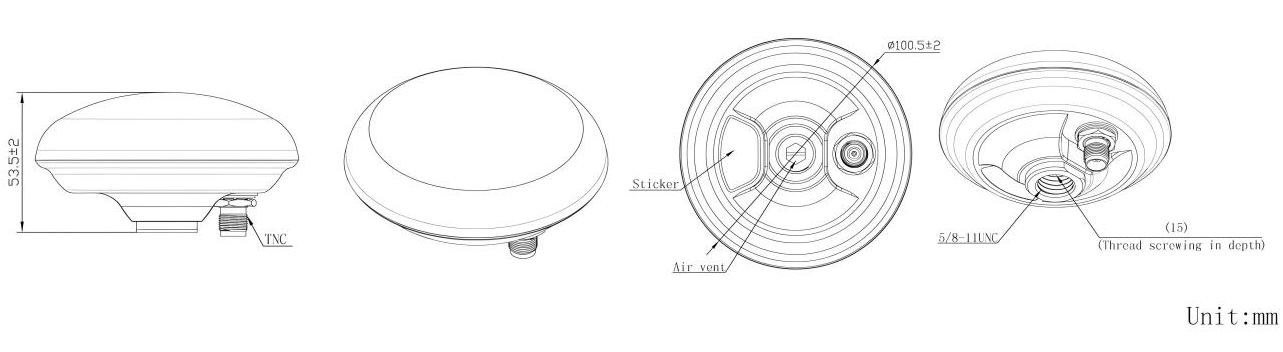

丨 Specification parameters

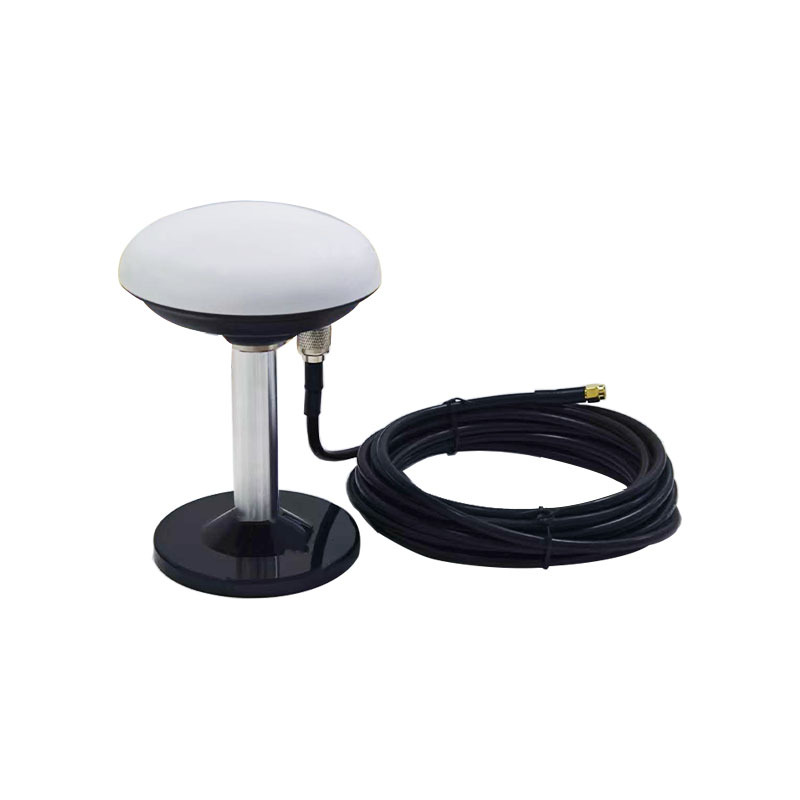

丨 product mix







Packaging and Delivery：

---

Use Scenarios

Precision Surveying and Infrastructure Monitoring

In field surveying operations where centimeter-level accuracy is mandatory, the AK710 functions as a dependable GNSS surveying antenna, offering strong signal reception from multiple constellations. It excels in deformation monitoring of bridges, dams, and other critical infrastructure by providing real-time positioning updates resistant to multipath errors and environmental interference. Its robust design ensures continuous operation in extreme weather, integrating easily with RTK base stations and rover systems to deliver high-fidelity data essential for safety assessments and regulatory compliance.

UAV-Based Mapping and Mobile Data Collection

Within drone surveying workflows, the AK710 serves as a lightweight GNSS antenna for mapping, enhancing positional accuracy for aerial topographic and cadastral surveys. Its stable multipath suppression and full-band GNSS reception mitigate signal loss in complex environments like urban canyons or forested areas. The antenna’s compact form factor and high gain capability facilitate quick installation on UAV platforms, contributing to efficient flight missions with precision geotagging. This integration streamlines operational workflows by providing actionable spatial data critical to surveying and environmental monitoring projects.

FAQ

What makes the AK710 a reliable choice for high-precision GNSS applications?

We crafted the AK710 with a rugged design, supporting multi-constellation systems like GPS and Beidou. Its built-in low-noise amplifier and strong multipath suppression ensure stable reception. As a high gain GNSS antenna, it delivers centimeter-level accuracy even in harsh environments.

Can the AK710 antenna be customized to fit specific surveying equipment?

Yes, we offer integration flexibility to match various setups, including UAVs and mobile mapping. Our team supports firmware updates and provides full lifecycle documentation to help you adapt the GNSS surveying antenna to your project's needs.

How do I install the AK710 antenna for outdoor RTK surveying?

The AK710 features a compact, lightweight design with a TNC-K connector for straightforward integration. Its weather-tolerant ABS radome ensures operation from -40°C to +85°C, making it suitable for fixed or mobile RTK setups in challenging field conditions.

What shipping and quality assurance processes does DALANG follow?

We conduct multi-stage quality inspections, including SMT assembly and final functional testing, compliant with ISO9001:2015 standards. Products ship with full documentation and firmware support, ensuring your multi band RTK antenna arrives ready for reliable deployment.
