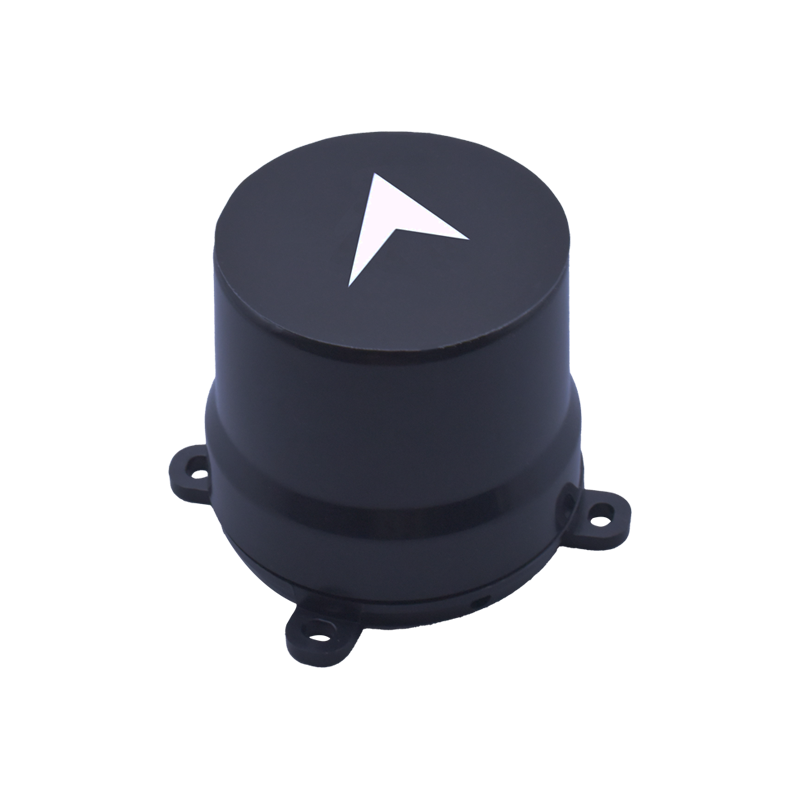

ZED-F9P GNSS/GPS/RTK Module Centimeter-Level with RM3100 Heading & Helix Antenna

Name: ZED-F9P GNSS/GPS/RTK Module Centimeter-Level with RM3100 Heading & Helix Antenna
Brand: Dalang Communication
SKU: AK712RM
Price: 200 USD
Availability: InStock

0.0 (0)

0 Sold

$200.00

Tax excluded

Model：AK712RM
Chip: UBX-F9P
Working frequency band: BDS/GPS/GLONASS/GALILEO/QZSS
Baud rate: 38400 (default)
Update frequency: 1Hz-10Hz (default 1Hz)
Cold start: 26s
Hot start: 2s
Speed accuracy: 0.05m/s
Working voltage: 3~5.5V DC
Power consumption:< 180mW @3.3V
Size: Standard version:φ42*31.2mm
Upgraded version:φ44*40.6mm
Weight: Standard version: 13.2g
Upgraded version: 21g

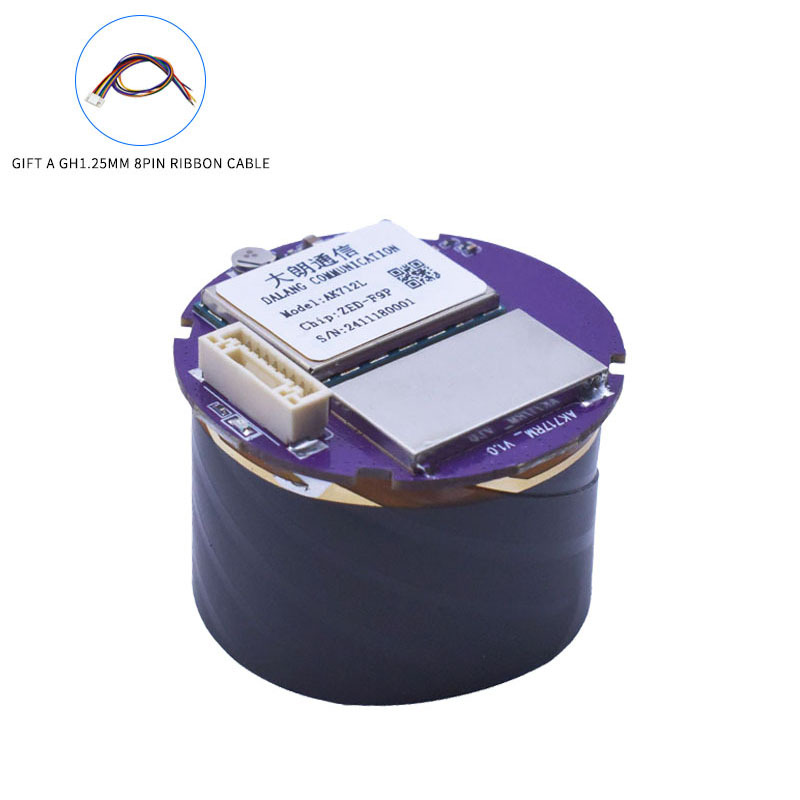

Connector: GH1.25mm 8pin
Compass：RM3100

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

1/1

Description

Product Overview

The AK712RM is a multi-system dual-frequency RTK module integrating BeiDou, GPS, Galileo, and GLONASS, developed based on the UBLOX-F9P platform. It offers a cost-effective, low-power, and high-performance real-time centimeter-level dynamic differential positioning solution. The module supports dual modes as both rover and base station, suitable for high-precision positioning applications such as drones, automotive navigation, and surveying.

Multi-System RTK Positioning with High Dynamic Response

Supports combined RTK calculation from four satellite systems, providing data output up to 10Hz to meet the real-time positioning and trajectory tracking requirements of high-speed mobile platforms.

Flexible Configuration and Strong Compatibility

The module can be flexibly configured as a base station or rover, fully compatible with mainstream flight control systems such as Pixhawk and APM, facilitating integration into various unmanned platforms.

Strong Anti-Interference and Environmental Adaptability

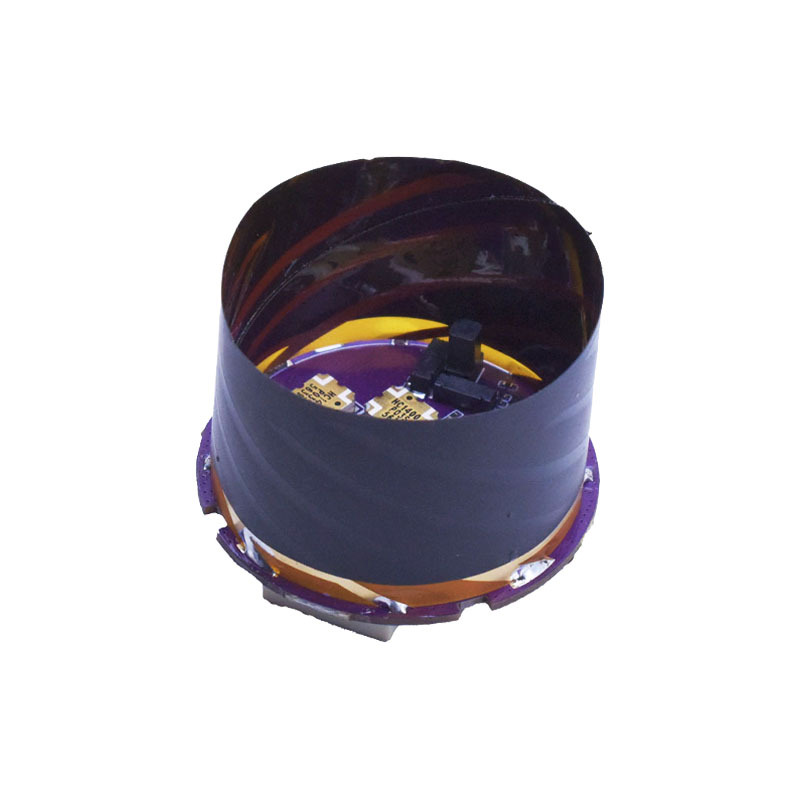

Built-in lightweight quadrifilar helix antenna offers high gain and strong anti-interference capabilities, adapting to complex electromagnetic environments and temperature/humidity variations.

Product Advantages

High-Precision Positioning Performance

RTK horizontal and vertical accuracy reaches 1cm + 1ppm, with static positioning accuracy better than 1cm and dynamic accuracy better than 2cm.

Multi-Band Dual-System Support

Supports frequency points including BDS B1/B2, GPS L1/L2, GLONASS G1/G2, and Galileo E1/E5b, enhancing positioning reliability.

Low Power Consumption and Compact Design

Compact size (Φ44×40.6mm), lightweight (21g), and power consumption below 180mW, suitable for embedded and mobile devices.

Supports Multiple Output Protocols

Supports NMEA0183, RTCM 3.3, and UBX protocols, with adjustable output frequency from 0.25 to 10Hz to meet various application needs.

Looking for a cost-effective centimeter-level positioning module?
The AK712RM provides a stable, flexible, and easy-to-integrate high-precision RTK solution. Contact us for samples and technical documentation.

About Us

DALANG is a dedicated manufacturer of high-performance GNSS modules and RTK positioning solutions, serving industries such as UAV navigation, precision agriculture, and geospatial mapping. With a clear focus on accuracy, reliability, and integration flexibility, we support both standard and custom applications across global markets. Our product lines are engineered to meet the evolving demands of real-time positioning with support for multiple GNSS constellations, including GPS, GLONASS, BDS, and Galileo.

Our production facility spans 2,500㎡ and includes advanced SMT lines, in-house R&D labs, and full functional testing for every unit shipped. With a team of 30+ GNSS engineers, we design and manufacture over 200,000 GNSS receivers and modules annually. Certified to ISO9001:2015, and compliant with CE and RoHS standards, we follow a strict quality assurance process from prototyping through mass production. We also provide firmware updates, system integration support, and full lifecycle product documentation.

Trusted by partners in over 30 countries, DALANG delivers fast, scalable manufacturing with personalized technical support. Our streamlined collaboration model—covering inquiry, consultation, prototyping, and delivery—ensures efficiency from first contact to deployment. Whether you're sourcing off-the-shelf GNSS hardware or launching a customized solution, DALANG is your dependable partner for accurate, cost-effective positioning systems.
