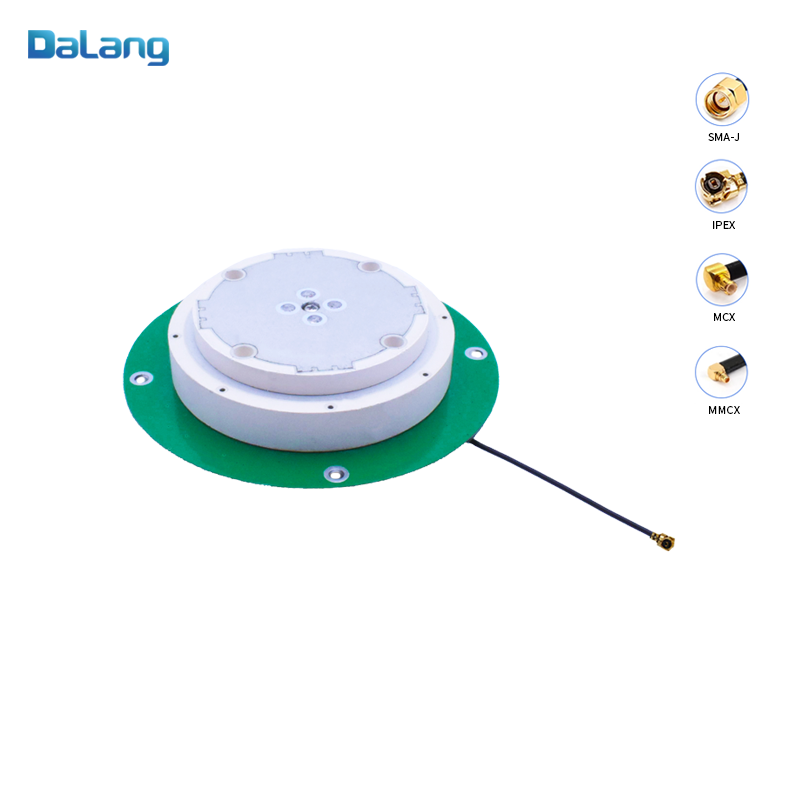

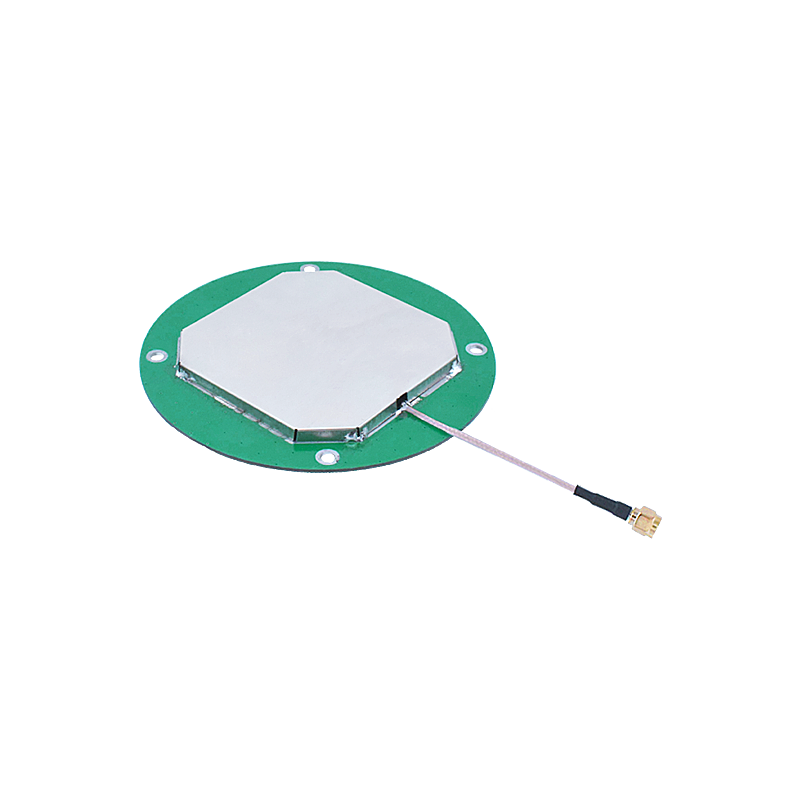

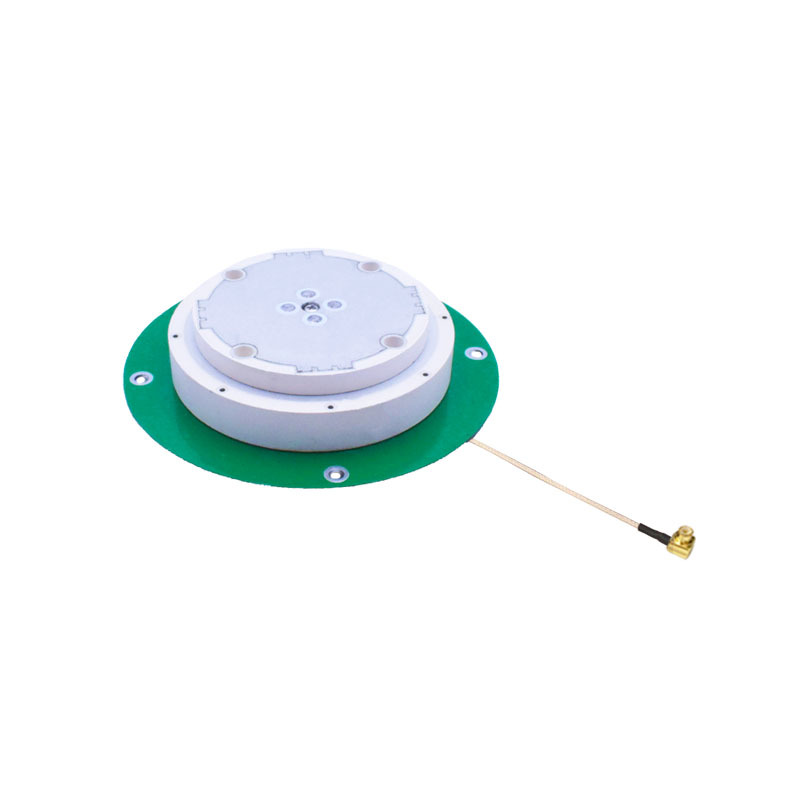

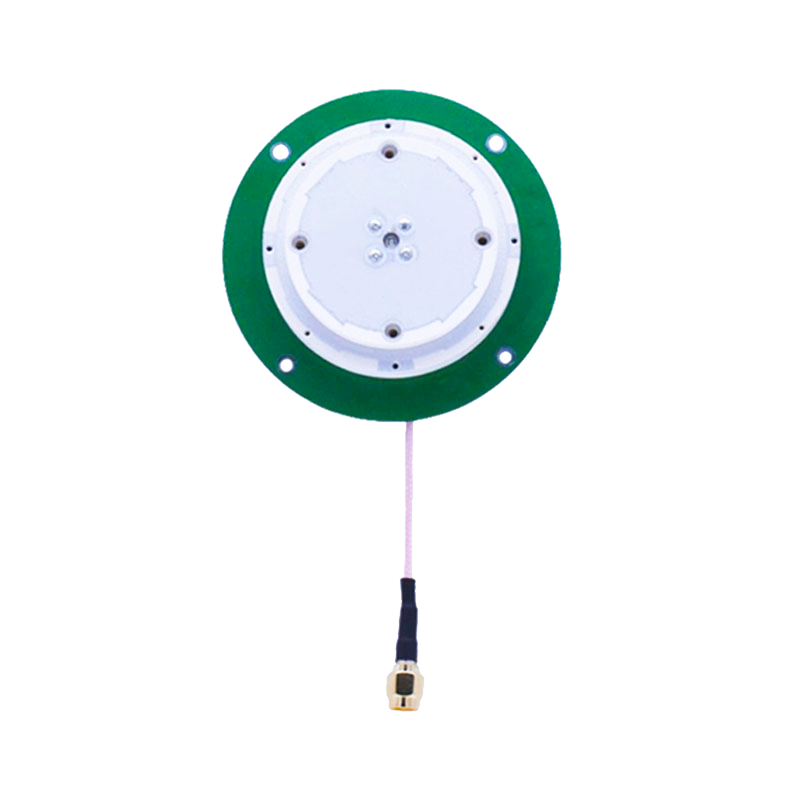

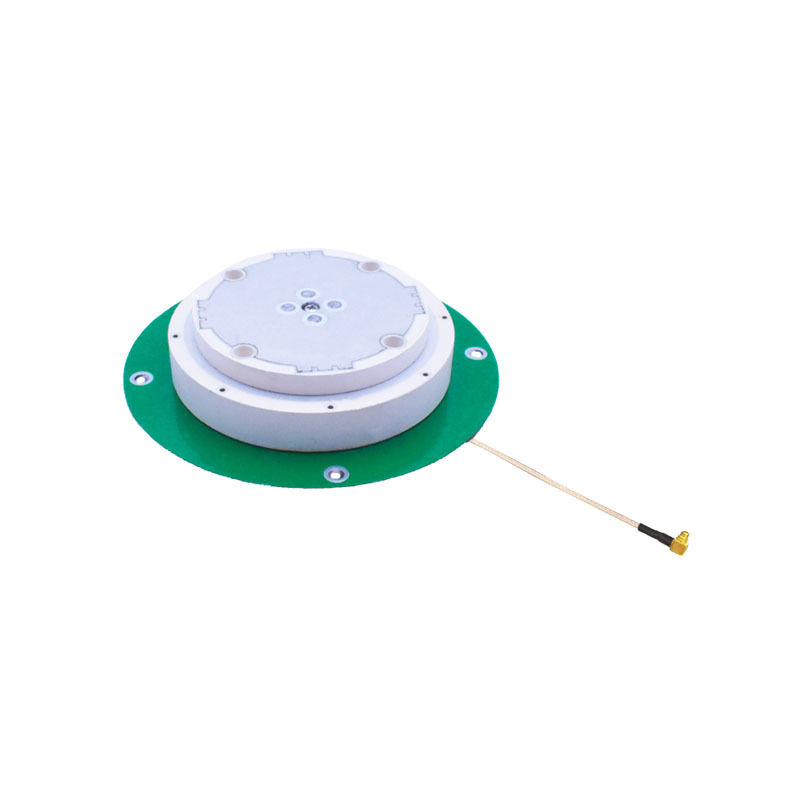

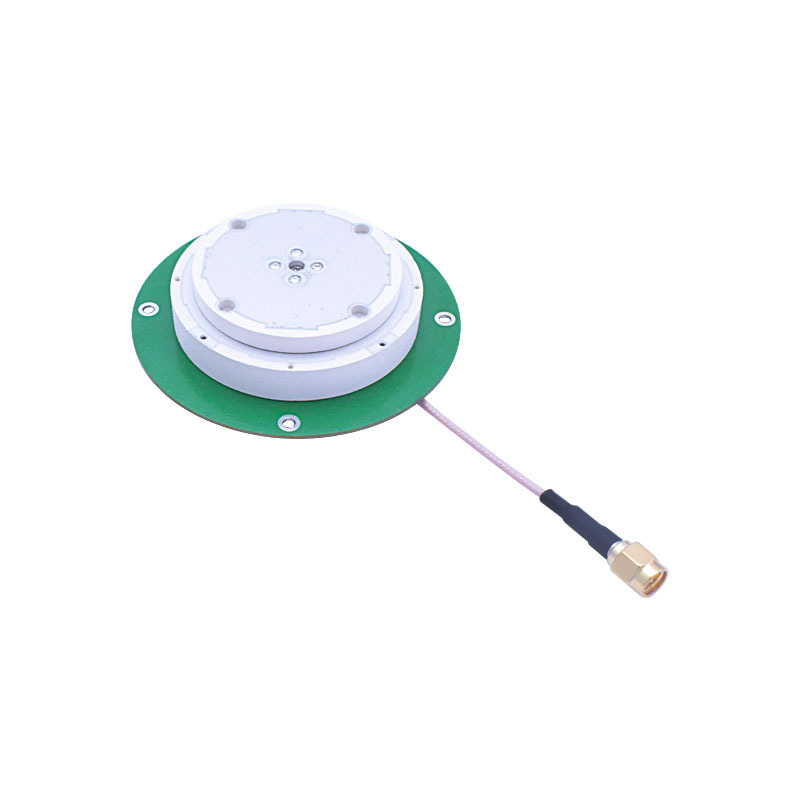

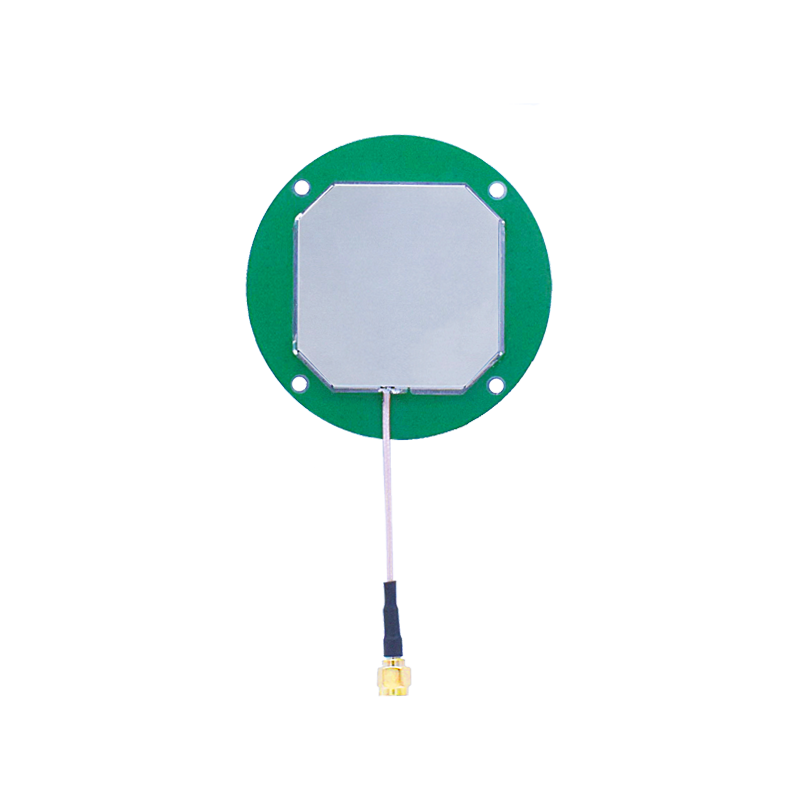

丨 Product Introduction
1. High precision: Multi feed point design optimizes the performance of right-handed circular polarization and phase center, reducing measurement errors.
2. Strong reception: The antenna unit has high gain and small gain roll off, suitable for low elevation satellite signal reception.
3. Optimal impedance: Reactive network path suppression technology reduces the interference of multipath signals on measurement accuracy.
4. Suitable for complex environments: The design ensures good signal reception even in strong occlusion environments.
丨 Specification parameters
|
Specification parameters
|
|
Antenna
characteristics
|
1
|
Usage frequency
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
|
2
|
Antenna specifications
|
GPS,BDS，GLONASS,GALILEO，QZSS
|
|
3
|
Frequency range
|
1197-1278/1559-1612MHz
|
|
4
|
V. S.W.R (standing wave ratio)
|
≤2.0
|
|
5
|
Axial ratio
|
Elevation angle of 90 degrees: ≤ 3, elevation angle of 15 degrees: ≤ five
|
|
6
|
Gain
|
Elevation angle of 90 degrees: ≥ 6, elevation angle of 20 degrees: ≥ 0 plane)
|
|
7
|
Front to back ratio
|
± 60 degrees ≥ 15dB
|
|
8
|
Phase center (mm)
|
<2
|
|
9
|
impedance
|
50Ω
|
|
10
|
Polarization mode
|
RHCP
|
|
LNA
|
1
|
LNA gain
|
38±2dB
|
|
2
|
V. S.W.R
|
＜2
|
|
3
|
figure
|
＜2.0
|
|
4
|
dc power
|
3.3~12V
|
|
5
|
Working current
|
25~40mA
|
|
Mechanical
structure
|
1
|
PCB
|
FR4
|
|
2
|

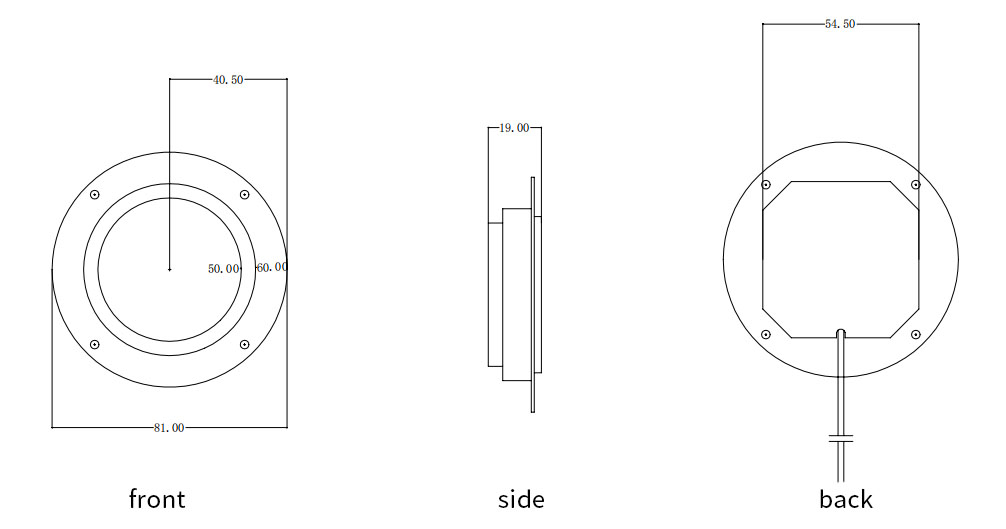

Antenna size
|
81*19mm
|
|
3
|
Product weight
|
94g
|
|
4
|
joint
|
SMA / IPEX / MCX / MMCX (customizable)
|
|
5
|
wire rod
|
RG178 / RG174 / RG1.13(customizable)
|
|
6
|
Line length
|
15cm / 25cm(customizable)
|
|
Environmental
|
1
|
operation temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
storage temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
vibrate
|
Sine sweep frequency @ 1.5mmAM, 10~55Hz per axis
|
丨 product mix

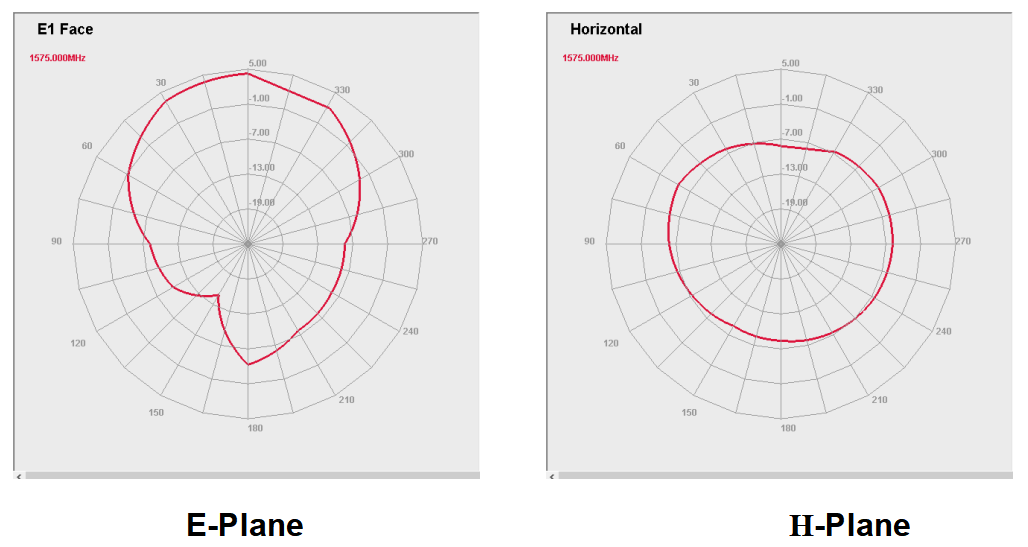

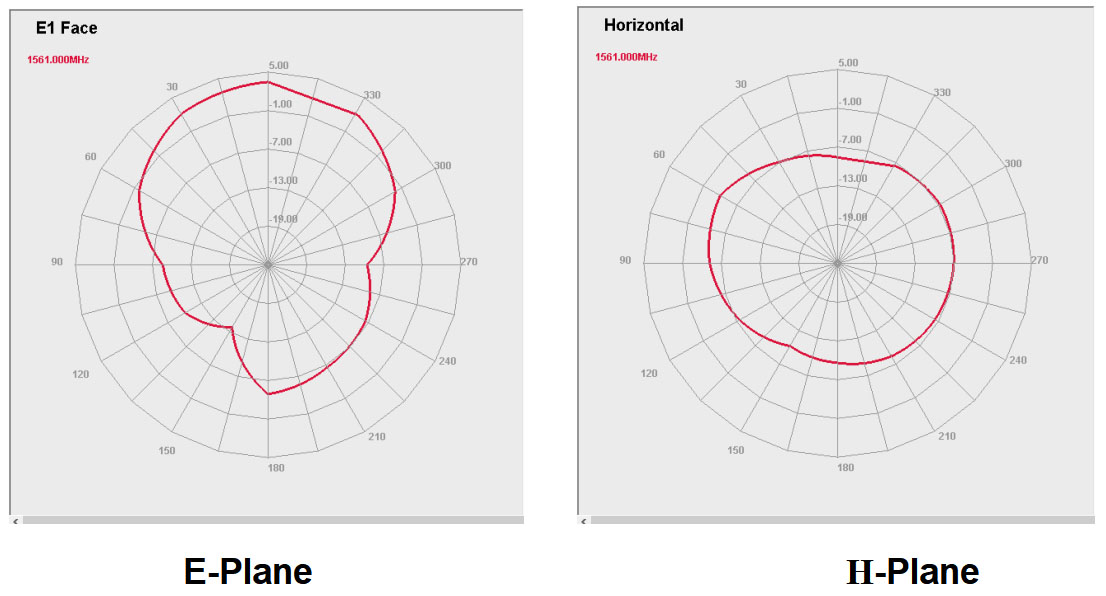

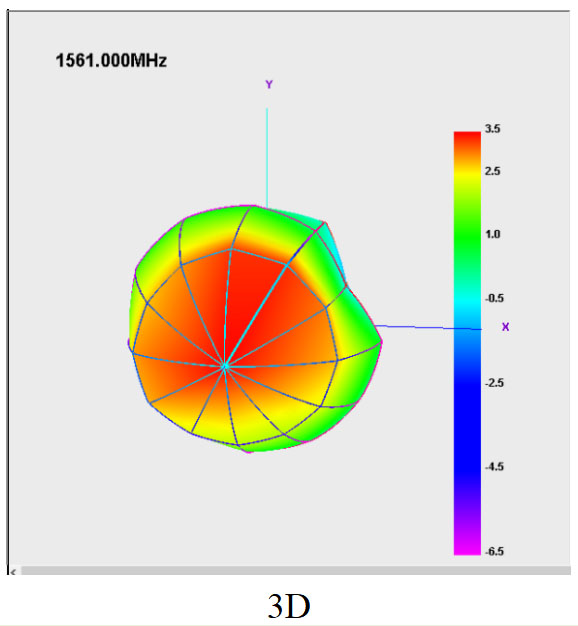

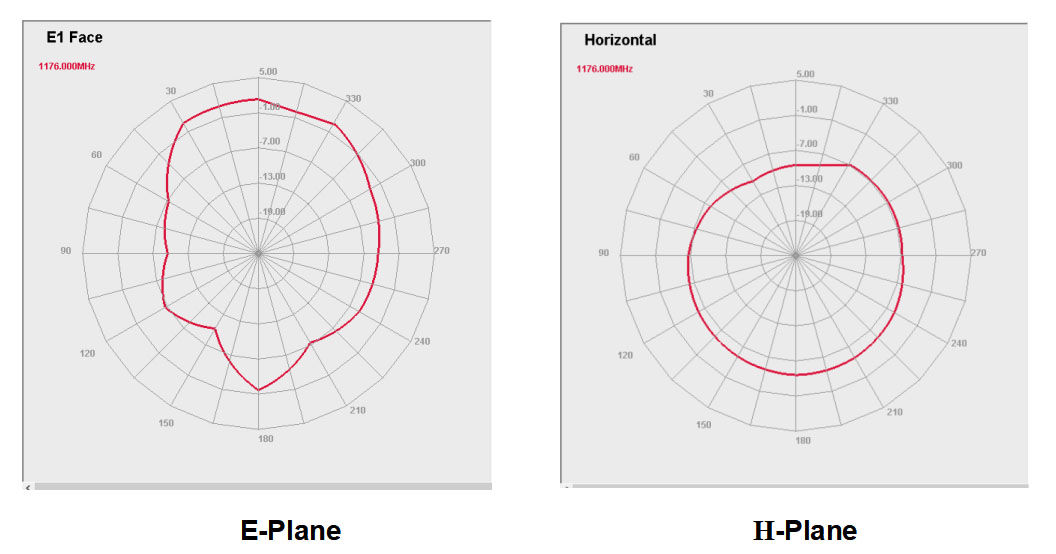

丨 Radiation direction test

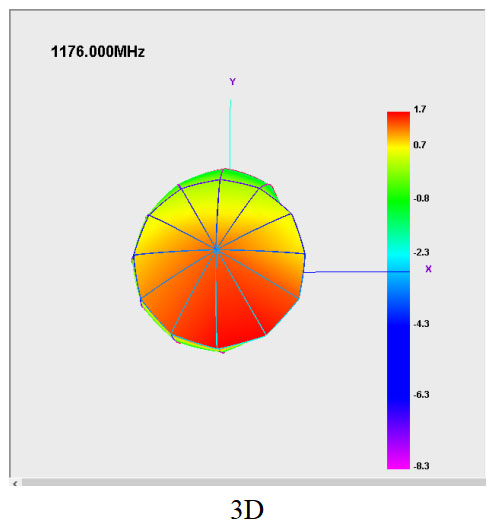

1.1176MHZ(PEAK GAIN:1.7)
2.1561MHZ(PEAK GAIN:3.5)

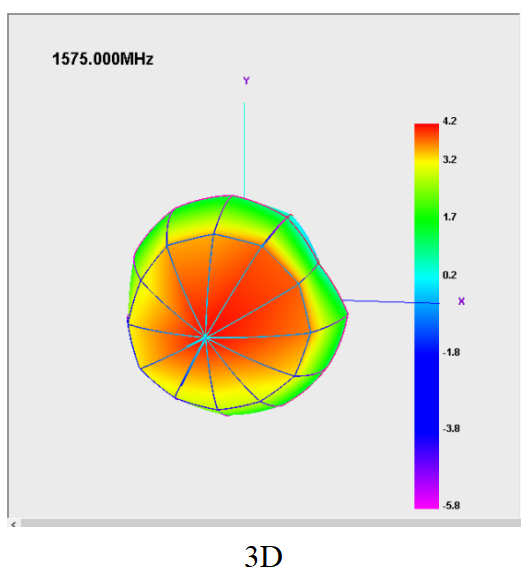

3.1575MHZ(PEAK GAIN:4.2)

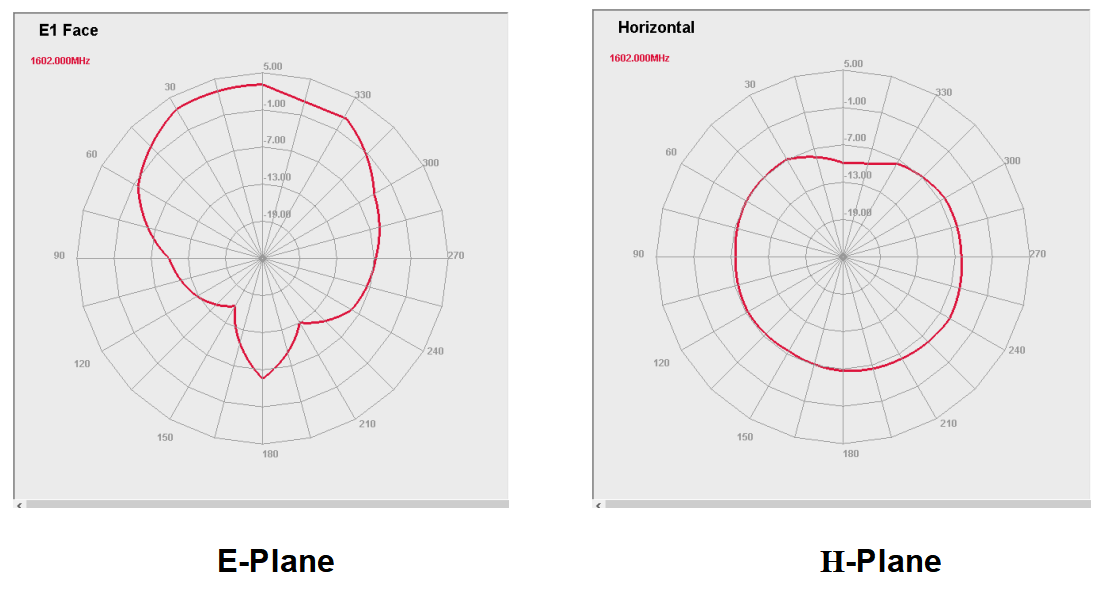

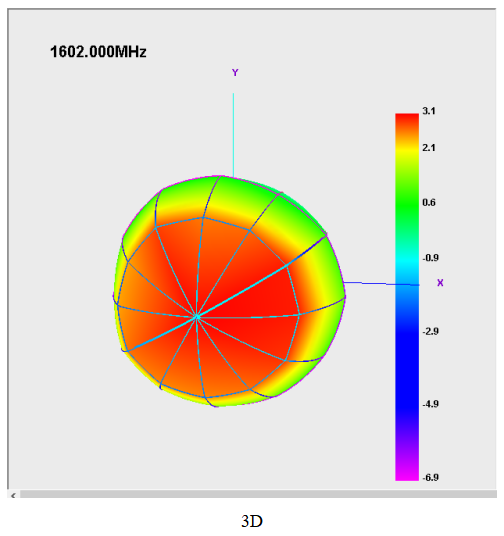

4.1602MHZ(PEAK GAIN:3.1)
