丨 Product Introduction
-
Multi-Arm Helix Antenna: Featuring a multi-arm helix design, achieves efficient right-hand circular polarization, optimizes signal reception, stabilizes the phase center, and enhances positioning accuracy.
-
Gain Characteristics: Offers high gain with minimal gain roll-off, excellent reception of low-elevation signals, and improved signal stability and coverage.
-
Low-Noise Amplification: Equipped with a refined amplifier featuring strong external suppression, reduces noise, amplifies signals, resists interference, and facilitates reception of weak signals.
-
Portable and Easy to Install: Compact and lightweight, highly portable and easy to install, suitable for mobile and rapid deployment scenarios.
丨 Specifications
|
Specifications
|
|
Electrical Characteristics
|
1
|
Operating Frequency
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
|
2
|
Antenna Specifications
|
GPS, BDS，GLONASS,GALILEO，QZSS
|
|
3
|
Frequency Range
|
1170-1278/1559-1612MHz
|
|
4
|
V.S.W. R
|
≤2.0
|
|
5
|
Axial Ratio
|
Elevation at 90 degrees: ≤ 3 dB, Elevation at 15 degrees: ≤ 5 dB
|
|
6
|
Gain
|
Elevation at 90 degrees: ≥ 6 dB, Elevation at 20 degrees: ≥ 0 dB
|
|
7
|
Front to back Power
|
±60 degrees: ≥ 15 dB
|
|
8
|
Phase Center（mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
11
|
Out-of-Band Suppression
|
1268+100MHZ≥50db,
1170-100MHZ≥50db，
1602+100MHZ≥50db,
1561-100MHZ ≥50db.
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
|
3
|
Noise Figure
|
＜2.0
|
|
4
|
DC Voltage
|
3.3~12V
|
|
5
|
Current
|
＜35 mA
|
|
Mechanical
Structure
|
1
|
Part Name
|
SPEC
|
|
2
|
Antenna
|
FPC
|
|
3
|
Installation Method
|
Through Connector
|
|
4
|
Antenna Dimensions
|
Φ41*31mm
|
|
5
|
Product Weight
|
15.4g
|
|
6
|
RF Output Interface
|
MMCX(Customizable)
|
|
7
|
wire rod
|
RG178(Customizable)
|
|
8
|
Line length
|
150mm(Customizable)
|
|
9
|
Antenna Housing
|
ABS+PC
|
|
10
|
PCB Board
|
FR4
|
|
Environmental
Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Humidity
|
Sine sweep @1.5mmAM 10~55Hz each Axis
|
|
4
|
Vibration Resistance
|
95％ No-condensing
|

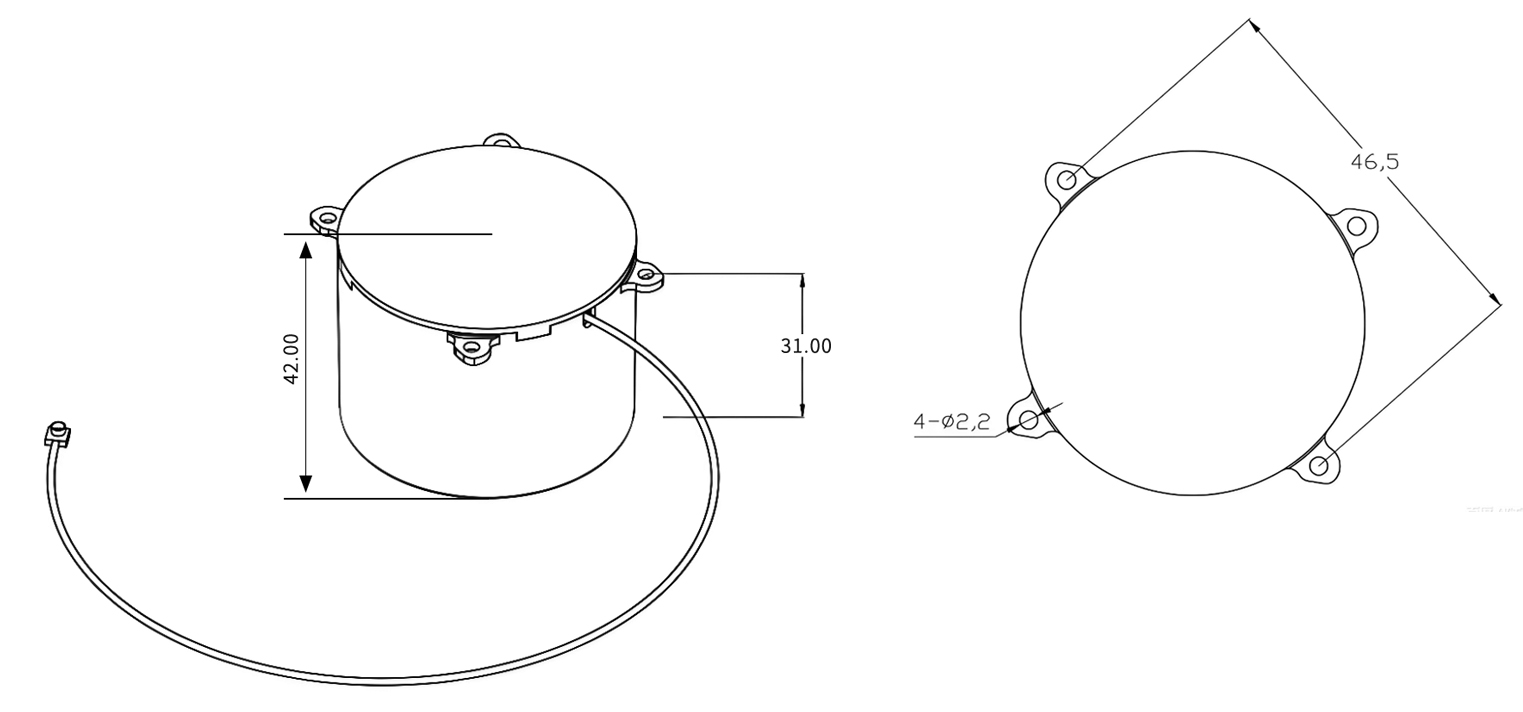

丨 Product Structure
Packaging and Delivery：

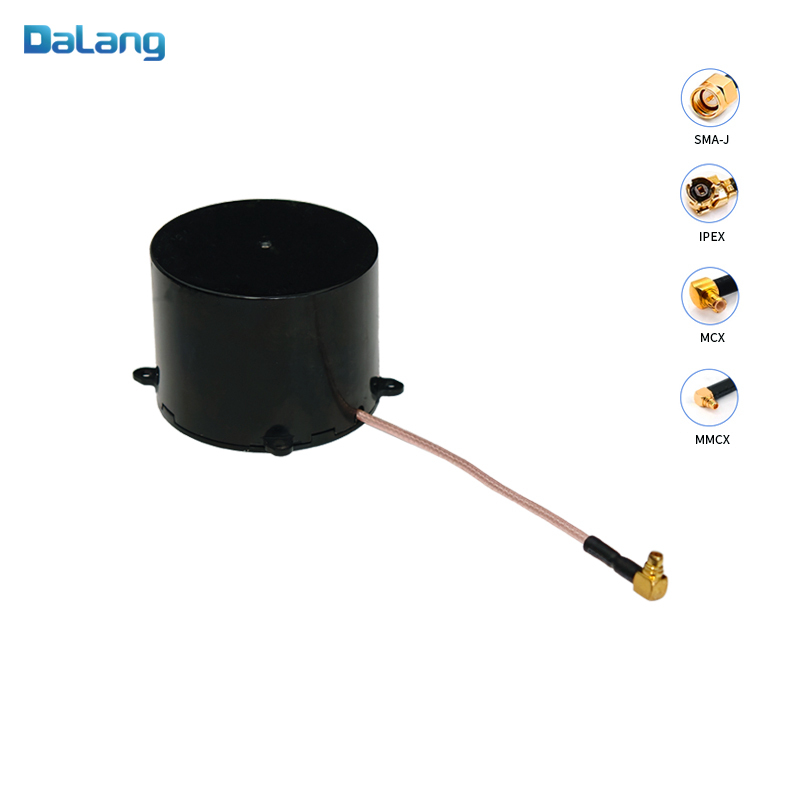

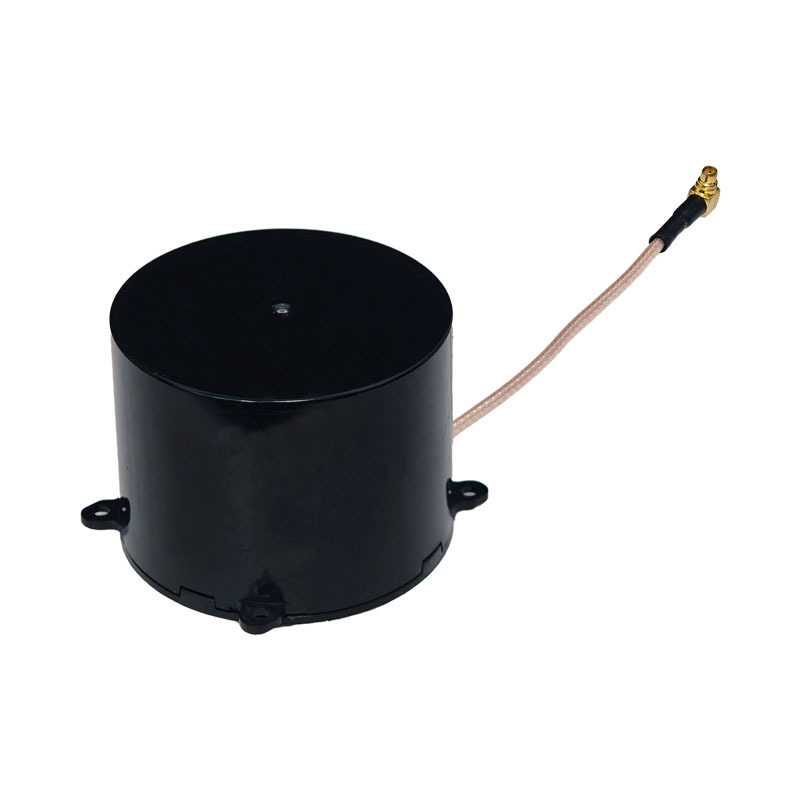

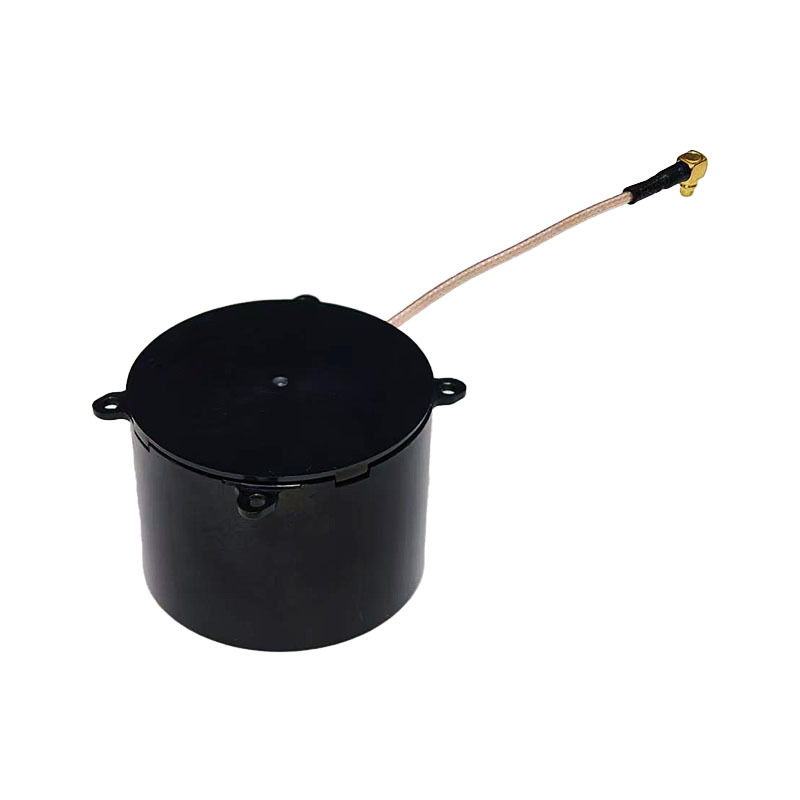

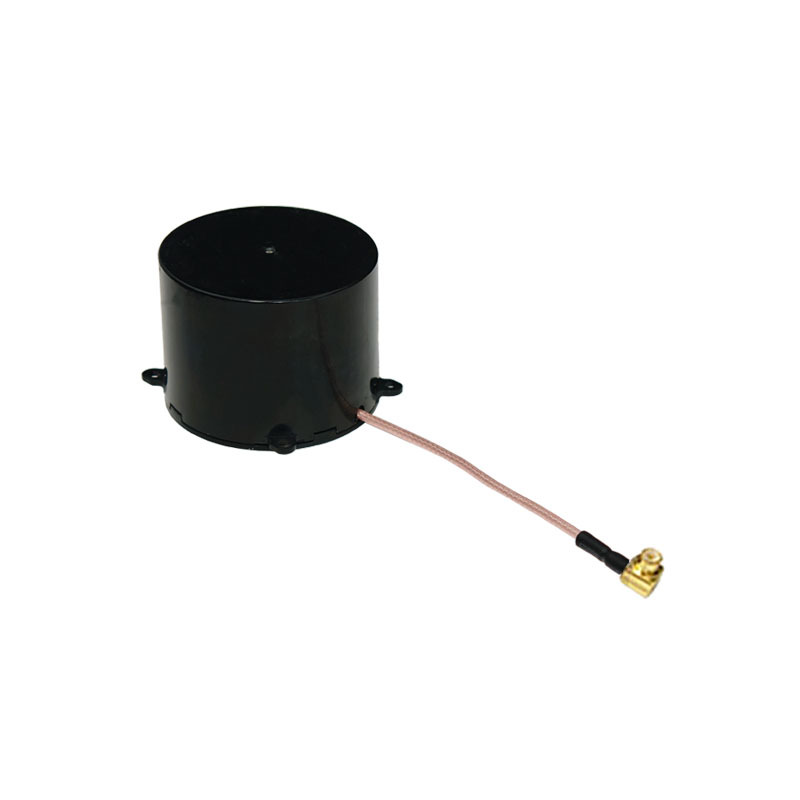

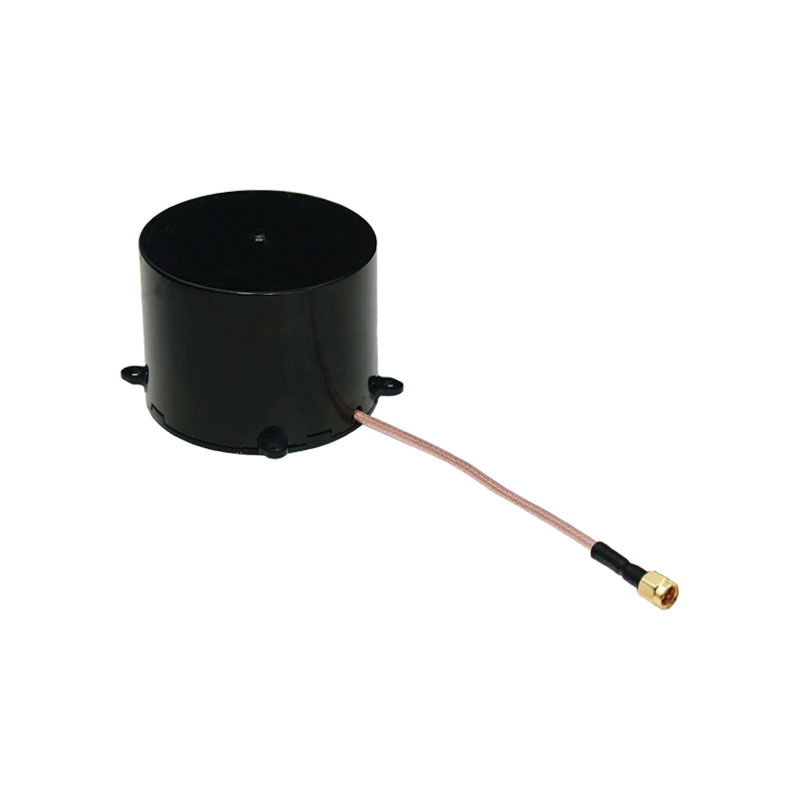

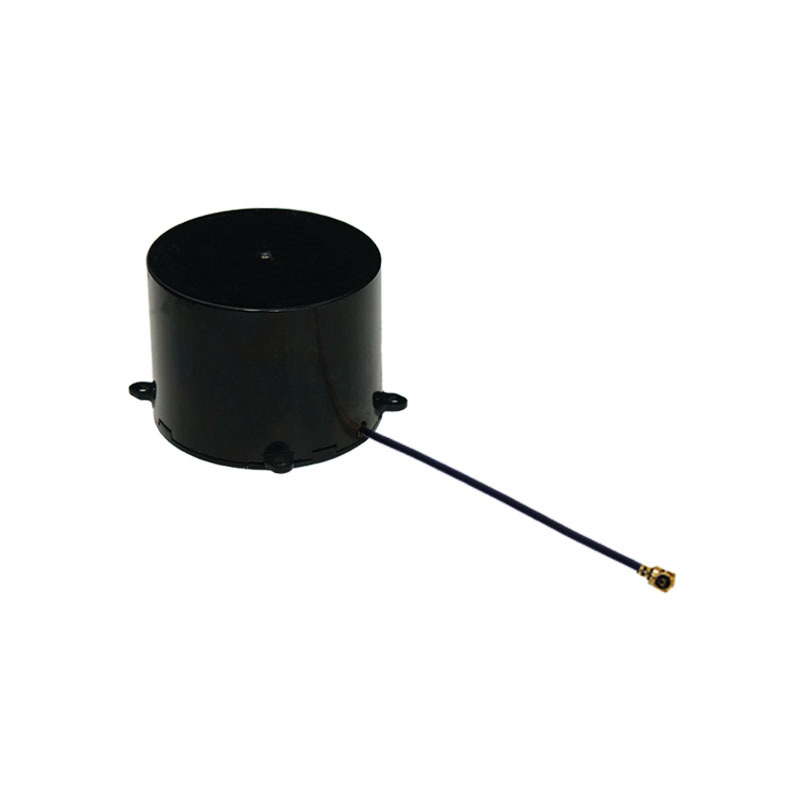

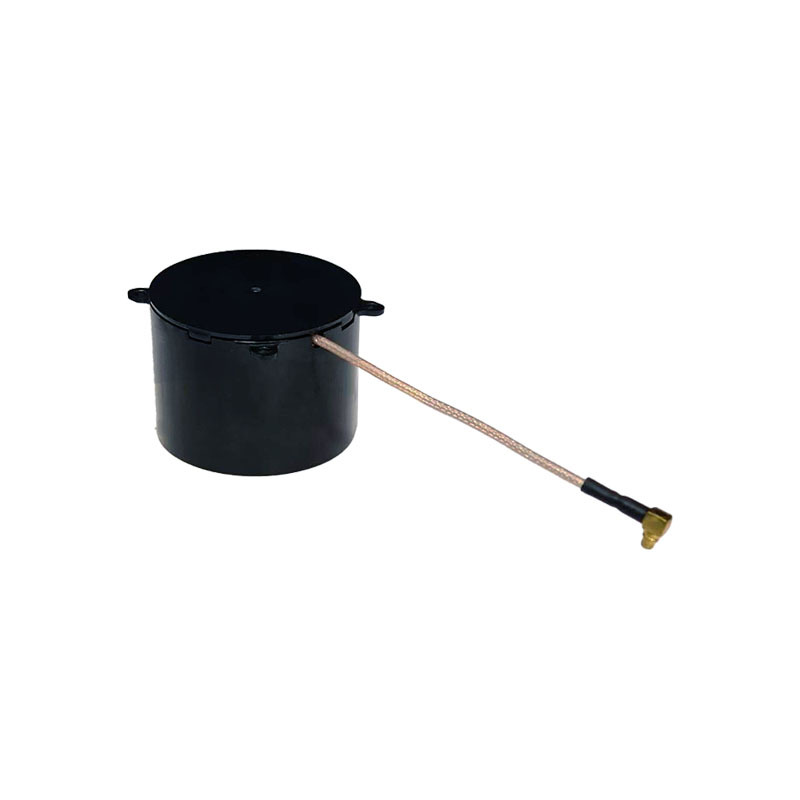

Ultra-Compact High-Precision GNSS Antenna — DALANG AK711
The DALANG AK711 is an ultra-compact high-performance GNSS antenna featuring multi-feed point and optimized structural design. It supports BeiDou, GPS, GLONASS, and Galileo systems, capable of receiving L1, L2, and L5 multi-band signals. With a built-in low-noise amplifier and dual-stage filter system, it delivers excellent signal quality and anti-interference performance within a limited space, making it suitable for space-constrained high-precision applications such as UAVs, handheld devices, and vehicle navigation.
Ultra-Compact and Lightweight for Easy Integration
With dimensions of only Φ41×31mm and a weight of just 15.4g, the antenna utilizes an FPC structure and MMCX interface, with customizable cables and lengths, making it ideal for integration into size- and weight-sensitive devices.
Multi-System and Multi-Band for Comprehensive Reception
Supports multiple systems including BeiDou, GPS, GLONASS, and Galileo, with operating frequency bands covering 1170-1278MHz and 1559-1612MHz, offering excellent signal compatibility and reception stability.
High Gain with Low Gain Roll-Off for Complex Environments
The antenna features high gain characteristics while maintaining good reception performance even at low elevation angles, suitable for reliable positioning in obstructed environments such as urban areas and forests.
Low-Noise High-Gain Amplifier for Enhanced Signal Quality
The built-in low-noise amplifier, combined with good out-of-band suppression, effectively reduces noise interference and enhances weak signal reception capability, suitable for high-interference application scenarios.
Key Features
-
Ultra-compact design, small size and light weight
-
Supports BeiDou/GPS/GLONASS/Galileo multi-systems
-
Receives L1/L2/L5 multi-band signals
-
Built-in low-noise amplifier and filter
-
Adaptable to complex electromagnetic environments with stable signal reception
If you are selecting a high-performance compact antenna for UAVs, handheld terminals, or vehicle equipment, the DALANG AK711 provides reliable multi-system, multi-band signal reception support.
