丨 Product Introduction
1. Multi satellite positioning: Supports multiple satellite systems for precise positioning.
2. High speed update: 25Hz position update rate, fast response.
3. Excellent anti-interference: It has anti-interference and fraud detection capabilities, and stable performance.
4. Reliable work: wide temperature operation, rigorously tested, high stability.
丨 Specification parameters
|
Chip
characteristics
|
chip
|
UBLOX-M9140-KB
|
|
working frequency
|
GPS L1 C/A,
QZSS L1 C/A/S,
GLONASS L1OF,
BeiDou B1I,
Galileo E1B/C,
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
|
|
Receiving channel
|
92 channels,
|
|
Sensitivity
|
track
|
-167 dBm
|
|
Re capture
|
-160 dBm
|
|
cold boot
|
-148 dBm
|
|
Hot start
|
-159 dBm
|
|
First positioningtime TTFF
|
cold boot
|
24s
|
|
Hot start
|
2s
|
|
Re capture
|
2s
|
|
Accuracy
|
Horizontal
Accuracy
|
1.5m CEP (with SBAS)
|
|
2.0m CEP (without SBAS)
|
|
time pulse
|
RMS :30ns
|
|
99% : 60ns
|
|
Speed accuracy
|
0.5m/s
|
|
Operation
restrictions
|
Gravity acceleration limit
|
≤ 4 g
|
|
height restrictions
|
80,000 m
|
|
speed limit
|
500 m/s
|
|
Output data
|
Baud rate
|
38400bps (default)
|
|
Output Protocol
|
NMEA0183
|
|
update frequency
|
0.25Hz-25Hz (default 1Hz)
|
|
Carrier phase output
|
Support, output RAWX statement
|
|
FLASH
|
built-in
|
|
Electrical
specifications
|
working voltage
|
3.3V-5V DC
|
|
power waste
|
<100mW
|
|
Physical
parameters
|
size
|

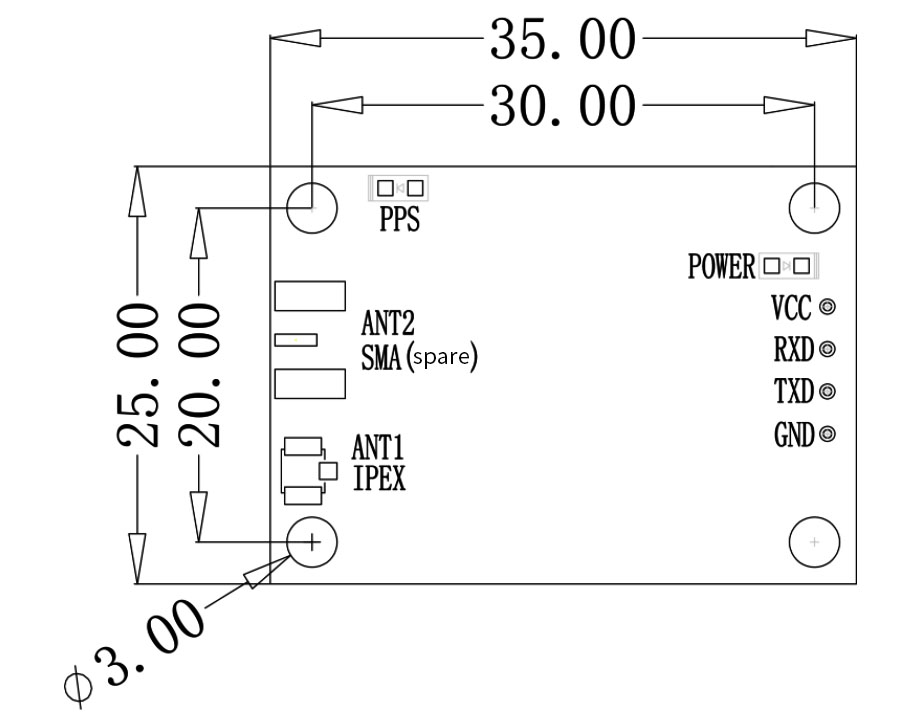

35*25*4mm
|
|
weight
|
3.8g
|
|
Connector
|
2.54mm pin socket * 4
|
|
Antenna connector
|
IPEX
|
|
Environment
|
working temperature
|
-40℃-85℃
|
|
Storage temperature
|
-40℃-85℃
|
丨 product mix

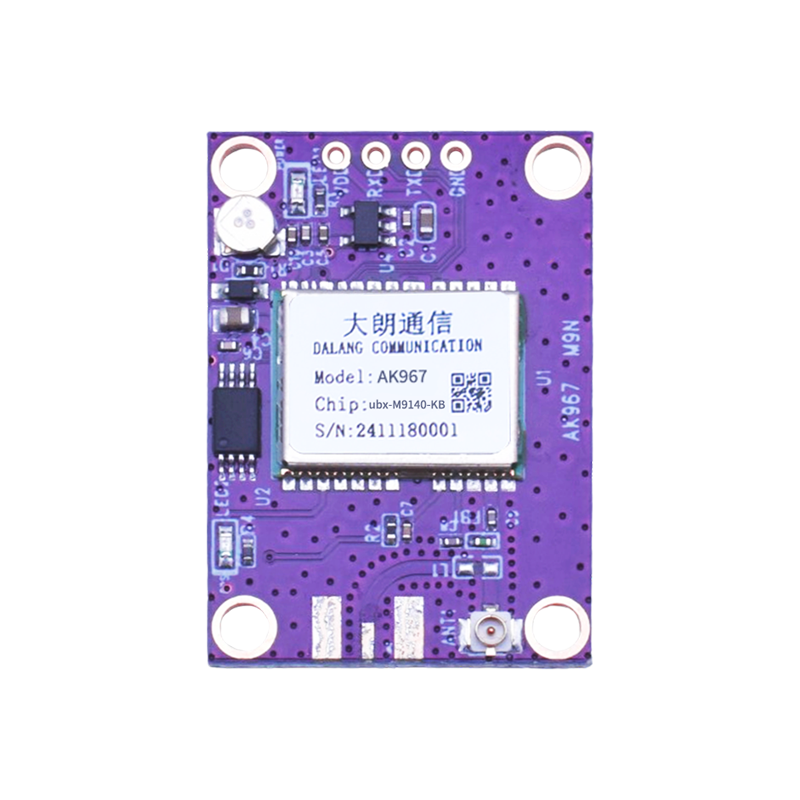

Table 1 PIN pin functions
|
Pin Number
|
Signal Name
|
Signal Description
|
|
1
|
VCC
|
Main Power Input 3.0-5.5V for COM1
|
|
2
|
RXD
|
Receive Data Pin used to receive data sent from other devices
|
|
3
|
TXD
|
Transmit Data Pin used to send data to other devices
|
|
4
|
GND
|
Ground Pin used as a common electrical reference point
|
|
LED
Indicators
|
1
|
POWER
|
POWER - Indicates power supply status
|
|
2
|
PPS
|
PPS - Pulse Per Second (PPS) output, flashes when positioned to indicate second pulse output
|
Table 2 Interface Characteristics
|
NO.
|
Name
|
Symbol
|
Minimum value
|
Typical values
|
Maximum value
|
Unit
|
|
1
|
Main power supply
|
Vcc
|
2.7
|
3.3
|
5.0
|
V
|
|
3
|
RF port feeding
|
VRF
|
3.0
|
3.1
|
3.3
|
V
|
|
4
|
Input high level
|
VIH
|
2.0
|
|
|
V
|
|
5
|
Input low level
|
VIL
|
|
|
0.7
|
V
|
|
6
|
Output high level
|
VOH
|
3.2
|
|
|
V
|
|
7
|
Input low level
|
VOL
|
|
|
0.1
|
V
|
|
8
|
Main serial port baud rate
|
Baud
|
|
38400
|
|
bps
|
Industrial-Grade Satellite Positioning Board for Multi-Scenario Use

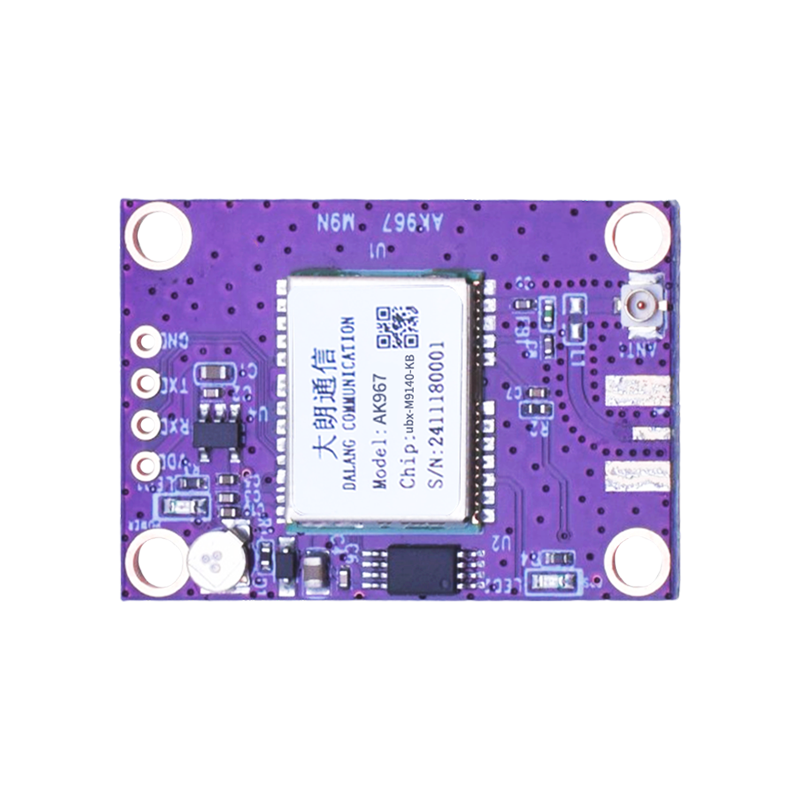

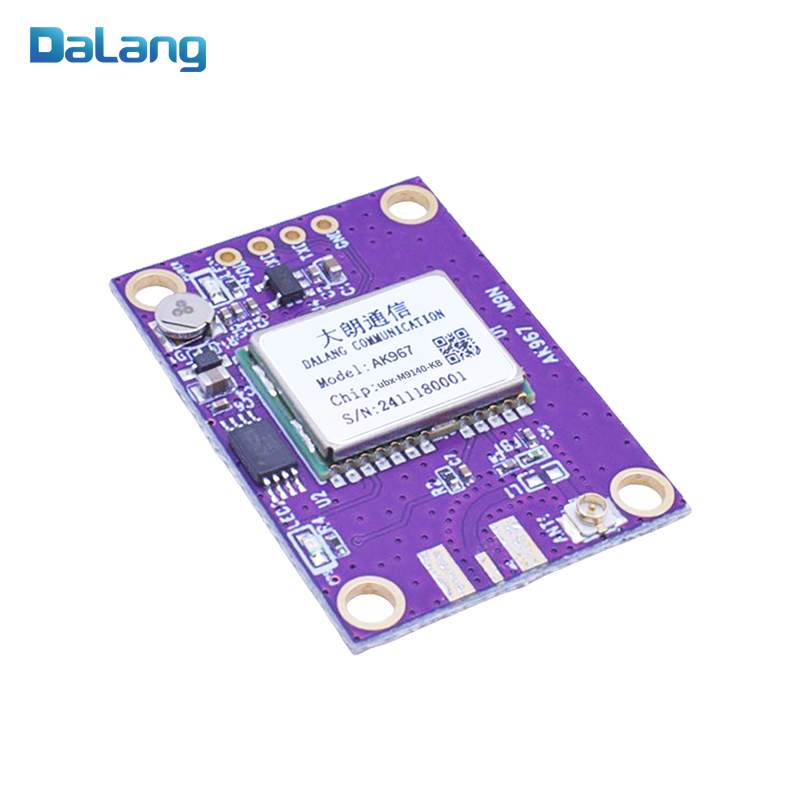

The DALANG AK967 Circuit Board is equipped with the UBX-M9140-KB module, fully compatible with four major satellite systems (GPS, Beidou, GLONASS, Galileo). Adopting an industrial-grade design and advanced algorithms, it operates stably in harsh temperatures ranging from -40℃ to +85℃, making it a reliable positioning choice for IoT, precision agriculture, industrial monitoring, and other fields.
Strong Signal Reception with Concurrent Multi-Constellation
AK967 can receive signals from four satellite navigation systems simultaneously. Combined with a SAW filter and Low Noise Amplifier (LNA), it not only suppresses RF interference but also improves positioning accuracy and availability in complex environments such as urban high-rises and mountainous obstructions. It also has a built-in deception detection algorithm to ensure the authenticity and security of positioning data.
High Real-Time Adaptability for Dynamic Scenarios
This board offers a maximum positioning update frequency of 25Hz, with a horizontal positioning accuracy (with SBAS) of up to 1.5 meters. Its low-latency feature is suitable for dynamic scenarios such as UAVs and autonomous driving, meeting the real-time requirements of system control.
Wide Temperature Range and High Scalability Design
AK967 operates in a temperature range of -40℃ to +85℃, enabling stable operation in high/low temperature and strong electromagnetic interference environments. It is compatible with the M9 series for easy function expansion.
Product Advantages
Multi-System Compatibility + Anti-Interference & Anti-Deception
Access to four satellite systems simultaneously, paired with hardware filtering and malicious signal detection, ensures accurate and secure positioning in complex environments.
High Update Rate + Meter-Level Accuracy
25Hz update frequency adapts to dynamic scenarios; 1.5m horizontal accuracy (with SBAS) meets the needs of smart cities, precision agriculture, etc.
Wide-Temperature Industrial Stability
Operating temperature of -40℃ to +85℃, suitable for long-term operation in harsh scenarios such as outdoor and industrial environments.
Flexible Expansion
Compatible with the M9 series, reducing upgrade costs.
Need an industrial-grade high-stability positioning solution? Choose the DALANG AK967 Circuit Board now to upgrade your device with reliable satellite positioning capabilities!
