丨 Product Introduction
1. High gain and strong reception: Built in LNA amplifies weak signals, enhancing antenna gain and reception sensitivity.
2. Anti interference stability: LNA has a low noise figure, suppresses background noise, and is resistant to electromagnetic and radio frequency interference.
3. High miniaturization and integration: Small size, light weight, easy to integrate into electronic devices such as smartphones that require high space.
丨 Specification parameters
|
Specification parameters
|
|
Electrical
characteristics
|
1
|
antenna model
|
GNSS antenna
|
|
2
|
Antenna size
|
40*40*4mm
|
|
3
|
Usage frequency
|
GPS：L1:1575.42±1.023MHZ
GLONASS：L1:1602+0.5625MHz
BDS: B1:1561±1.023MHz
GALILEO：E1:1575
|
|
4
|
Gain
|
32±2dB
|
|
5
|
V.S.W.R
|
≤2
|
|
6
|
impedance
|
20Ω
|
|
7
|
Polarization mode
|
RHCP
|
|
8
|
voltage
|
DC 3~5V
|
|
9
|
electric current
|
15~25mA
|
|
Mbom
|
1
|

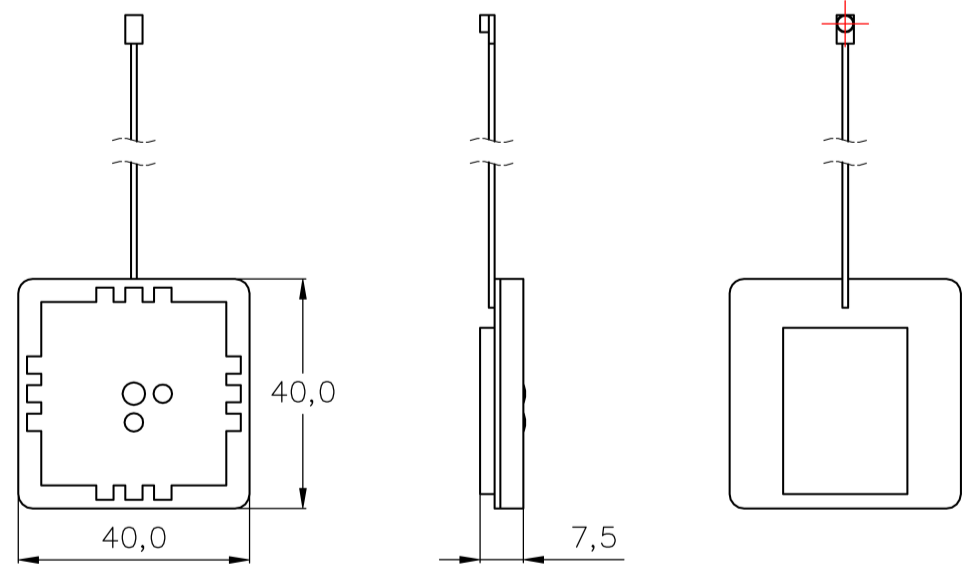

Overall size (mm)
|
40*7.5mm
|
|
2
|
Product weight
|
15g
|
|
3
|

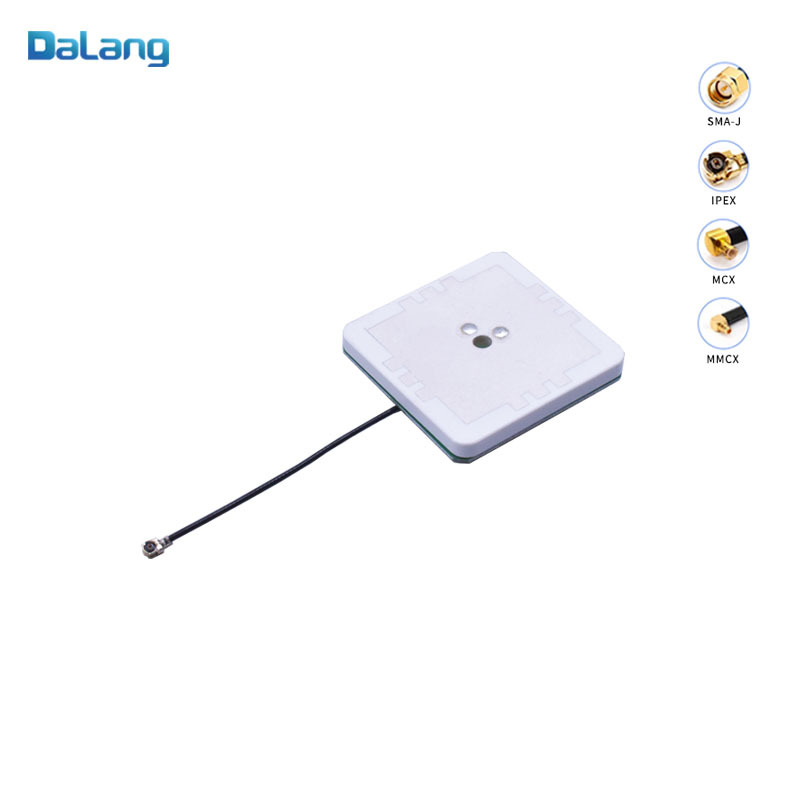

joint
|
IPEX / SMA / MCX / MMCX(Customizable)
|
|
4
|
wire rod
|
RG1.13 / RG178(Customizable)
|
|
5
|
Line length
|
150mm / 250mm(Customizable)）
|
|
6
|
PCB
|
FR4
|
|
Environmental
|
1
|
work environment
|
-40℃~+85℃，10%~95%RH
|
|
2
|
Environment
|
-55℃+100℃，10%95%RH
|
|
3
|
humidity
|
10％~95％
|
Packaging and Delivery：
Product AdvantagesInnovative Compact Design and Flexible IntegrationThe antenna’s ceramic structure combined with multiple connector configurations offers a design that easily fits into constrained spaces without sacrificing performance. Its built-in low-noise amplifier reduces external module complexity while improving signal reception quality. The compact 40×40×7.5 mm footprint suits diverse PCBs and vehicle device layouts. This modular flexibility enables system manufacturers to customize line lengths and connection types according to specific use requirements. Offering robust environmental resistance, the antenna withstands automotive temperature and humidity ranges, making it a dependable vehicle gps antenna for sale that supports long-term deployment in varied operating conditions.Reliable Signal Performance and User-Friendly OperationEquipped with a high-gain low-noise amplifier, this low noise gps antenna delivers superior sensitivity even in challenging signal environments. Its low power requirement extends operational life in battery-sensitive applications. Users benefit from enhanced positioning accuracy and fewer dropped signals, ensuring stable navigation and tracking. The antenna’s compatibility with multiple GNSS systems broadens its usability for different regional and technical standards, making it perfect for engineers and end users wanting to buy gps antenna online with assured quality and consistent real-world performance.Use ScenariosIntegration in Automotive Navigation SystemsIn automotive environments, this antenna enables reliable GNSS positioning crucial for vehicle navigation systems and telematics modules. Its compact ceramic design fits within dashboard assemblies and peripheral devices where space is limited. The built-in low-noise amplifier enhances weak signals common in urban canyons or tunnels, maintaining accurate positioning to support navigation, safety alerts, and in-vehicle infotainment. Compatible with standard automotive connectors, the antenna integrates smoothly into existing electronic control units and assists fleet operators with real-time vehicle tracking, improving route management and operational efficiency using a purpose-built active gps antenna for vehicle navigation.Deployment in IoT and Wearable GNSS DevicesFor IoT gateways, asset trackers, and wearable GNSS applications, this antenna delivers precise location data within small form factors. Its low power consumption and compact size make it ideal for battery-operated devices and compact telematics units deployed in smart agriculture, logistics, or mobile robotics sectors. Embedded into tightly constrained electronics, it ensures minimal signal loss and enhanced reception across key GNSS bands, enabling continuous data collection in remote or obstructed areas. This flexible ceramic gnss gps antenna can be customized with various connector types and line lengths to match diverse PCB layouts, facilitating efficient integration across a wide array of intelligent systems.FAQWhat types of connectors are available for your ceramic GNSS GPS antenna?We offer multiple connector options for our ceramic GNSS GPS antenna, including IPEX, SMA, MCX, and MMCX. These customizable connectors ensure easy PCB integration and compatibility with various vehicle navigation and IoT devices, helping you choose the best fit for your application.Can I customize the cable length for the low noise GPS antenna?Yes, we provide customizable line lengths typically at 150 mm or 250 mm for our low noise GPS antenna. This flexibility allows you to optimize installation in compact or space-constrained vehicle navigation systems or IoT terminals while maintaining strong signal performance.How do you ensure the durability of your vehicle GPS antenna for sale in harsh environments?Our vehicle GPS antenna for sale is designed to operate reliably between -40°C and +85°C and withstand up to 95% relative humidity. This robust environmental rating ensures stable GNSS reception in automotive, wearable, and industrial IoT applications where conditions may vary.Is the built-in low-noise amplifier beneficial for small devices requiring high sensitivity?Absolutely, our active GPS antenna for vehicle navigation includes a built-in low-noise amplifier that boosts weak GNSS signals. This improves reception sensitivity and positioning accuracy, especially useful in small devices or cramped enclosures where signal strength is often limited.
