丨 Product Introduction
1. Multi mode: compatible with multiple positioning systems such as Beidou, adapting to the environment.
2. High speed: 25Hz data output, fast dynamic response.
3. Anti interference: Low noise RF circuit, clear signal acquisition.
4. Easy integration: Suitable for mainstream flight controllers, easy to integrate.
丨 Specification parameters
|
Chip
characteristics
|
Chip
|
UBX-M9140-KB
|
|
Operating Frequency
|
GPS L1 C/A,
QZSS L1 C/A/S,
GLONASS L10F
BeiDou B1I,
Galileo E1B/C
SBAS L1
C/A: WAAS,EGNOS,MSAS, GAGAN
|
|
Reception Channels
|
92 channels, u-blox M9 engine
|
|
Sensitivity
|
Tracking
|
-167 dBm
|
|
Reacquisition
|
-160 dBm
|
|
Cold Start
|
-148 dBm
|
|
Hot Start
|
-159 dBm
|
|
Time to First Fix (TTFF)
|
Cold Start
|
24s
|
|
Hot Start
|
2s
|
|
Reacquisition
|
2s
|
|
Accuracy
|
Horizontal Accuracy
|
1.5m CEP (with SBAS)
|
|
2.0m CEP (without SBAS)
|
|
Velocity Accuracy
|
0.2m/s
|
|
Pulse Per Second (PPS) Accuracy
|
RMS：30ns
|
|
99% ：60ns
|
|
Output Data
|
Baud Rate
|
38400bps (default)
|
|
Output Interface
|
TTL
|
|
Output Protocol
|
NMEA0183
|
|
Update Rate
|
Default 1Hz(Up to 25 Hz (4 concurrent GNSS))
|
|
Carrier Phase Output
|
Supported, outputs RAWX sentences
|
|
FLASH
|
Built-in
|
|
Environment
|
Operating Temperature
|
-40℃-85℃
|
|
Storage Temperature
|
-40℃-85℃
|
|
Electrical
Specifications
|
Operating Voltage
|
2.7V-3.6V DC
|
|
Power Consumption
|
<100mW
|
|
Physical
Parameters
|

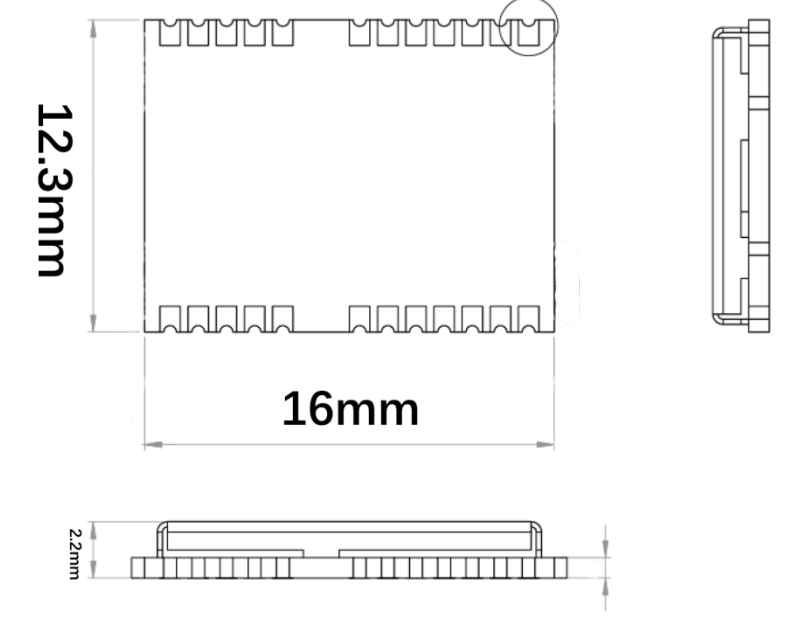

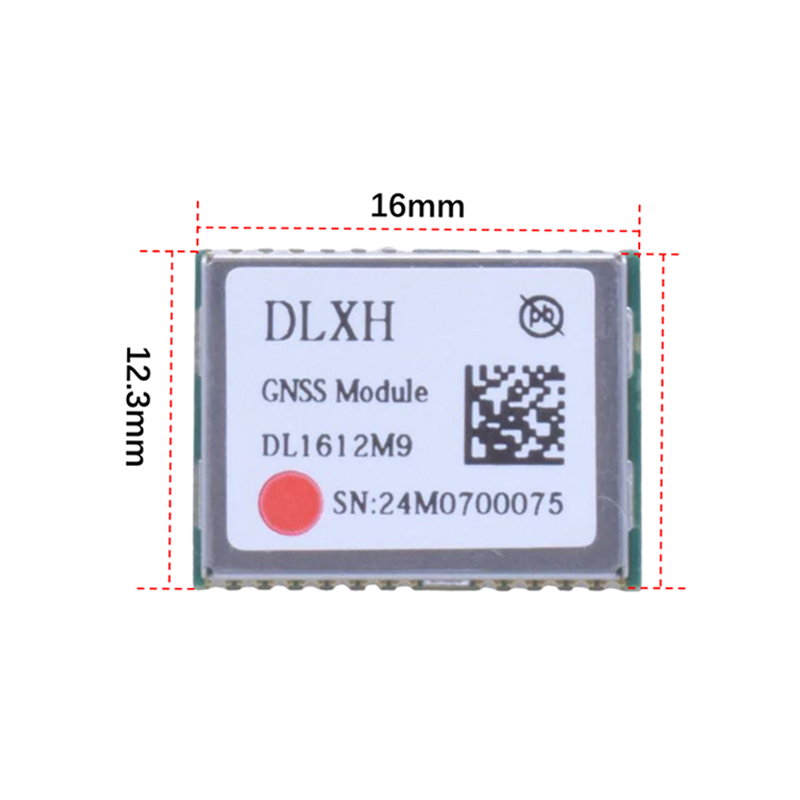

Dimensions
|
16*12.3*2.2mm
|
|
Weight
|
2g
|

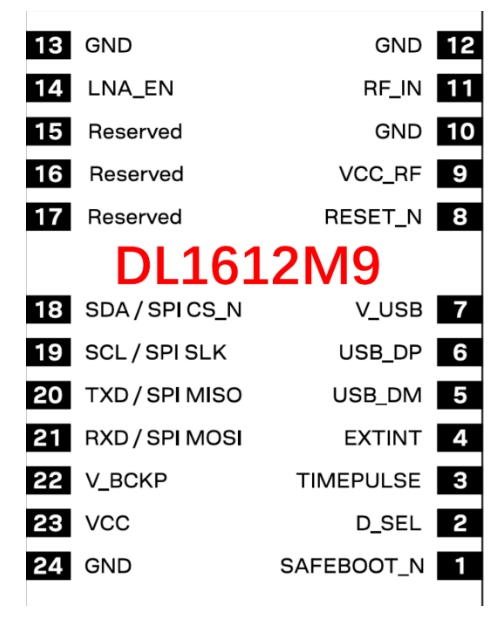

Table 1 Pin Function Definitions
|
NO.
|
NAME
|
I/O
|
DESCRIPTION
|
|
1
|
SAFEBOOT_N
|
I
|
SAFEBOOT_N (used for FW updates and reconfiguration, leave open)
|
|
2
|
D_SEL
|
I
|
Interface select (open or VCC UART +12C: GND SPI)
|
|
3
|
TIMEPULSE
|
O
|
TIMEPULSE (1 PPS)
|
|
4
|
EXTINT
|
I
|
EXTINT (PIO 7)
|
|
5
|
USB_DM
|
I/O
|
USB data (DM)
|
|
6
|
USB_DP
|
I/O
|
USB data (DP)
|
|
7
|
V_USB
|
I
|
USB supply
|
|
8
|
RESET_N
|
I
|
RESET (active low)
|
|
9
|
VCC_RF
|
O
|
Voltage for external LNA
|
|
10
|
GND
|
I
|
Ground
|
|
11
|
RF_IN
|
I
|
GNSS signal input
|
|
12
|
GND
|
I
|
Ground
|
|
13
|
GND
|
I
|
Ground
|
|
14
|
LNA_EN
|
O
|
Antenna/LNA control
|
|
15
|
Reserved
|
-
|
Reserved
|
|
16
|
Reserved
|
-
|
Reserved
|
|
17
|
Reserved
|
-
|
Reserved
|
|
18
|
SDA/SPICS_N
|
I/O
|
12C data if D_SEL VCC (or open): SPI chip selects if D_SEL GND
|
|
19
|
SCL/SPI SLK
|
I/O
|
12C clock if D_SEL VCC (or open); SPI clock if D_SEL GND
|
|
20
|
TXD/SPI MISO
|
O
|
UART output if D_SEL VCC (or open); SPI MISO if D_SEL GND
|
|
21
|
RXD/SPI MOSI
|
I
|
UART input if D_SEL VCC (or open): SPI MOSI if D_SEL GND
|
|
22
|
V_BCKP
|
I
|
Backup voltage supply
|
|
23
|
VCC
|
I
|
Supply voltage
|
|
24
|
GND
|
I
|
Ground
|

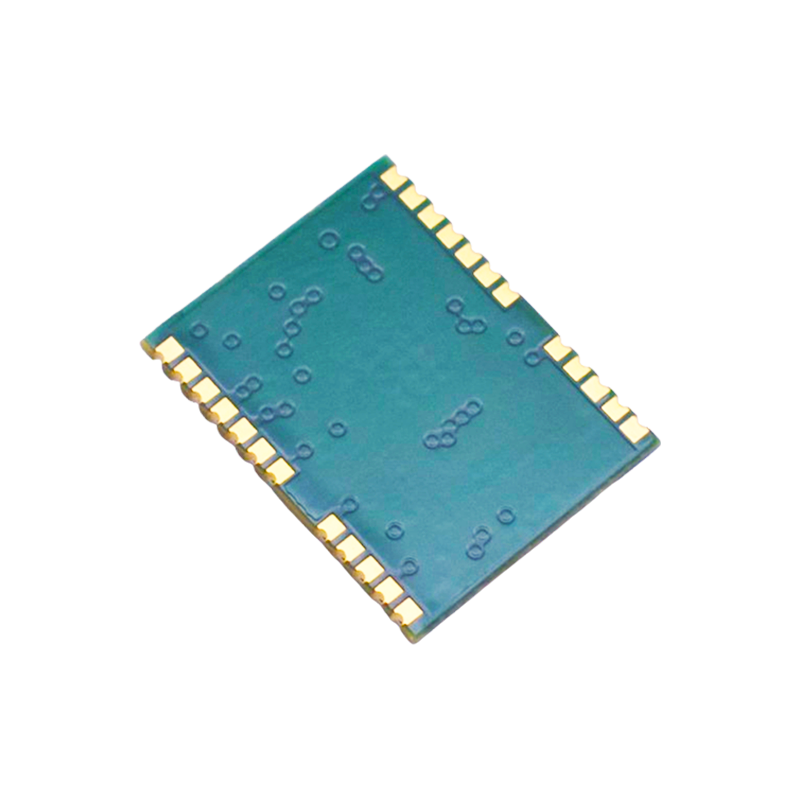

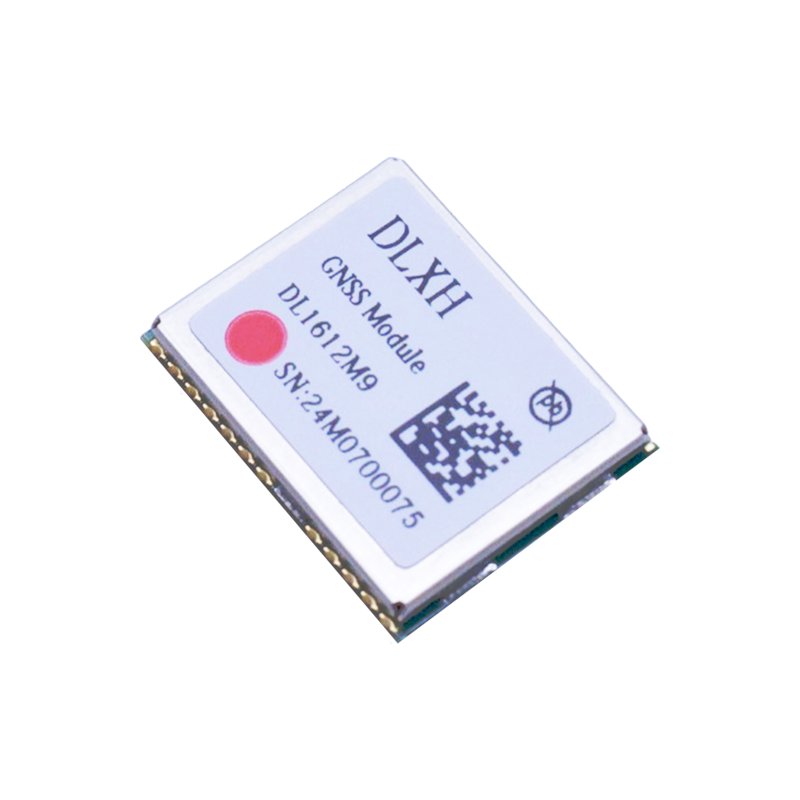

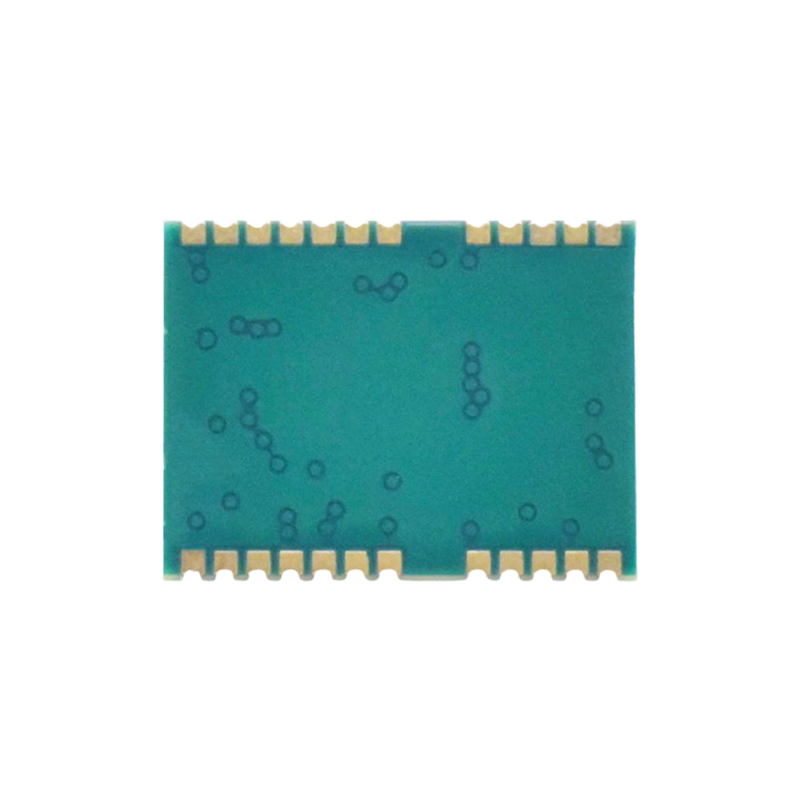

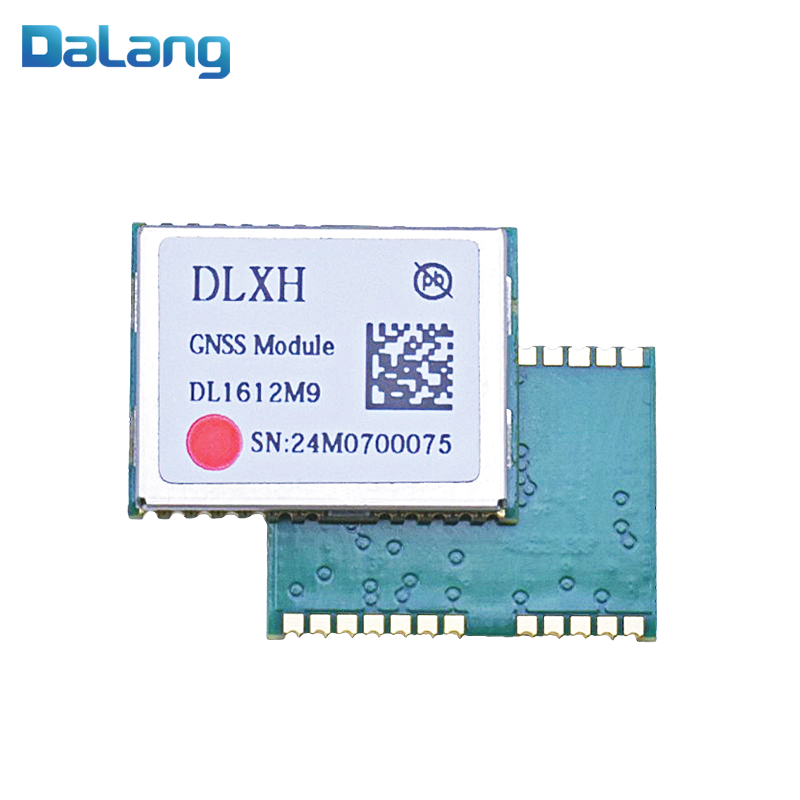

High-Performance GNSS Positioning Module
The DL1612M9 utilizes advanced u-blox M9 GNSS chip technology, delivering excellent sensitivity and fast signal acquisition while supporting all L1-band GNSS systems. Capable of simultaneously receiving signals from four major satellite navigation systems, it maintains meter-level positioning accuracy in complex urban environments, making it an ideal choice for various high-precision positioning applications.
Exceptional Positioning Performance
Based on the u-blox M9 engine with 92 reception channels, it supports multi-system combined positioning including GPS, BeiDou, GLONASS, and Galileo. Featuring spoofing and interference detection capabilities, advanced filtering technology effectively suppresses RF interference, ensuring stable operation in complex electromagnetic environments.
Flexible Interface Design
Offering multiple interface options including UART, I2C, and SPI, with pin compatibility with previous NEO series products. Supports up to 25Hz data update rates to meet real-time positioning requirements for high-dynamic applications. Built-in flash memory facilitates firmware upgrades and configuration storage.
Industrial-Grade Reliability
Operating temperature range of -40°C to 85°C, wide voltage input of 2.7V-3.6V, and power consumption below 100mW. Ultra-compact 16×12.3×2.2mm size weighing only 2g, suitable for space-constrained embedded applications.
Core Advantages
Multi-System Combined Positioning
Supports simultaneous reception from four satellite systems, enhancing positioning reliability
Strong Anti-Interference Capability
Advanced spoofing and interference detection ensures signal security
High Integration Design
Built-in LNA and SAW filters simplify peripheral circuits
Flexible Interface Configuration
Supports UART/I2C/SPI multi-protocols for easy system integration
Integrate DL1612M9 now to empower your devices with precise positioning capability!
