丨 Product Introduction
1. High precision: Multi feed point design optimizes the performance of right-handed circular polarization and phase center, reducing measurement errors.
2. Strong reception: The antenna unit has high gain and small gain roll off, suitable for low elevation satellite signal reception.
3. Good matching: Reactive network path suppression technology reduces the interference of multipath signals on measurement accuracy.
4. Environment suitability: With superior design, it can also receive signals well in complex occlusion environments.
丨 Specification parameters
|
Ⅱ. Specification
|
|
Antenna
Characteristics
|
1
|
Operating Frequency
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
|
2
|
Antenna Specifications
|
GPS, Bei Dou，GLONASS,GALILEO,QZSS
|
|
3
|
Frequency Range
|
1197-1278/1559-1612MHz
|
|
4
|
V.S.W. R
|
≤2.0
|
|
5
|
Axial Ratio
|
Elevation angle 90 degrees: ≤3
Elevation angle 15 degrees: ≤5
|
|
6
|
Gain
|
Elevation angle 90 degrees: ≥6
Elevation angle 20 degrees: ≥0 (plane)
|
|
7
|
Front to back power
|
±60 degrees: ≥15dB
|
|
8
|
Phase Center (mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
|
3
|
Noise Figure
|
＜1.5
|
|
4
|
DC Voltage
|
3.3~18V
|
|
5
|
Current
|
25~40mA
|
|
Mechanical
Structure
|
1
|

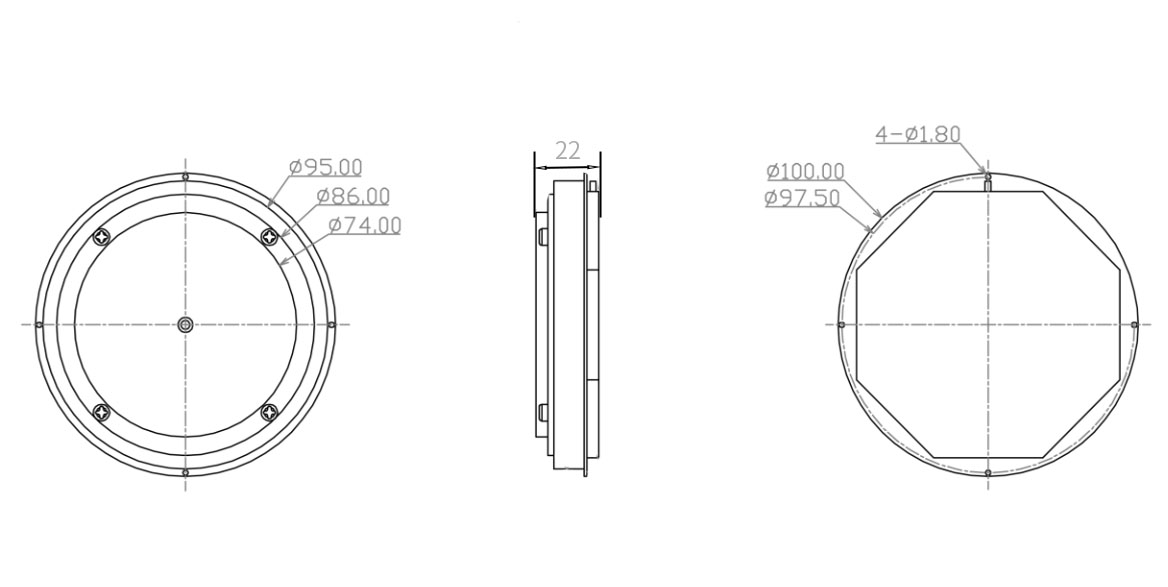

Antenna size
|
100*100*22mm
|
|
2
|
Product weight
|
140.6g
|
|
3
|

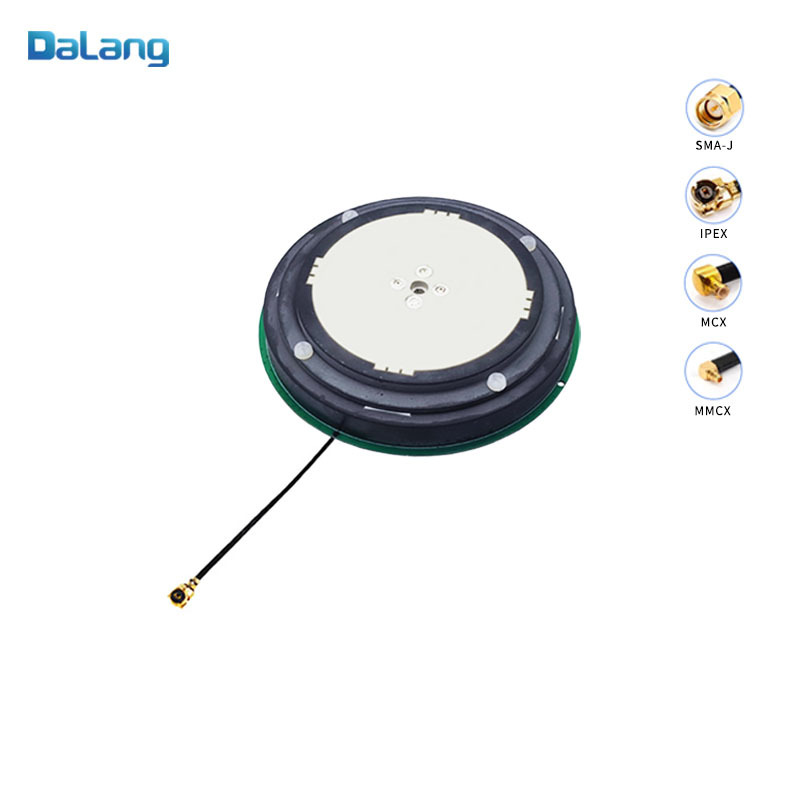

interface
|
IPEX / SMA / MCX / MMCX (customizable)
|
|
4
|
Line type
|
RG1.13 / RG178 (customizable)
|
|
5
|
Line length
|
15cm /25cm(customizable)
|
|
Environmental Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Vibration
|
Sine sweep @1.5mmAM
10~55Hz each Axis
|
丨 product mix
Packaging and Delivery：
The Professional Choice for High-Precision Surveying — DALANG AK626 Professional Surveying GNSS Antenna
The DALANG AK626 is a GNSS antenna specifically designed for high-precision surveying applications. It supports multiple satellite systems including BeiDou, GPS, GLONASS, and Galileo. Featuring a multi-feed point design that significantly enhances signal stability and phase center performance, it is an ideal signal reception solution for high-precision positioning tasks such as dam monitoring, geodetic surveying, marine surveying, and precision agriculture.
Delivering Reliable Signals in Complex Surveying Environments
With excellent anti-multipath capability and high-gain characteristics, the AK626 consistently outputs stable and reliable satellite signals even in challenging environments like built-up areas, forests, or dynamic monitoring sites, ensuring the accuracy and continuity of measurement data.
Built for Integration into Professional Surveying Systems
The antenna features a standard interface and a rugged structural design, allowing for easy integration into various professional surveying receivers and monitoring systems. It is a reliable front-end component for survey engineers and system integrators to achieve centimeter or even millimeter-level positioning accuracy.
Outstanding Performance in Demanding Monitoring Tasks
Thanks to its wide operating temperature range and excellent resistance to vibration and moisture, the AK626 is capable of long-term outdoor deployment and continuous monitoring, performing exceptionally well in fields with extremely high reliability requirements such as deformation monitoring and geological hazard warning.
Product Advantages
Multi-System & Multi-Band Support for High-Precision Solutions
Comprehensively supports major satellite navigation systems and multiple frequency bands including L1, L2, and L5, providing rich, high-quality raw observation data for high-precision RTK/PPK solutions.
Stable Phase Center for Reduced Measurement Errors
Meticulous multi-feed point design and optimization ensure highly stable antenna phase center, effectively minimizing measurement errors—an essential feature for professional-grade surveying applications.
Strong Anti-Multipath Interference for Purer Data
Utilizes advanced anti-multipath technology to significantly suppress reflected signal interference, obtaining cleaner observations even in complex scenarios like urban canyons and areas near water.
Industrial-Grade Protection for Long-Term Outdoor Use
Features IP-rated protection and wide-temperature characteristics with a robust structure, specifically designed for harsh outdoor environments and long-term continuous operation, ensuring all-weather system reliability.
Looking for a professional-grade antenna for your surveying project, monitoring system, or high-precision agricultural application? Choose the DALANG AK626 Professional Surveying GNSS Antenna to guarantee the professionalism and reliability of your measurement results right from the signal source.
