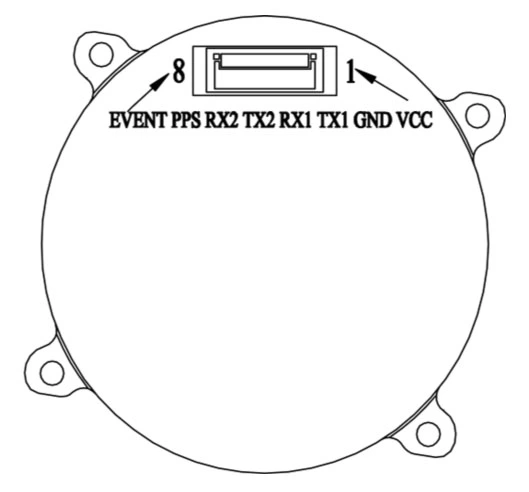

Pin Number
|
Signal Name
|
Signal Description
|
|
1
|
VCC
|
Main power input, +3.3V to 5V
|
|
2
|
GND
|
Module ground
|
|
3
|
TX1
|
UART1 output, 3.3V TTL
|
|
4
|
RX1
|
UART1 input, 3.3V TTL
|
|
5
|
TX2
|
UART2 output, 3.3V TTL
|
|
6
|
RX2
|
UART2 input, 3.3V TTL
|
|
7
|
PPS
|
Pulse Per Second output for time synchronization
|
|
8
|
EVENT
|
Module external terminal output (default off)
|
Product Overview

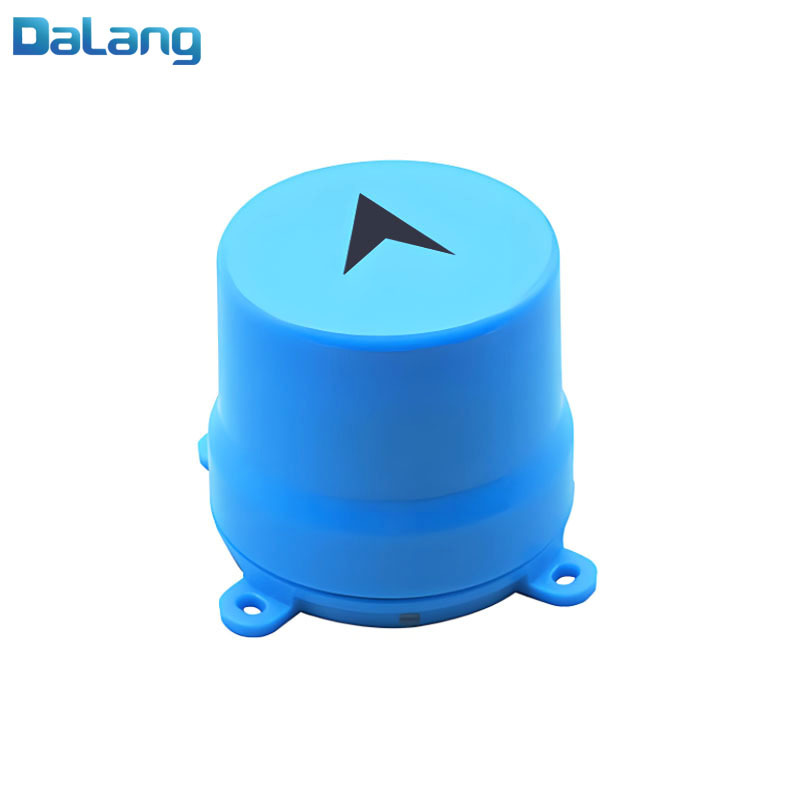

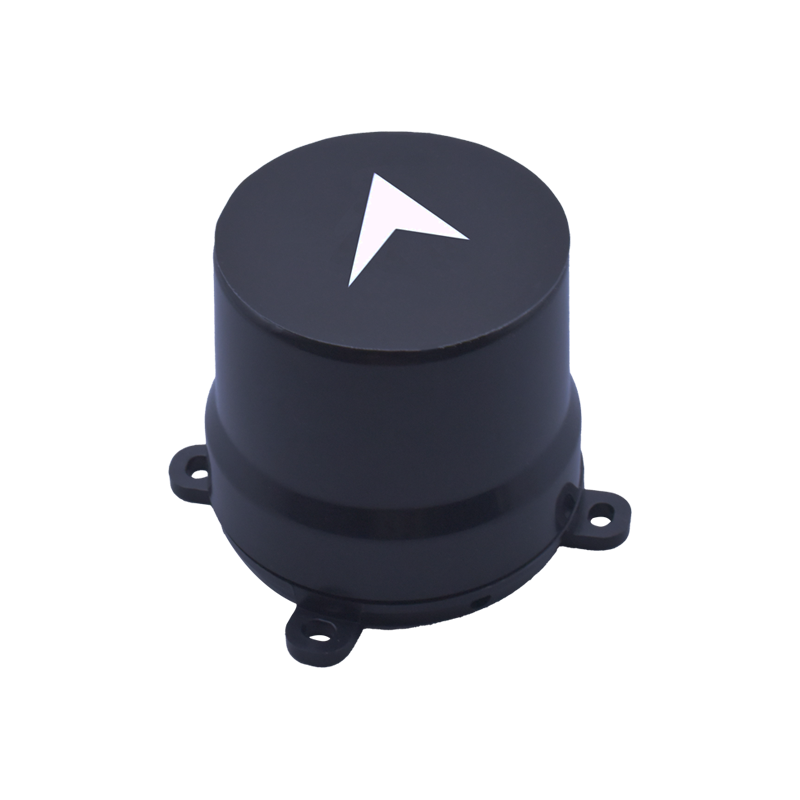

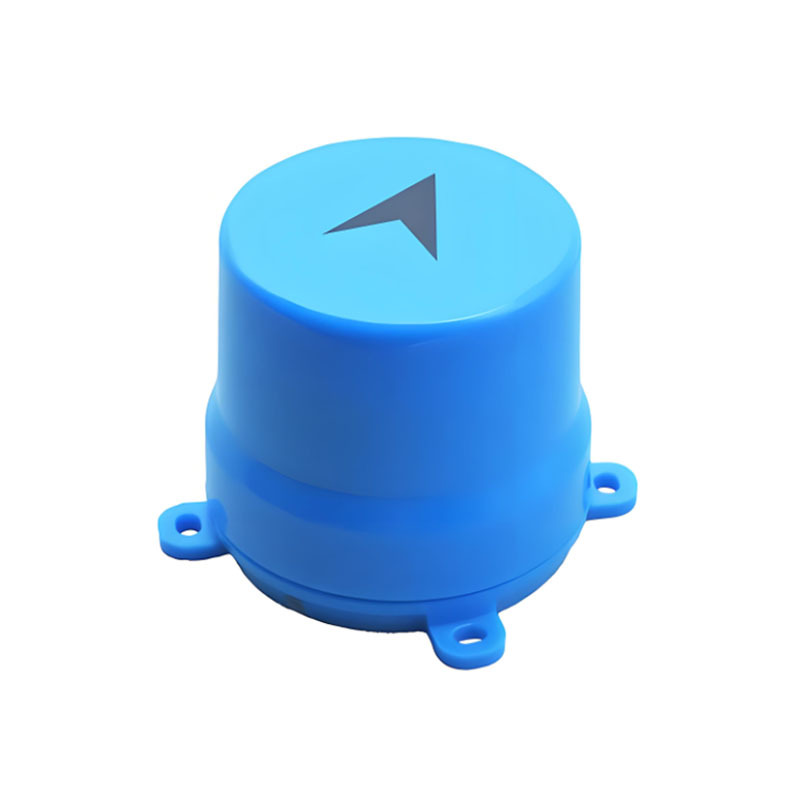

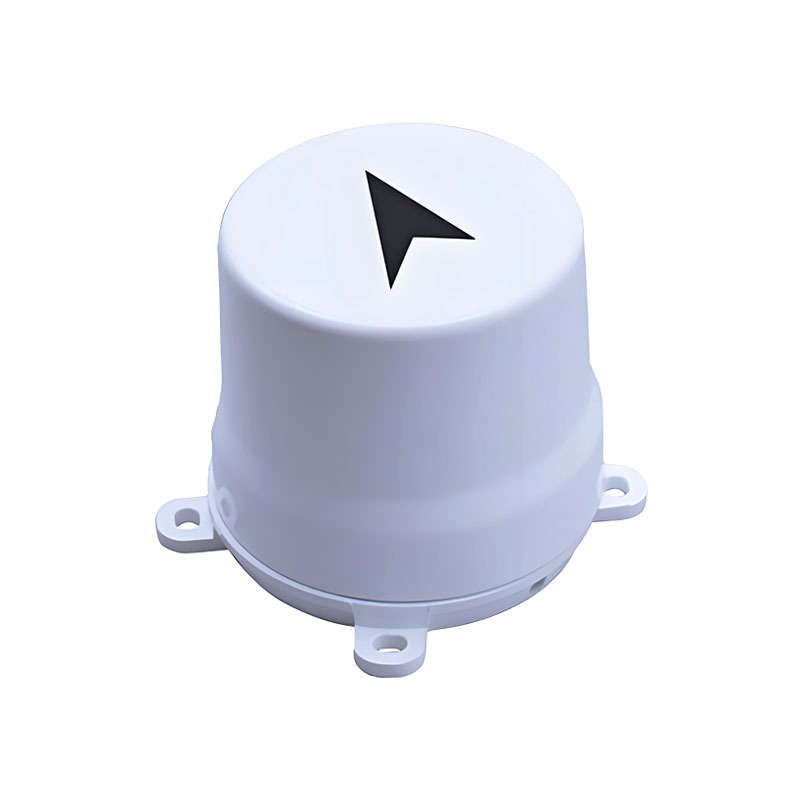

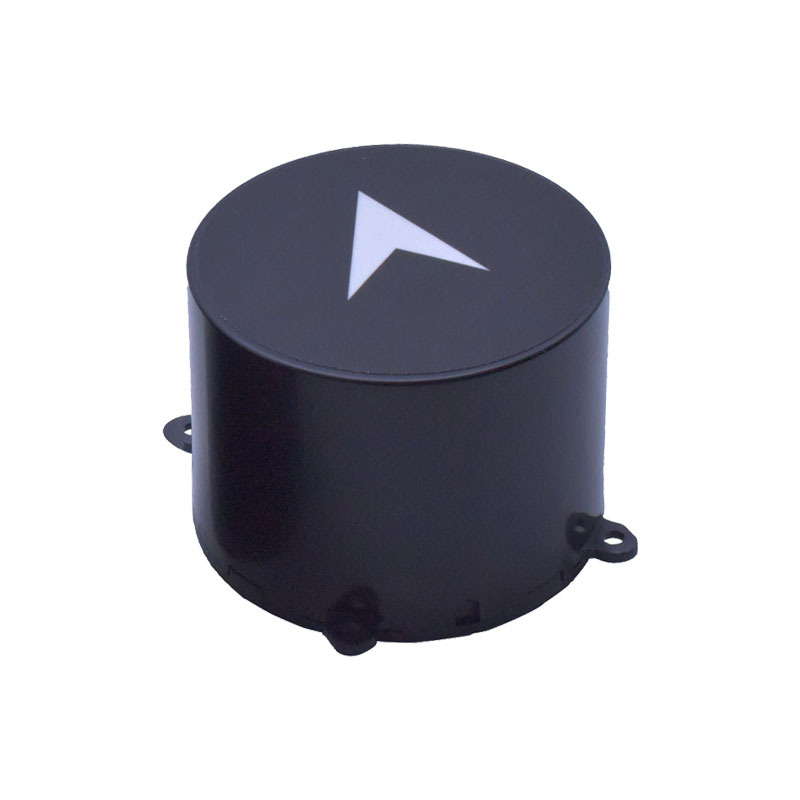

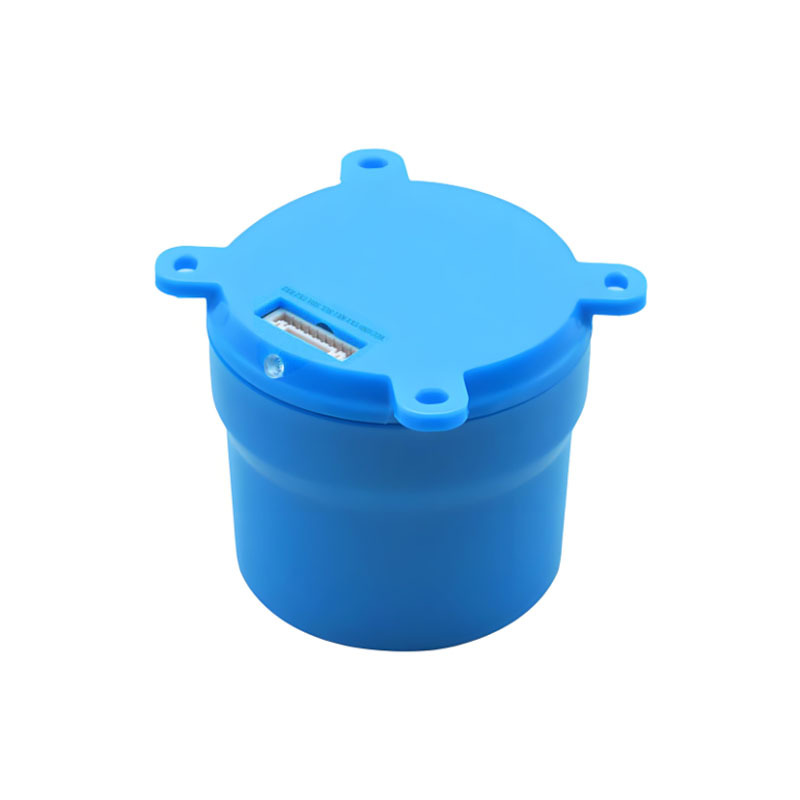

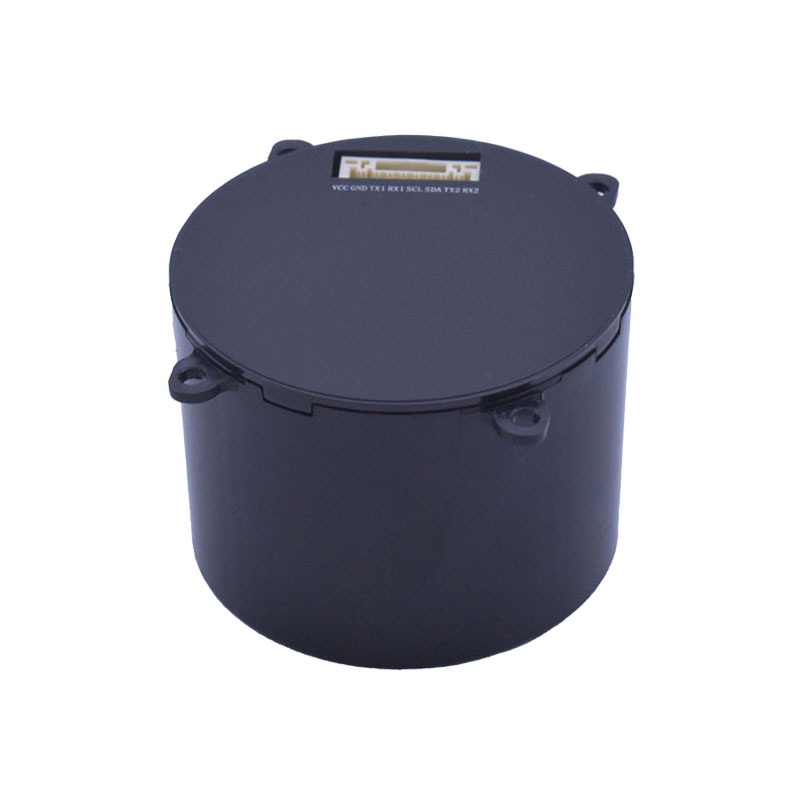

The DALANG AK714 is an ultra-low cost, low-power, high-performance BeiDou/GPS/Galileo/GLONASS dual-frequency RTK module. Utilizing reliable carrier phase differential technology, it provides real-time centimeter-level positioning accuracy for UAVs, automotive, and surveying applications.
Dual-Frequency RTK Precision
Based on the Beiyun M20 series, it supports four-system joint RTK calculation with fast initialization, achieving 1.0 cm + 1 ppm horizontal and 1.5 cm + 1 ppm vertical accuracy.
High Dynamic Performance
Supports up to 10 Hz data output, meeting the positioning requirements of dynamic applications.
Industrial Anti-Interference Design
Features industrial-grade low-noise RF circuitry with strong multipath suppression.
Compact and Lightweight

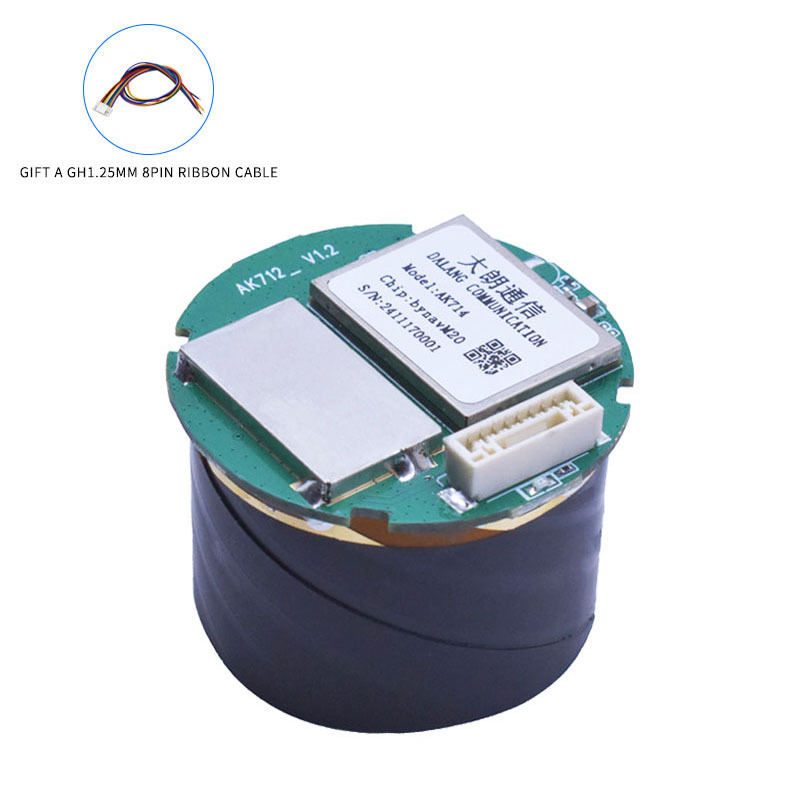

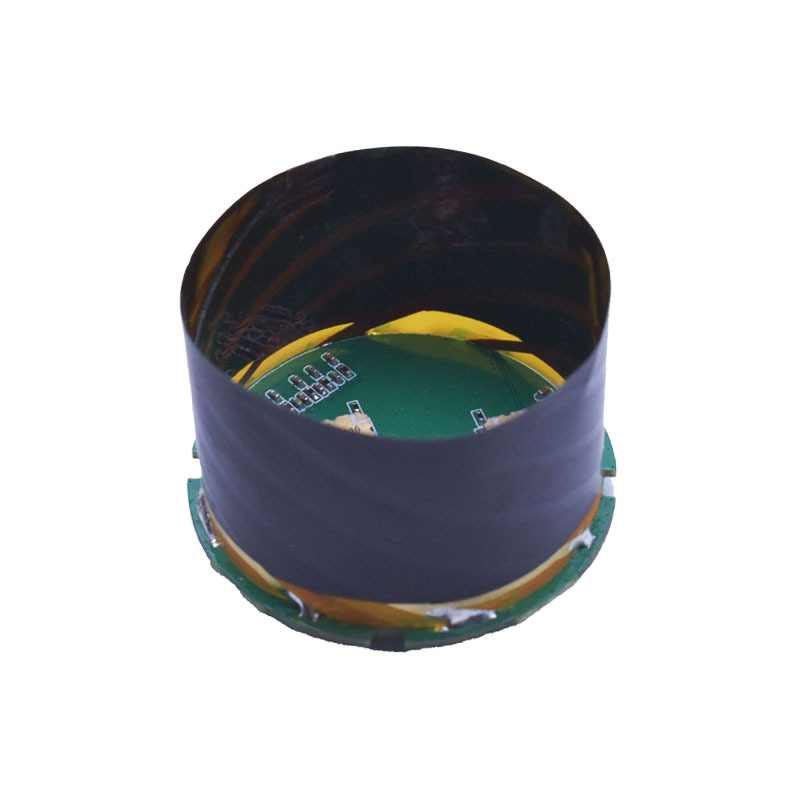

Integrated quad helix antenna, weighs only 21g, and is compatible with Pixhawk, APM, and other flight controllers.
Key Features
-
Centimeter-level RTK: 1.0 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical
-
Dual-Frequency Support: BDS/GPS/Galileo/GLONASS
-
10 Hz Output: Suitable for high-dynamic applications
-
Strong Anti-Interference: Industrial RF with multipath suppression
-
Lightweight: 21g for easy integration
-
PPS Output: Precise time synchronization
-
Wide Temperature Range: -40℃ to 85℃
Delivering cost-effective centimeter-level positioning for UAVs, automotive, and surveying. DALANG AK714 - affordable precision for your projects.
