丨 Product Introduction
1. High precision: Multi feed point design optimizes the performance of right-handed circular polarization and phase center, reducing measurement errors.
2. Strong reception: The antenna unit has high gain and low gain roll off, which is conducive to receiving satellite signals at low elevation angles.
3. Anti interference: Reactive network suppression technology improves impedance matching and reduces multipath signal interference.
4. Environment: Excellent design, capable of receiving signals well in complex environments with obstacles.
丨 Specification parameters
|
Specifications
|
|
Antenna
Characteristics
|
1
|
Operating Frequency
|
GPS: L1C/A, L1C, L2P, L2C, L5
BDS-2: B1I, B21, B31
BDS-3: B1I, B31, B1C, B2a, B2b
GLONASS: G1, G2, G3
Galileo: E1, E5b, E5a, E5AltBoC, E6c
QZSS: L1C/A, L2C, L5, L1C
SBAS: L1C/A
IRNSS: L5
|
|
2
|
Antenna Specifications
|
GPS, Bei Dou，GLONASS, Galileo
|
|
3
|
Frequency Range
|
1165-1278/1559-1612MHz
|
|
4
|
V.S.W.R
|
≤2.0
|
|
5
|
Axial Ratio
|
Elevation 90 degrees: ≤3, Elevation 15 degrees: ≤5
|
|
6
|
Gain
|
Elevation 90 degrees: ≥6, Elevation 20 degrees: ≥0
|
|
7
|
Front to back Power
|
±60 degrees: ≥15dB
|
|
8
|
Phase Center（mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
|
3
|
Noise Figure
|
＜1.5
|
|
4
|
DC Voltage
|
3.3~18V
|
|
5
|
Current
|
25~40 mA
|
|
Mechanical
Structure
|
1
|
Antenna size
|
Φ120*15.5mm
|
|
2
|
Product weight
|
174.6g
|
|
3
|
joint
|

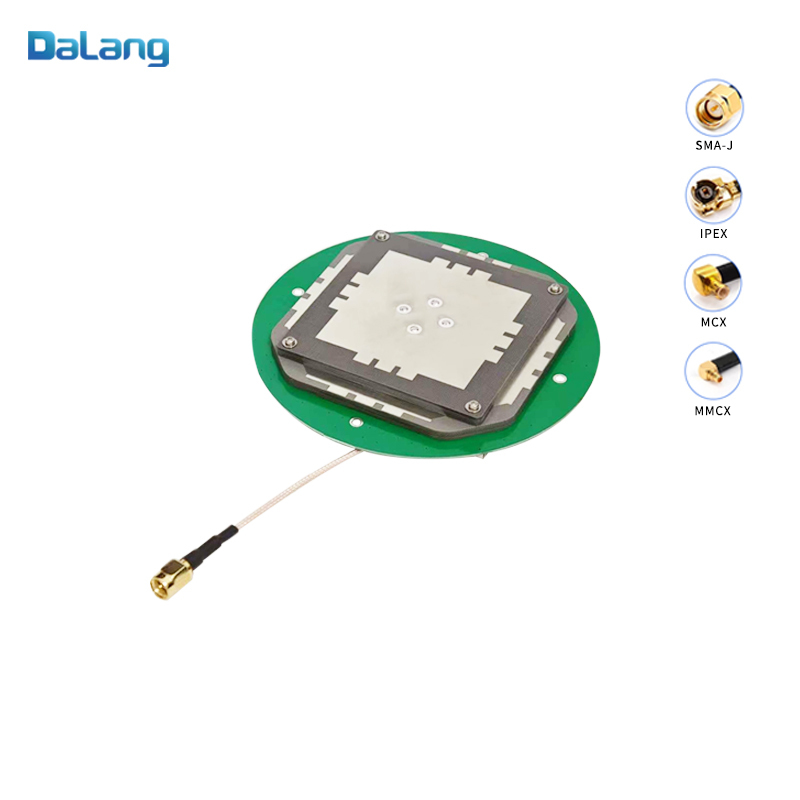

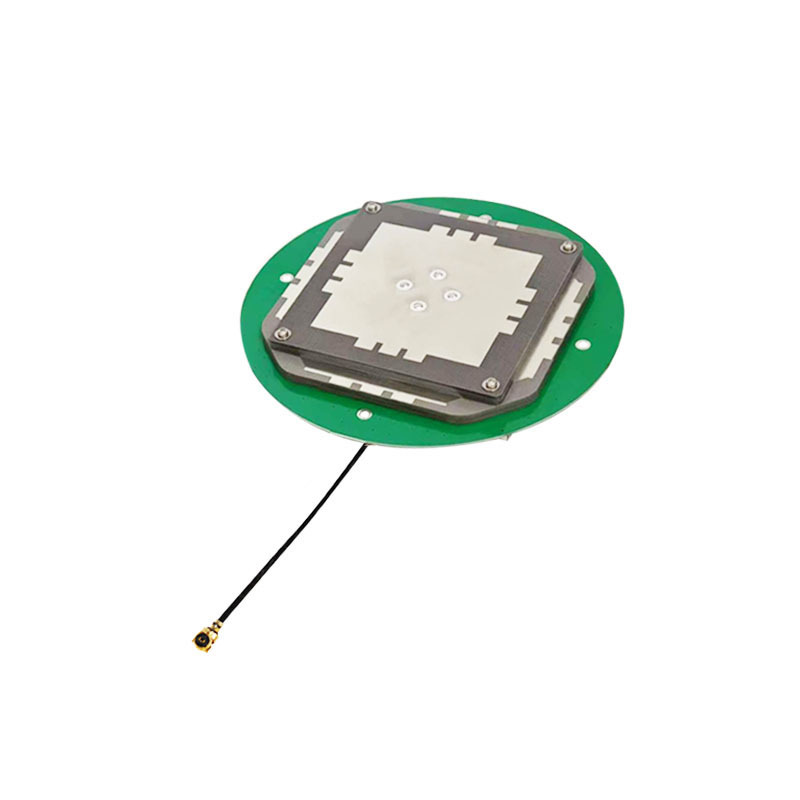

SMA / IPEX / MCX / MMCX (Customizable)
|
|
4
|
Line type
|
RG178 / RG1.13 (Customizable)
|
|
5
|
Line length
|
150mm / 250mm (Customizable)
|
|
Environmental
Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Vibration
|
Sine sweep @1.5mmAM
10~55Hz each Axis
|
丨 Product Introduction
Packaging and Delivery：

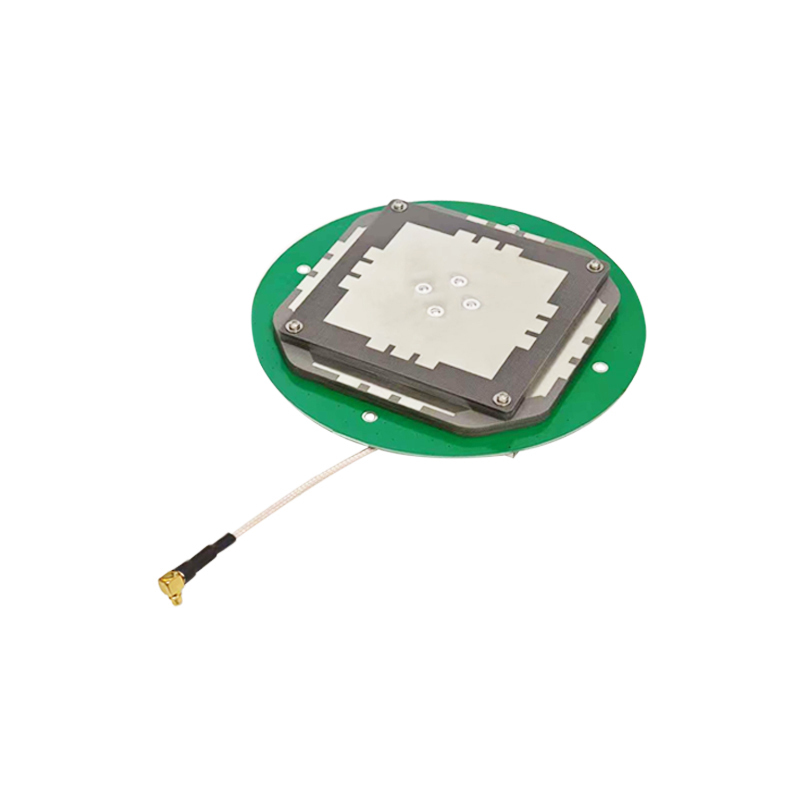

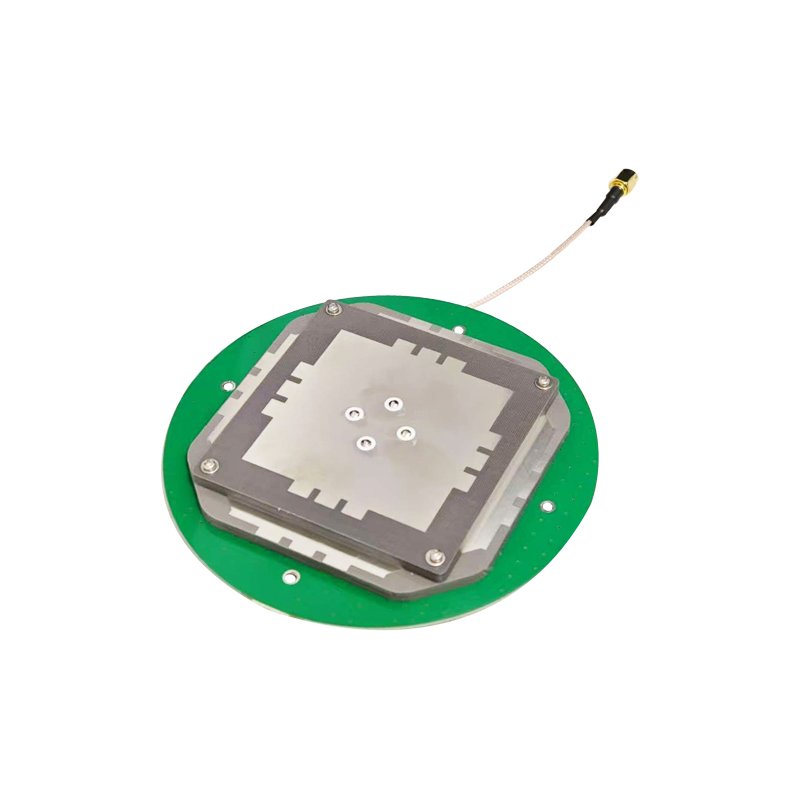

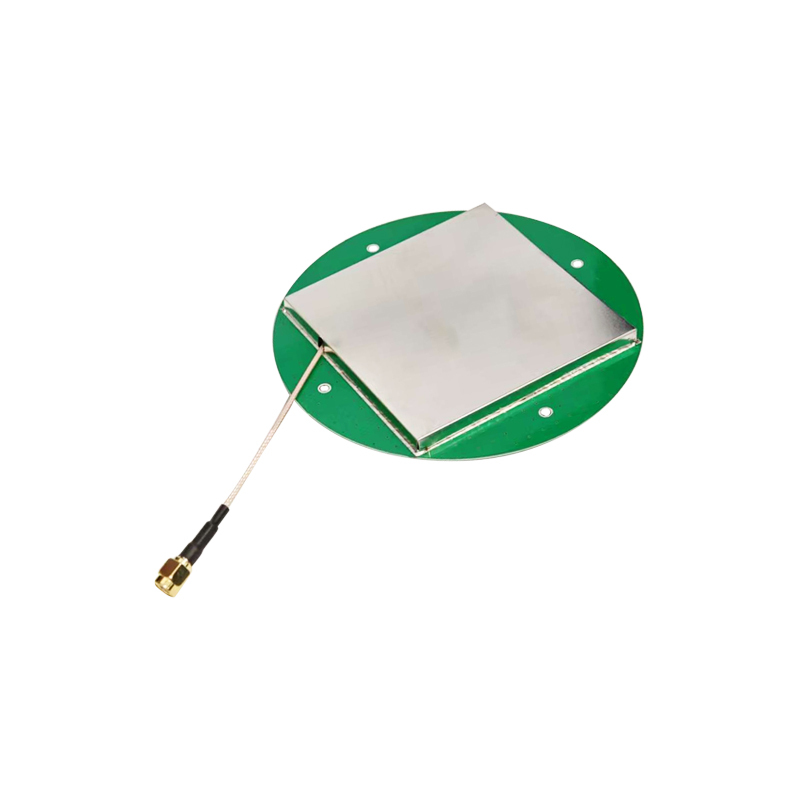

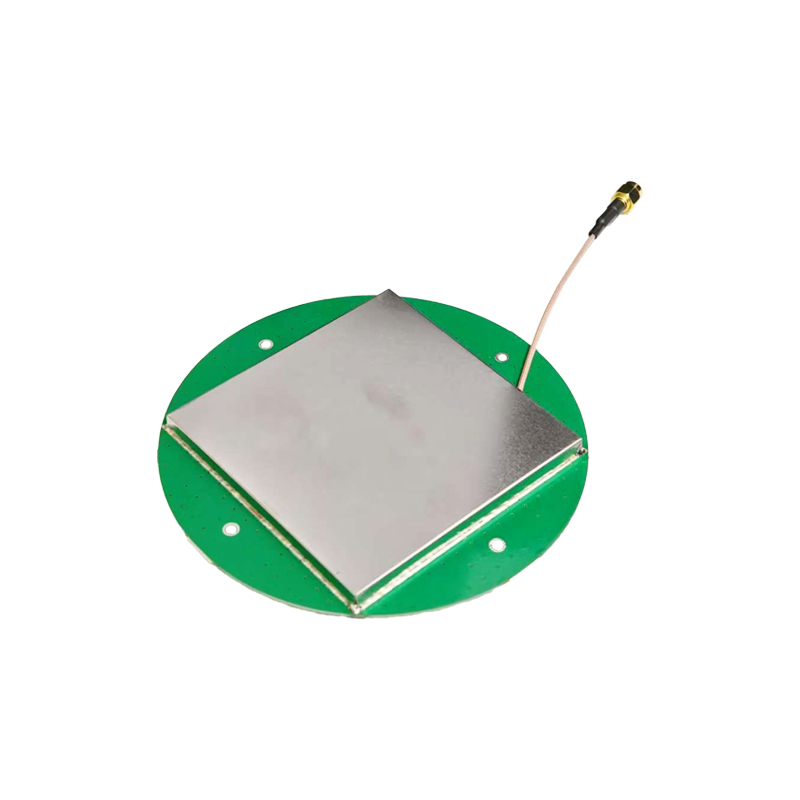

High-Performance Multi-System GNSS Antenna — DALANG AK610
The DALANG AK610 is a high-performance GNSS antenna that supports multi-system signal reception including BeiDou, GPS, GLONASS, and Galileo. Featuring a multi-feed point design with high precision and strong anti-interference capabilities, it is suitable for professional high-precision positioning scenarios such as geodetic surveying, marine surveying, and precision agriculture, delivering stable and reliable signal reception even in complex environments.
Multi-System Compatibility with Full-Band Signal Support
The antenna supports full-band signals from multiple systems including BeiDou, GPS, GLONASS, and Galileo, covering frequency bands such as L1, L2, and L5, offering excellent system compatibility and signal coverage.
High-Precision Design with Stable Phase Center
Utilizing a multi-feed point structure and optimized design, it enhances right-hand circular polarization performance and phase center stability, effectively reducing measurement errors and supporting high-precision positioning and measurement applications.
High Gain and Low Gain Roll-Off for Low-Elevation Reception
The antenna features high gain characteristics, maintaining good signal reception even at low elevation angles, making it suitable for stable positioning in environments with limited or obstructed satellite signals.
Good Impedance Matching to Suppress Multipath Interference
Through reactance network suppression technology, it effectively reduces the impact of multipath signals on measurement accuracy, improving positioning reliability and data quality in complex environments.
Adaptable to Complex Environments with Stable Signal Reception
The antenna maintains good signal reception performance even in complex environments with strong obstructions and interference, suitable for various outdoor high-precision measurement and navigation tasks.
Key Features
-
Supports BeiDou/GPS/GLONASS/Galileo multi-systems
-
High-precision multi-feed point design with stable phase center
-
High gain, suitable for low-elevation signal reception
-
Suppresses multipath interference, enhances positioning reliability
-
Suitable for complex environments with stable signal reception
If you are selecting an antenna for surveying, agricultural monitoring, or high-precision positioning systems, the DALANG AK610 provides reliable multi-system, high-precision signal reception support.
