丨 Product Introduction
1. Dual frequency L1/L5: Multi system RTK centimeter level positioning
2. Stacked ceramic antenna: high sensitivity, stable in complex environments
3. External high gain+LNA: high signal-to-noise ratio, fast positioning

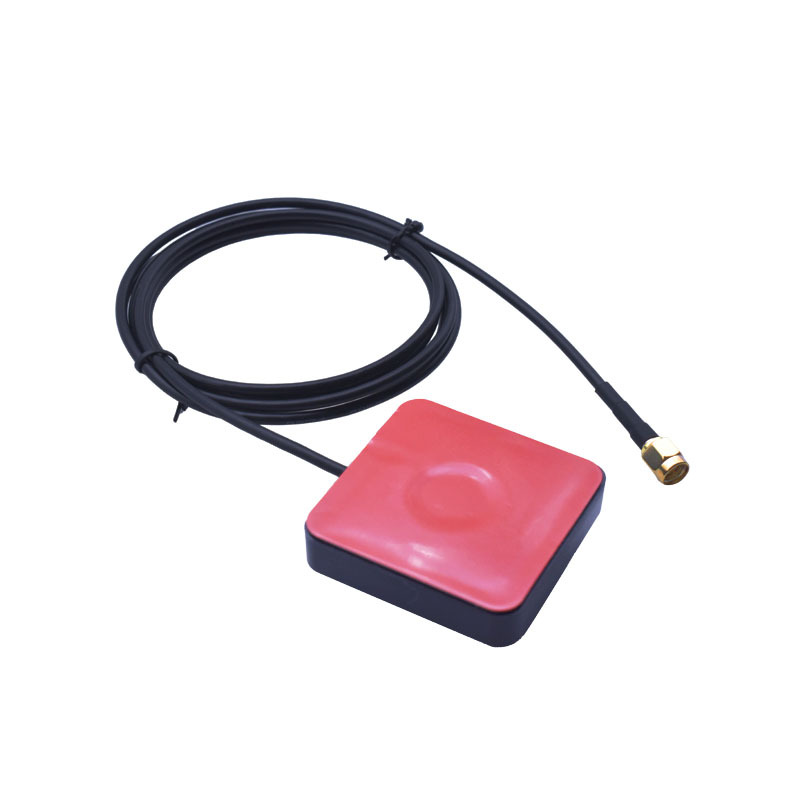

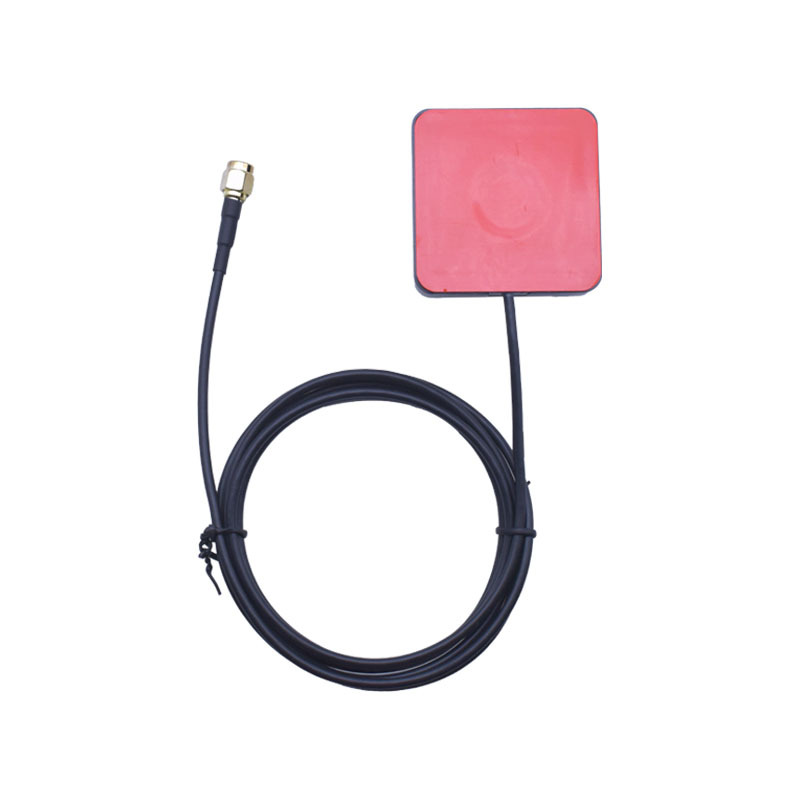

4. Lightweight and compact: Multi way installation with magnetic suction/screws
丨 Specification parameters
|
Specification parameters
|
|
Antenna
parameters
|
1
|
Antenna name
|
GNSS antenna
|
|
2
|
Ceramic size (mm)
|
25*25*4/35*35*4
|
|
3
|
Usage frequency
|
GPS：L1：1575.42±1.023MHz，
L5：1176.45±1.023MHz
GLONASS：L1:1602+0.5625*K(MHz)
BDS：B1: 1561±1.023MHz
GALILEO：E1: 1575
|
|
5
|
gain
|
L1:5±1dBi L5:3±1dBi
|
|
6
|
V.S.W.R
|
≤2
|
|
7
|
Minimum -10dB bandwidth (MHz)
|
10min
|
|
8
|
impedance
|
50Ω
|
|
9
|
Polarization mode
|
RHCP
|
|
10
|
tcf
|
20ppm/deg.℃ max
|
|
LAN
|
|
|
|
|
1
|
Gain (Gain)
|
L1:32±3dBi L5:28±3dBi
|
|
2
|
figure
|
<1dB
|
|
3
|
VSWR
|
<2.0
|
|
4
|
output vswr
|
<2.0
|
|
5
|
voltage
|
DC 3~5V
|
|
6
|
electric current
|
15~25mA
|
|
7
|
impedance
|
50Ω
|
|
Physical
parameters
|
1
|

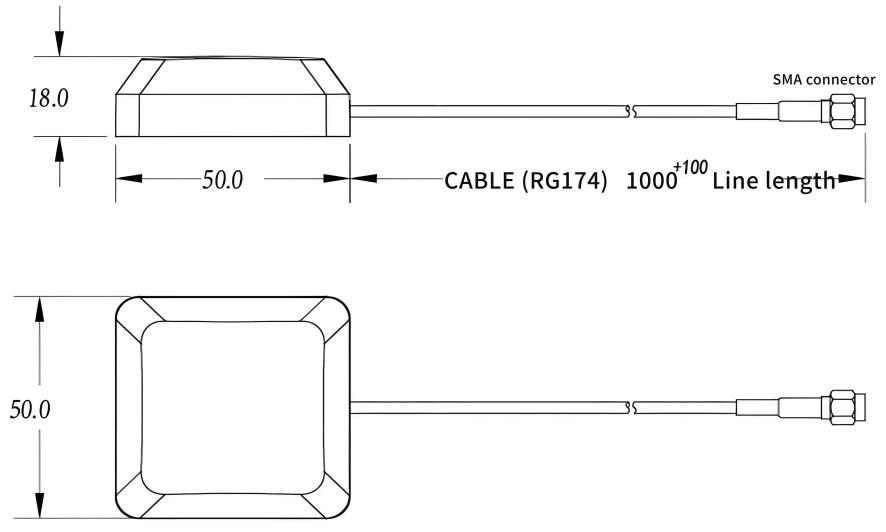

Overall size
|
50*18mm
|
|
2
|
weight
|
69.8g
|
|
3
|
Line type
|
RG174
|
|
4
|
Line length
|
L=1m
|
|
5
|

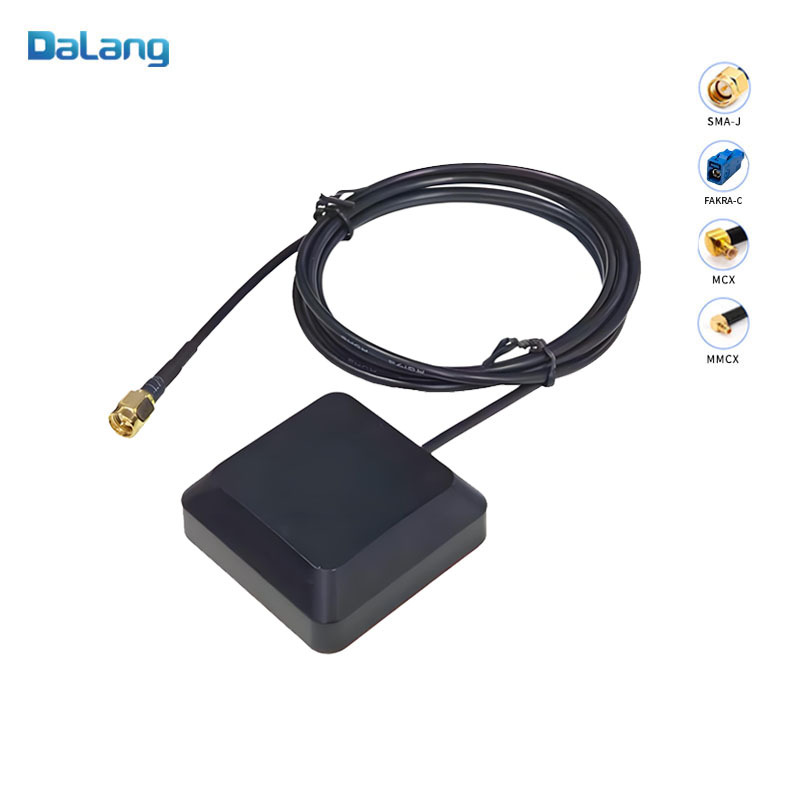

Linear interface
|
SMA
|
Packaging and Delivery：

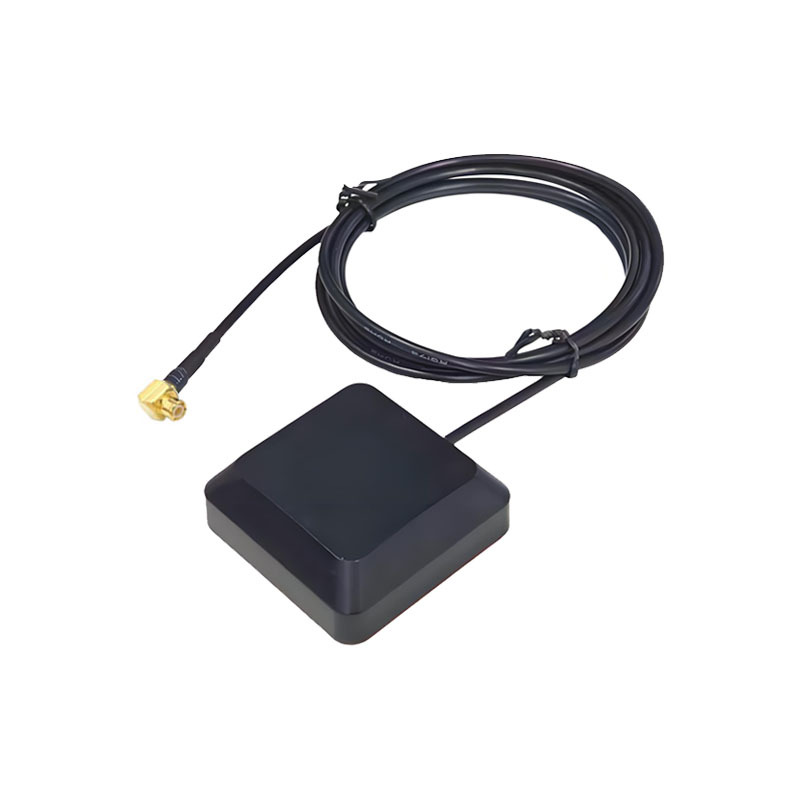

DALANG AK203 High-Precision GNSS Antenna
The DALANG AK203 is a dual-band multi-system GNSS antenna designed for centimeter-level accuracy, supporting full frequency bands including GPS L1/L5, BDS B1, GLONASS L1, and Galileo E1. Featuring an innovative stacked ceramic design (25×25×4/35×35×4) and integrated high-performance low-noise amplifier, it provides reliable RTK positioning solutions for drone navigation, precision agriculture, and surveying applications.
Dual-Band High-Precision Positioning Performance
With excellent gain performance of L1:5±1dBi and L5:3±1dBi, combined with 32±3dB amplifier gain and <1dB noise figure, the AK203 achieves fast centimeter-level positioning in complex environments, providing continuous and stable position tracking for mobile platforms.
Optimized for Demanding Environments
The antenna features compact dimensions of 50×18mm and weighs only 69.8g. Equipped with 1-meter RG174 cable and SMA interface, it supports multiple installation methods including magnetic adsorption and screw fixation, easily adapting to various drones and agricultural machinery.
Excellent Anti-Interference Capability
Utilizing industrial-grade low-noise RF circuitry and right-hand circular polarization design, it effectively suppresses multipath interference. With an operating temperature range of -40℃ to +85℃, it ensures stable operation in harsh environments.
Product Advantages
-
Dual-Band Multi-System Precision Positioning
Comprehensive support for L1/L5 dual bands and four major satellite systems, achieving centimeter-level RTK positioning accuracy
-
High Gain and Low Noise Design
32dB amplifier gain and excellent noise control ensure stable reception in weak signal environments
-
Compact and Rugged Structure
Lightweight design with multiple installation options meets the strict space requirements of mobile platforms
-
Industrial-Grade Environmental Adaptability
Wide operating temperature range and excellent anti-interference performance ensure long-term reliable outdoor operation
Looking for a professional-grade GNSS antenna for your drone or agricultural system? DALANG AK203 meets your precise positioning needs with dual-band high performance!
