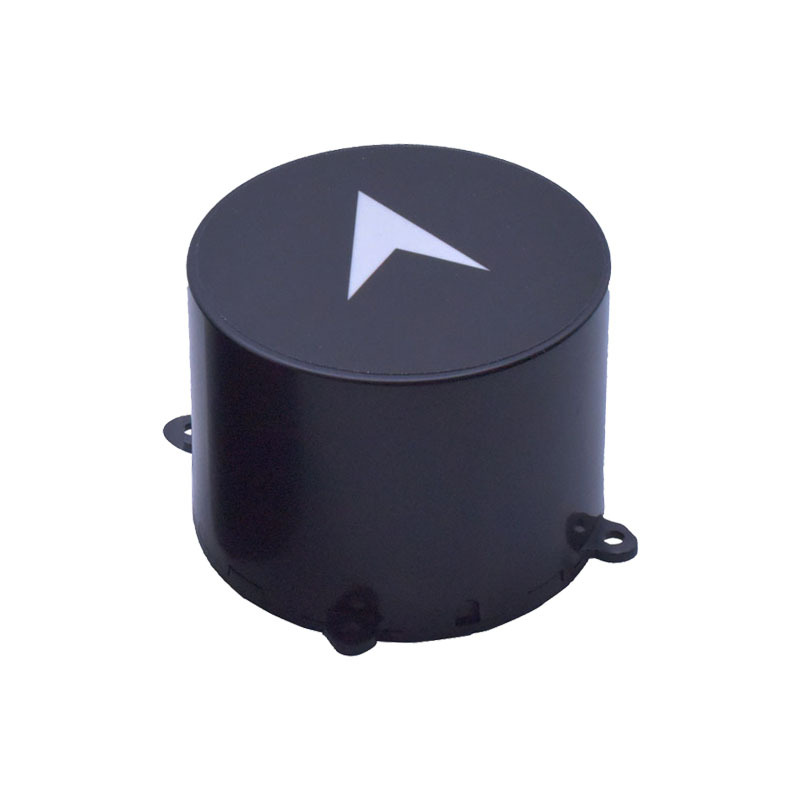

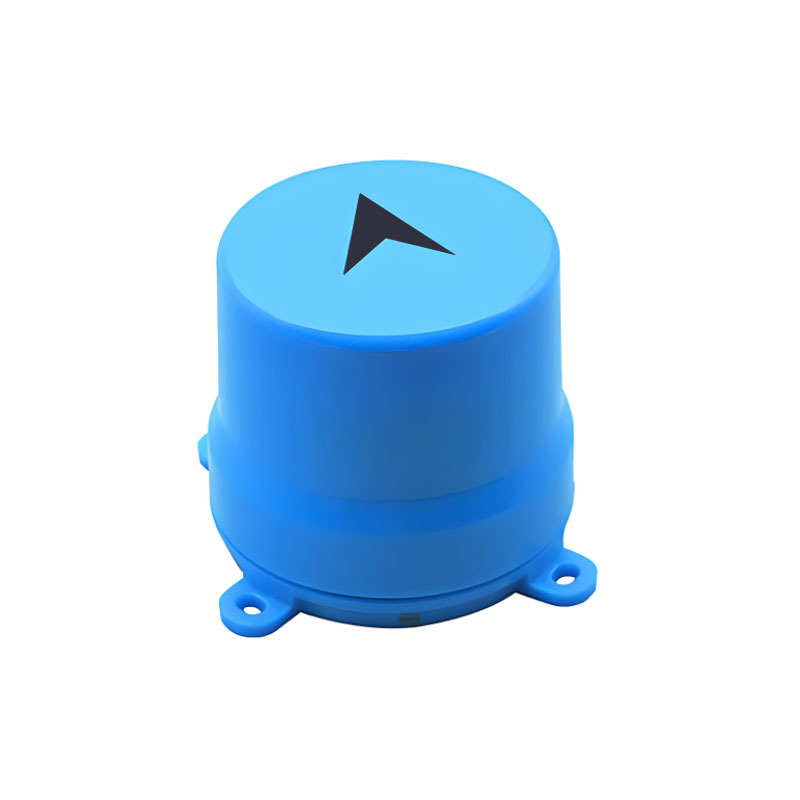

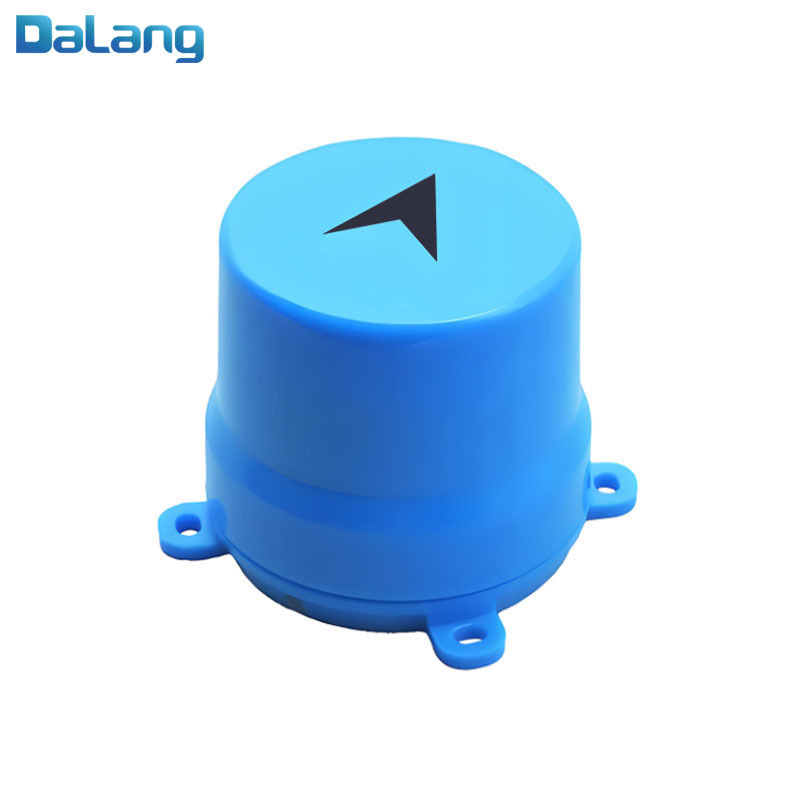

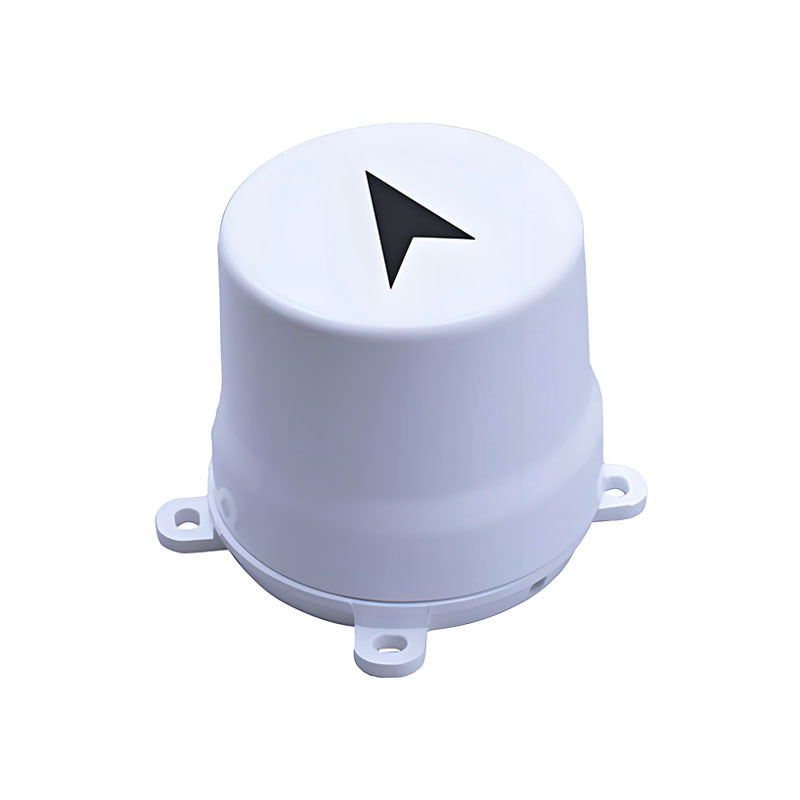

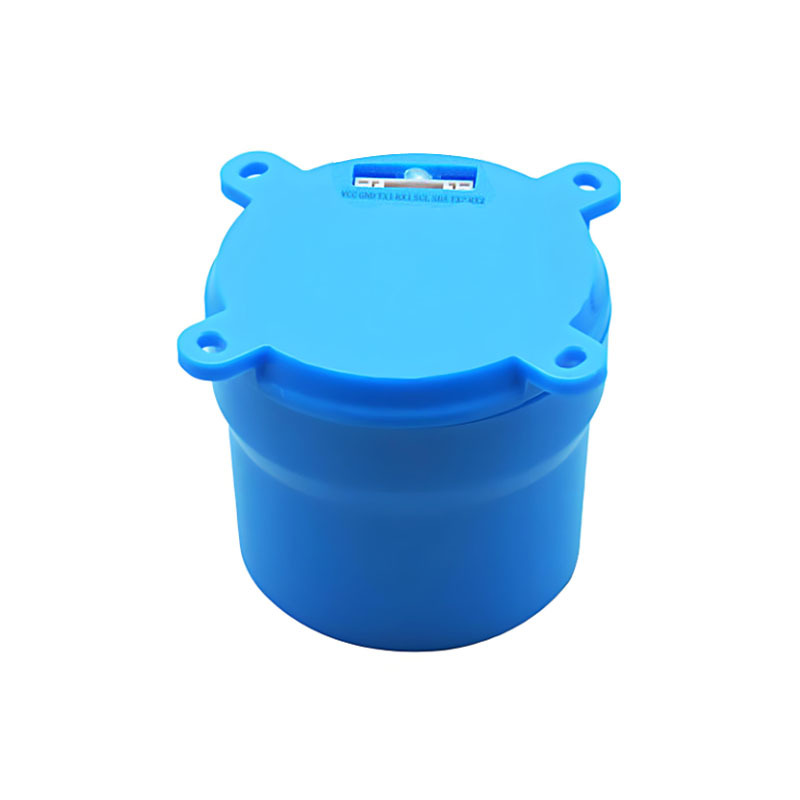

UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs

SKU:
0.0 (0)
0 Sold
$137.90 $0.00
Tax excluded

Model：AK973T
Chip: UM960
Working frequency band: BDS/GPS/GLONASS/GALILEO/QZSS
Baud rate: 115200bps (default)
Update frequency: 0.25Hz-20Hz (default 1Hz)
Cold start:<30s
Speed accuracy: 0.03m/s
Working voltage: 5V DC
Power consumption: 800mW
Size:Standard version:φ42*31.2mm
          Upgraded version:φ44*40.6mm
Weight: Standard version: 13.2g
              Upgraded version: 21g
Connector: GH1.25mm 8pin
Compass:IST8310

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Casing:
    standard version
    Upgraded Version
  • Shell color:
    black
    blue
    white
Quantity:
Add to Favorites (0)
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
1/1
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960+IST8310 integrated high-precision receiver, full frequency and full system centimeter level RTK integrated module positioning, unmanned aerial vehicle flight control and positioning system performance, lightweight unmanned aerial vehicle
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • UM960/IST8310 GNSS/GPS/RTK Module with Built-in Helix Antenna and Anti-interference for UAVs
  • Description







丨 Product Introduction




1. High frequency stability: Based on the UM960 series design, it provides stable and accurate positioning in harsh environments, optimized signal reception, and enhanced adaptability to temperature and humidity.

2. RTK: Supports multi frequency RTK positioning and calculation across the entire system, using RTK engine and starry sky RTK technology.

3. High data output: up to 20Hz data output, suitable for high-speed mobile drone positioning, ensuring continuous and stable trajectory tracking.

4. Compass configuration: Built in IST8310 compass to enhance signal accuracy




丨 Specification parameters

Chip

characteristics

chip

UM960

working frequency

BDS: B1I、B2I、B3I、B1C、B2a

GPS: L1C/A、L2P(W)、L2C、L5

GLONASS: L1C/A、L2C/A

Galileo: E1、E5b、E5a

QZSS: L1、L2、L5

Receiving channel

1408 channel Nebula IVTM

Single point

positioning (RMS)

Plane: 1.5 meters

Elevation: 2.5 meters

DGPS (RMS)

Plane: 0.4 meters

Elevation: 0.8 meters

RTK (RMS)

Flat: 0.8 cm+1ppm

Elevation: 1.5 cm+lppm

Observation accuracy (RMS)

BDS

GPS

GLONASS

Galileo

B1I/L1 C/A/G1/E1

Pseudorange

10cm

10cm

10cm

10cm

B1I/L1 C/A/G1/E1

carrier phase

1mm

1mm

1mm

1mm

B2I/L2P (Y)/L2C/G2/E5b pseudorange

10cm

10cm

10cm

10cm

B2I/L2P (Y)/L2C/G2/E5b carrier phase

1mm

1mm

1mm

1mm

Time accuracy (RMS)

20 ns

Speed accuracy (RMS)

0.03 m/s

Data update rate

20 Hz positioning

cold boot

< 30s

Initialization time

<5s (typical value)

Output data

Baud rate

115200bps (default) [Optional: 4800-921600]

Output interface

TTL

Output Protocol

NMEA 0183, Unicore*

update frequency

Default 1Hz (0.25Hz-20Hz)

Carrier phase output

Support, output RAWX statement

FLASH

built-in

Working

conditions

height

＜50,000m

speed

＜500m/s

Gravitational

acceleration

＜4g

Electrical

specifications

working voltage

5V DC

power waste

800mW

Physical

parameters

size

Standard version:φ42*31.2mm
Upgraded version:φ44*40.6mm

weight

Standard version: 13.2g
Upgraded version: 21g

Connector

GH1.25mm  8pin

Environment

working temperature

-40℃-85℃

Storage temperature

-55℃+95℃

Compass

COMPASS

IST8310(Isentek)



丨 product mix

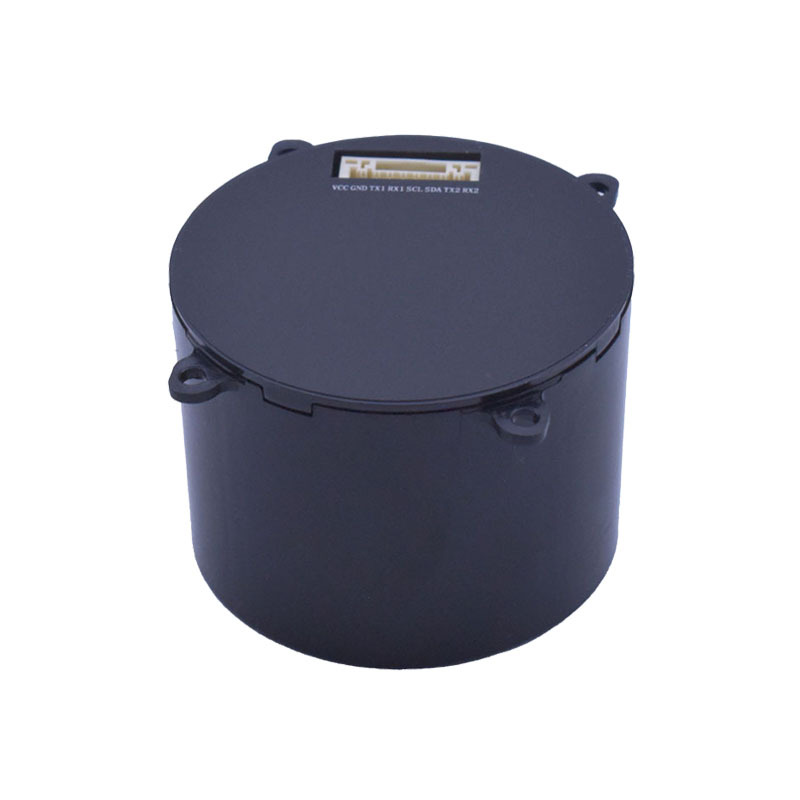

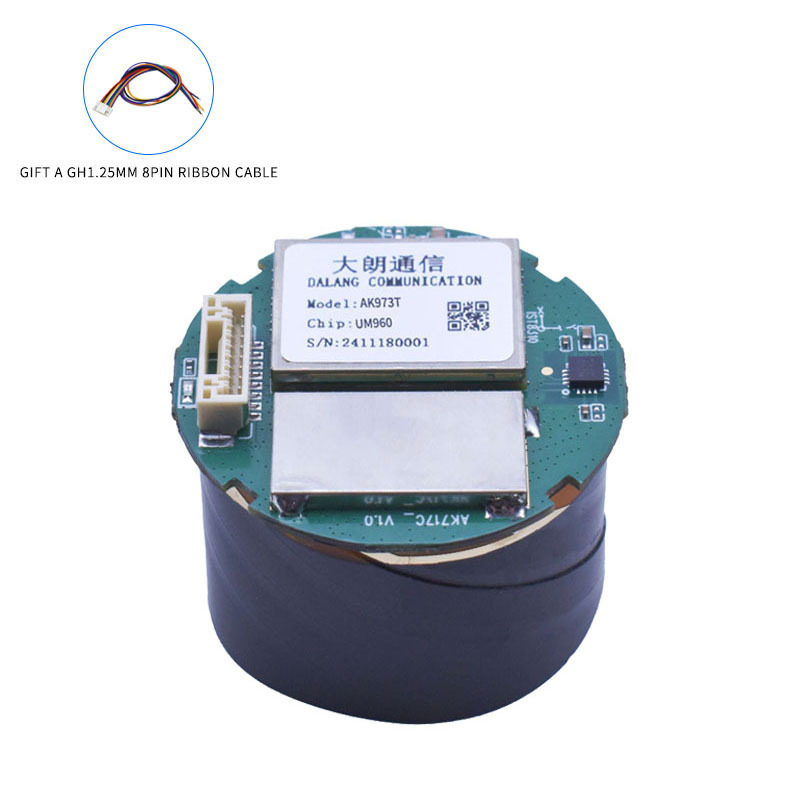

Standard version:

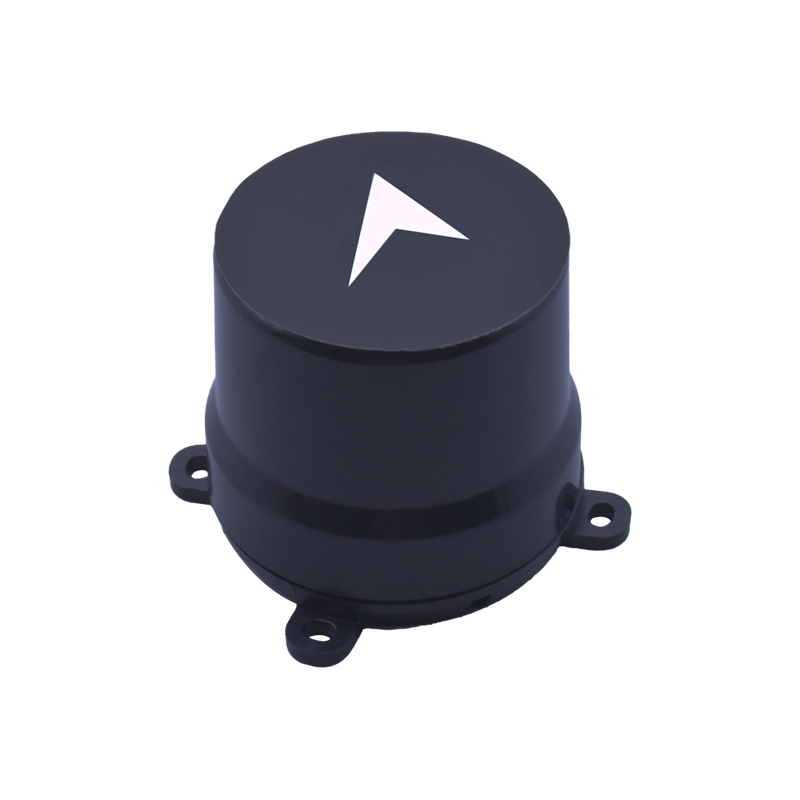

Upgraded version:

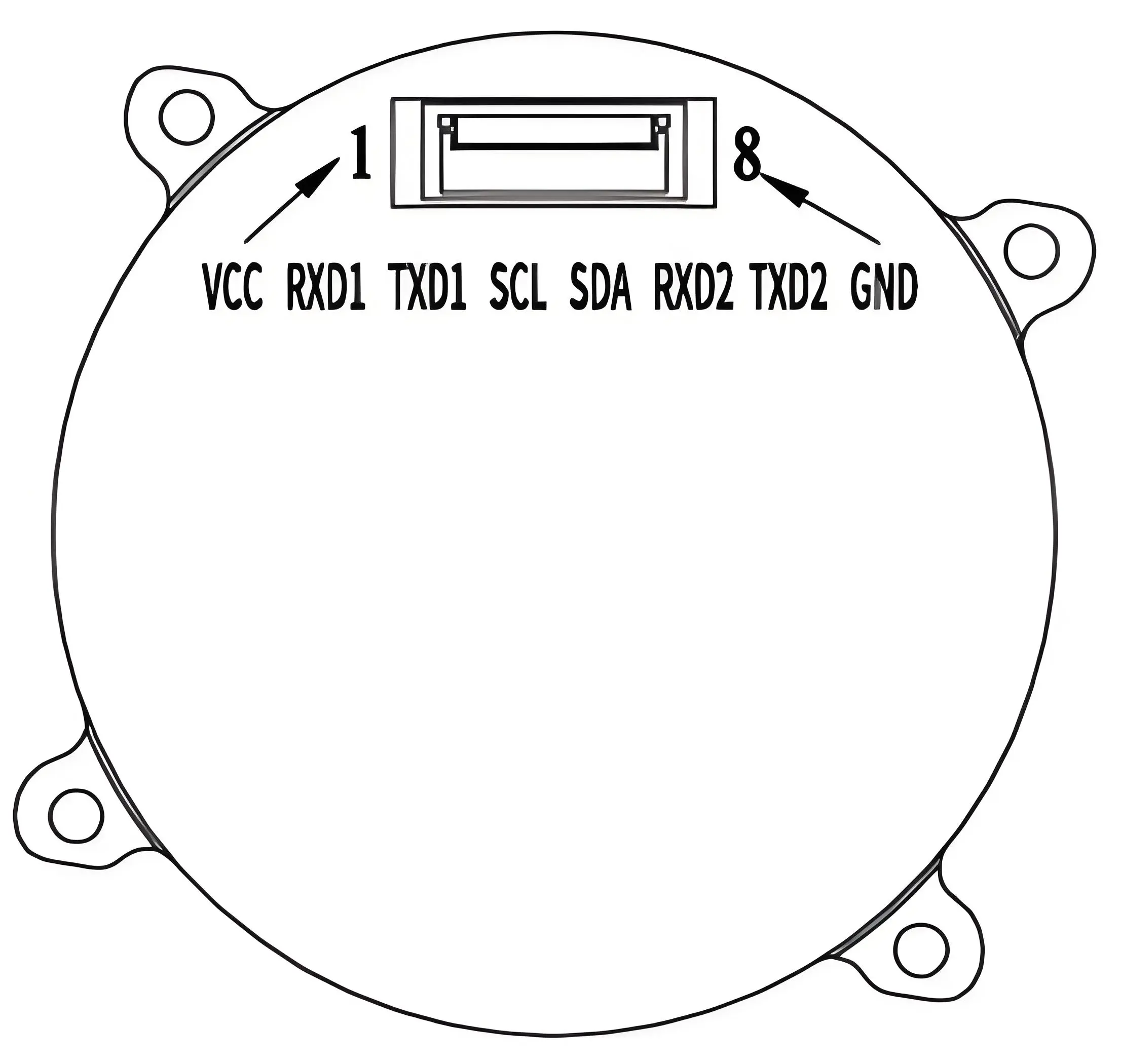

                                                                              Table 1 PIN Function

Pin Number

Signal Name

Signal Description

1

VCC

Main power input,+ 5V

2

RXD1

Receive data port 1, 3.3VTTL

3

TXD1

Send data port 1, 3.3VTTL

4

SCL

I ² C Serial Clock (IST8310)

5

SDA

I ² C Serial Data (IST8310)

6

RXD2

Receive data port 2, 3.3VTTL

7

TXD2

Send data port 2, 3.3VTTL

8

GND

Grounding



Designed for High-Precision UAV Navigation
The DALANG Drone RTK module offers advanced, full-frequency GNSS support, ensuring centimeter-level positioning accuracy in any operational environment. With its integrated high-precision receiver and low power consumption, this module is an excellent choice for both lightweight and high-performance drones. It is perfect for applications such as surveying, aerial mapping, and drone-based inspections. The RTK GPS module delivers real-time positioning corrections, enabling accurate flight paths and seamless integration with UAV flight control systems. This ensures precision in flight, making it a reliable solution for any professional drone user.

Advanced Technology and Key Features
The RTK module for drone features the IST8310 integrated high-precision receiver, which ensures full-frequency, full-system coverage for improved signal reception. This RTK module supports all common GNSS constellations, providing accurate, reliable positioning even in challenging environments. It operates with a full-range, high-efficiency chipset that minimizes power consumption while maximizing operational performance. The RTK GPS for sale module is compatible with a variety of UAV flight controllers, offering easy integration for professional-grade drone systems. With its robust performance and real-time corrections, this module is an excellent fit for precision-demanding applications such as mapping, agriculture, and environmental monitoring.

Wide-Range Industrial Applications
The DALANG RTK GPS module is ideal for industries that rely on precise drone navigation and positioning. It excels in applications such as topographic mapping, 3D modeling, infrastructure inspections, and agricultural monitoring. Whether you're flying over vast open fields for precision agriculture or conducting detailed inspections of construction sites, this RTK module ensures that your drone provides accurate, reliable data. The RTK GPS for sale module’s lightweight design and high precision allow it to be used across a variety of industries, enhancing efficiency, accuracy, and data quality in complex drone missions.


Product Advantages

Compact and Integrated Design
The DALANG Drone RTK module is designed as an all-in-one integrated solution, combining a high-precision receiver and RTK positioning capabilities into a single, compact unit. This streamlined design simplifies installation and reduces the need for additional hardware, making it ideal for lightweight and performance UAVs. The integration ensures a minimal weight increase while maintaining top-tier precision, making it suitable for both commercial and industrial drone applications.

Centimeter-Level Accuracy with Full GNSS Support
Equipped with a dual-frequency GNSS receiver, the RTK GPS module provides centimeter-level positioning accuracy. This technology supports all major satellite constellations, ensuring that your drone remains on course even in challenging environments where signal reliability can fluctuate. Whether you're mapping remote areas or inspecting infrastructure, the RTK module for drone guarantees precise positioning, reducing the risk of errors that could disrupt critical operations.

Low Power Consumption for Extended Operation
The DALANG Drone RTK module is engineered for energy efficiency, allowing drones to operate for extended periods without sacrificing positioning accuracy. Its low power consumption makes it a highly reliable solution for long-duration missions, including land surveying, environmental monitoring, and agriculture. By reducing the need for frequent battery recharges, the module enhances drone efficiency, contributing to longer operational hours and improving overall mission productivity.

Versatile Compatibility with Drone Systems
The RTK GPS for sale module is compatible with a wide range of drone systems, from lightweight UAVs to high-performance models. This makes it a versatile option for different industries, ensuring that users can integrate high-precision RTK positioning into their existing setups with minimal hassle. The module works seamlessly with various flight controllers, providing easy integration for professional-grade applications that require reliable navigation and positioning.


About Us

DALANG is a leading provider of high-precision GNSS and RTK solutions for unmanned aerial vehicles (UAVs) and other unmanned systems. With a focus on providing state-of-the-art navigation modules, we offer integrated solutions that deliver accurate and reliable positioning for a wide range of industrial applications. Our products are used in diverse sectors such as drone surveying, agricultural monitoring, construction site inspections, and environmental research. With a commitment to quality and innovation, DALANG ensures that each product meets the highest standards of performance, helping our customers achieve their goals with precision. We are dedicated to supporting our clients with cutting-edge technology and expert customer service.
Contact us now to get more information or request a custom RTK GPS module for your drone!



FAQ

How do I install the DALANG Drone RTK module?
The RTK GPS module can be easily integrated with your existing drone system. The all-in-one design simplifies installation, and clear instructions are provided for seamless integration with popular flight controllers.

What is the accuracy of the DALANG RTK GPS module?
The RTK module for drone offers centimeter-level accuracy, making it ideal for applications like surveying, mapping, and agricultural monitoring, where high precision is essential.

Can this module be used for long-duration flights?
Yes, the DALANG Drone RTK module is designed with low power consumption, allowing drones to operate for extended periods without compromising performance or accuracy.

Is the RTK module compatible with all drone models?
The RTK GPS for sale module is compatible with a wide range of UAV systems, from lightweight drones to high-performance models, offering flexible integration options.

What kind of technical support is available?
DALANG offers full technical support for the RTK GPS module, including assistance with installation, troubleshooting, and configuration to ensure optimal performance of your drone system.
