P900 GNSS GPS Data Transceiver 60km Long Range Transmission UAV Dedicated

丨 Product Introduction

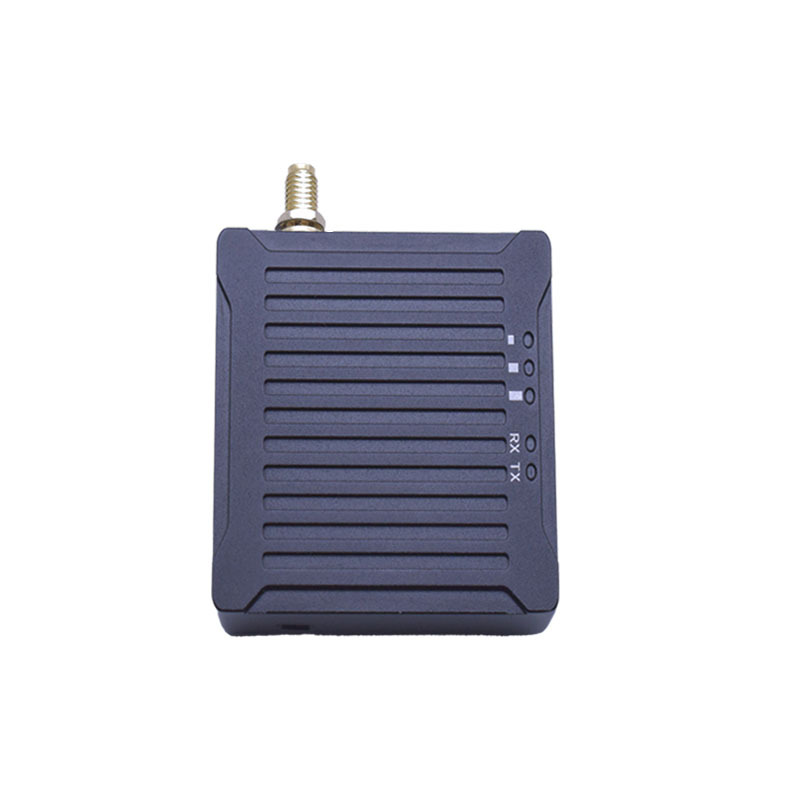

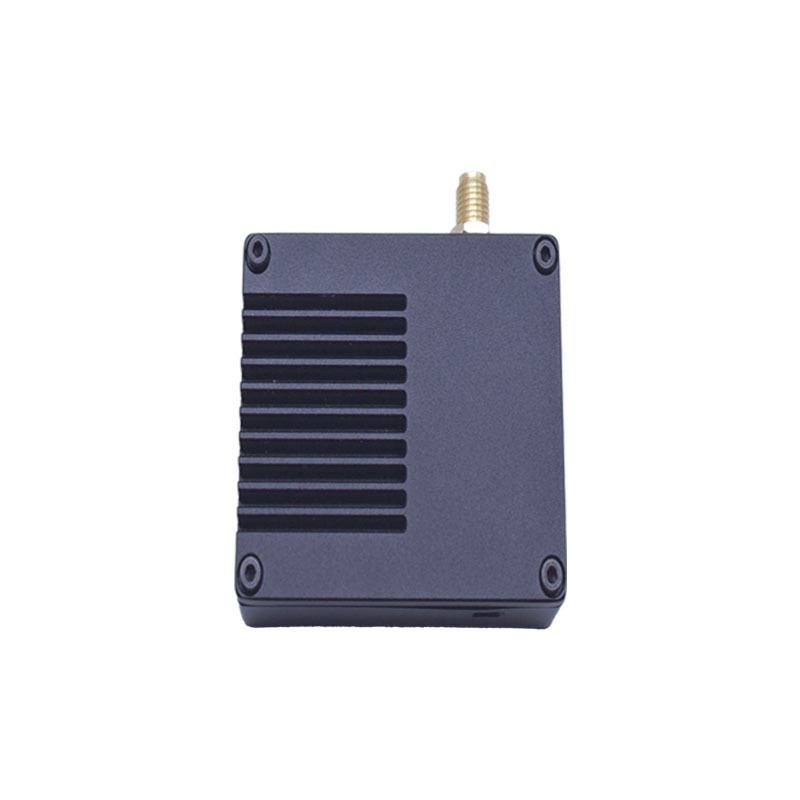

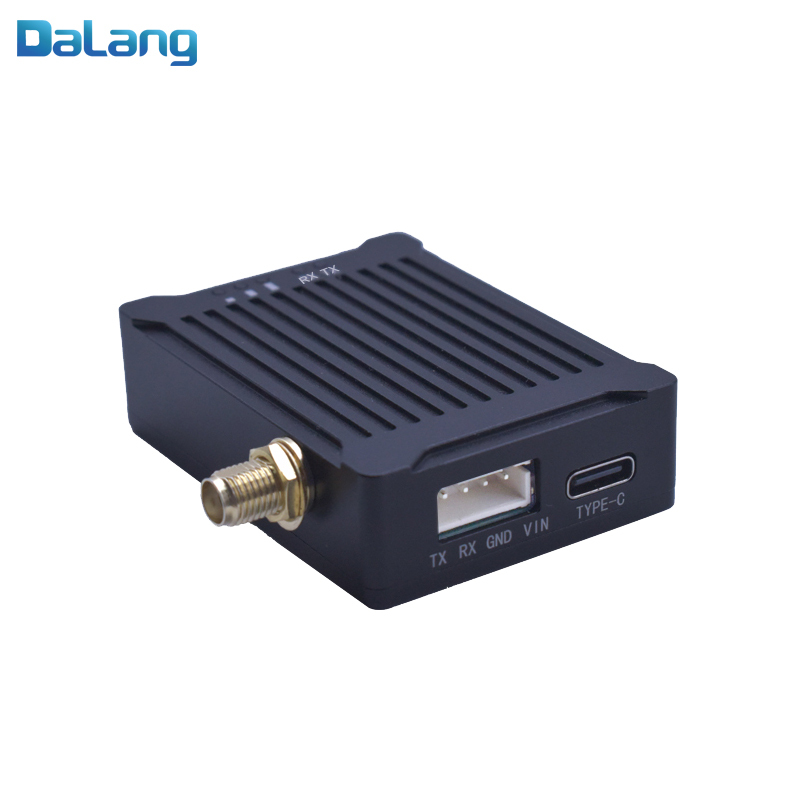

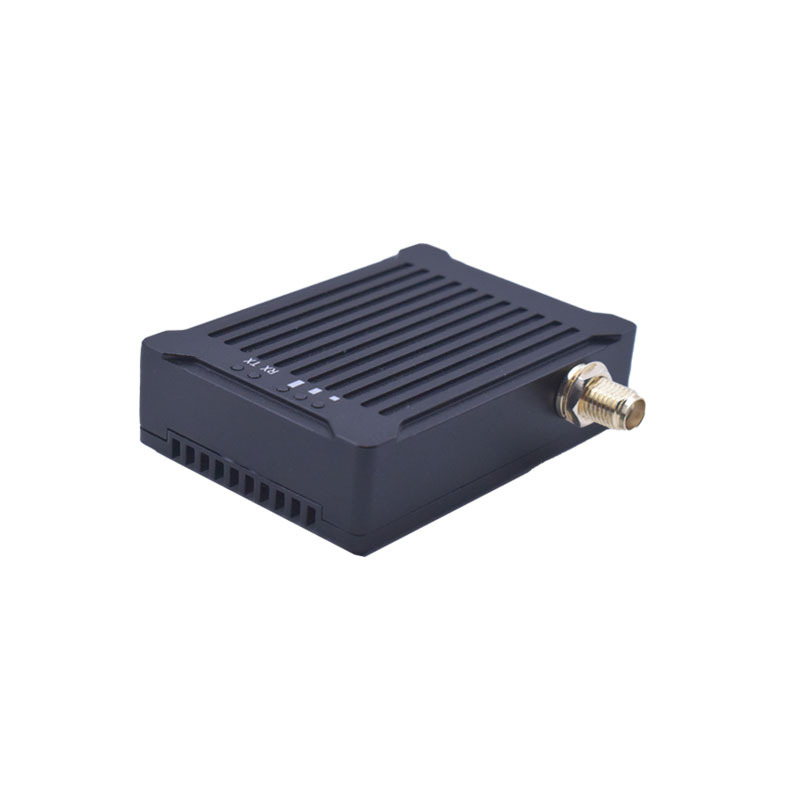

AK900 is a 902-928 MHz data transmission radio, designed with P900 radio module and operating in the 902-928 MHz ISM frequency band. It uses frequency hopping spread spectrum (FHSS) technology and can be used in point-to-point or point to many networking according to actual needs. It adopts a 5-36V wide power input design and provides 3.3V TTL (optional RS232) external serial port. It can be widely used in industries such as unmanned aerial vehicles, unmanned ships, and robots.


characteristic:
1. Frequency band and technology: Operating in the 902-928 MHz ISM frequency band, utilizing frequency hopping spread spectrum (FHSS) technology.

2. Design and Power Supply: Based on the P900 radio module design, it has a 5-36V wide power input capability.

3. Interface and Networking: Provides 3.3V TTL interface, optional RS232 serial port, supports point-to-point or point to multi networking.

4. Application areas: Suitable for industries such as drones, unmanned ships, robots, etc.





丨 Specification parameters

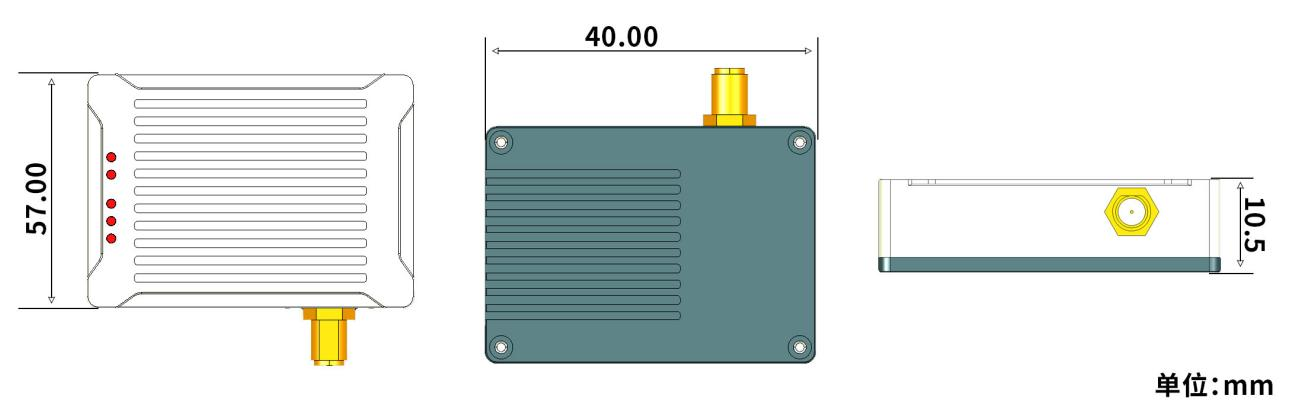

丨 product mix

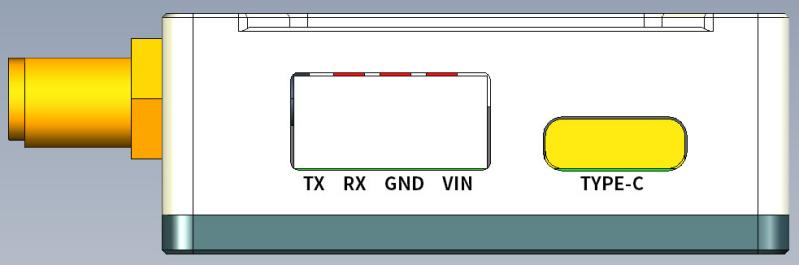

                                                                Table 1 PIN foot function



Status indication:

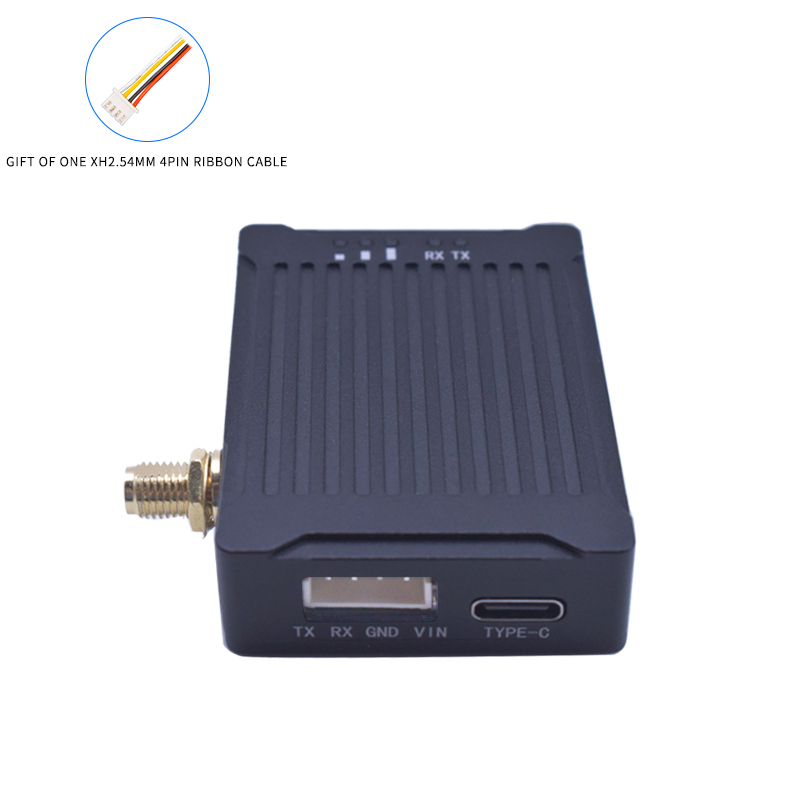

Packaging and Delivery：

---

High-Performance Data Radio for Long-Range Reliable Communication

The AK900 is a professional-grade 902–928 MHz data radio, built on the proven P900 radio module and utilizing Frequency-Hopping Spread Spectrum (FHSS) technology to ensure stable communication in complex electromagnetic environments. It supports flexible point-to-point and point-to-multipoint networking, with a maximum transmission range of up to 60 km, making it an ideal choice for UAVs, unmanned vessels, robotics, and industrial IoT applications.



High Speed and High Sensitivity

With a maximum link rate of 276 kbps and an optimal receiving sensitivity of -114 dBm, the AK900 provides reliable data transmission. Multi-level signal strength indicators offer real-time connection status, while adjustable transmit power (100 mW to 1W) allows precise optimization of communication quality based on actual needs.



Industrial-Grade Design, Wide Voltage and Temperature Tolerance

Featuring a wide voltage input range of 5–36V and an operating temperature range of -20°C to 70°C, the AK900 is housed in a rugged aluminum alloy casing. Whether in extreme cold, heat, or under voltage fluctuations, it ensures uninterrupted communication links, meeting the demanding requirements of outdoor and industrial applications.



Plug-and-Play, Flexible Configuration

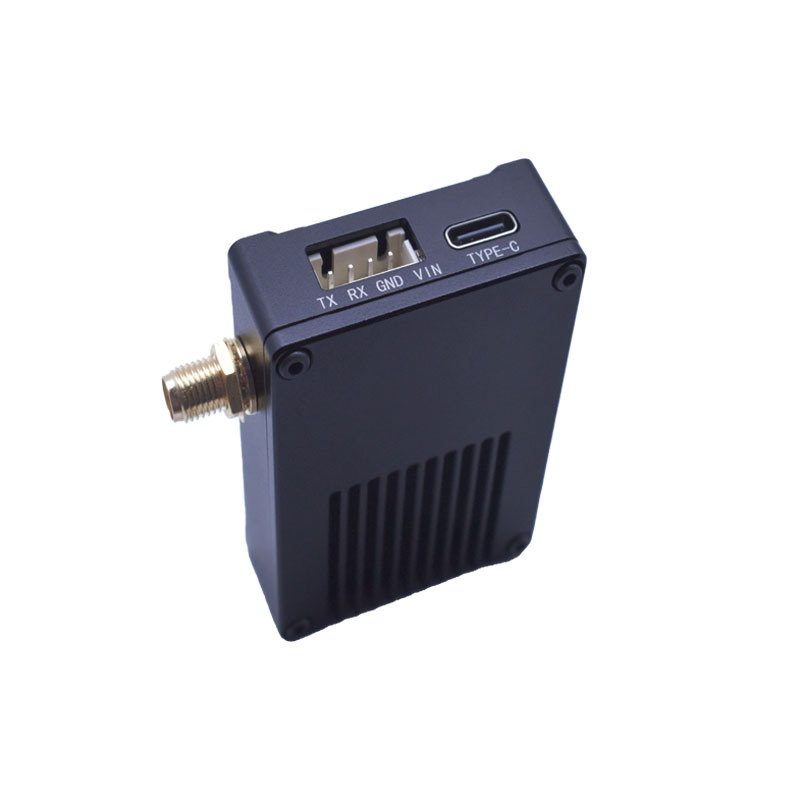

Equipped with a 3.3V TTL interface (optional RS232) and a standard Type-C configuration interface, the AK900 is compatible with mainstream control systems. Simple AT commands enable quick setup for master, slave, and repeater modes, significantly reducing integration time.



Product Advantages

Long-Range Reliable Transmission
Maximum range of 60 km with strong interference resistance via FHSS

Industrial-Grade Robustness
Wide voltage and temperature tolerance, aluminum alloy housing

Flexible Networking
Supports point-to-point and point-to-multipoint topologies

High Speed, Low Latency
Up to 276 kbps link rate for real-time control

Easy Integration and Configuration
Standard interfaces, AT command setup, Type-C debugging port

Need seamless control and telemetry for your mission-critical UAVs? Deploy the DALANG AK900 data radio and establish a robust, long-range communication link with up to 60km range.
