丨 Product Introduction
1. Structure: Built in 40 * 40 * 4 passive antenna, compact and easy to install and integrate.
2. Adaptability: The cable interface is flexible and suitable for fields such as navigation, communication, and the Internet of Things.
3. Installation: The cable length is suitable, the interface operation is simple, and it saves time and manpower.
4. Anti interference: Resist interference from surrounding signals, filter out clutter, ensure signal purity and accurate data transmission.
丨 Specification parameters
|
Specification parameters
|
|
Antenna characteristics
|
1
|
antenna model
|
GPS external antenna
|
|
2
|
Ceramic size
|
40*40*4mm
|
|
3
|
Usage frequency
|
GPS：L1:1575.42±1.023MHZ
GLONASS：L1:1602+0.5625MHz
BDS: B1:1561±1.023MHz
GALILEO：E1:1575
|
|
4
|
V.S.W.R
|
≤2.0
|
|
5
|
-10dB bandwidth MHz min
|
10min
|
|
6
|
Gain
|
28±2dBic
|
|
7
|
impedance
|
50Ω
|
|
8
|
Polarization mode
|
RHCP
|
|
LNA
|
1
|
LNA gain
|
27±2dB
|
|
2
|
V.S.W.R
|
<2
|
|
3
|
figure
|
<1.5dB
|
|
4
|
voltage
|
DC 3~5V
|
|
5
|
electric current
|
<20mA
|
|
6
|
impedance
|
50Ω
|
|
Mbom
|
1
|
Overall size (mm)
|
49.5*49.5*19.5mm
|
|
2
|
Product weight
|
76.6g
|
|
3
|
joint
|
SMA elbow (customizable)
|
|
4
|
wire rod
|
RG174 (customizable)
|
|
5
|
Line length
|
3m (customizable)
|
|
6
|
PCB
|
FR4
|
|
work environment
|
1
|
work environment
|
-40℃~+85℃，10%~95%RH
|
|
2
|
Environment
|
-55℃+100℃，10%95%RH
|
Packaging and Delivery：
Product Overview

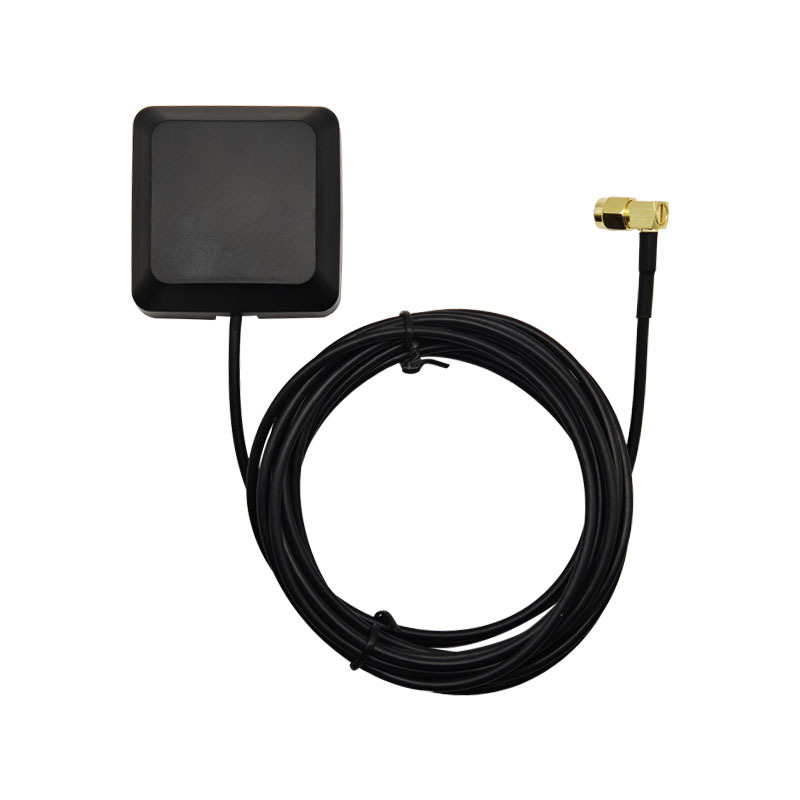

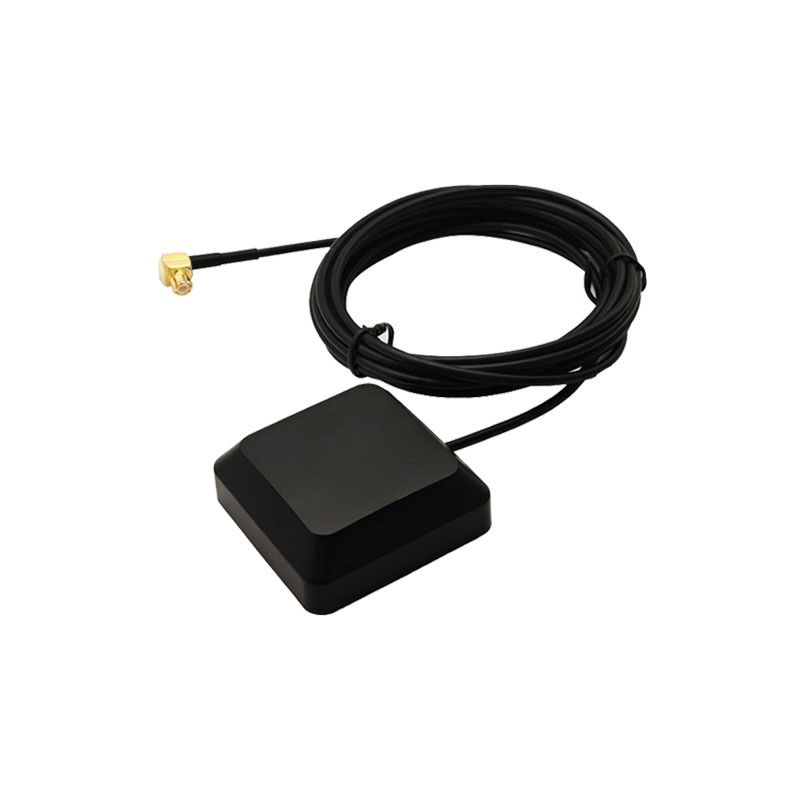

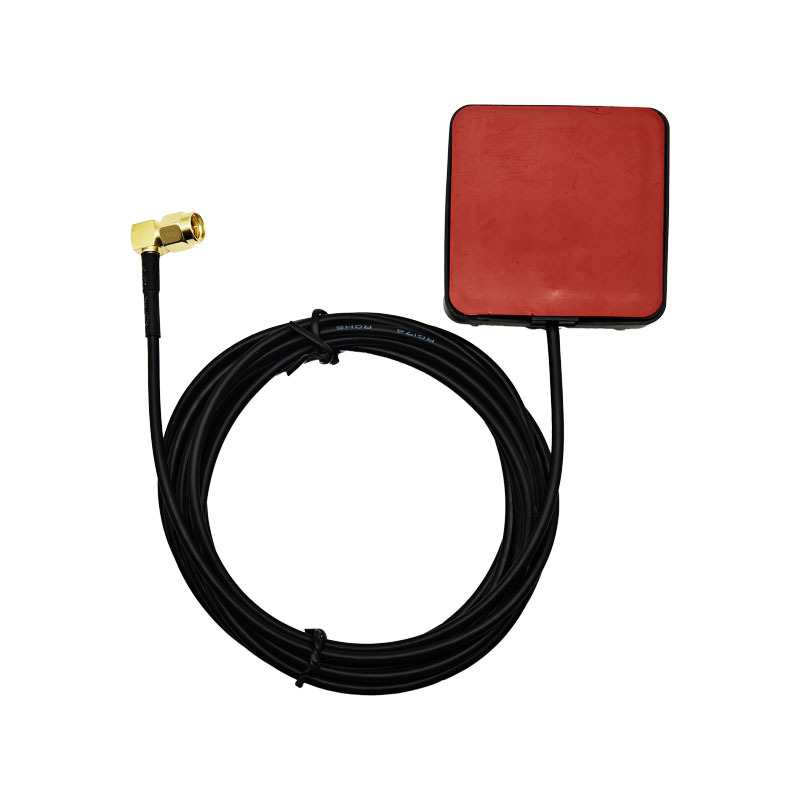

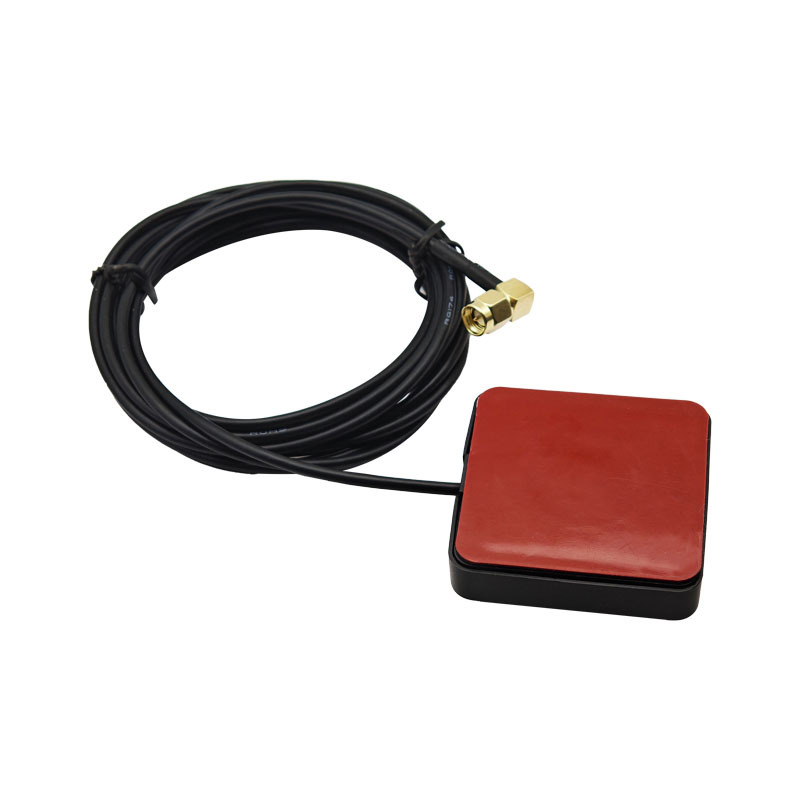

The AK211 is an active GPS antenna designed with a single-layer ceramic substrate (40×40×4mm), featuring a built-in low-noise amplifier (LNA) that significantly enhances signal gain and reception sensitivity, effectively capturing weak signals. Compact in structure, it is easy to integrate into space-constrained devices and suitable for navigation, communication, IoT, and other fields.
Strong Signal Enhancement and Anti-Interference Capability
The built-in LNA circuit greatly amplifies weak signals and improves signal reception strength. It also features good frequency selectivity, effectively filtering out interference to ensure pure output signals.
Compact Structure and Easy Installation

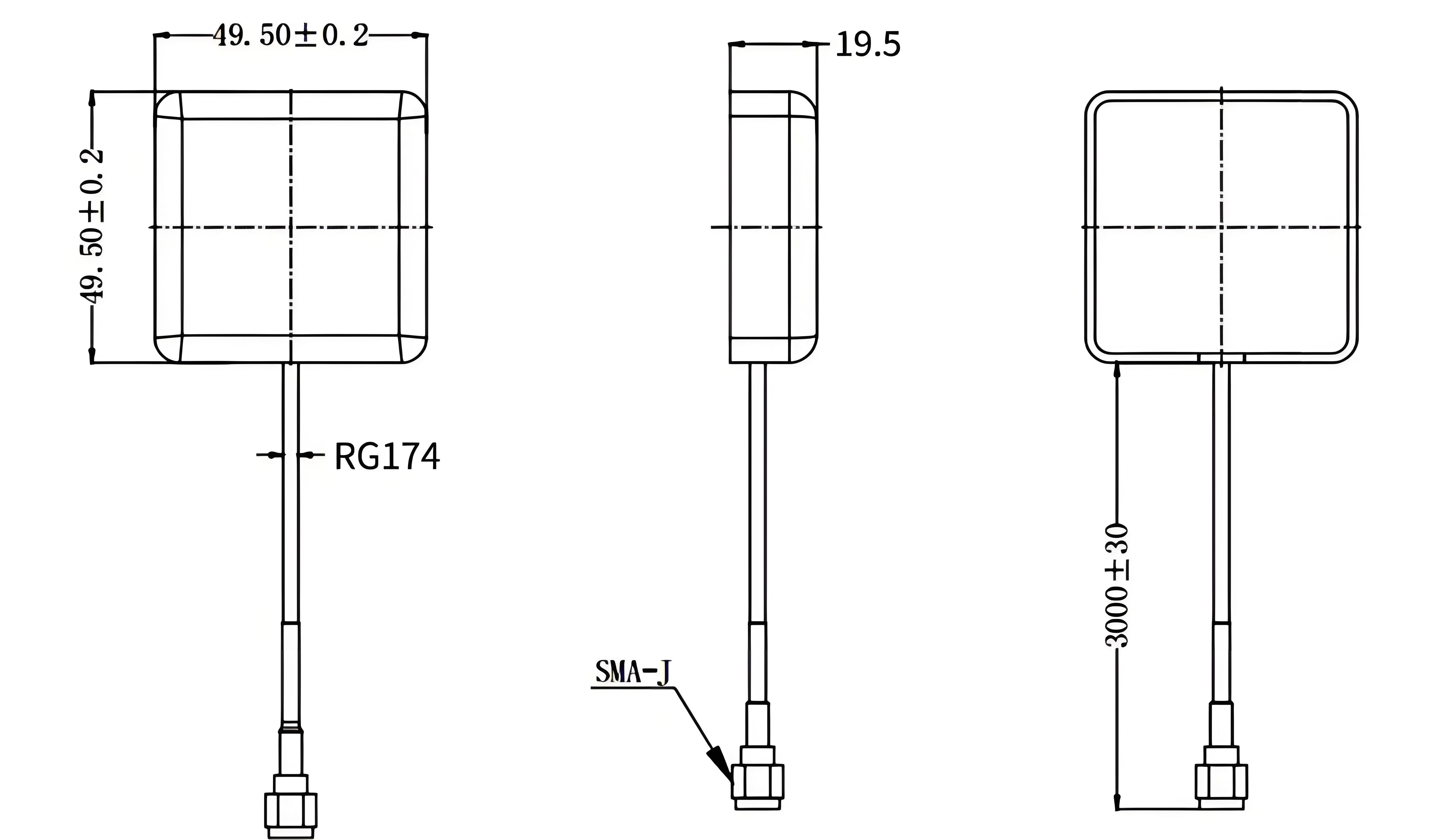

The antenna is small in size (49.5×49.5×19.5mm) and lightweight (76.6g), equipped with a standard SMA elbow connector and RG174 cable for flexible installation without complex tools.
Multi-Band Support and Wide Applicability
Supports multiple navigation frequency bands including GPS L1, GLONASS L1, BeiDou B1, and Galileo E1, meeting signal reception needs for different systems.
Product Advantages
High Gain and High Sensitivity
Antenna gain up to 28±2dBic, LNA gain 27±2dB, effectively improving signal reception range and stability.
Wide Operating Temperature Range
Operating temperature from -40℃ to +85℃, suitable for long-term stable operation in harsh environments.
Flexible Customization Options

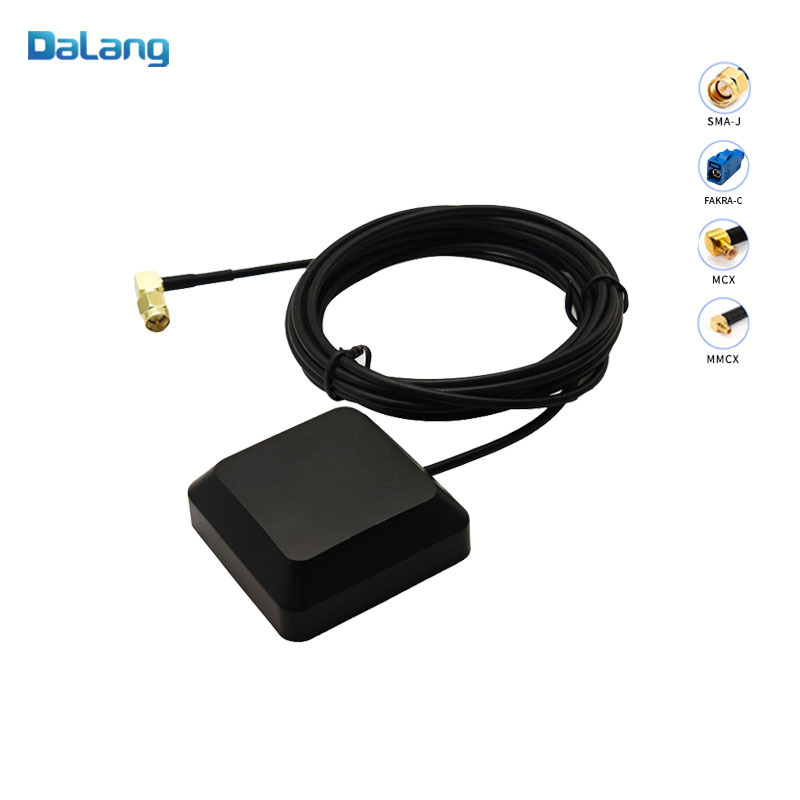

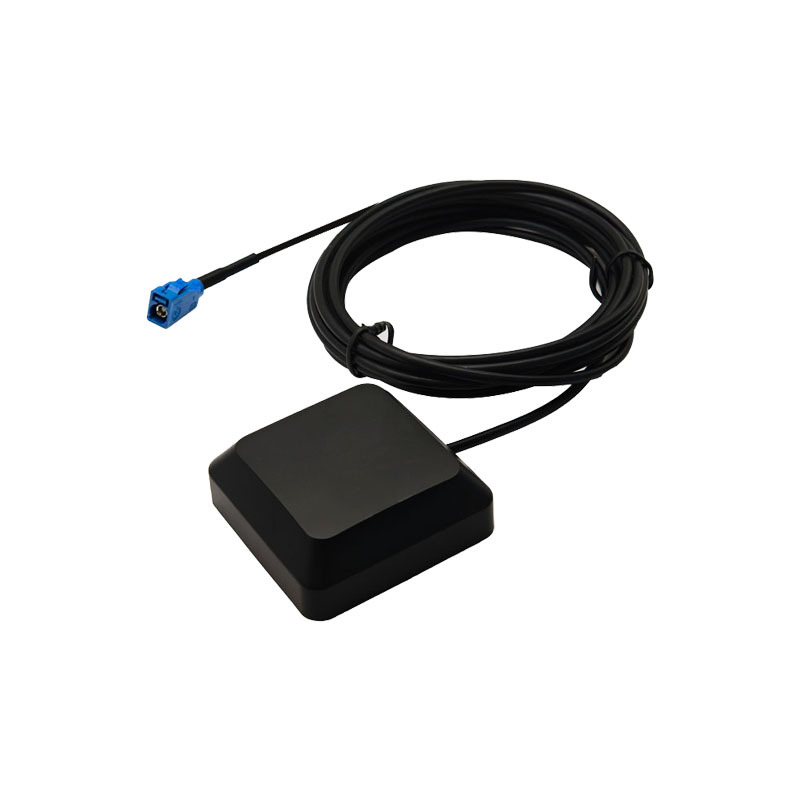

Cable length, connector type, and other specifications can be customized according to requirements, facilitating integration into various devices.
Excellent Anti-Interference Performance
Good voltage standing wave ratio (V.S.W.R ≤2.0) and impedance matching (50Ω), reducing signal reflection and loss.
Looking for a high-performance GPS antenna for your navigation or communication device?
The AK211 provides a signal-enhanced, anti-interference, and easy-to-integrate antenna solution. Contact us for samples and technical documentation.
