丨 Product Introduction
1. Base station or roaming vehicle configuration: Provides high flexibility for different scenarios.
2. Differential positioning and vector attitude measurement: providing accurate position and direction.
3. Compatibility with flight control systems: Integration with Pixhawk and APM.
4. Four mode RTK: Ensure fast and accurate positioning in various environments.
丨 Specification parameters
|
Chip
characteristics
|
chip
|
UM982
|
|
Working mode
|
BDS: B1I、B2I、B3I
GPS: L1C/A、L2P (Y)、L2C、L5
GLONASS: L1、L2
Galileo: E1、E5a、E5b
QZSS: L1、L2、L5
|
|
Receiving channel
|
1408 channel
|
|
Accuracy
|
Single point positioning (RMS)
|
Plane: 1.5m
|
|
Elevation: 2.5m
|
|
DGPS(RMS)
|
Plane: 0.4m
|
|
Elevation: 0.8m
|
|
RTK(RMS)
|
Flat: 0.8cm+1ppm
|
|
Elevation: 1.5cm+1ppm
|
|
Directional accuracy (RMS)
|
0.2 degrees/1m baseline
|
|
Time accuracy (RMS)
|
20 ns
|
|
Speed accuracy (RMS)
|
0.2 m/s
|
|
Observation accuracy (RMS)
|
BDS
|
GPS
|
GLONASS
|
Galileo
|
|
B1I/B1C/L1 C/A/E1/G1 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B1I/B1C/ L1 C/A/E1/G1 Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
B3I/L2P(Y)/L2C/G2 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B3I/L2P(Y)/L2C/G2 Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
B2I/ L5/E5a/E5b pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B2I/ L5/E5a/E5b Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
Time To First
Fix TTFF
|
cold boot
|
＜20s
|
|
Initialization time
|
＜5s ( Typical values)
|
|
Initialize reliability
|
＞99.9%
|
|
Output data
|
Baud rate
|
115200bps (default) [Optional: 4800-921600]
|
|
Output interface
|
TTL/USB
|
|
Output Protocol
|
NMEA0183、RTCM 3.3
|
|
Data update rate
|
1Hz-20Hz (default 1Hz)
|
|
Differential data
|
RTCM 3.3/3.2/3.1/3.0
|
|
Carrier phase output
|
Support, output RAWX statement
|
|
FLASH
|
built-in
|
|
Electrical
specifications
|
working voltage
|
3~5.5V DC
|
|
power waste
|
<800mW
|
|
Physical
parameters
|

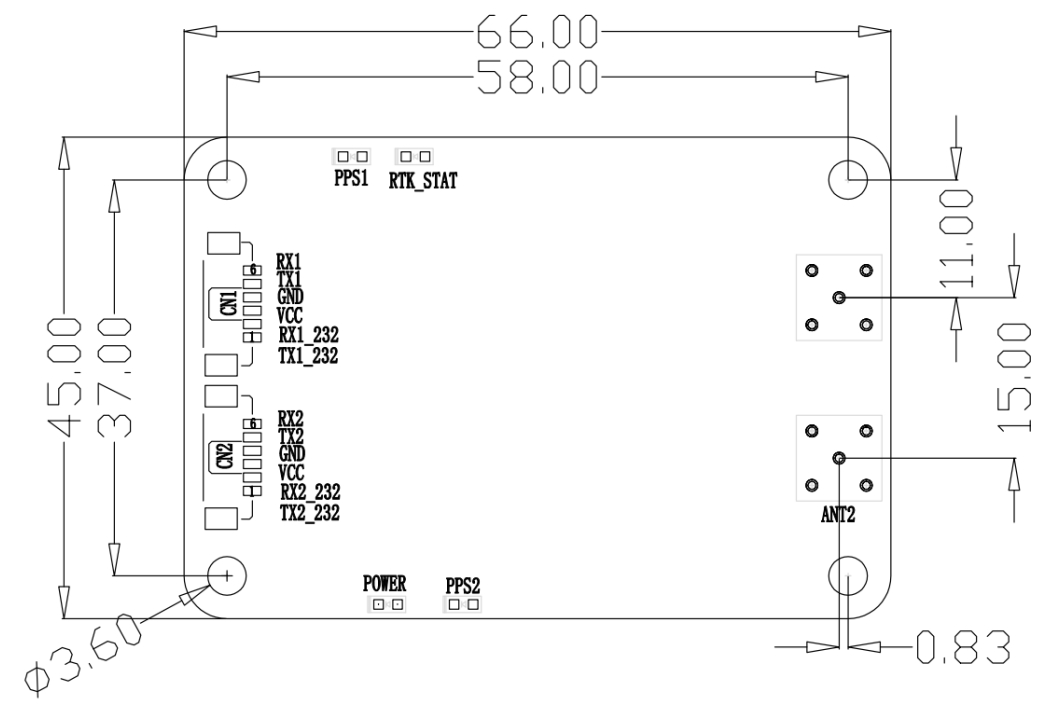

size
|
66*45mm*3.5mm
|
|
weight
|
17.4g
|
|
Connector
|
2×GH1.25mm 6pin
|
|
Antenna connector
|
SMA Elbow (customizable)
|
|
Environment
|
working temperature
|
-35℃-80℃
|
|
Storage temperature
|
-40℃-85℃
|
Table 1 PIN Functionality
|
Pin Number
|
Signal Name
|
Signal Description
|
|
CN1
|
1
|
TX1_232
|
Serial port 1 transmit, RS232 level
|
|
2
|
RX1_232
|
Serial port 1 receive, RS232 level
|
|
3
|
VCC
|
+5V power input
|
|
4
|
GND
|
Ground
|
|
5
|
TX1
|
Serial port 1 transmit, 3.3V TTL level
|
|
6
|
RX1
|
Serial port 1 receive, 3.3V TTL level
|
|
CN2
|
1
|
TX2_232
|
Serial port 2 transmit, RS232 level
|
|
2
|
RX2_232
|
Serial port 2 receive, RS232 level
|
|
3
|
VCC
|
+5V power input
|
|
4
|
GND
|
Ground
|
|
5
|
TX2
|
Serial port 2 transmit, 3.3V TTL level
|
|
6
|
RX2
|
Serial port 2 receive, 3.3V TTL level
|
|
LED Indicators
|
1
|
RTK-STAT
|
RTK positioning indicator, high level active, outputs high level when RTK fixed. Other positioning states or no positioning output low level.
|
|
2
|
POWER
|
Indicates power supply status
|
|
3
|
PPS1
|
Pulse per second output 1, outputs pulse per second after positioning, LED flashes
|
|
4
|
PPS2
|
Pulse per second output 2, outputs pulse per second after positioning, LED flashes
|
Table 2 Interface Characteristics
|
No.
|
Name
|
Symbol
|
Min
|
Typical
|
Max
|
Unit
|
|
1
|
Main Power Supply
|
Vcc
|
2.7
|
3.3
|
5.0
|
V
|
|
2
|
RF Port Feeding
|
VRF
|
1.4
|
3.3
|
3.6
|
V
|
|
3
|
Input High Level
|
VIH
|
2.0
|
|
|
V
|
|
4
|
Input Low Level
|
VIL
|
|
|
0.7
|
V
|
|
5
|
Output High Level
|
VOH
|
3.2
|
|
|
V
|
|
6
|
Output Low Level
|
VOL
|
|
|
0.1
|
V
|
|
7
|
Main Serial Baud RateBaud
|
Baud
|
|
115200
|
|
bps
|
|
8
|
Differential Wave
|
Baud
|
|
115200
|
|
bps
|

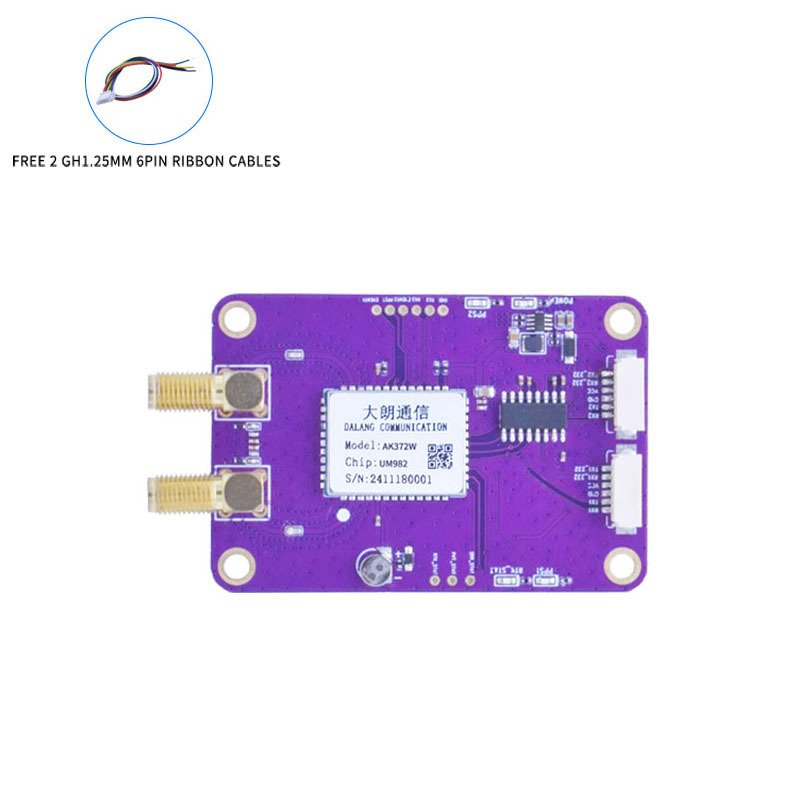

Packaging and Delivery：
Centimeter-Level GNSS Positioning Engine

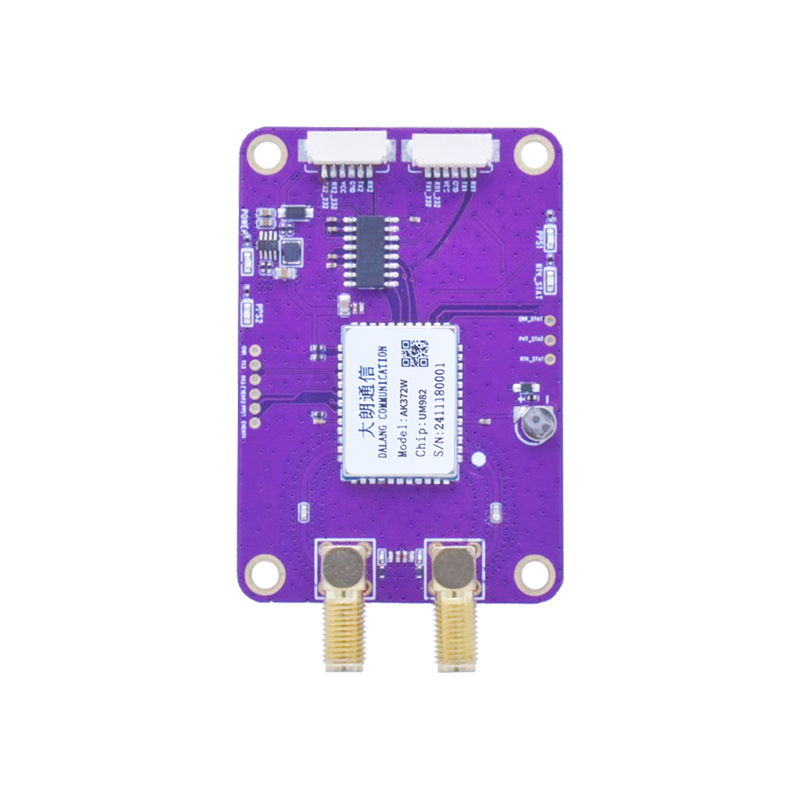

The DALANG AK372W is a dual-antenna RTK module based on the UM982 platform, delivering real-time centimeter-level accuracy for UAVs, automotive navigation, and surveying. Configurable as base station or rover, it uses carrier phase differential technology with up to 1 cm accuracy and 1-20Hz output rate.
High-Frequency RTK Positioning & Heading
With multi-band RTK engine and dual-antenna design, the AK372W achieves fast fixed solutions in various environments, providing stable GNSS positioning and heading data.
Industrial-Grade Design
Features dual independent serial interfaces supporting 3.3V TTL and RS232 levels. Wide voltage input (3~5.5V DC) and industrial temperature range (-35°C ~ +80°C) ensure reliable operation in harsh conditions.
Product Advantages
Full-System Support
Supports BDS, GPS, GLONASS, Galileo, QZSS, SBAS. 1408 channels deliver 0.2°/m baseline heading accuracy.
High-Speed Response
Quad-Mode RTK with up to 20Hz output rate meets real-time requirements of high-speed platforms.
Flexible Integration
Dual serial ports configurable for data output/differential input, supporting 4800-921600 baud rates.
Compact & Robust
66x45mm compact size with standard GH1.25 connectors and SMA interfaces, ideal for OEM applications.
Upgrade your project with centimeter-level performance - inquire about DALANG AK372W today.
