丨 Product Introduction
1. High data output: Supports up to 50Hz data output, suitable for high-speed mobile drone positioning, ensuring continuous and stable trajectory tracking.
2. Compatibility: Fully compatible with automatic flight control systems such as Pixhawk and APM, making it easy to integrate multiple flight platforms.
3. Built in IUD: solves the problem of positioning interruption caused by satellite signal loss of lock.
4. Compass configuration: Built in electronic compass RM3100 to enhance signal accuracy.
丨 Specification parameters
|
Chip
characteristics
|
chip
|
UM981
|
|
working
frequency
|
BDS: B1I B2I B3I B1C B2a B2b
GPS: L1 C/A L1C L2P (Y) L2C L5
GLONASS: L1 L2
Galileo: E1 E5a E5b E6
QZSS: L1 L2 L5 L6
NavIC L5
SBAS L1C/A
|
|
Receiving channel
|
1408 channel
|
|
Sensitivity
|
track
|
-167 dBm
|
|
cold boot
|
-148 dBm
|
|
Hot start
|
-157 dBm
|
|
First positionin
time TTFF
|
cold boot
|
26s
|
|
Hot start
|
2s
|
|
Re capture
|
2s
|
|
Inertial navigation accuracy
|
<5% x driving distance (no GNSS signal)
|
|
Accuracy
|
Horizontal Accuracy
|
Normal positioning: 1.5m CEP
|
|
RTK positioning: 0.8cm+1 ppm CEP
|
|
speed accuracy
|
0.05m/s
|
|
Second pulse accuracy
|
30ns
|
|
Output data
|
Baud rate
|
115200bps (default) [Optional: 4800-921600]
|
|
Output interface
|
TTL
|
|
Output Protocol
|
NMEA0183、Unicore
|
|
Data update frequency
|
100Hz (IMU Raw Data)
|
|
Default 1Hz (0.25Hz-50Hz)
|
|
Carrier phase output
|
Support, output RAWX statement
|
|
FLASH
|
built-in
|
|
Working
conditions
|
height
|
＜50,000m
|
|
speed
|
＜500m/s
|
|
Gravitational acceleration
|
＜4g
|
|
Electrical
specifications
|
working voltage
|
3V-5.5V DC
|
|
power waste
|
800mW @3.3V
|
|
Physical
parameters
|
size
|
Standard version:φ42*31.2mm
Upgraded version:φ44*40.6mm
|
|
weight
|
Standard version: 13.2g
Upgraded version: 21g
|
|
Connector
|
GH1.25mm 8pin
|
|
Environment
|
working temperature
|
-35℃-80℃
|
|
Storage temperature
|
-40℃-85℃
|
|
Compass
|
Compass
|
RM3100
|

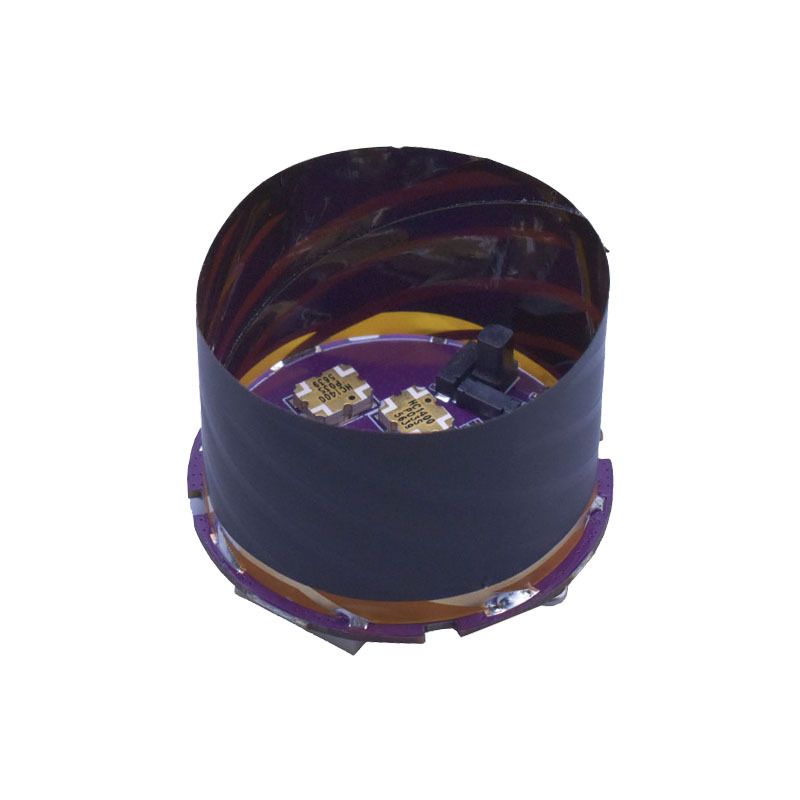

丨 product mix

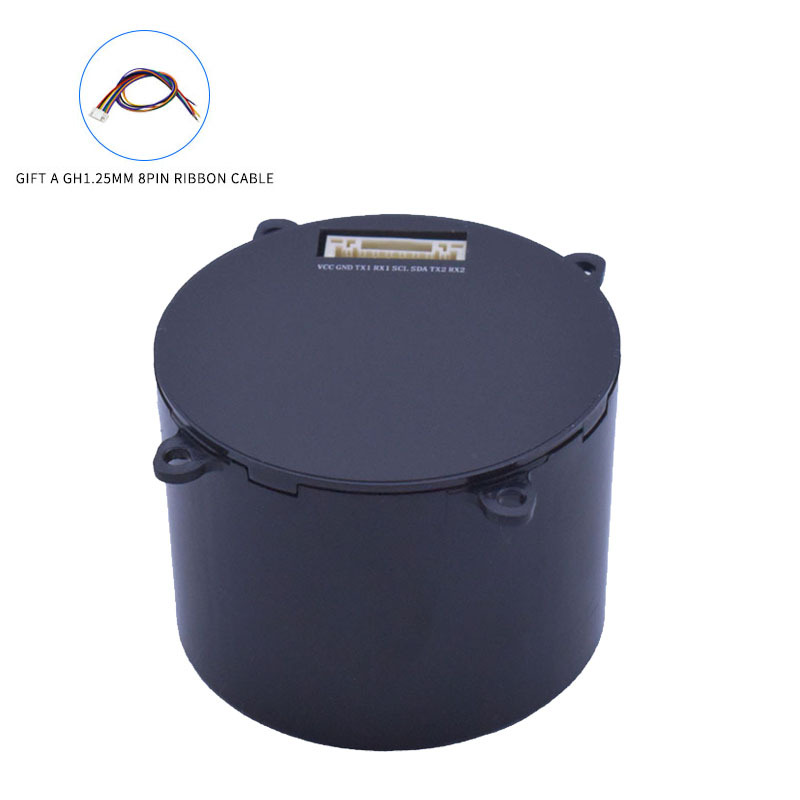

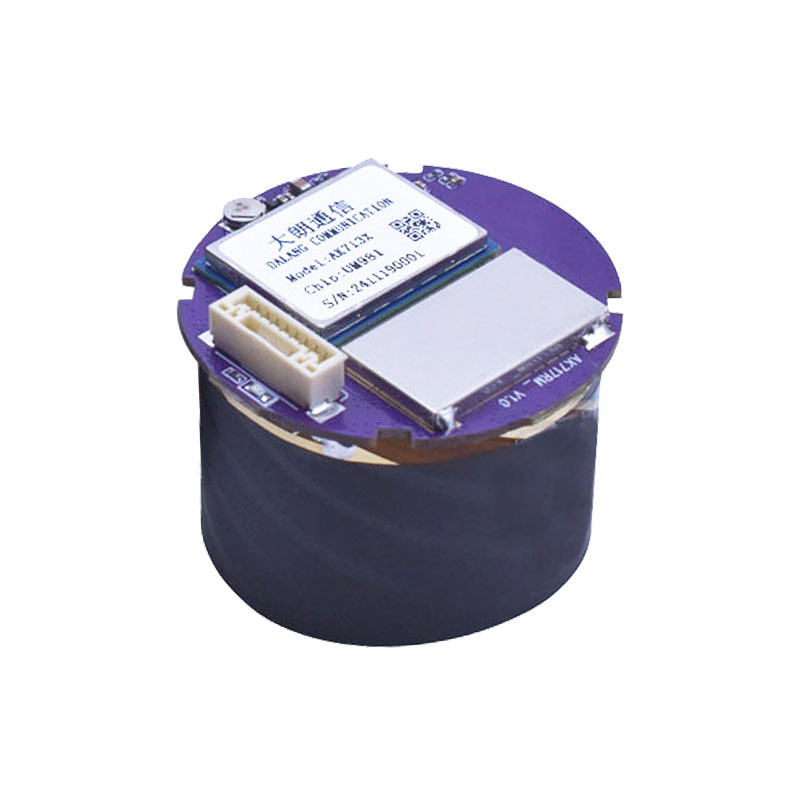

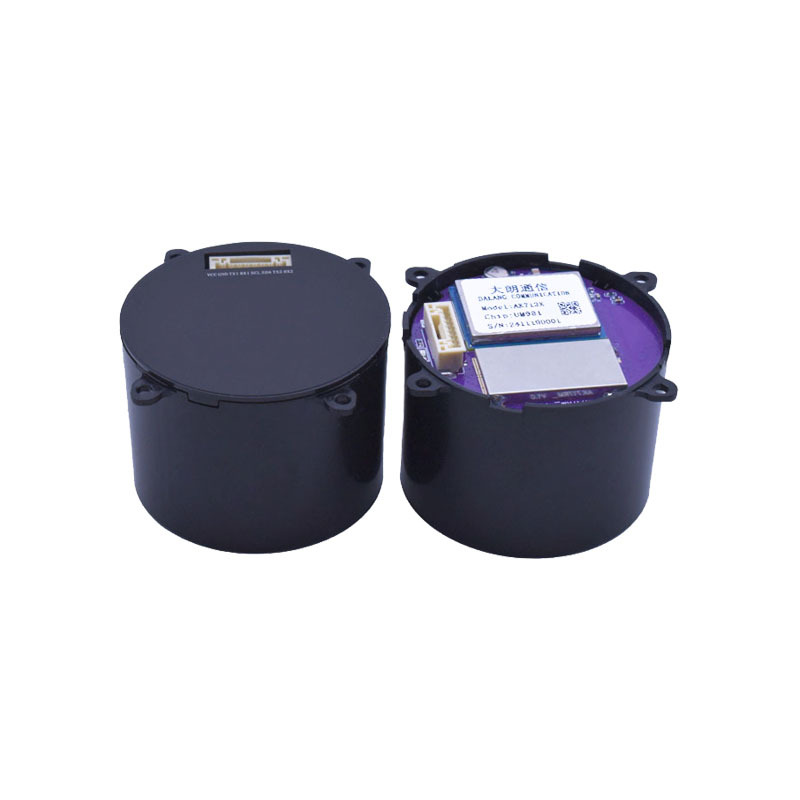

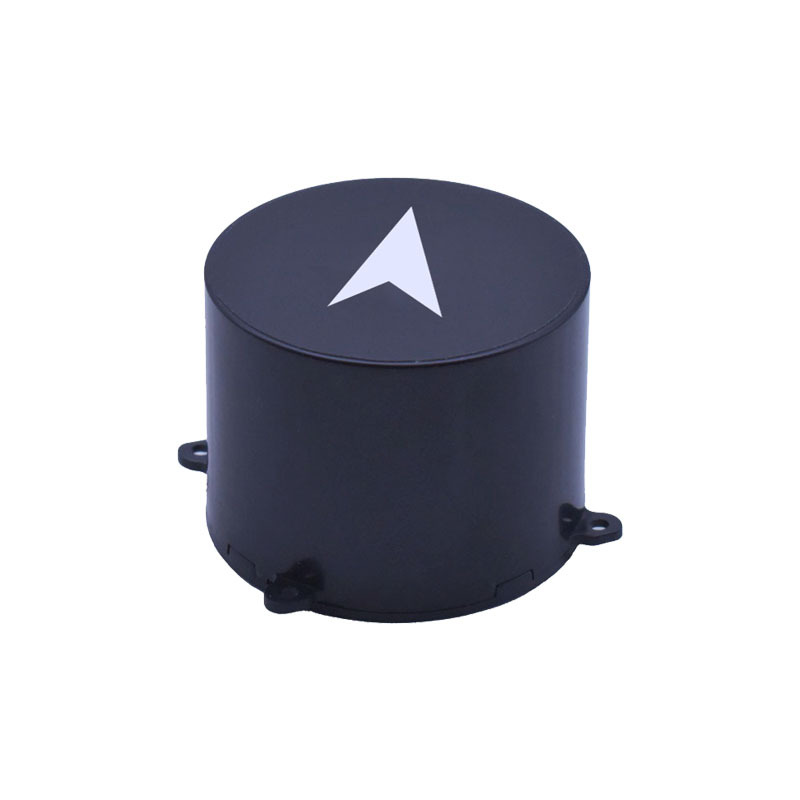

Standard version:

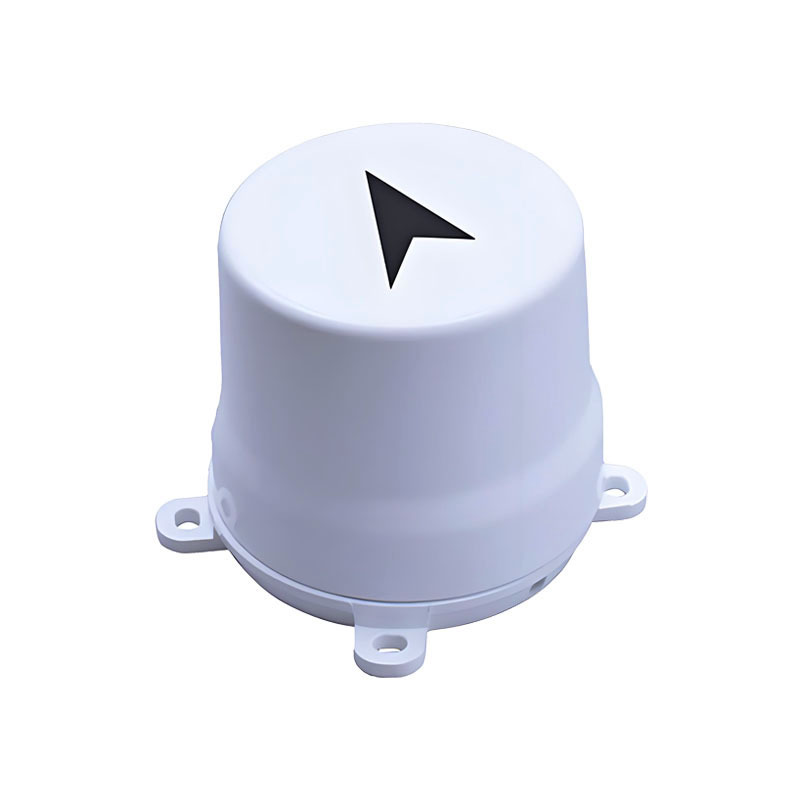

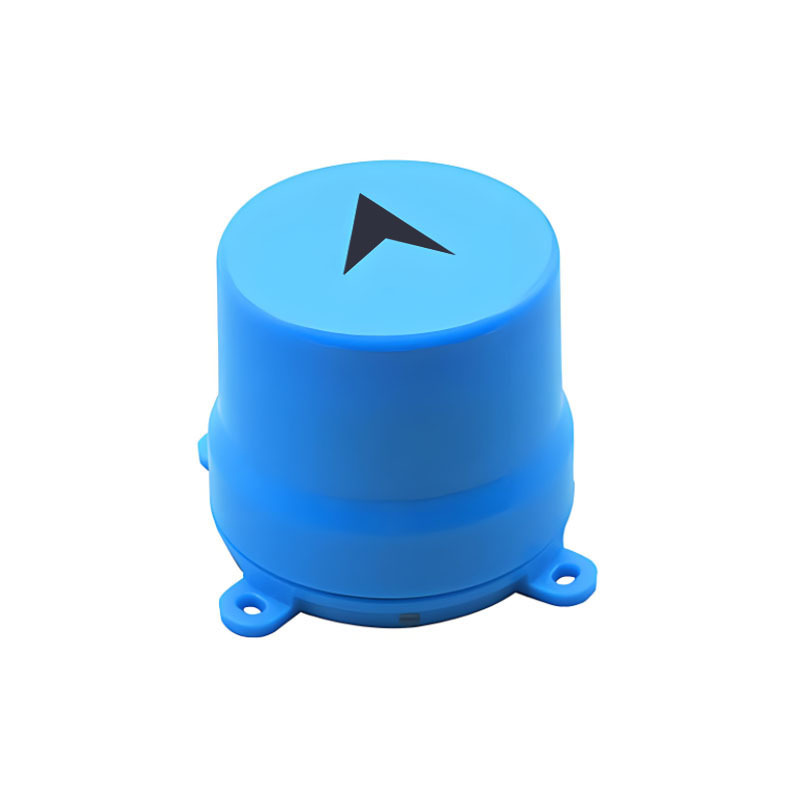

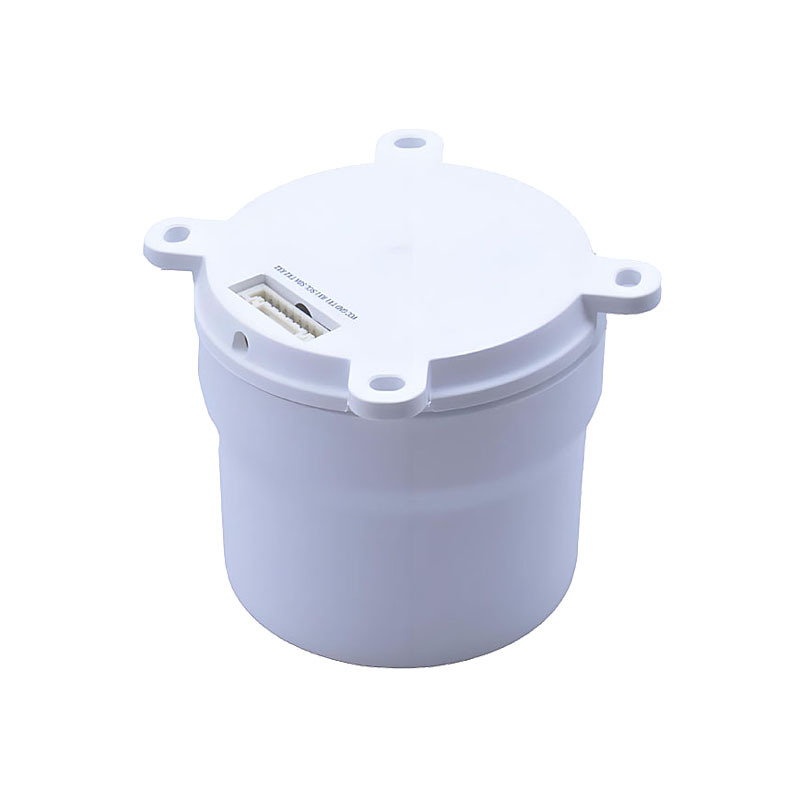

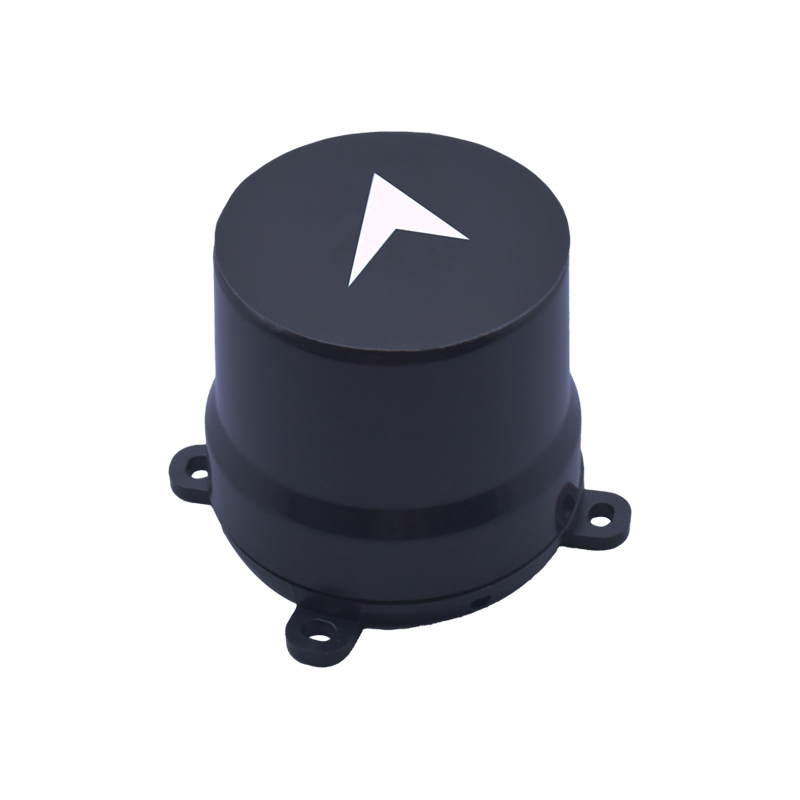

Upgraded version:
Table 1 PIN Function
|
NO.
|
Signal Name
|
Signal Description
|
|
1
|
VCC
|
Main power input, +3.3V to 5V
|
|
2
|
GND
|
Module ground
|
|
3
|
TX1
|
UART1 output, 3.3V TTL
|
|
4
|
RX1
|
UART1 input, 3.3V TTL
|
|
5
|
SCL
|
I²C Serial Clock （RM3100）
|
|
6
|
SDA
|
I²C Serial Data （RM3100）
|
|
7
|
TX2
|
UART2 output, 3.3V TTL
|
|
8
|
RX2
|
UART2 input, 3.3V TTL
|
Product Overview

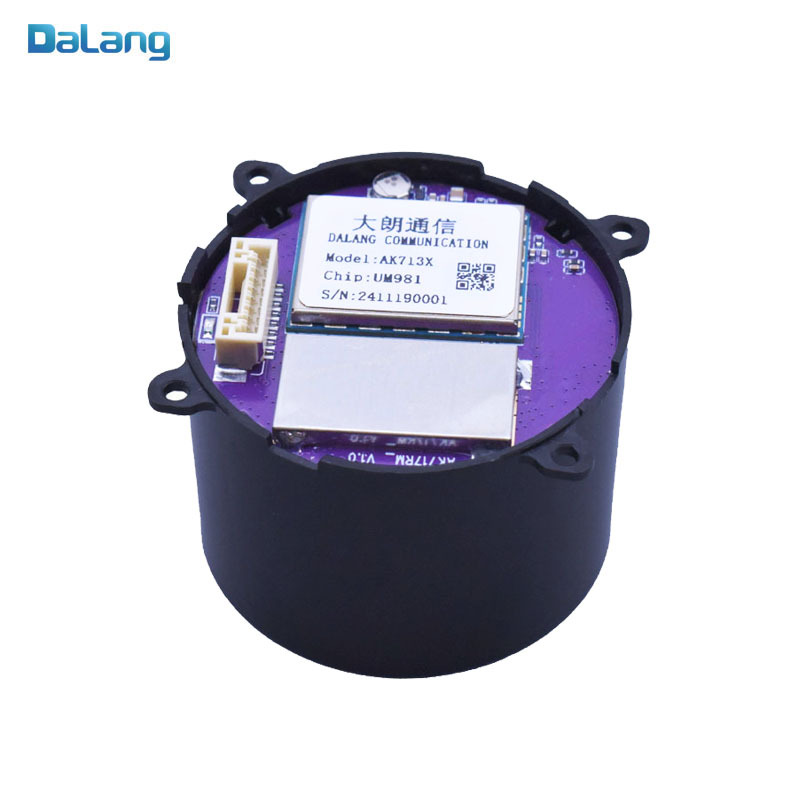

The DALANG AK723RMG is a next-generation RTK/INS integrated navigation module based on the UM981 chip. Built on the NebulasIV GNSS SoC, it delivers 100 Hz positioning output and maintains continuous positioning in GNSS-denied environments through integrated MEMS sensors and U-Fusion algorithms.
Multi-System Support
Supports BDS, GPS, GLONASS, Galileo, QZSS, NavIC, and SBAS for reliable positioning.
INS Integration
Onboard IMU provides <5% distance error in inertial navigation mode when satellite signals are unavailable.
Compact Design
Weighing only 13.2g with dimensions of Φ44×40.6mm, ideal for weight-sensitive applications.
Key Features
-
100 Hz Output: Meets high-dynamic positioning requirements
-
All-System Support: Compatible with 7 global navigation systems
-
INS Navigation: <5% distance error without GNSS signals
-
Industrial Reliability: Operating temperature -35℃ to 80℃
-
Lightweight: 13.2g for easy integration
-
RM3100 Magnetometer: Provides accurate heading reference
Built for UAVs, agriculture, and surveying applications requiring continuous precision positioning. DALANG AK723RM - your reliable choice in challenging environments.
