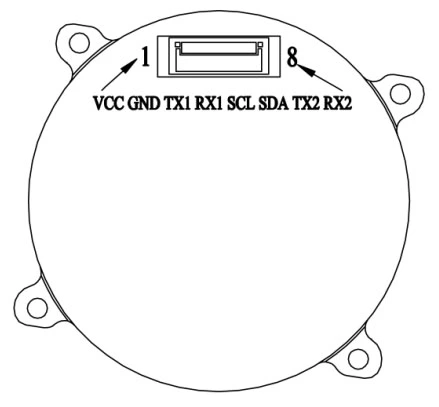

NO.
|

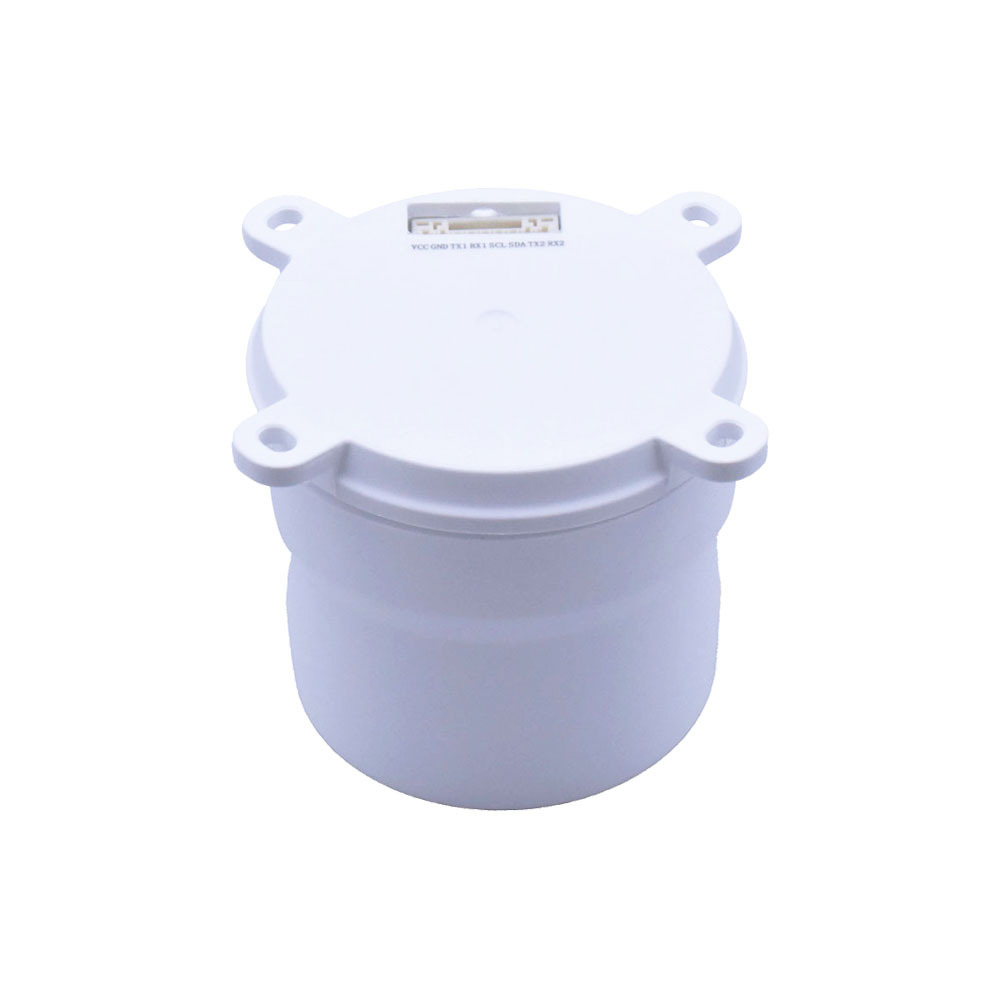

Pin Definition
|
Describe
|
|
1
|
VCC
|
Main power input+ 3.3V~5V
|
|
2
|
GND
|
Module grounding
|
|
3
|
TX1
|
Serial port 1 sends data, 3.3VTTL
|
|
4
|
RX1
|
Serial port 1 receives data, 3.3VTTL
|
|
5
|
SCL
|
I ² C serial clock(RM3100)
|
|
6
|
SDA
|
I ² C serial data(RM3100)
|
|
7
|
TX2
|
Serial port 2 sends data, 3.3VTTL
|
|
8
|
RX2
|
Serial port 2 receives data, 3.3VTTL
|
Product Overview

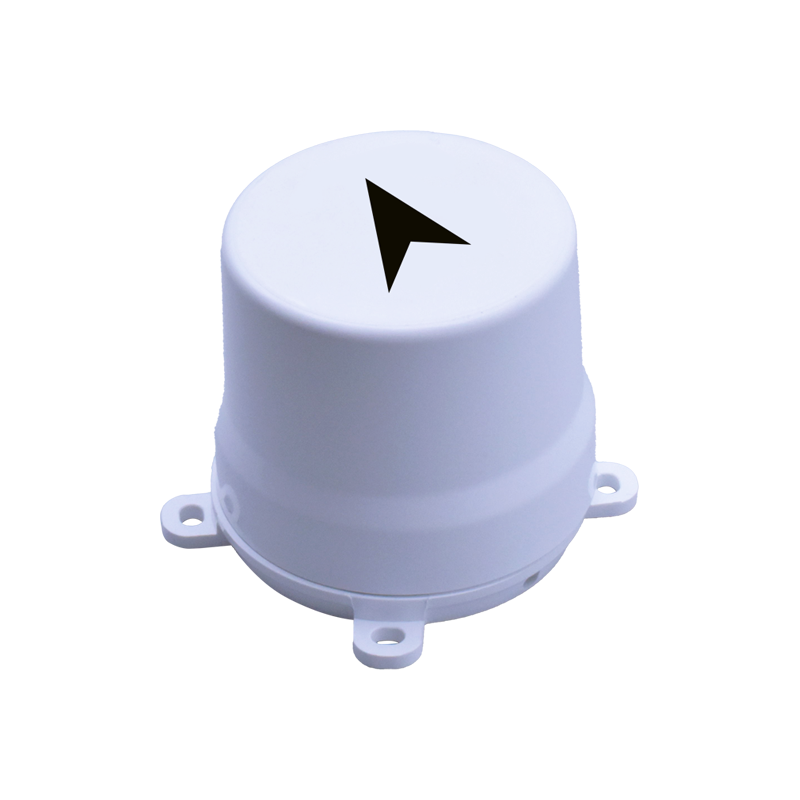

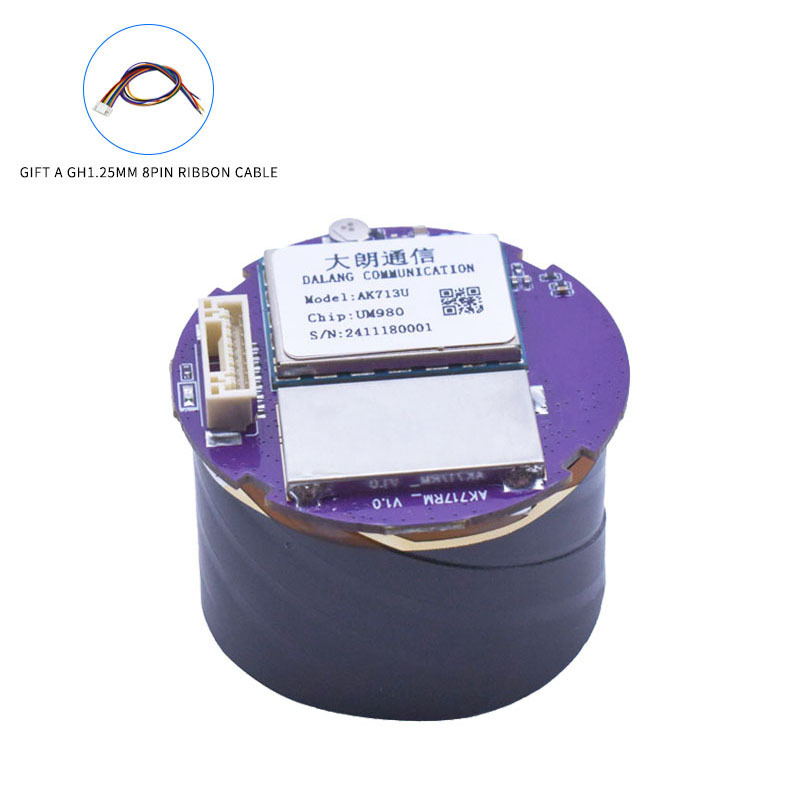

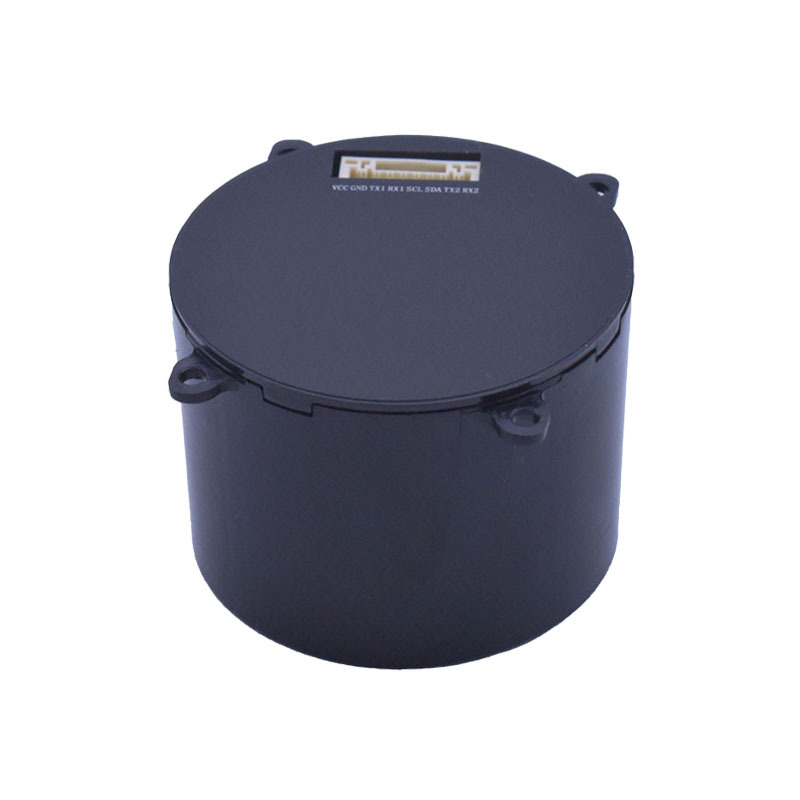

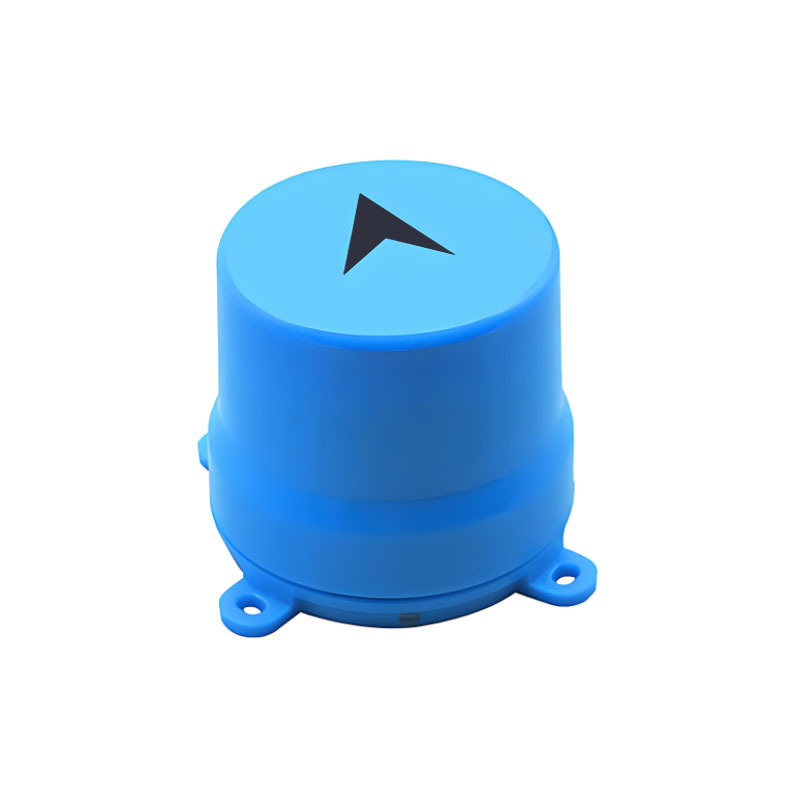

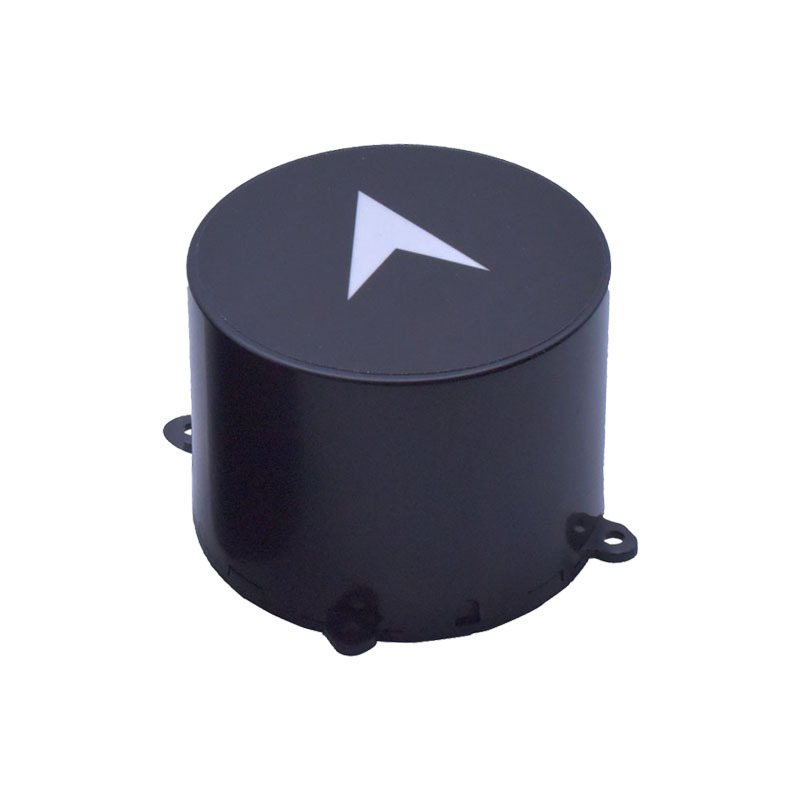

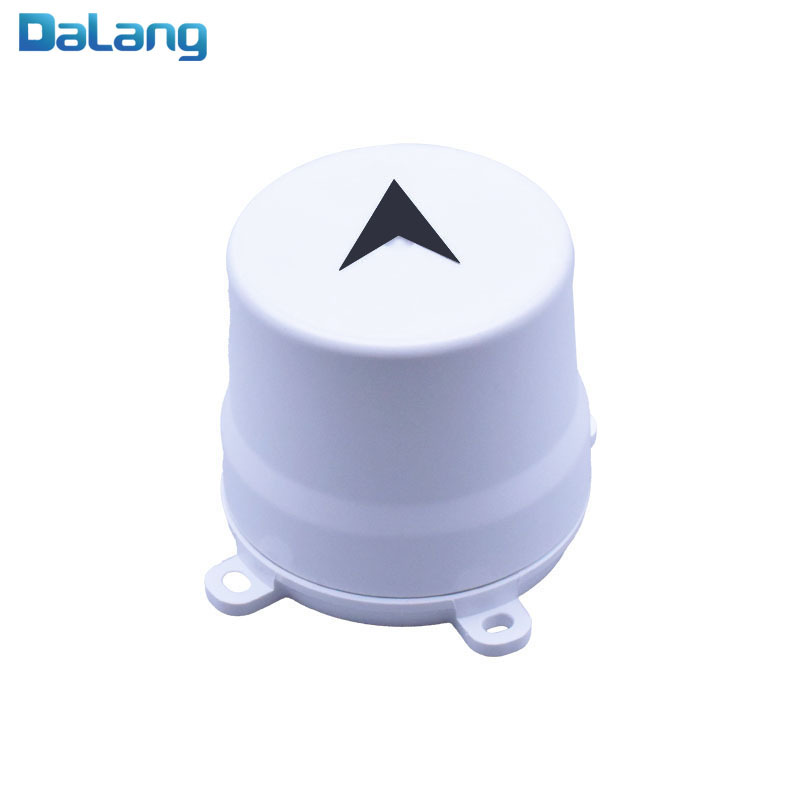

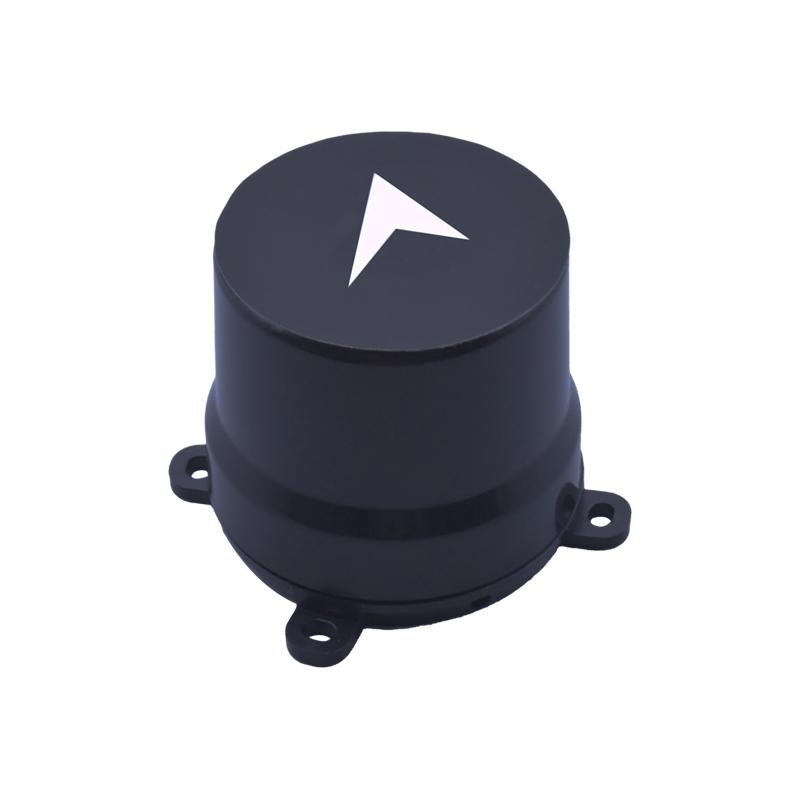

The DALANG AK713RM is a full-system RTK engine GNSS receiver module supporting both Rover and Base Station modes, delivering real-time centimeter-level differential positioning accuracy. Based on the UM980 chip, it is suitable for UAVs, automotive, and surveying applications.
Centimeter-Level RTK
Designed on the UM980 series, it supports BeiDou, GPS, Galileo, and GLONASS joint RTK calculation with fast initialization, achieving 1 cm static and 2 cm dynamic accuracy.
High-Frequency Data Output
Supports adjustable 1-20 Hz output, up to 20 Hz for high-speed UAV positioning, ensuring continuous and stable trajectory tracking.
Industrial Reliability

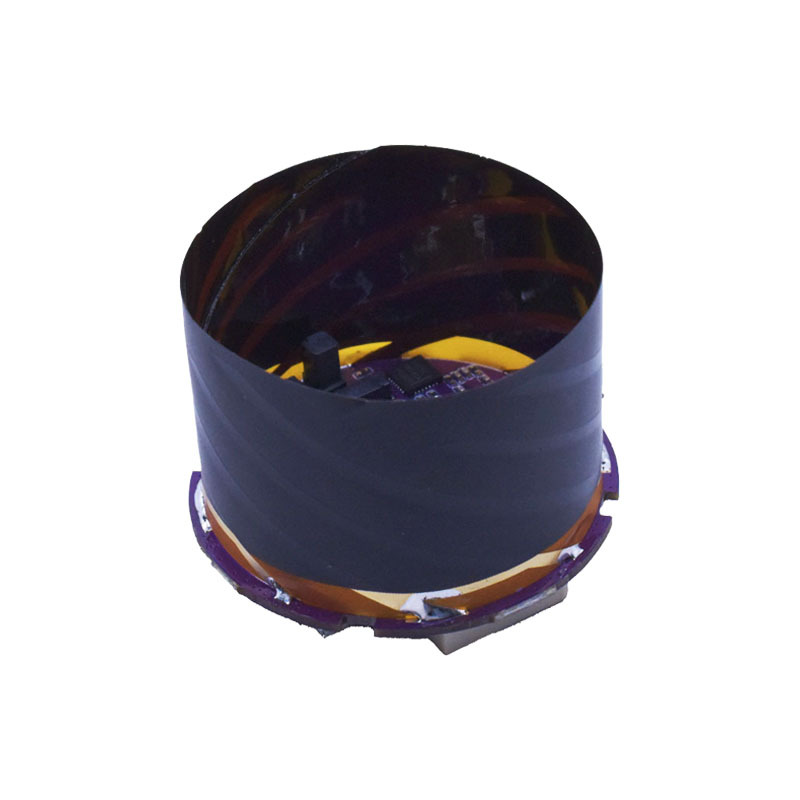

Features industrial-grade low-noise RF circuitry, strong multipath suppression, and a built-in quad helix antenna. Weighing only 21g, it maintains stable performance in harsh environments.
Broad Compatibility
Fully compatible with Pixhawk, APM, and other flight controllers, supporting NMEA0183 and RTCM 3.3 protocols for easy integration.
Key Features
-
Centimeter-Level RTK: 1 cm static, 2 cm dynamic accuracy
-

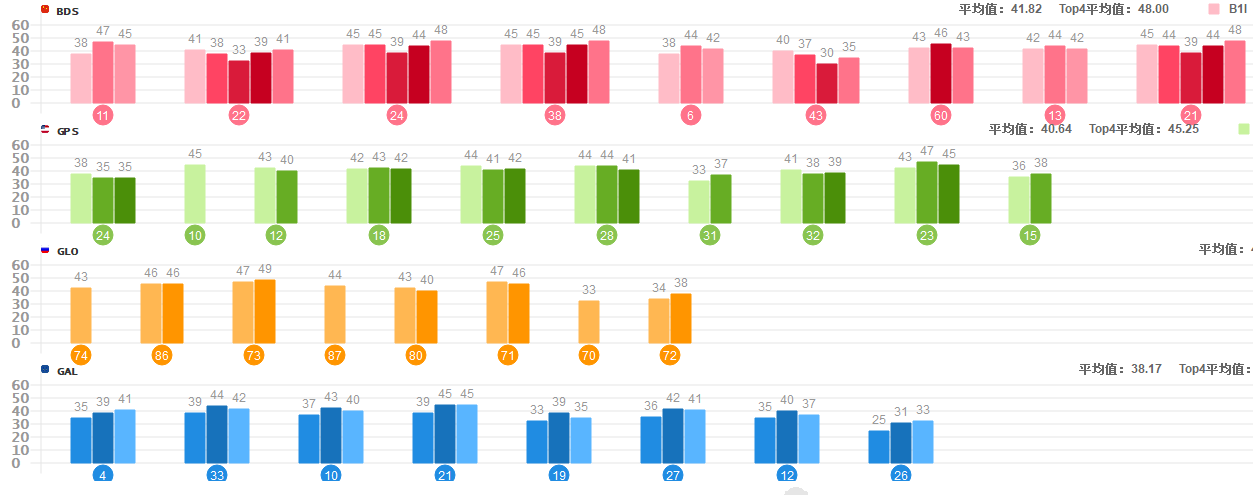

Four-System Support: BDS/GPS/Galileo/GLONASS
-
20 Hz Output: For high-dynamic applications
-
Strong Anti-Interference: Industrial RF with multipath suppression
-
Lightweight & Compact: 21g, Φ44×40.6mm
-
RM3100 Magnetometer: Accurate heading reference
-
Wide Temperature Range: -35℃ to 80℃
Providing high-precision, reliable positioning for UAVs, automotive, and surveying. DALANG AK713RM - stability in dynamic environments.
