丨 Product Introduction
1. Positioning: Supports joint RTK calculation of four models such as Beidou, with fast initialization and short positioning convergence time.
2. Data output: up to 20Hz output, suitable for high-speed drone trajectory tracking.
3. High compatibility: Compatible with flight control systems such as Pixhawk and APM, making integration convenient.
4. Compass configuration: Built in RM3100 compass, providing precise heading information for flight.
丨 Specification parameters
|
Chip
characteristics
|
chip
|
UM980
|
|
working frequency
|
BDS: B1I B2I B3I B1C B2a B2b
GPS: L1 C/A L1C L2P (Y) L2C L5
GLONASS: L1 L2
Galileo: E1 E5a E5b E6
QZSS: L1 L2 L5 L6
|
|
Receiving channel
|
1408 channel
|
|
Accuracy
|
Single point positioning (RMS)
|
Plane: 1.5m
|
|
Elevation: 2.5m
|
|
DGPS(RMS)
|
Plane: 0.4m
|
|
Elevation: 0.8m
|
|
RTK(RMS)
|
Flat: 0.8cm+1ppm
|
|
Elevation: 1.5cm+1ppm
|
|
Observation accuracy (RMS)
|
BDS
|
GPS
|
GLONASS
|
Galileo
|
|
B1I/B1C/L1C/L1 C/A/E1/G1 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B1I/B1C/L1C/L1 C/A/E1/G1 Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
B3I/L2P(Y)/L2C/G2 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B3I/L2P(Y)/L2C/G2
Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
B2I/B2a/ B2b/L5/E5a/E5b pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B2I/B2a/ B2b/L5/E5a/E5b Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
Time accuracy (RMS)
|
10ns
|
|
Speed accuracy (RMS)
|
0.03 m/s
|
|
Start Time
|
cold boot
|
＜10s
|
|
Initialization time
|
<5s (typical value)
|
|
Initialize reliability
|
＞ 99.9%
|
|
Output data
|
Baud rate
|
115200bps (default) [Optional: 4800-921600]
|
|
Output interface
|
TTL
|
|
Output Protocol
|
NMEA0183、RTCM 3.3
|
|
update frequency
|
1Hz-20Hz (default 1Hz)
|
|
Differential
data
|
Differential data
|
RTCM 3.3/3.2/3.1/3.0
|
|
Carrier phase output
|
Support, output RAWX statement
|
|
FLASH
|
built-in
|
|
Electrical
specifications
|
working voltage
|
3~5.5V DC
|
|
power waste
|
＜800mW @3.3V
|
|
Physical
parameters
|
size
|
Standard version:φ42*31.2mm
Upgraded version:φ44*40.6mm
|
|
weight
|
Standard version: 13.2g
Upgraded version: 21g
|
|
Connector
|
GH1.25mm 8pin
|
|
Environment
|
working temperature
|
-35℃-80℃
|
|
Storage temperature
|
-40℃-95℃
|
|
Compass
|
compass
|
RM3100
|

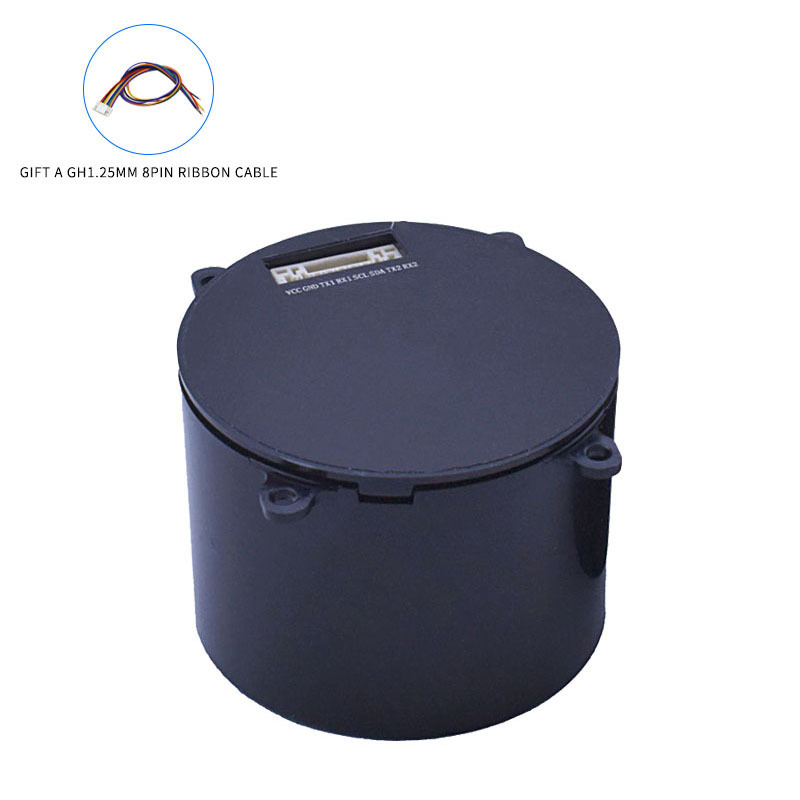

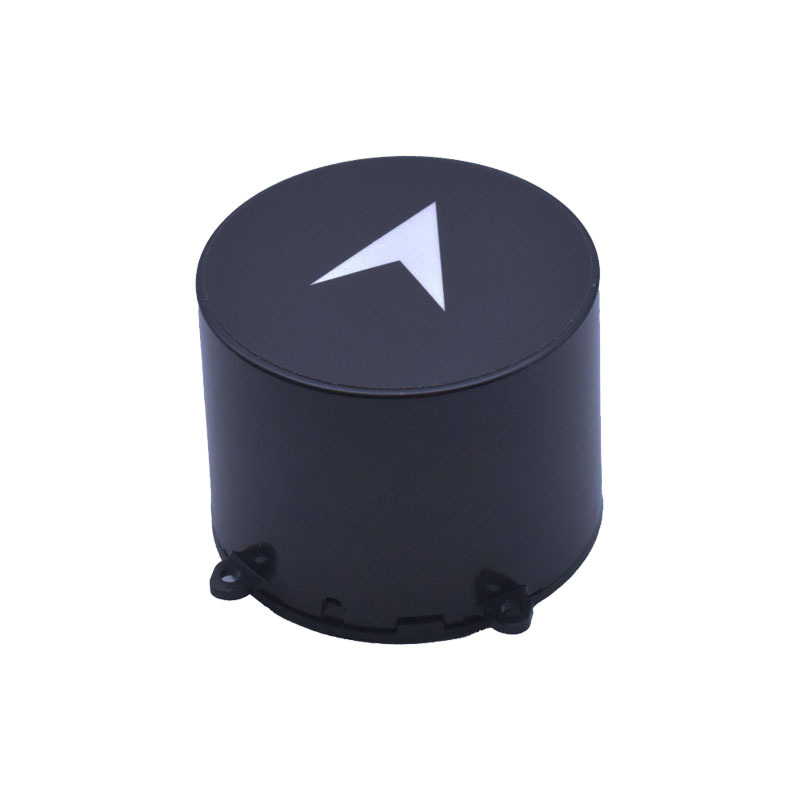

Standard version:

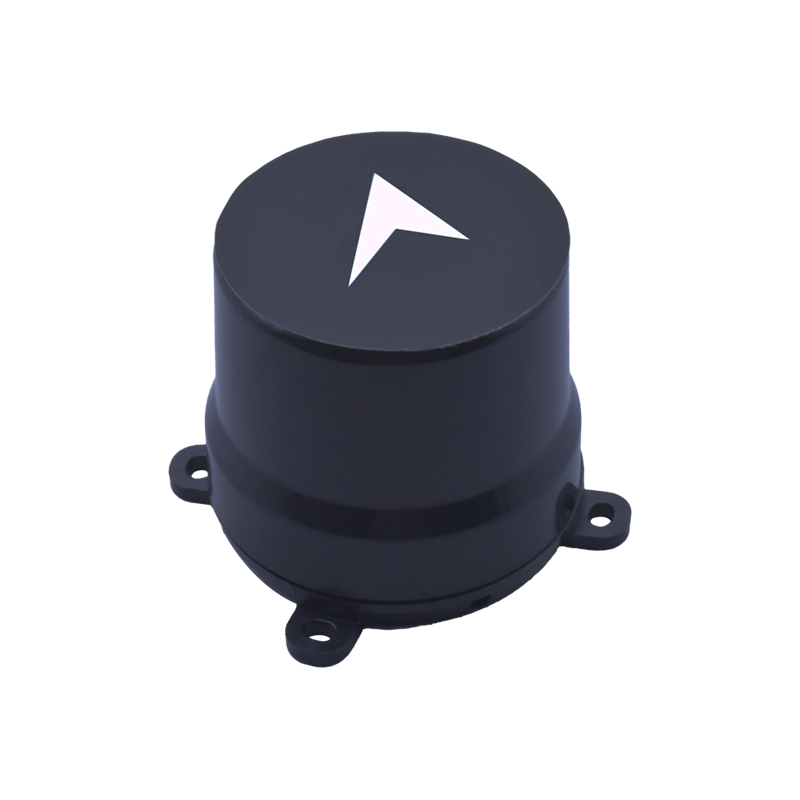

Upgraded version:
Table 1 PIN Function
|
NO.
|
Pin Definition
|
Describe
|
|
1
|
VCC
|
Main power input+ 3.3V~5V
|
|
2
|
GND
|
Module grounding
|
|
3
|
TX1
|
Serial port 1 sends data, 3.3VTTL
|
|
4
|
RX1
|
Serial port 1 receives data, 3.3VTTL
|
|
5
|
SCL
|
I ² C serial clock(RM3100)
|
|
6
|
SDA
|
I ² C serial data(RM3100)
|
|
7
|
TX2
|
Serial port 2 sends data, 3.3VTTL
|
|
8
|
RX2
|
Serial port 2 receives data, 3.3VTTL
|
Packaging and Delivery：
Product Overview

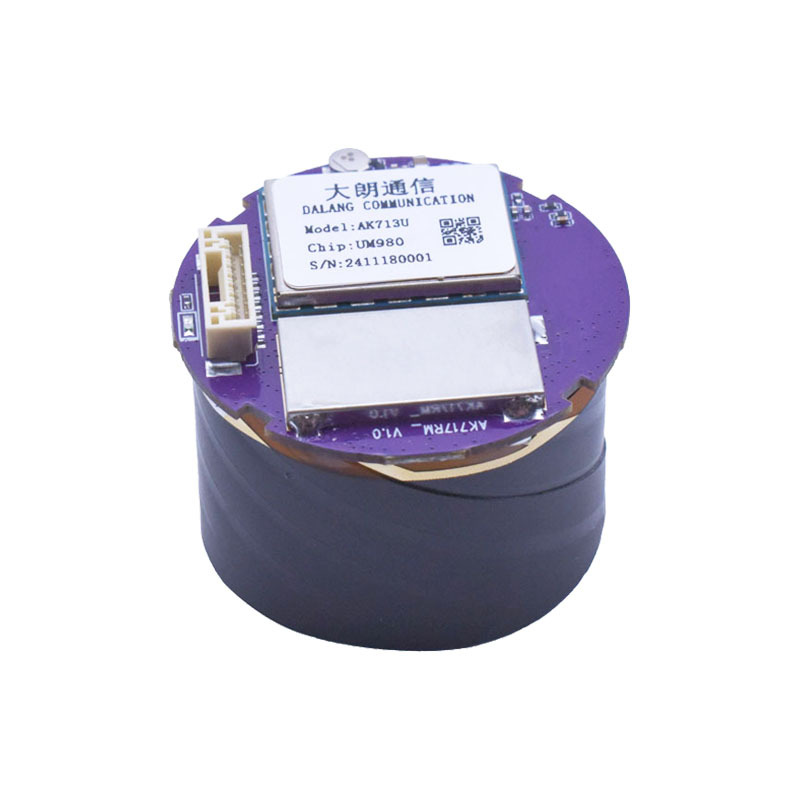

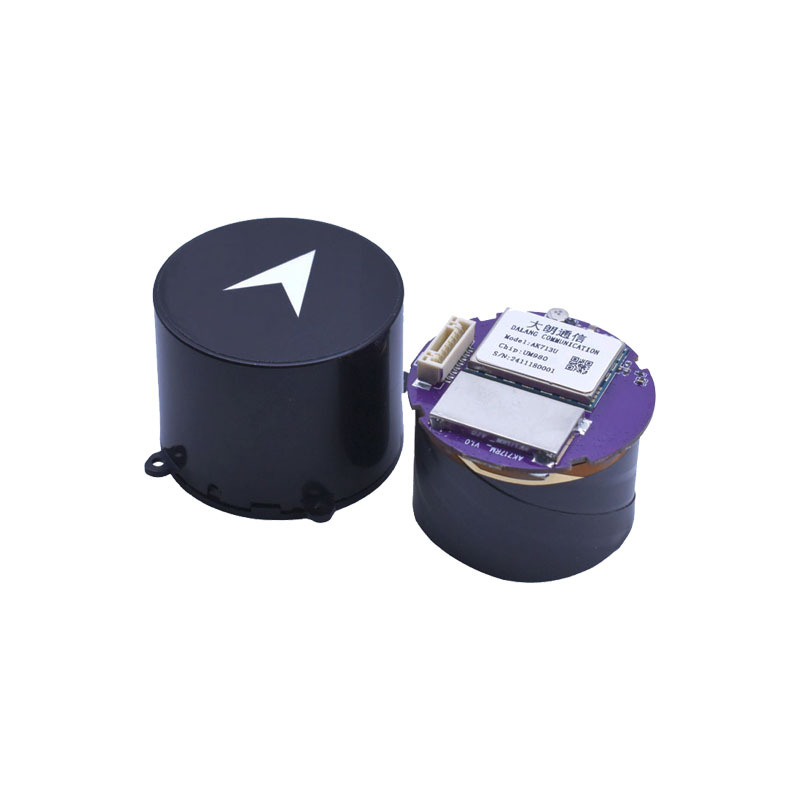

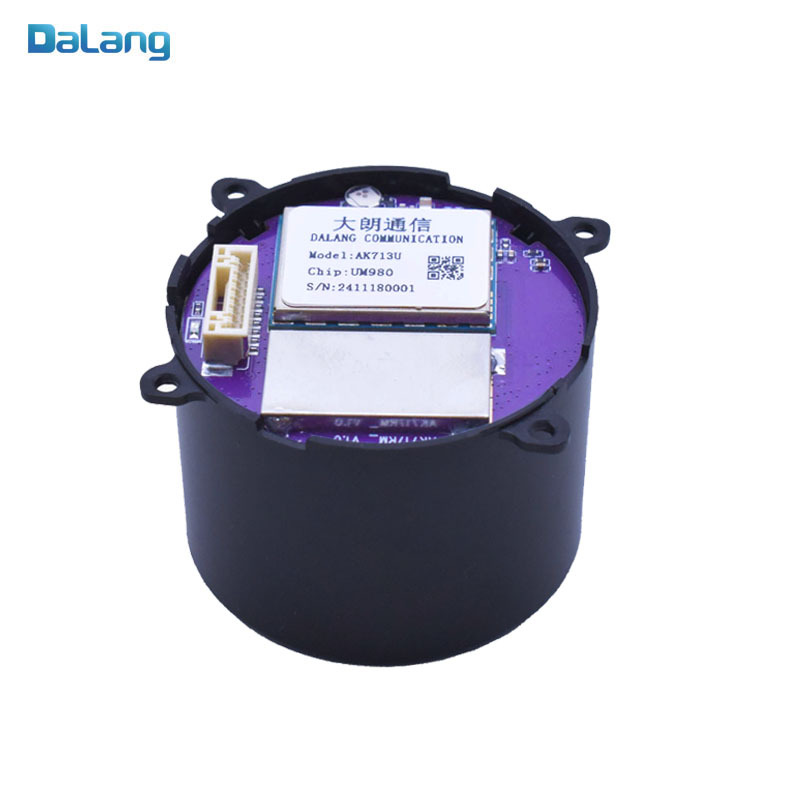

The DALANG AK713RMG is a full-system RTK engine GNSS receiver module supporting both Rover and Base Station modes, delivering real-time centimeter-level differential positioning accuracy. Based on the UM980 chip, it is suitable for UAVs, automotive, and surveying applications.
Centimeter-Level RTK
Designed on the UM980 series, it supports BeiDou, GPS, Galileo, and GLONASS joint RTK calculation with fast initialization, achieving 1 cm static and 2 cm dynamic accuracy.
High-Frequency Data Output
Supports adjustable 1-20 Hz output, up to 20 Hz for high-speed UAV positioning, ensuring continuous and stable trajectory tracking.
Industrial Reliability

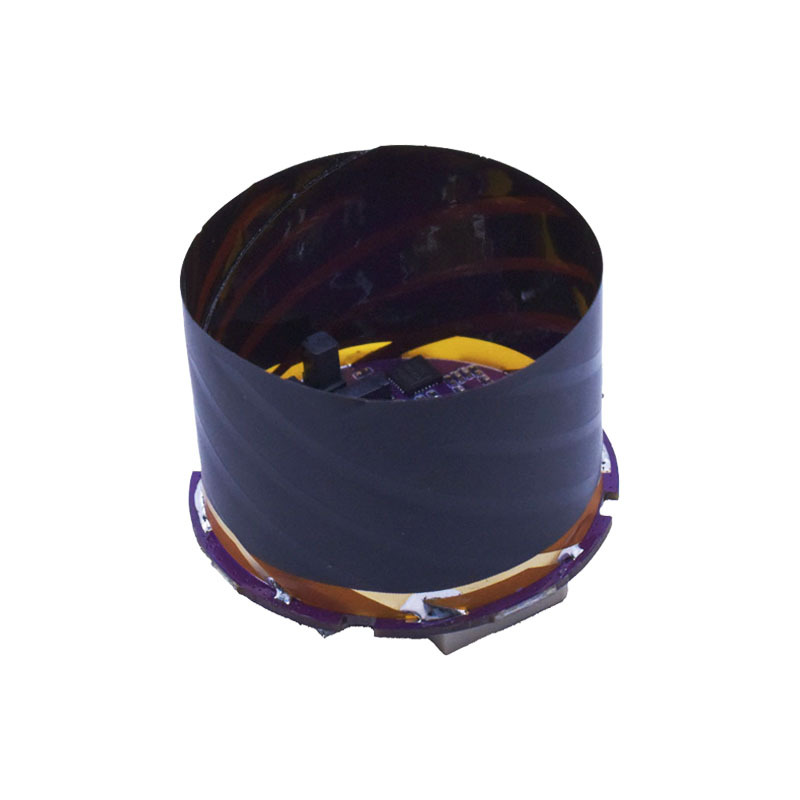

Features industrial-grade low-noise RF circuitry, strong multipath suppression, and a built-in quad helix antenna. Weighing only 13.2g, it maintains stable performance in harsh environments.
Broad Compatibility
Fully compatible with Pixhawk, APM, and other flight controllers, supporting NMEA0183 and RTCM 3.3 protocols for easy integration.
Key Features
-
Centimeter-Level RTK: 1 cm static, 2 cm dynamic accuracy
-
Four-System Support: BDS/GPS/Galileo/GLONASS
-
20 Hz Output: For high-dynamic applications
-
Strong Anti-Interference: Industrial RF with multipath suppression
-
Lightweight & Compact: 13.2g, Φ44×40.6mm
-
RM3100 Magnetometer: Accurate heading reference
-
Wide Temperature Range: -35℃ to 80℃
Providing high-precision, reliable positioning for UAVs, automotive, and surveying. DALANG AK713RMG - stability in dynamic environments.
