丨 Product Introduction
1. Compatibility: Compatible with flight controllers such as Pixhawk and APM, and supports multi platform integration.
2. Low noise reduction: Industrial grade low-noise RF circuit with strong resistance to multipath and improved signal quality.
3. High data output: Supports up to 20Hz output, suitable for high-speed movement positioning of drones, ensuring continuous and stable trajectory tracking.

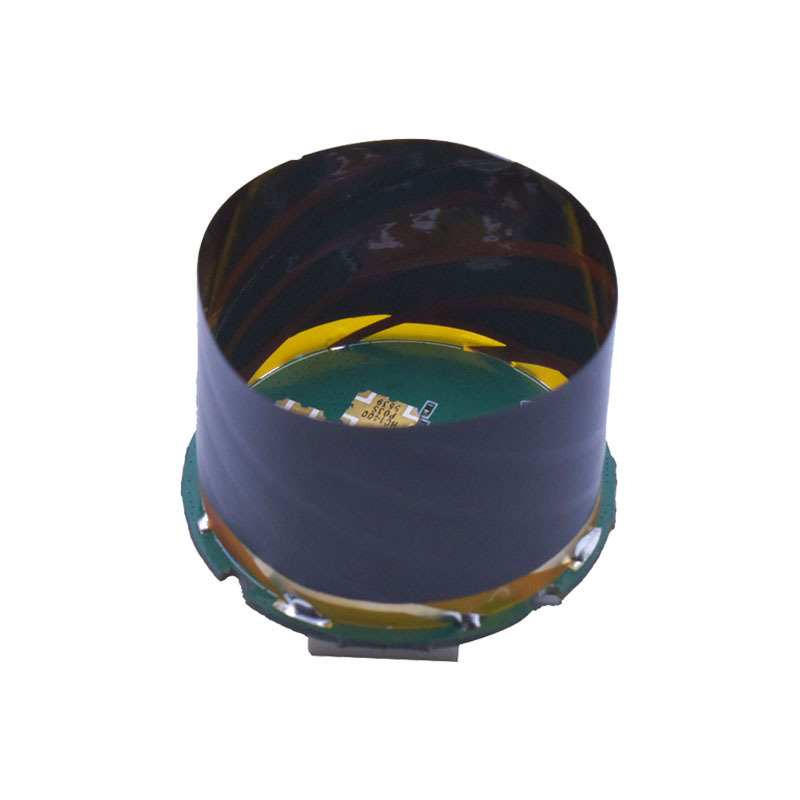

4. High precision: Built in four arm spiral antenna, equipped with IST8310 compass, enhances signal and achieves high-precision positioning.
丨 Specification parameters
|
Chip
characteristics
|
chip
|

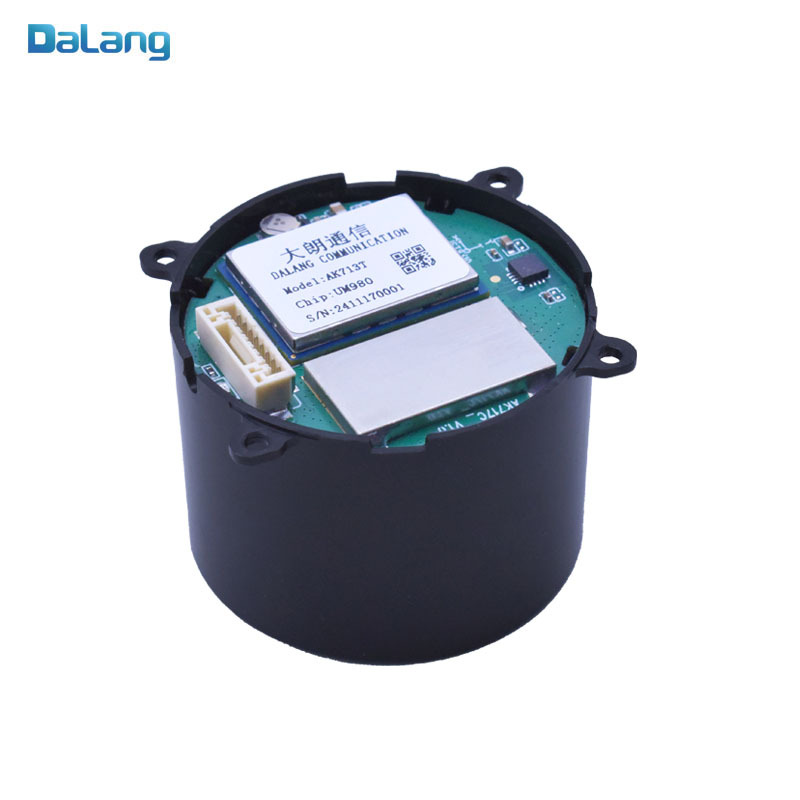

UM980
|
|
working frequency
|
BDS: B1I B2I B3I B1C B2a B2b
GPS: L1 C/A L1C L2P (Y) L2C L5
GLONASS: L1 L2
Galileo: E1 E5a E5b E6
QZSS: L1 L2 L5 L6
|
|
Receiving channel
|
1408 channel
|
|
Accuracy
|
Single point positioning (RMS)
|
Plane: 1.5m
|
|
Elevation: 2.5m
|
|
DGPS(RMS)
|
Plane: 0.4m
|
|
Elevation: 0.8m
|
|
RTK(RMS)
|
Flat: 0.8cm+1ppm
|
|
Elevation: 1.5cm+1ppm
|
|
Observation accuracy (RMS)
|
BDS
|
GPS
|
GLONASS
|
Galileo
|
|
B1I/B1C/L1C/L1 C/A/E1/G1 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B1I/B1C/L1C/L1 C/A/E1/G1 Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
B3I/L2P(Y)/L2C/G2 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B3I/L2P(Y)/L2C/G2
Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
B2I/B2a/ B2b/L5/E5a/E5b pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
B2I/B2a/ B2b/L5/E5a/E5b Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
Time accuracy (RMS)
|
10 ns
|
|
Speed accuracy (RMS)
|
0.03 m/s
|
|
Start Time
|
cold boot
|
＜ 10 s
|
|
Initialization time
|
<5s (typical value)
|
|
Initialize reliability
|
＞ 99.9%
|
|
Output data
|
Baud rate
|
115200bps (default) [Optional: 4800-921600]
|
|
Output interface
|
TTL
|
|
Output Protocol
|
NMEA0183、RTCM 3.3
|
|
update frequency
|
1Hz-20Hz (default 1Hz)
|
|
Differential
data
|
Differential data
|
RTCM 3.3/3.2/3.1/3.0
|
|
Carrier phase output
|
Support, output RAWX statement
|
|
FLASH
|
built-in
|
|
Electrical
specifications
|
working voltage
|
3V-5.5V DC
|
|
power waste
|
＜800mW @3.3V
|
|
Physical
parameters
|
size
|
Standard version:φ42*31.2mm
Upgraded version:φ44*40.6mm
|
|
weight
|
Standard version: 13.2g
Upgraded version: 21g
|
|

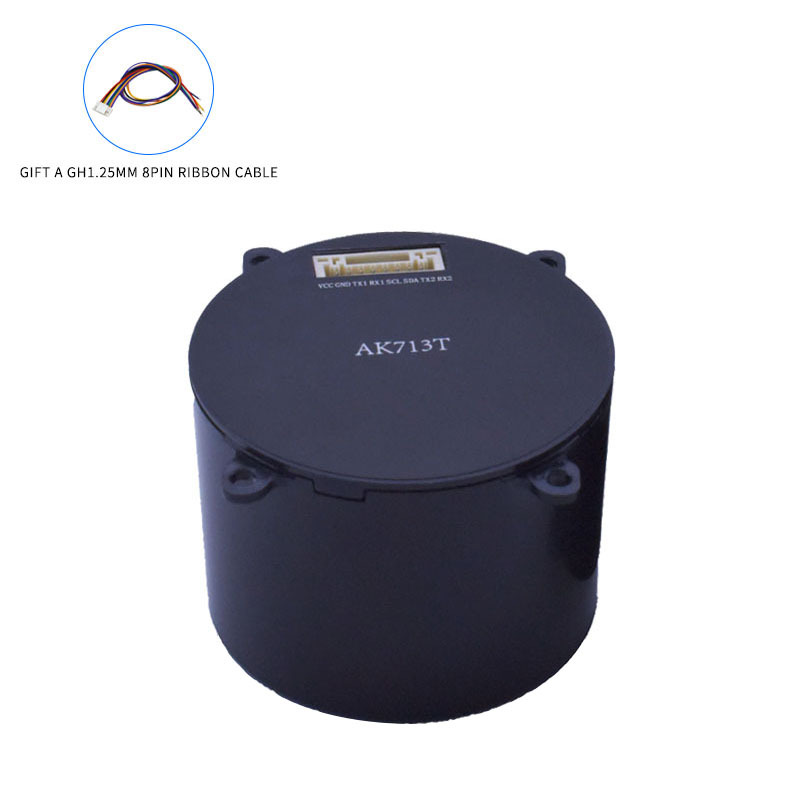

Connector
|
GH1.25mm 8pin
|
|
Environment
|
working temperature
|
-35℃-80℃
|
|
Storage temperature
|
-40℃-95℃
|
|
Compass
|
compass
|
IST8310(Isentek)
|
丨 product mix

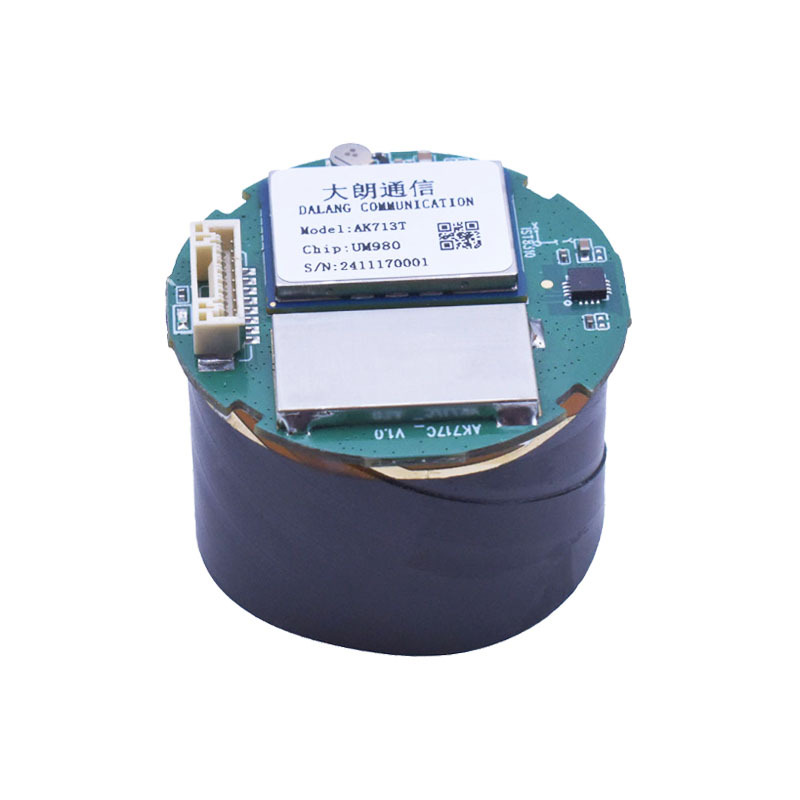

Standard version:
Upgraded version:

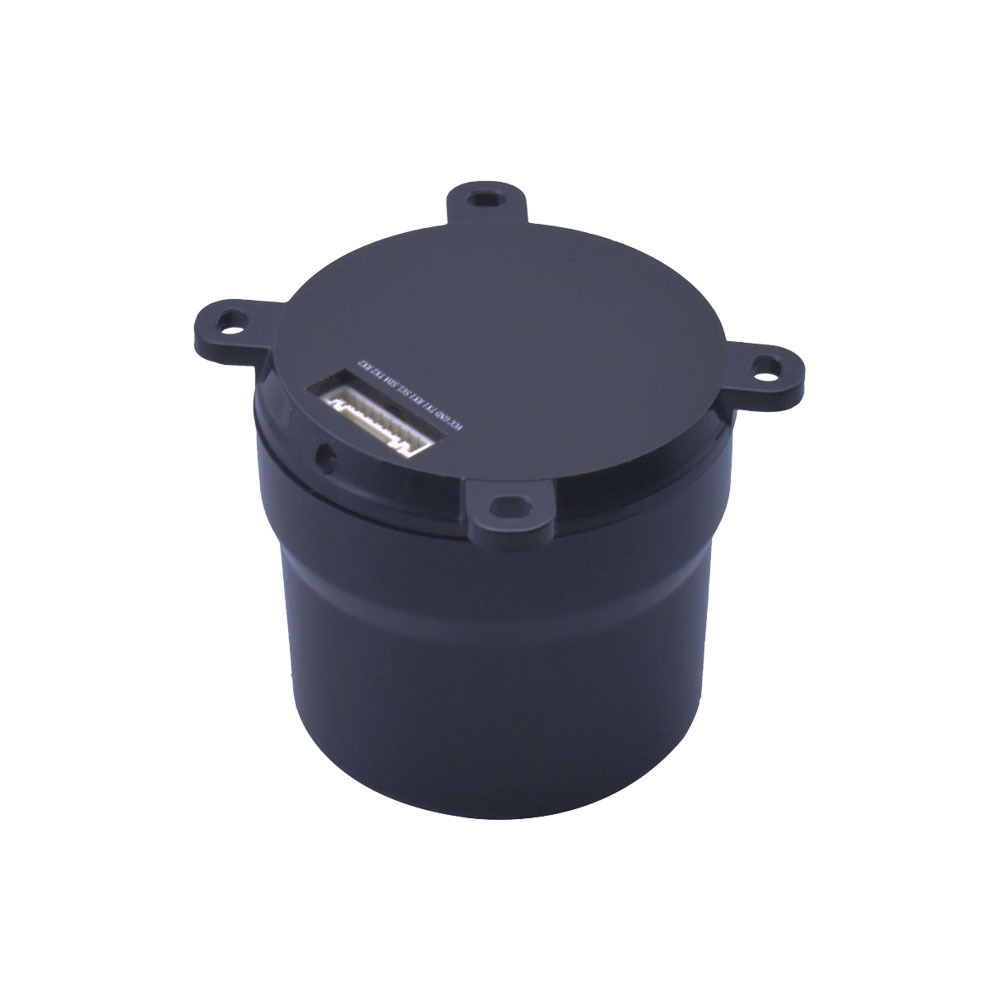

Table 1 PIN Function
|
NO.
|
Pin Definition
|
Description
|
|
1
|
VCC
|
Main power input+ 3.3V~5V
|
|
2
|
GND
|
Module grounding
|
|
3
|
TX1
|
UART1 output, 3.3V TTL
|
|
4
|
RX1
|
UART1 input, 3.3VTTL
|
|
5
|
SCL
|
I²C Serial Clock （IST8310）
|
|
6
|
SDA
|
I²C Serial Data （IST8310）
|
|
7
|
TX2
|
UART2 output, 3.3V TTL
|
|
8
|
RX2
|
UART2 input, 3.3VTTL
|
Product Overview
The AK713TG is a multi-band, multi-system GNSS receiver module designed for real-time centimeter-level accuracy. This robust RTK solution is ideal for high-precision positioning applications such as drones, automotive navigation, and surveying. It supports BeiDou, GPS, GLONASS, and Galileo constellations, featuring high stability and strong anti-interference capabilities.
High-Frequency RTK Engine for Real-Time Positioning
Equipped with a high-performance multi-band RTK engine, the AK713TG delivers real-time differential correction and stable GNSS data output across various challenging terrains. Whether installed on drones, vehicles, or mobile platforms, the module provides precise and continuous positioning with an update rate of up to 20Hz, meeting the demands of high-speed dynamic scenarios.
Designed for Open-Source Platforms and System Integrators
Fully compatible with mainstream open-source flight controllers such as Pixhawk and APM, the AK713TG offers flexible deployment options and long-term scalability. It is an ideal choice for UAV developers and system integrators seeking a high-performance GNSS receiver module.
Reliable Performance in Harsh Environments
With optimized signal reception capabilities and enhanced electromagnetic interference resistance, the AK713TG maintains positioning accuracy and stability in complex environments such as urban, mountainous, and forested areas. Whether in signal-blocked or electromagnetically noisy conditions, the module delivers reliable high-precision positioning results.
Product Advantages
Multi-Band GNSS Support Ensures Maximum Accuracy
Supports multiple frequency bands and satellite systems, enabling real-time centimeter-level positioning to meet professional application requirements.
Optimized for Open-Source and OEM Integration
Strong compatibility facilitates quick integration with various flight control platforms and systems, ensuring excellent expandability.
Stable Performance in Complex Environments
Excellent anti-interference and multipath suppression capabilities ensure consistent positioning accuracy in diverse real-world scenarios.
High Performance, Low Power Consumption, Easy Integration
Compact size (Φ44×40.6mm) and low power consumption (<800mW) make it suitable for integration into various UAVs, AGVs, mobile mapping devices, and other applications.
Looking to enhance your UAV or high-precision positioning system with real-time RTK performance? Contact us today to upgrade your project with the AK713TG advanced positioning capabilities.
