UM980 GNSS/GPS/RTK Board Module, Base/Rover Station, Strong Anti-Interference for UAVs

丨 product mix

                                                 Table 1 PIN Functionality

                                              Table 2 Interface Characteristics

Packaging and Delivery：

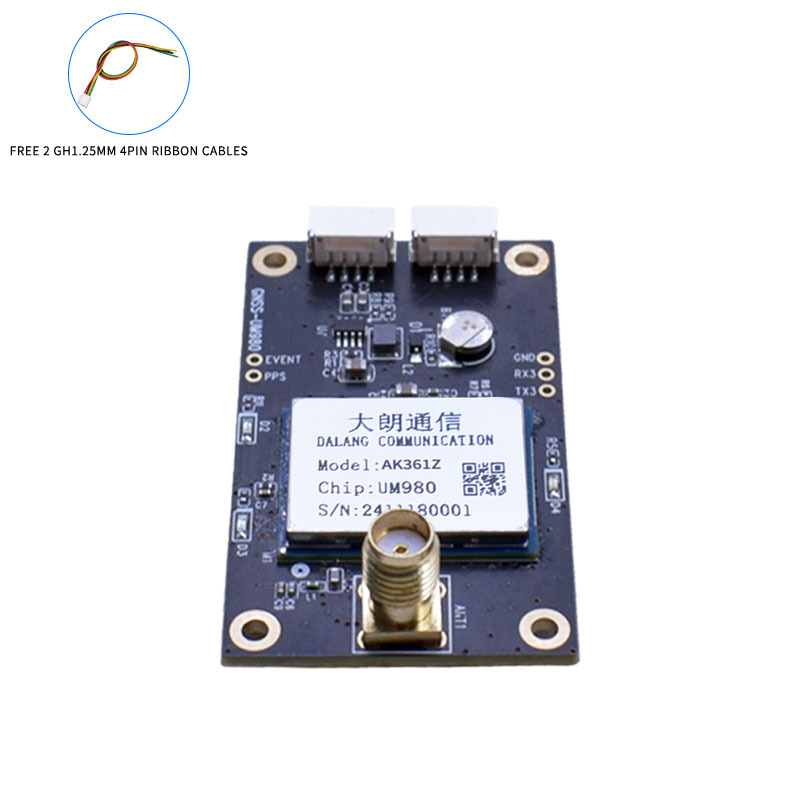

DALANG AK361Z Ultra-Compact High-Precision RTK Positioning Module

Ultra-Compact, Cost-Effective, High-Precision GNSS Engine
The DALANG AK361Z module is an ultra-compact, low-cost, low-power, high-performance real-time kinematic (RTK) differential positioning solution based on the UM980 chip. It integrates a full-system, full-frequency RTK engine and Beidou RTK module, delivering centimeter-level accuracy for UAVs, automotive, and surveying applications. The module can be configured as either a rover or a base station, using carrier phase differential technology to eliminate errors and achieve high-precision positioning.

Full-Frequency RTK Engine for Real-Time Positioning
With its full-frequency RTK engine, the AK361Z provides stable and reliable positioning data across various applications. Whether acting as a rover outputting NMEA location results or as a base station broadcasting RTCM differential data streams, this module ensures accurate location information.

Designed for Space-Constrained Integration Applications

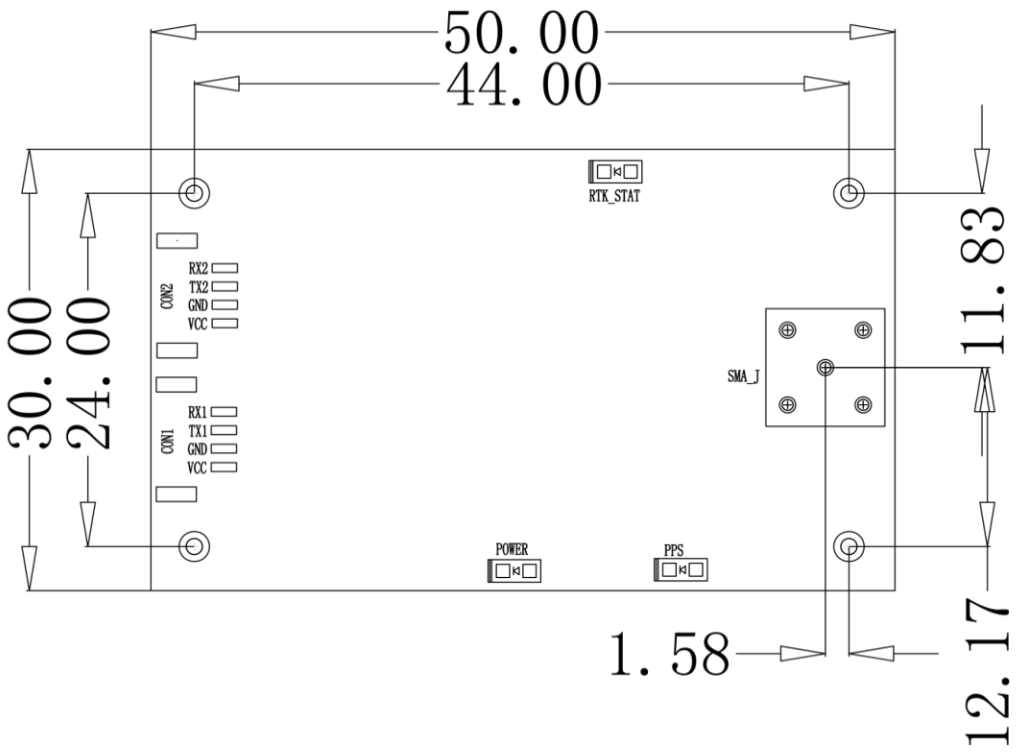

Featuring an ultra-compact design (50*30*3.5mm) and weighing only 11g, the AK361Z module is fully compatible with open-source flight control systems like Pixhawk and APM. It is the ideal choice for small UAVs, handheld devices, or other space-sensitive applications.

Reliability in Harsh Environments
With an industrial-grade low-noise RF circuit design, the AK361Z performs excellently in challenging environments, ensuring stable GNSS output under real-world conditions.

Product Advantages

• UM980 Chip-based with Full-System, Full-Frequency Support
  Leveraging the UM980 chip, the module supports multi-system, multi-frequency signals including BDS, GPS, GLONASS, Galileo, and QZSS, enabling real-time centimeter-level positioning.



• Dual-Mode Flexible Configuration
  Operates as either a base station or rover, offering ultimate application flexibility to meet diverse scenario needs.



• Ultra-Compact Size and Low Power Consumption
  The AK361Z boasts an extremely compact design (50*30*3.5mm) and power consumption below 800mW, making it perfect for miniaturized devices and portable applications.



• High Compatibility and Easy Integration
  Fully compatible with mainstream open-source flight control systems, it offers TTL UART interfaces and rich status indicators for easy integration and monitoring.




Need an Ultra-Compact High-Precision Positioning Solution?
Achieve exceptional positioning performance within limited space – choose the DALANG AK361Z GNSS module based on the UM980 chip today.

About Us

DALANG is a dedicated manufacturer of high-performance GNSS modules and RTK positioning solutions, serving industries such as UAV navigation, precision agriculture, and geospatial mapping. With a clear focus on accuracy, reliability, and integration flexibility, we support both standard and custom applications across global markets. Our product lines are engineered to meet the evolving demands of real-time positioning with support for multiple GNSS constellations, including GPS, GLONASS, BDS, and Galileo.

Our production facility spans 2,500㎡ and includes advanced SMT lines, in-house R&D labs, and full functional testing for every unit shipped. With a team of 30+ GNSS engineers, we design and manufacture over 200,000 GNSS receivers and modules annually. Certified to ISO9001:2015, and compliant with CE and RoHS standards, we follow a strict quality assurance process from prototyping through mass production. We also provide firmware updates, system integration support, and full lifecycle product documentation.

Trusted by partners in over 30 countries, DALANG delivers fast, scalable manufacturing with personalized technical support. Our streamlined collaboration model—covering inquiry, consultation, prototyping, and delivery—ensures efficiency from first contact to deployment. Whether you're sourcing off-the-shelf GNSS hardware or launching a customized solution, DALANG is your dependable partner for accurate, cost-effective positioning systems.
