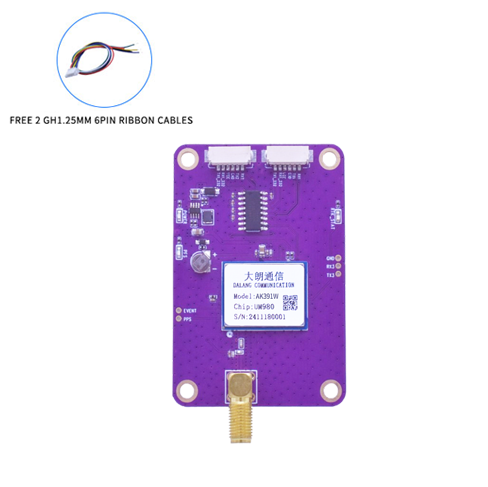

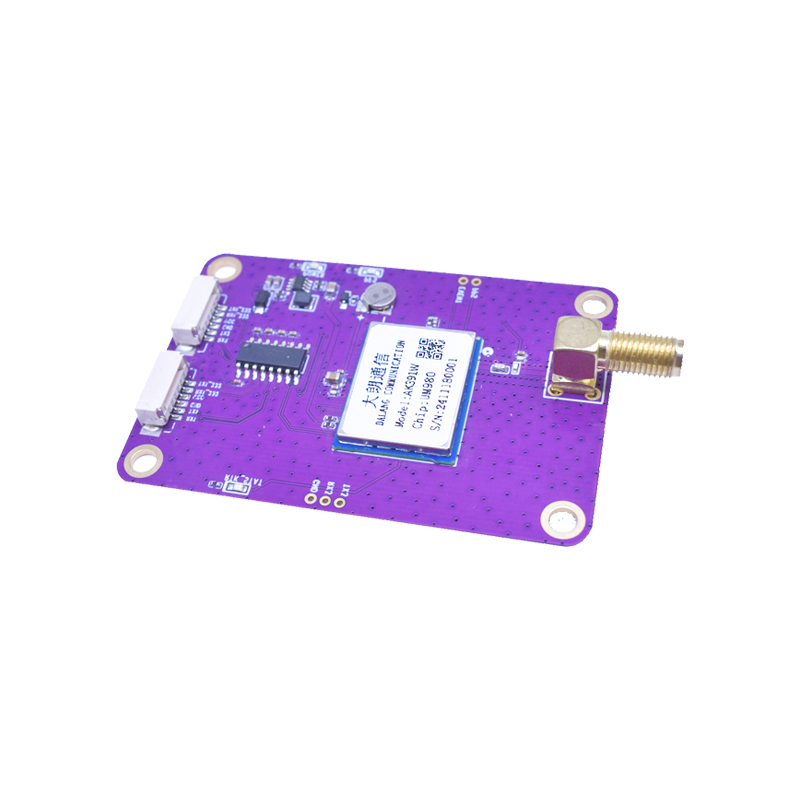

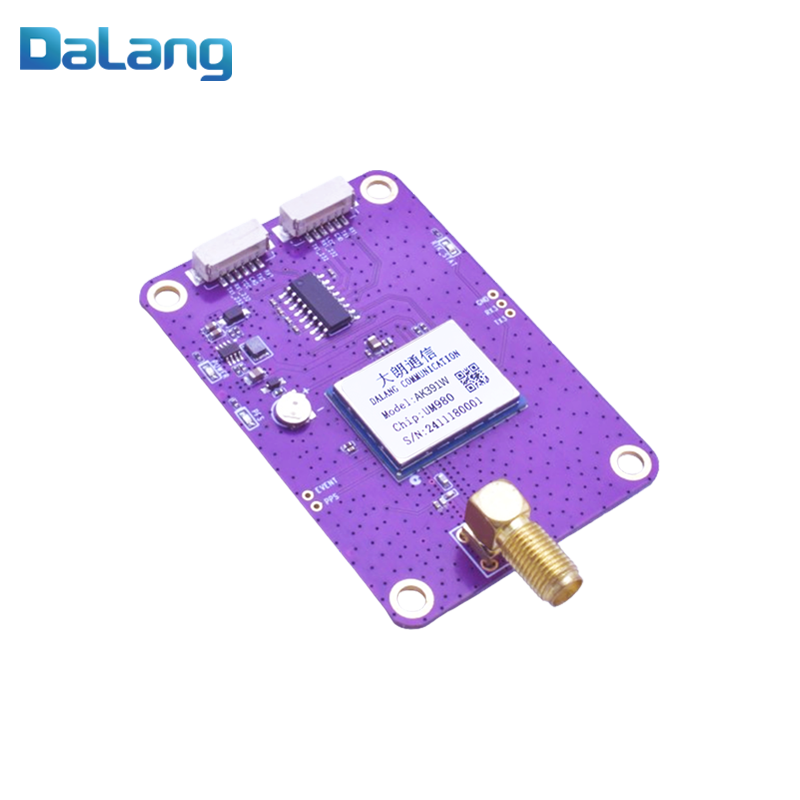

UM980 GNSS/GPS/RTK Board Module Low Power Consumption Centimeter-Level Accuracy Pixhawk Compatible

丨 Product Introduction


Advanced positioning technology: Based on the UM980 series, it supports full frequency RTK and dual antennas, ensuring stable and accurate positioning in harsh environments.

Strong compatibility with multiple systems: capable of receiving signals from multiple satellite systems such as Beidou, expanding coverage and improving accuracy.

Efficient positioning calculation: Four mode joint RTK calculation, fast positioning initialization, and both speed and accuracy.

Excellent data output and scene adaptation: 20Hz data output rate, suitable for dynamic scenes such as drones, and can also be configured with base stations or roamers as needed.




丨 Specification parameters




丨 product mix

                                                           Table 1 PIN Functionality



                                                        Table 2 Interface Characteristics

Packaging and Delivery：

---

DALANG AK391W High-Precision RTK Positioning Module

Cost-Effective, Low-Power, High-Precision GNSS Engine
The DALANG AK391W module is a low-cost, low-power, high-performance RTK positioning module based on the UM980 chip, delivering real-time centimeter-level accuracy. Utilizing a full-frequency RTK engine, it is suitable for UAVs, automotive, and surveying applications. The module can be configured as either a rover or a base station, using carrier phase differential technology to minimize errors and achieve high-precision positioning.

Full-Frequency RTK Engine for Real-Time Positioning
With its full-frequency RTK engine, the AK391W provides stable and reliable positioning data across various applications. Whether acting as a rover or base station, this module ensures accurate location information for demanding workflows.

Designed for Open-Source Flight Controllers and Integrators
Fully compatible with open-source flight control systems like Pixhawk and APM, the AK391W module supports flexible deployment. It is the ideal choice for UAV developers and system integrators seeking a stable, cost-effective RTK receiver module.

Reliability in Harsh Environments
Featuring an industrial-grade low-noise RF circuit design, the AK391W performs excellently in challenging environments such as urban, mountainous, or foliage-covered areas, ensuring stable GNSS output under real-world conditions.

Product Advantages

• UM980 Chip-based with Full-System, Full-Frequency Support
  Leveraging the UM980 chip, the module supports multi-system, multi-frequency signals including BDS, GPS, GLONASS, Galileo, QZSS, and SBAS, enabling real-time centimeter-level positioning.



• Dual-Mode Flexible Configuration
  Operates as either a base station or rover, offering ultimate application flexibility to meet diverse scenario needs.



• High Compatibility and Integration
  Fully compatible with mainstream open-source flight control systems, making it one of the most versatile RTK modules on the market.



• High Performance, Low Power, Compact Size

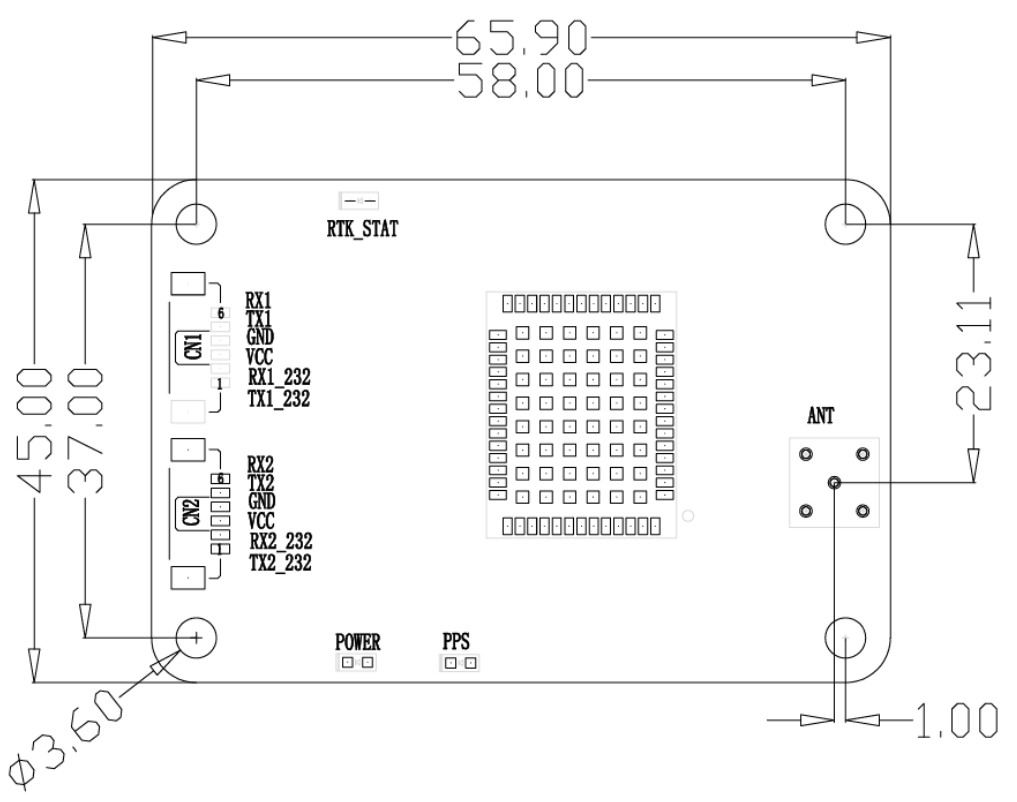

  The AK391W boasts a compact design (65.9*45*3.6mm) and power consumption below 800mW, making it ideal for drones or AGV systems.




Need a Reliable Positioning Solution?
Upgrade your high-precision positioning projects cost-effectively – choose the DALANG AK391W GNSS module based on the UM980 chip today.
