丨 Product Introduction
1. Equipped with a built-in low-noise amplifier (LNA) to reduce noise and improve signal quality.

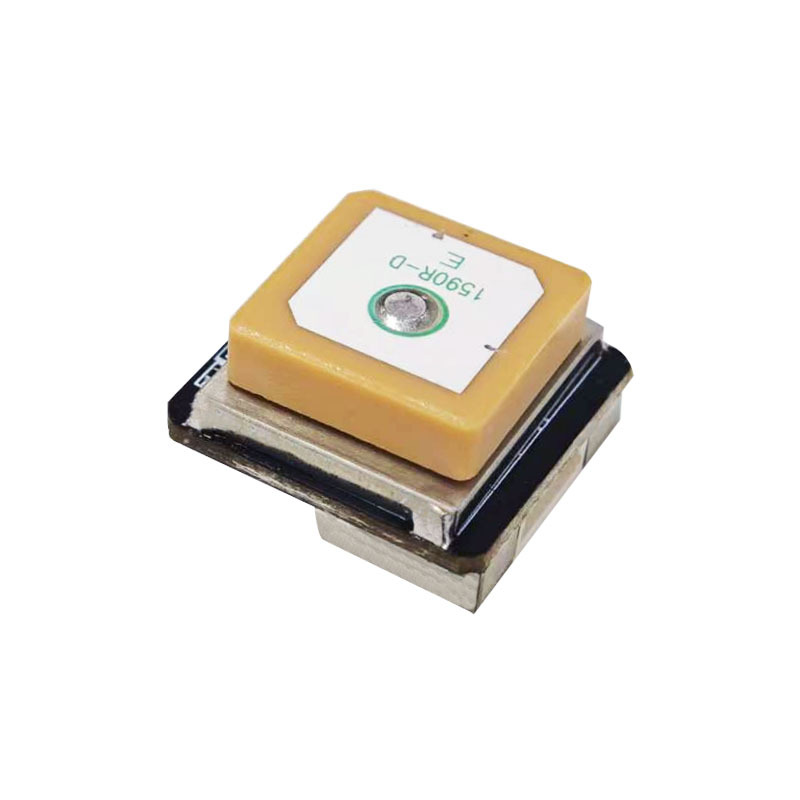

2. Industry standard high sensitivity ceramic antenna with strong signal reception and easy integration.
3. Built in temperature compensated crystal oscillator (TCXO) and Faraday capacitor to ensure frequency accuracy and stability.
4. Built in high-precision magnetometer QMC5883L, providing directional sensing. Preheating faster
丨 Specification parameters
|
Specification parameters
|
|
Chip
characteristics
|
chip
|
UBX-M10050-KB
|
|
frequency
|
GPS L1 C/A,
QZSS L1 C/A/S,
BDS B1I/B1C,
Galileo E1B/C,
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
|
|
Operation mode
|
GPS+GLONASS+GALILEO+SBAS+QZSS
|
|
track
|
-166dBm
|
|
Arrest again
|
-160dBm
|
|
cold boot
|
-148dBm
|
|
Hot start
|
-160dBm
|
|
Horizontal accuracy
|
1.5m CEP 2D RMS SBAS Assistance (Open Sky)
|
|
Speed accuracy
|
0.05m/s
|
|
cold boot
|
27s
|
|
Hot start
|
1s
|
|
Output data
|
Baud rate
|
4800 bps-921600 bps，default 38400 bps
|
|
Output level
|
TTL
|
|
Output Protocol
|
NMEA,UBX
|
|
NMEA sentence
|
RMC,VTG,GGA,GSA,GSV,GLL
|
|
update frequency
|
0.25Hz-10Hz, default 1Hz
|
|
Second pulse
|
The configurable range is 0.25 Hz to 10 MHz, with a default cycle of 1 second and a high level lasting for 100 milliseconds
|
|
Work Restrictions
|
height
|
80,000m
|
|
speed
|
<500m/s
|
|
Gravitational acceleration
|
<4g
|
|
Working
characteristics
|
Voltage
|
DC 3.0V-5.5V, (Typical: 5.0V)
|
|
electric current
|
Normal 50mA/5.0V
|
|

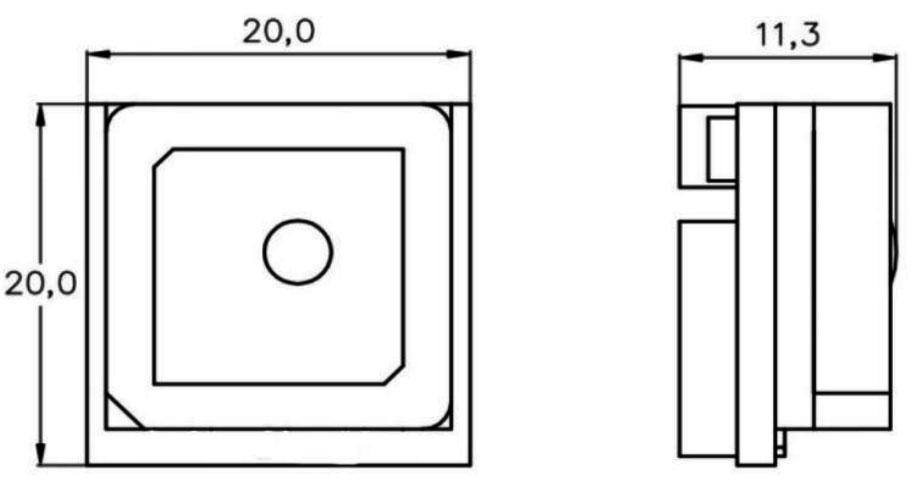

size
|
20*20*11.3mm
|
|
weight
|
7.5g
|
|

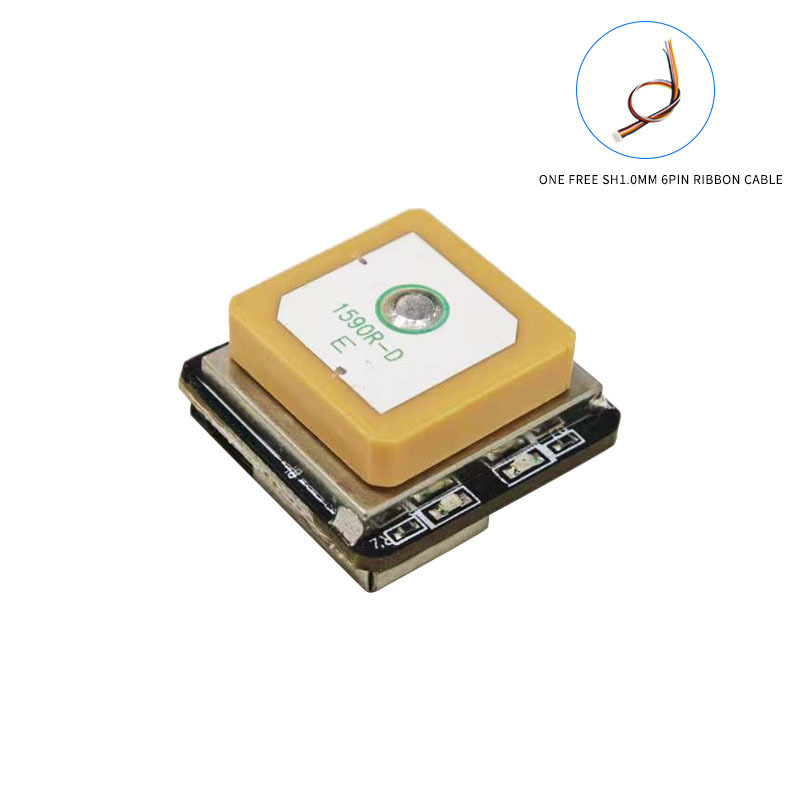

Connector
|
SH1.0mm 6pin
|
|
working temperature
|
-35°C ~ +75°C
|
|
Storage temperature
|
-40°C ~ +85°C
|
|
Magnetometer
|
Magnetometer
|
QMC5883L
|
|
LED
|
LED
|
PPS LED：Green flashing
|
|
Power indicator light: red
|
丨 product mix

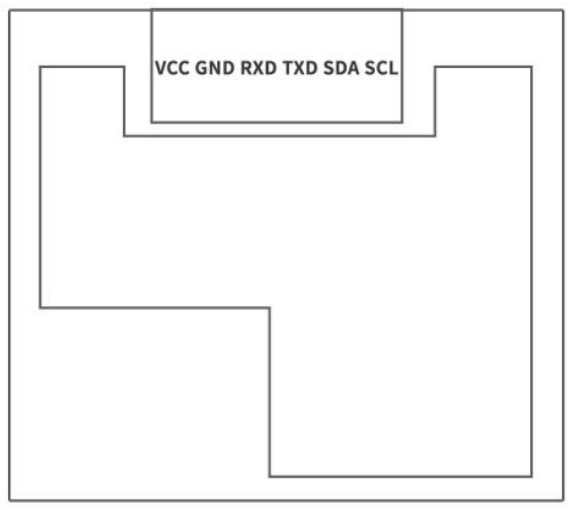

Table 1 Interface Definition
|
PIN name
|
Description
|
|
VCC
|
The main power supply of the system has a supply voltage of 3.3V-5V
|
|
GND
|
Grounding
|
|
RXD
|
TTL interface data input
|
|
TXD
|
TTL interface data output
|
|
SDA
|
Serial Data - I2C Master/Slave Data
|
|
SCL
|
Serial clock - I2C master/slave clock
|
Redefining the Performance Limits of Compact Positioning!
The DL18U10C utilizes U-blox high-performance positioning chip with a 15×15×4mm industrial-grade ceramic antenna, featuring 96-channel satellite signal reception capability! With ultra-low power design and -166dBm tracking sensitivity, it delivers professional-grade positioning performance for compact devices, setting new standards for G-MOUSE technology!
Breakthrough Performance
Built-in LNA + TCXO + Faraday capacitor provides 300% faster warm-up speed! Adjustable 1-10Hz update rate meets all-scenario requirements from vehicle monitoring to UAV navigation, achieving 1.5m CEP positioning accuracy!
Fully Integrated Design
Integrated high-precision QMC5883L magnetometer delivers 200% better directional sensing accuracy! Extremely compact 20×20×11.3mm size weighing only 7.5g, yet incorporates all core components for professional positioning.
Military-Grade Reliability
-35℃ to +75℃ ultra-wide operating temperature withstands extreme environmental challenges! Built-in TCXO provides 500% better temperature stability, ensuring reliable operation under any conditions.
Simplified Integration
Standard SH1.0mm 6pin interface with TTL level output, compatible with NMEA/UBX dual protocols. From vehicle navigation to agricultural equipment, from UAVs to ship monitoring - one module meets all positioning requirements!
Core Advantages
96-Channel Powerful Reception
300% enhanced satellite signal reception for faster, more accurate positioning
Complete Function Integration
Magnetometer + TCXO + Faraday capacitor - all professional features included
Military-Grade Quality
Ultra-wide temperature range with excellent performance in extreme environments
Ultra-Compact Design
20mm square footprint, a 7.5g performance powerhouse
Choose DL18U10C today and give your compact devices an unbeatable positioning advantage!
