UBX-M9140/IST8310 GNSS/GPS Module 25Hz High Update Rate Pixhawk Compatible

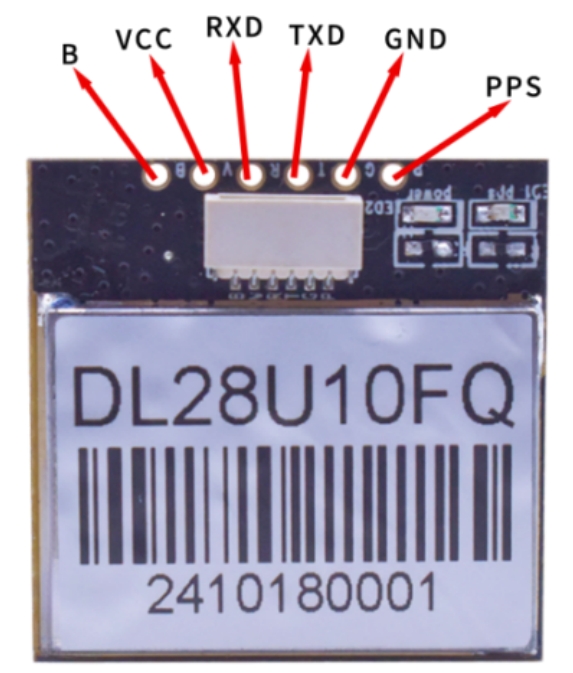

                                                   Table 1 Interface Definition



Tailored for Aerial Enthusiasts and Developers
The UBX-M10050-KB gps module is engineered to serve fixed-wing FPV crossover aircraft pilots and drone hobbyists who demand reliable, stable positioning. It supports integration with F4 and F7 open source flight controllers, providing fast and accurate navigation even in challenging airborne environments. This device meets the needs of users seeking advanced Aircraft Anti nterference features to maintain uninterrupted signal reception for safe and controlled flight. Ideal for those looking to buy gnss receiver components that enhance their drone’s operational capabilities and responsiveness, it brings precision navigation within reach of enthusiast and professional users alike.

Innovative Technology Ensuring Signal Precision

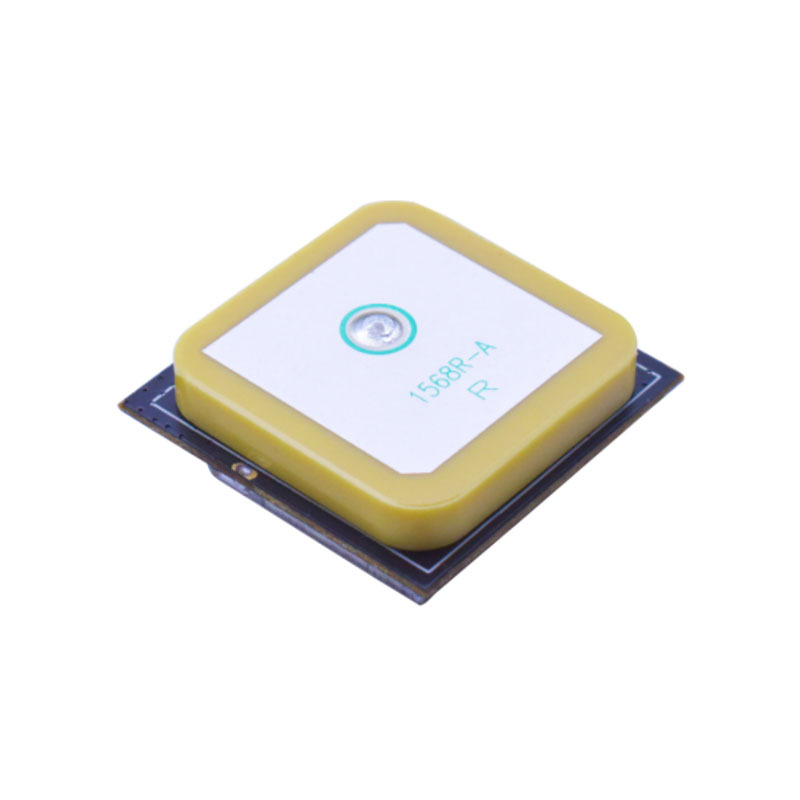

Equipped with a built-in LNA signal amplifier and a high-sensitivity ceramic antenna, the gps module dramatically improves signal reception quality. Its multi-constellation GNSS support includes GPS, GLONASS, Galileo, SBAS, and QZSS, enabling robust satellite tracking and sub-meter positioning accuracy. The incorporation of a TCXO crystal oscillator and Farad capacitor allows for fast hot start times of just 1 second, minimizing delays during flight initiation. The built-in flash memory supports customizable configuration parameters, adding flexibility in adapting to diverse flying conditions. These technical features position this Aircraft Anti nterference-enabled module as a premier choice when you need to buy gnss receiver solutions with dependable performance.

Wide Application Across Drone and UAV Sectors
This gps module’s exceptional positioning precision and anti-interference design make it highly suitable for multiple aviation-related applications. Whether enhancing navigation in fixed-wing FPV drones, ensuring emergency return-to-home functionality, or providing reliable real-time flight path adjustments, it delivers strong operational value. Integration compatibility with open source F4 and F7 flight controllers facilitates seamless customization for professional aerial surveying, asset tracking, or drone fleet management. The module’s ability to operate effectively in RF-dense environments supports uninterrupted signal integrity and improved flight safety, answering the practical demands of modern drone operators and developers who prioritize versatile and trustworthy positioning technology.


Use Scenarios

Precision Navigation for Fixed-Wing FPV Drones
In the drone racing and recreational FPV fixed-wing sector, stable and uninterrupted GPS signal acquisition is crucial. The UBX-M10050-KB gps module’s Aircraft Anti nterference capabilities address challenges presented by urban or congested RF environments where signal degradation is common. Serving as the key navigation component onboard, this module ensures accurate geolocation data to power flight controllers such as F4 and F7 open source platforms. Its superior cold and hot start performance improves drone responsiveness, vital for competitive and leisure pilots needing consistent real-time location updates. Integration with flight control systems promotes enhanced flight path accuracy and safer operations, meeting the high standards expected in fast-paced aerial environments.

Emergency Recovery and Lost-Control Rescue in Drone Operations
For commercial and hobbyist drone operators, the risk of losing control during flight necessitates reliable emergency return mechanisms. The UBX-M10050-KB gps module plays a pivotal role in these protocols by guaranteeing precise positioning data thanks to its comprehensive multi-constellation support and Aircraft Anti nterference technology. This ensures effective activation of return-to-home sequences and navigational corrections when signal interference or environmental factors might compromise control. Its compatibility with popular open source F4 and F7 flight controller models allows seamless integration into rescue workflows, elevating the safety profile for diverse drone applications such as aerial surveys, asset tracking, and delivery services where navigation accuracy underpins operational success.


FAQ

What materials and components are used in the UBX-M10050-KB GPS module?
The UBX-M10050-KB includes a high-sensitivity ceramic antenna, built-in LNA amplifier, TCXO crystal, and Farad capacitor, ensuring enhanced signal quality. Its robust design supports stable performance in diverse environments, making it a dependable gps module for fixed-wing and FPV drones.

Can I customize the UBX-M10050-KB settings for my drone application?
Yes, this gps module features built-in flash memory that allows you to configure parameters according to your drone’s operational needs. This flexibility supports integration with open-source flight controllers such as F4 and F7, adapting navigation precision to various use cases.

How do I install the UBX-M10050-KB on my fixed-wing or crossover aircraft?

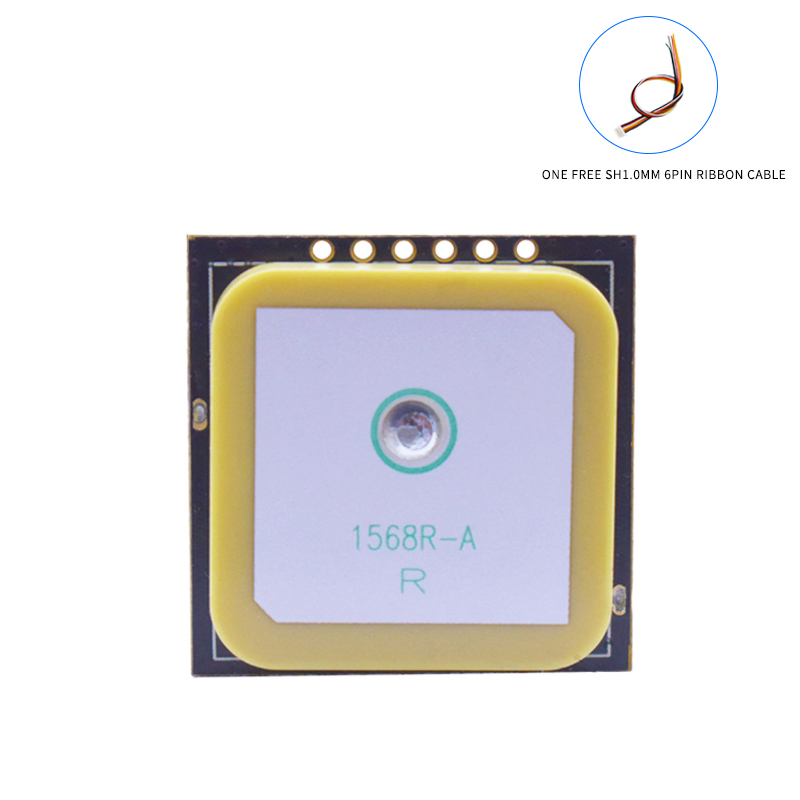

The module uses a standard SH1.0mm 6-pin connector and is compatible with F4 and F7 flight controllers. Installation should ensure clear antenna exposure to the sky for optimal signal reception. Follow your flight controller’s documentation for wiring and software integration of this Aircraft Anti interference enabled module.

What shipping options are available when I buy a GNSS receiver like the UBX-M10050-KB?
Shipping logistics depend on the supplier and buyer location, but trusted providers ensure timely delivery with secure packaging. When you buy GNSS receiver products like the UBX-M10050-KB, confirm shipping terms beforehand to accommodate your project timeline and receive full support post-purchase.
