Product Overview

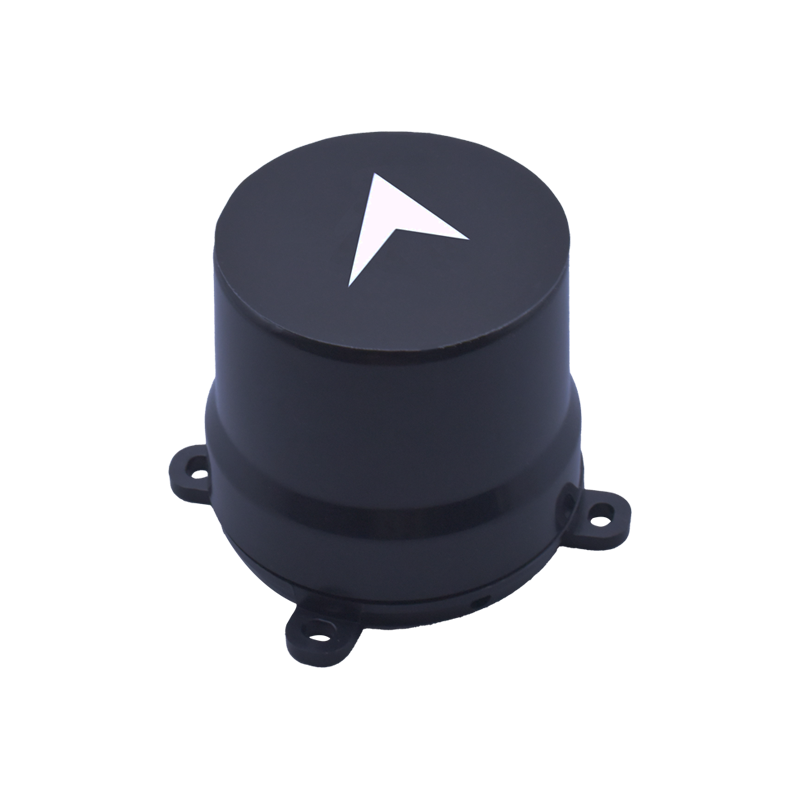

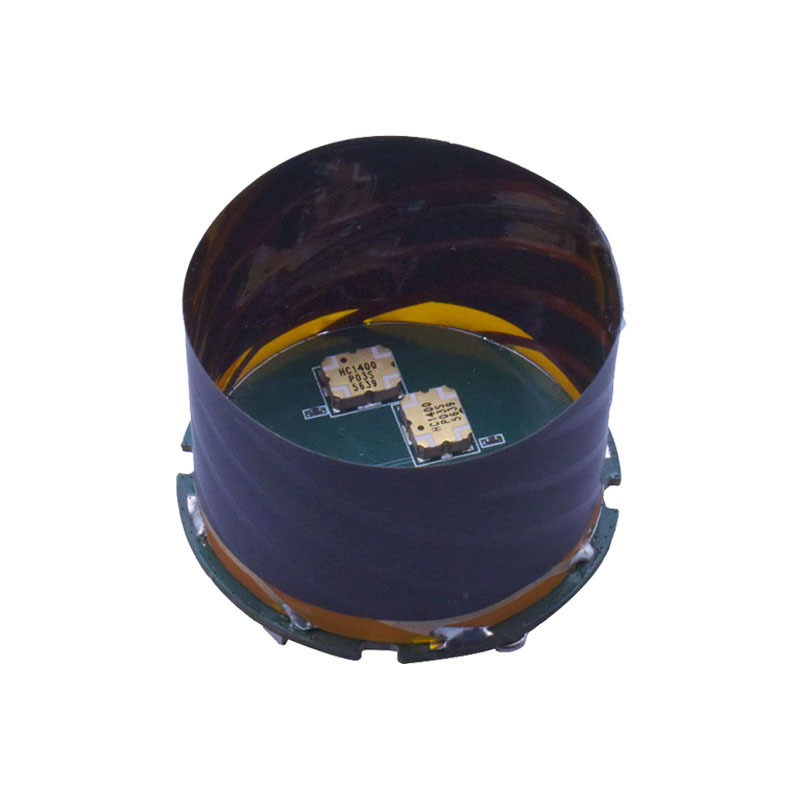

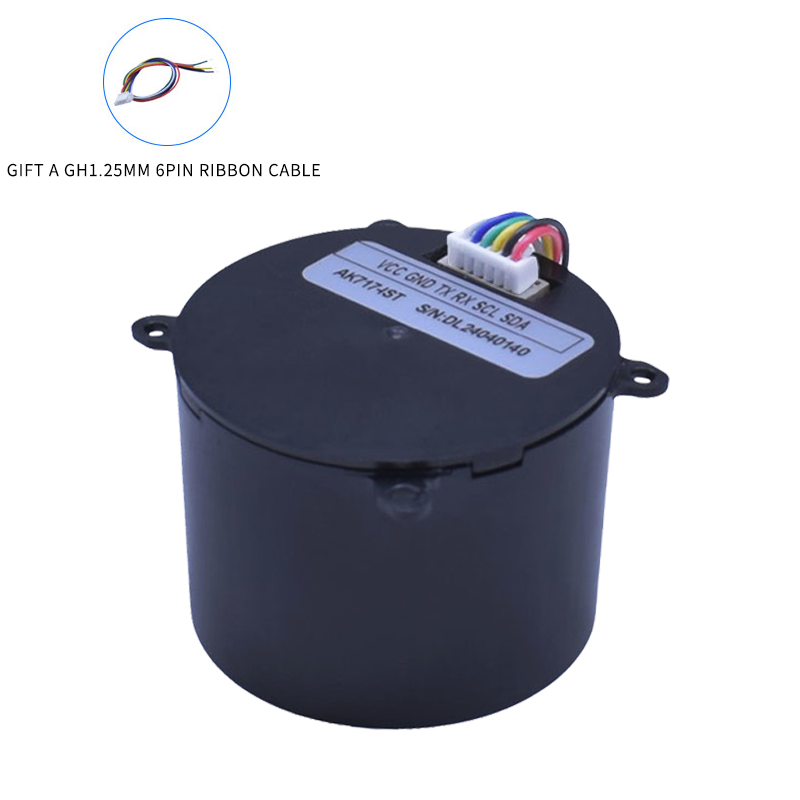

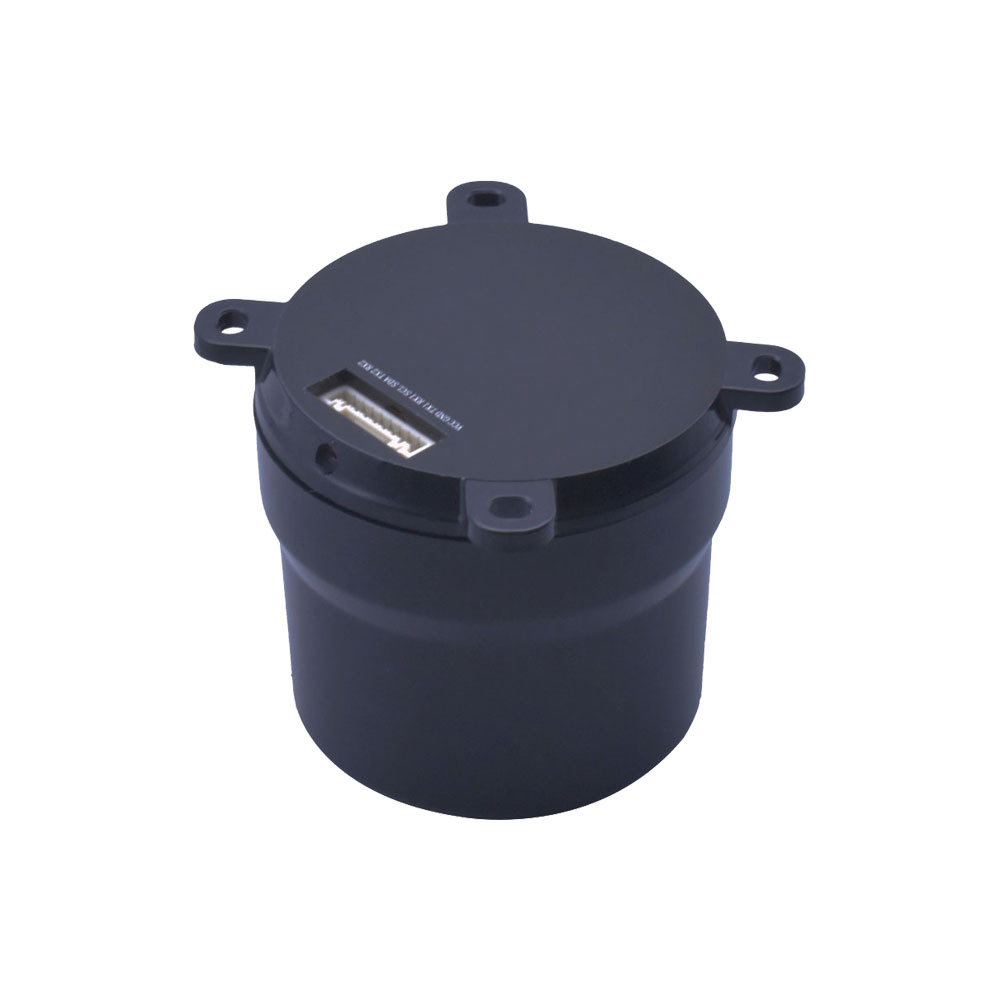

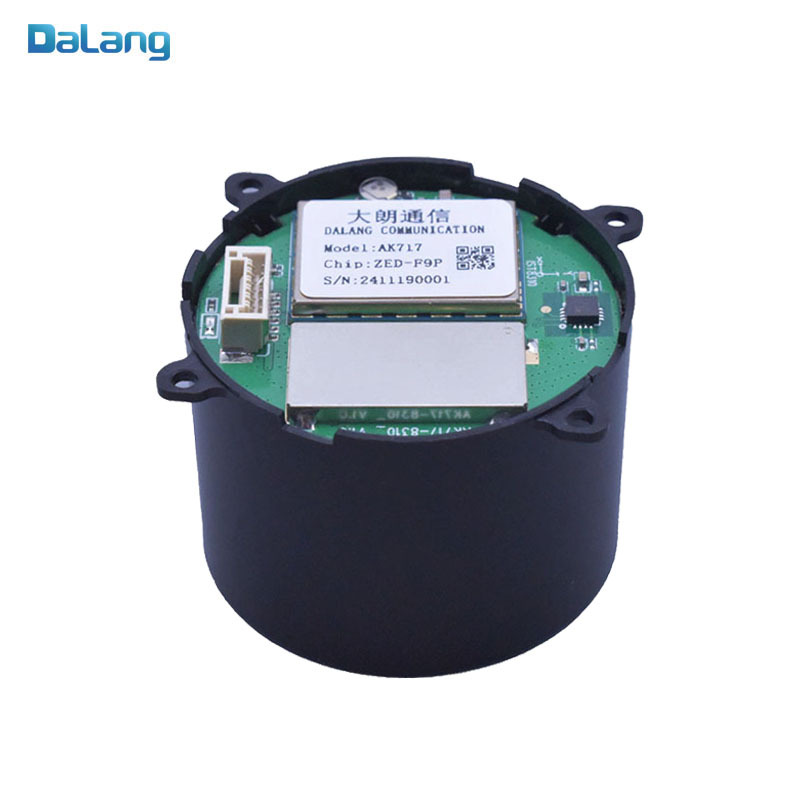

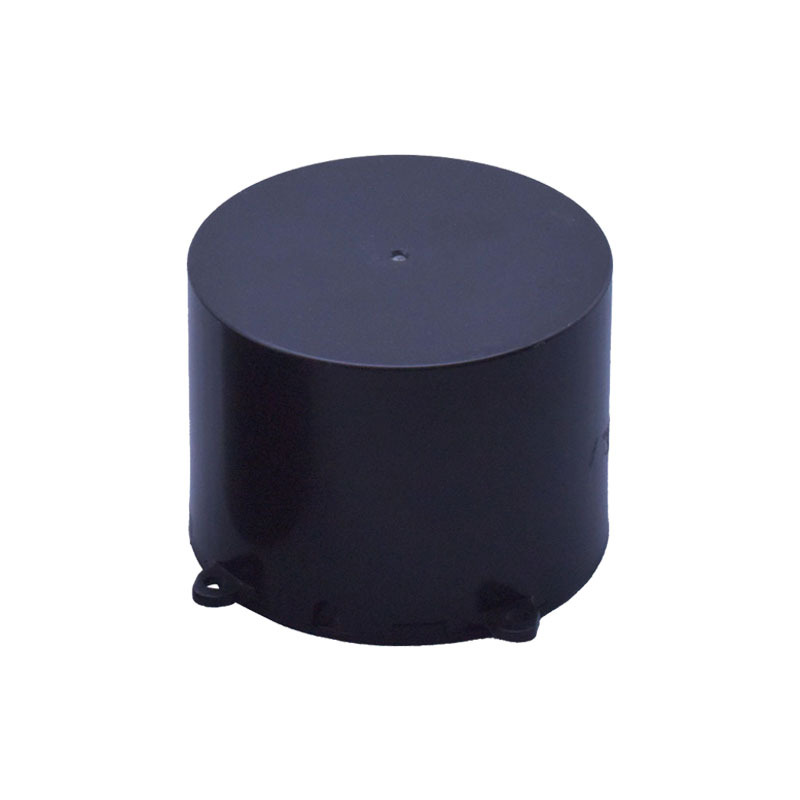

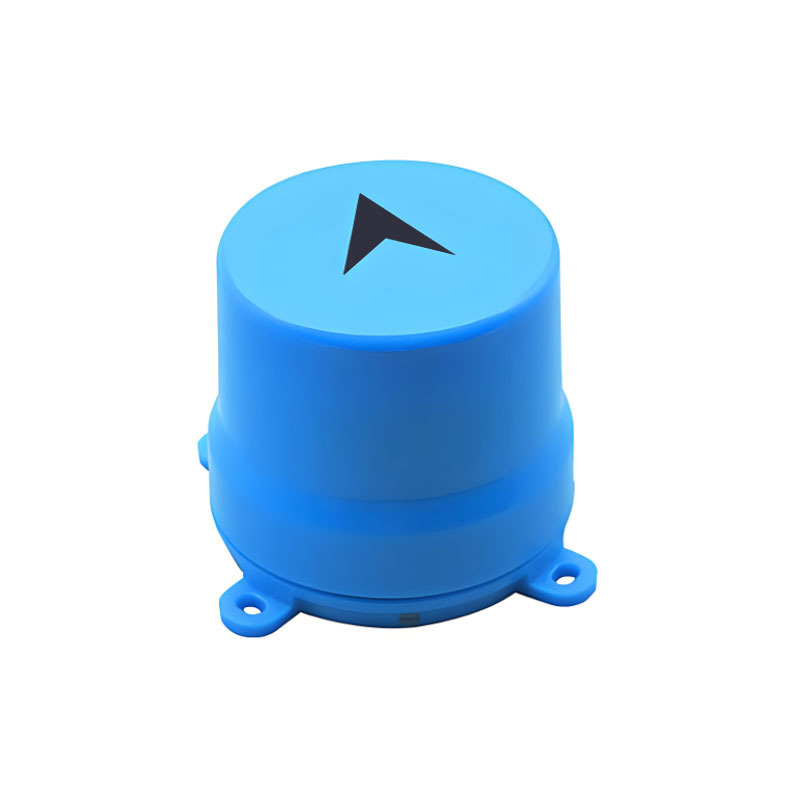

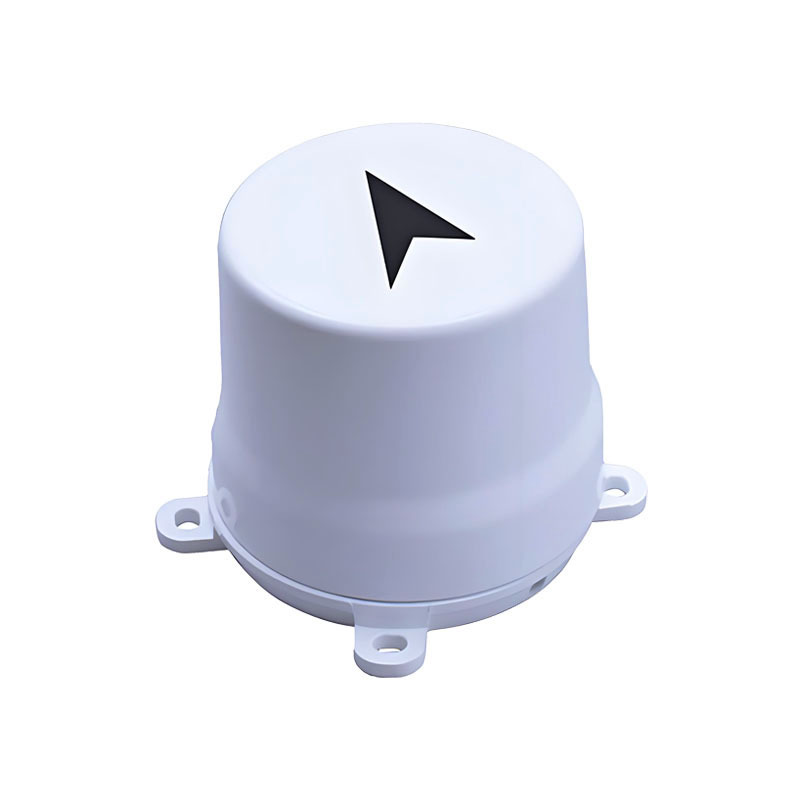

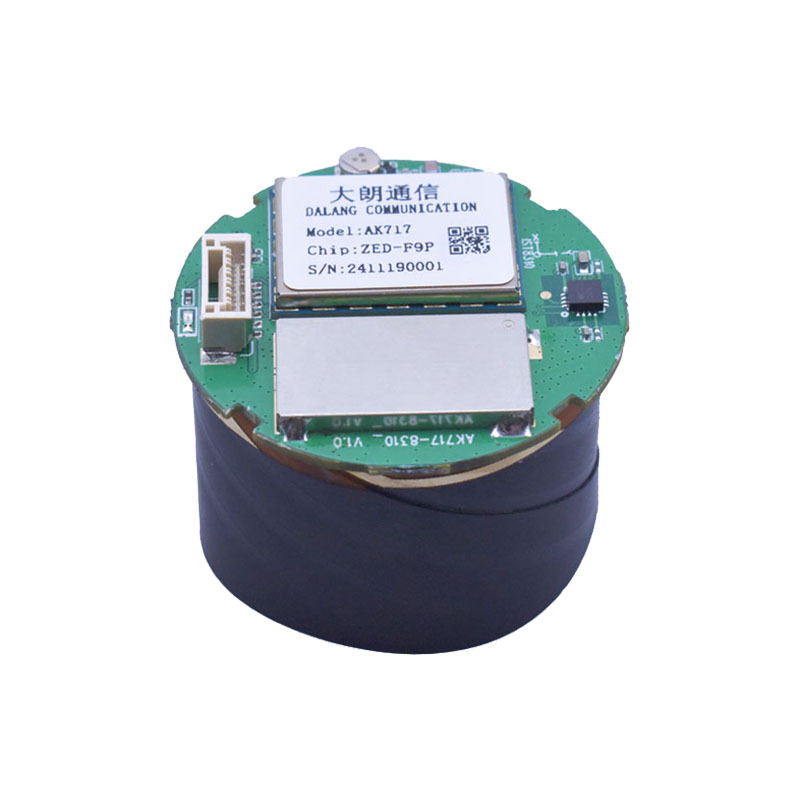

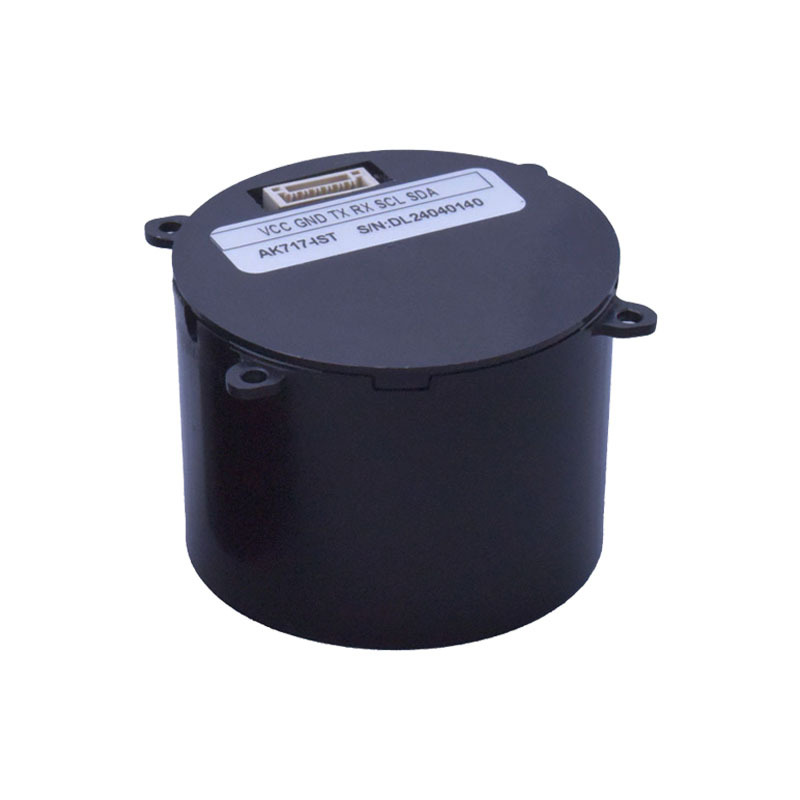

The AK717G is a high-performance GNSS receiver module based on the Ublox F9P platform, featuring a built-in quadrifilar helix antenna and IST8310 magnetometer. Designed for automated platforms such as drones, unmanned surface vessels, and autonomous vehicles, it provides stable and reliable centimeter-level positioning. Suitable for professional applications including aerial surveying, disaster monitoring, traffic inspection, and public security surveillance.
High-Frequency RTK Engine with Multi-System Support
The AK717G supports four major satellite systems: BeiDou, GPS, GLONASS, and Galileo, delivering real-time kinematic (RTK) centimeter-level positioning. With a data update rate of up to 10Hz, it meets the real-time positioning demands of high-speed mobile platforms.
Strong Compatibility and Easy Integration
Fully compatible with mainstream flight control systems such as Pixhawk and APM, the module allows for quick integration into various unmanned systems without complex adaptation. The built-in industrial-grade IST8310 magnetometer provides heading assistance, enhancing overall navigation stability.
Reliable Performance in Challenging Environments

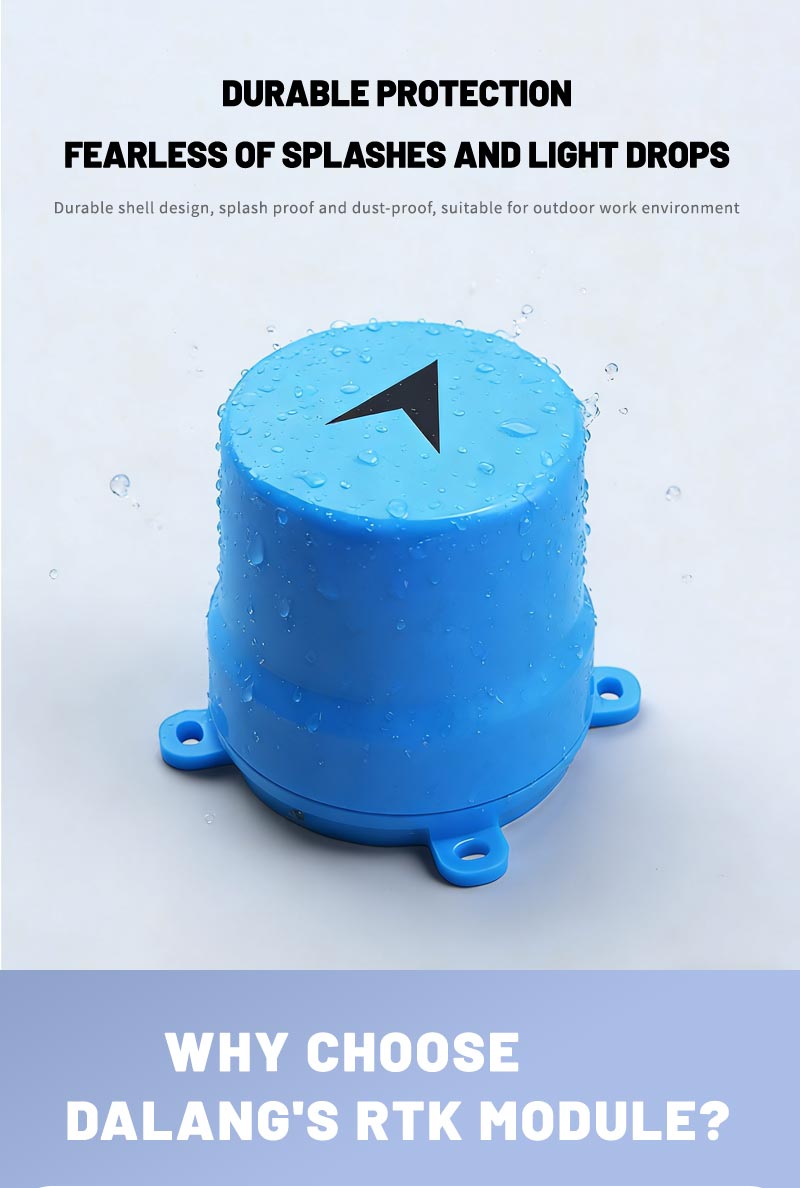

Featuring industrial-grade RF circuitry and an optimized antenna design, the AK717G offers strong anti-interference and multipath suppression capabilities, maintaining high positioning accuracy even in complex signal environments such as urban canyons and forested areas.
Product Advantages
High-Precision Positioning Core

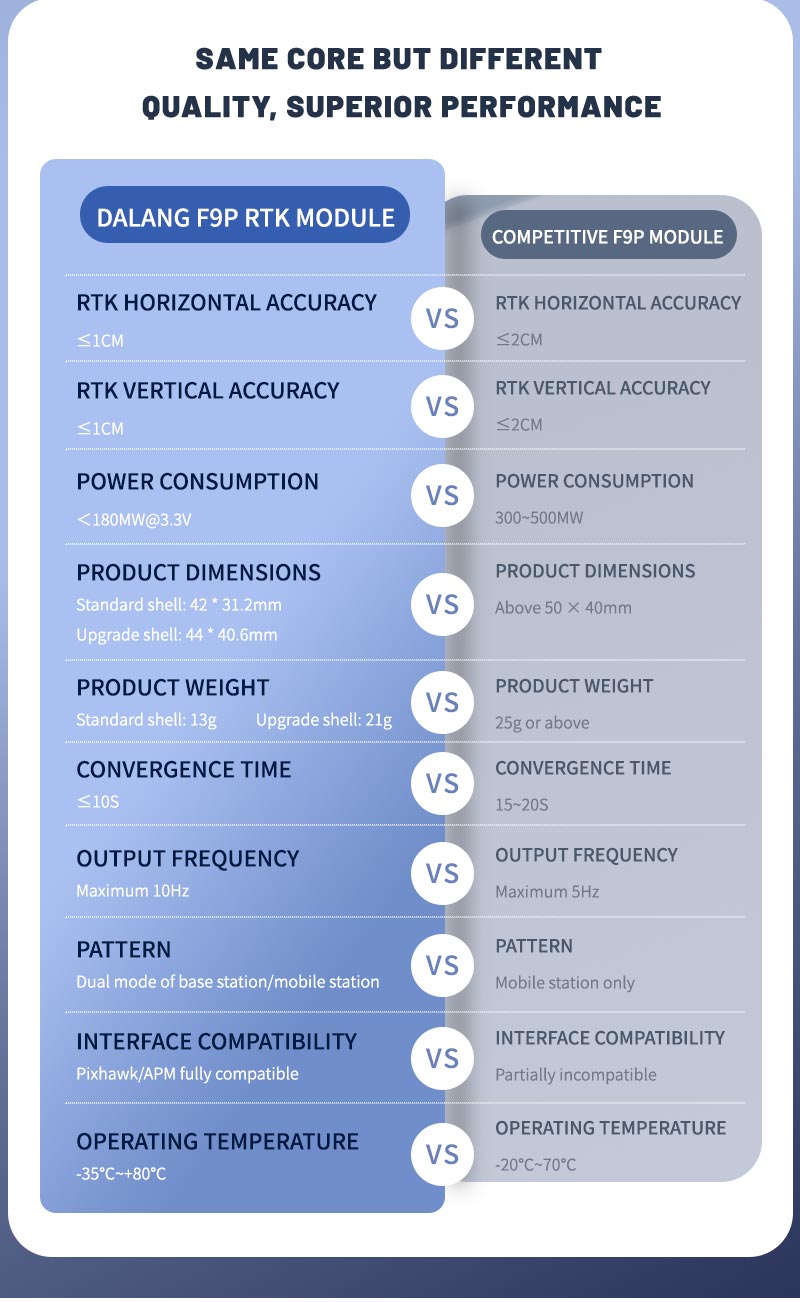

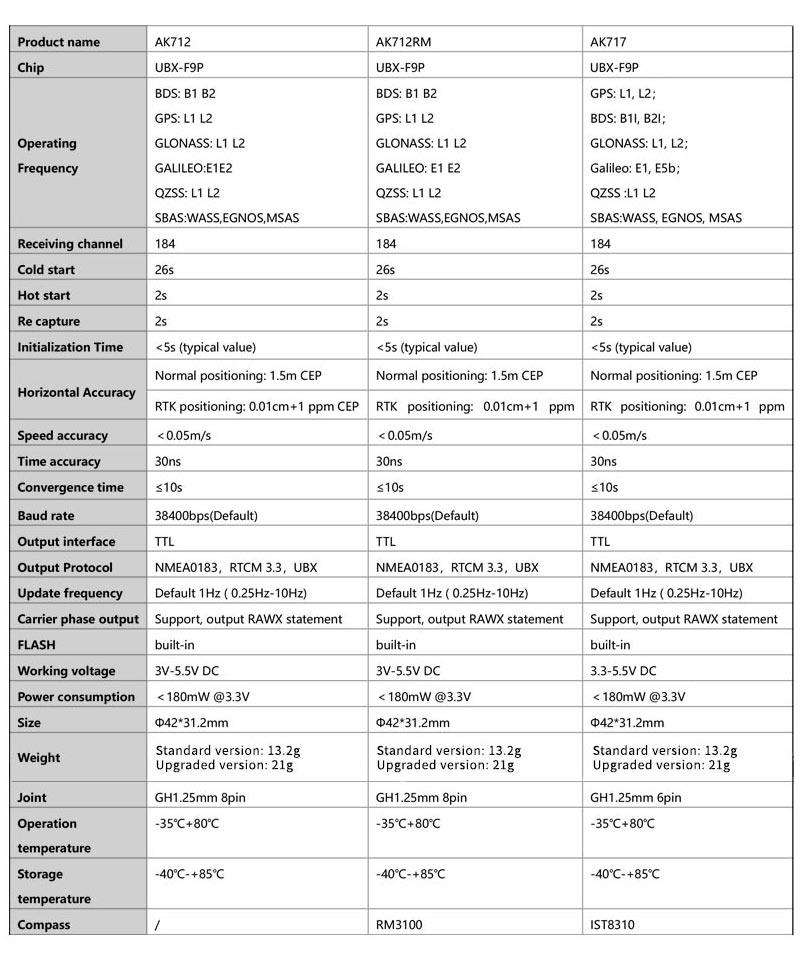

Based on the Ubx F9P platform, it delivers RTK horizontal and vertical accuracy of 1cm + 1ppm, with fast convergence and initialization time ≤ 10s.
Multi-System Joint Positioning

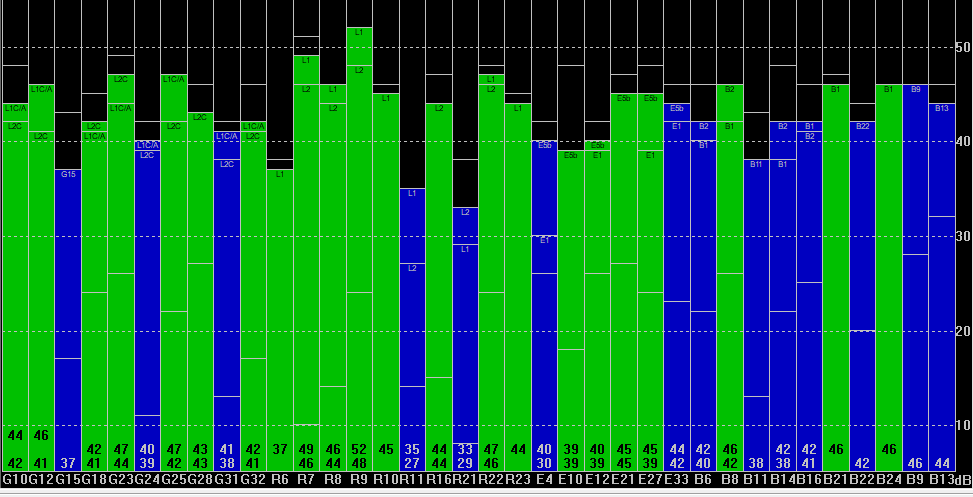

Supports multi-frequency signal reception from four satellite systems, improving positioning availability and reliability.
Compact and Low-Power Design

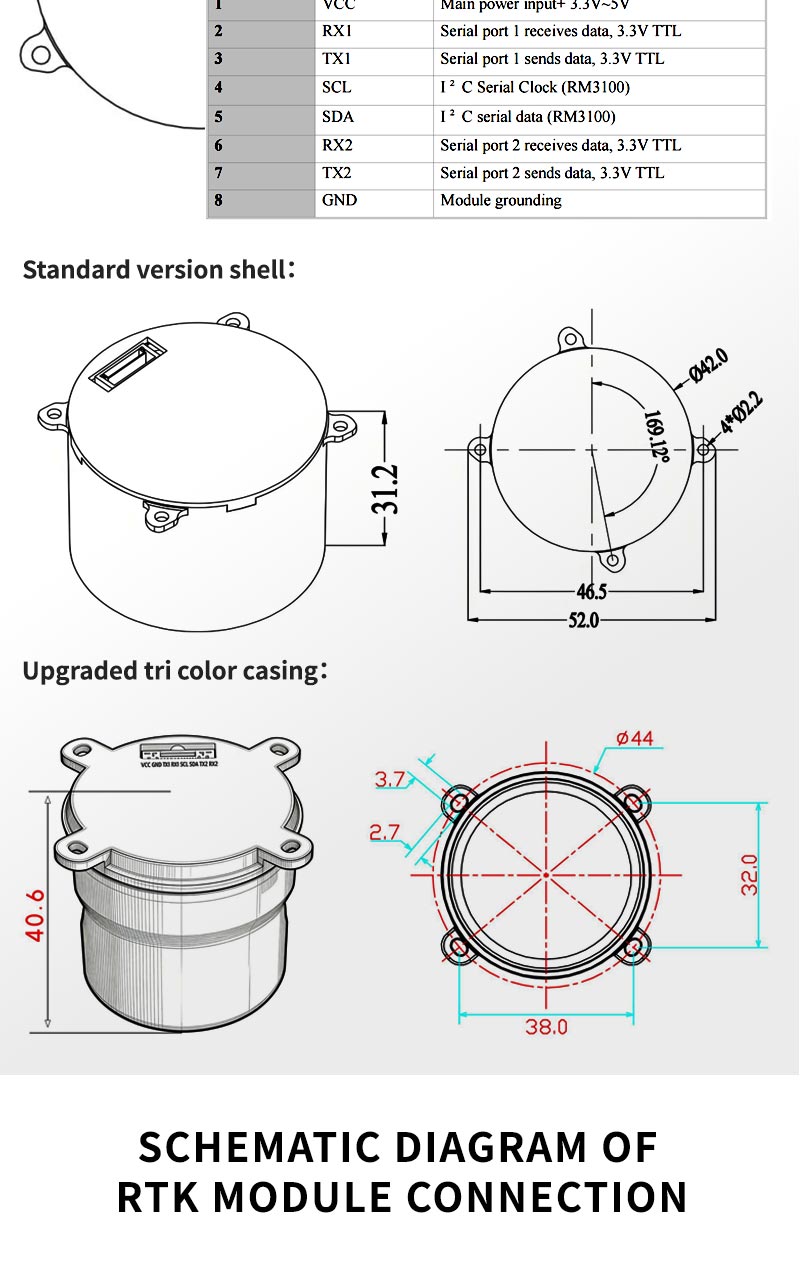

Compact size (Φ44×40.6mm), lightweight (13.2g), and low power consumption (<180mW), making it suitable for various embedded and mobile platforms.
Supports Multiple Operation Modes

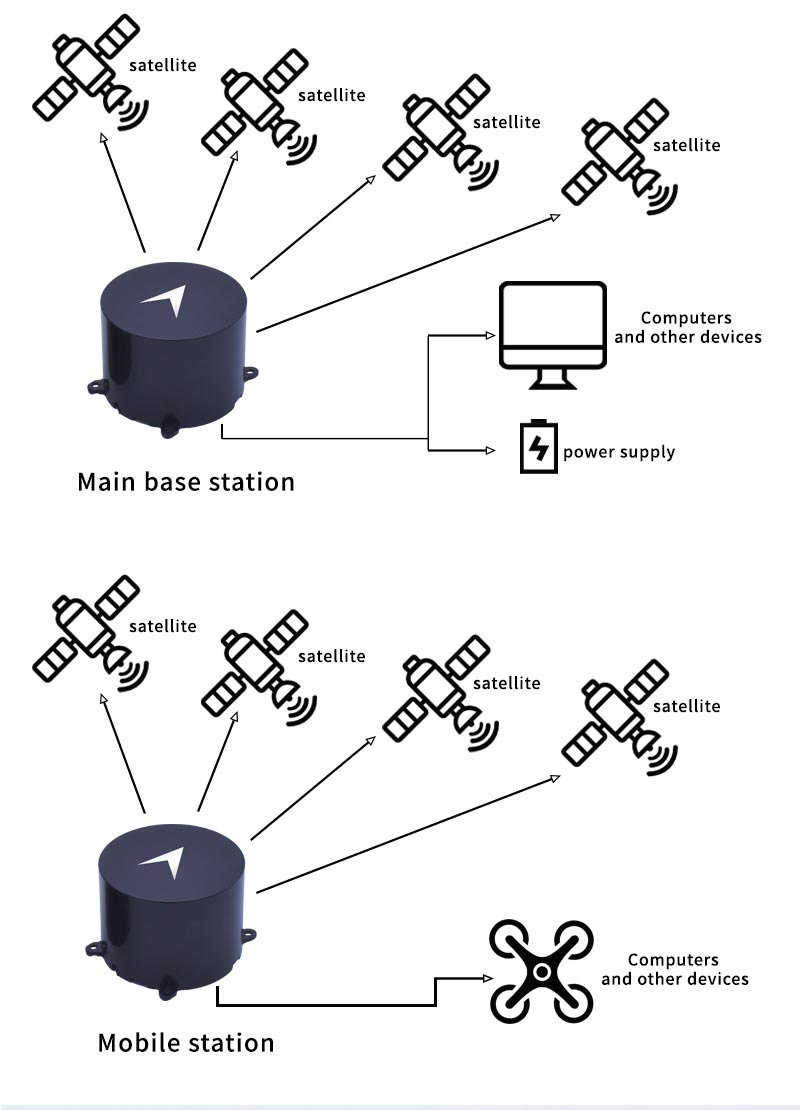

Supports switching between rover and base station modes, and can be used with data transmission modules or 4G networks to achieve short, medium, long-range, and base station-free high-precision positioning.
Looking for a reliable RTK solution for your UAV or high-precision positioning system?
The AK717G can provide stable and accurate positioning support. Contact us to learn more about integration solutions.
About Us
DALANG is a dedicated manufacturer of high-performance GNSS modules and RTK positioning solutions, serving industries such as UAV navigation, precision agriculture, and geospatial mapping. With a clear focus on accuracy, reliability, and integration flexibility, we support both standard and custom applications across global markets. Our product lines are engineered to meet the evolving demands of real-time positioning with support for multiple GNSS constellations, including GPS, GLONASS, BDS, and Galileo.
Our production facility spans 2,500㎡ and includes advanced SMT lines, in-house R&D labs, and full functional testing for every unit shipped. With a team of 30+ GNSS engineers, we design and manufacture over 200,000 GNSS receivers and modules annually. Certified to ISO9001:2015, and compliant with CE and RoHS standards, we follow a strict quality assurance process from prototyping through mass production. We also provide firmware updates, system integration support, and full lifecycle product documentation.
Trusted by partners in over 30 countries, DALANG delivers fast, scalable manufacturing with personalized technical support. Our streamlined collaboration model—covering inquiry, consultation, prototyping, and delivery—ensures efficiency from first contact to deployment. Whether you're sourcing off-the-shelf GNSS hardware or launching a customized solution, DALANG is your dependable partner for accurate, cost-effective positioning systems.
FAQ
1. Who are we?
We are DALANG, a specialized manufacturer of GNSS modules and RTK positioning systems based in China, with a focus on high-precision solutions for UAVs, surveying, and smart agriculture.
2. How can we guarantee quality?
All products undergo strict multi-stage quality control, including SMT production, functional testing, and 100% final inspection. We are ISO9001:2015 certified and follow international compliance standards such as CE and RoHS.
3. What can you buy from us?
You can purchase GNSS receivers, RTK modules, base stations, antennas, flight control positioning systems, and other GNSS-related components and accessories.
4. Why should you buy from us not from other suppliers?
We combine strong in-house R&D, flexible OEM/ODM support, industrial-grade quality assurance, and fast global delivery. Our expertise in GNSS RTK ensures stable, accurate, and scalable solutions tailored to your specific use case.
5. What services can we provide?
We offer OEM/ODM customization, technical consulting, firmware support, prototyping, and global after-sales service. Our team works closely with international clients to ensure efficient communication and long-term support.
