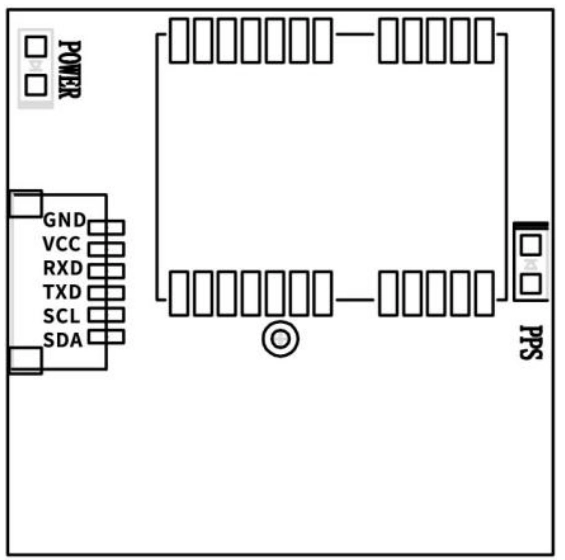

PIN name
|
Description
|
|
GND
|
Grounding
|
|
VCC
|
The main power supply of the system has a supply voltage of 3.3V-5V and acurrent of approximately 45mA during operation
|
|
RXD
|
TTL interface data input
|
|
TXD
|
TTL interface data output
|
|
SCL
|
Serial clock - I2C master/slave clock
|
|
SDA
|
Serial Data - I2C Master/Slave Data
|
High-Performance GNSS Positioning Engine

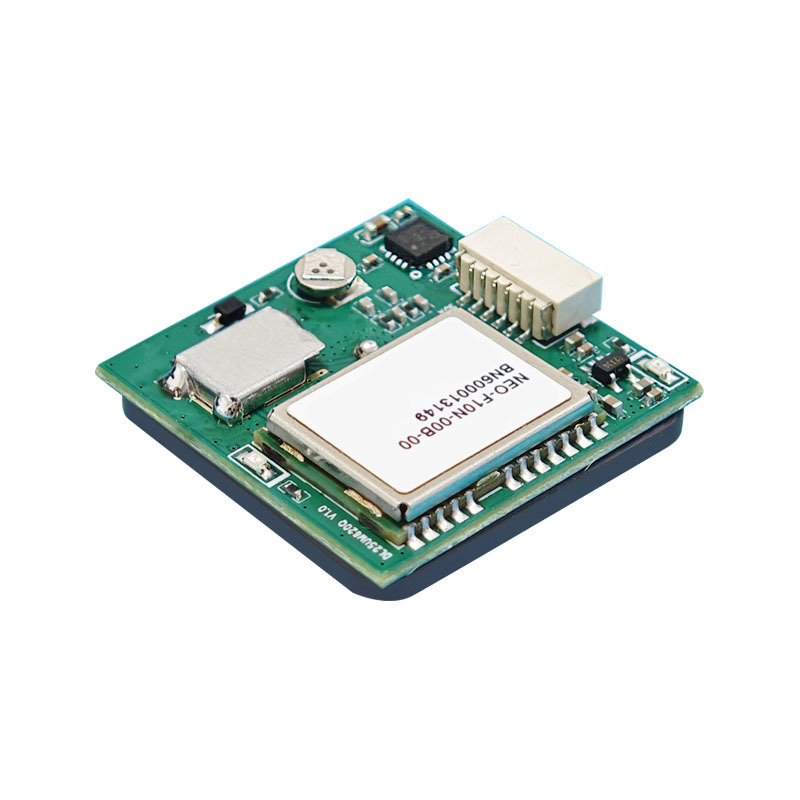

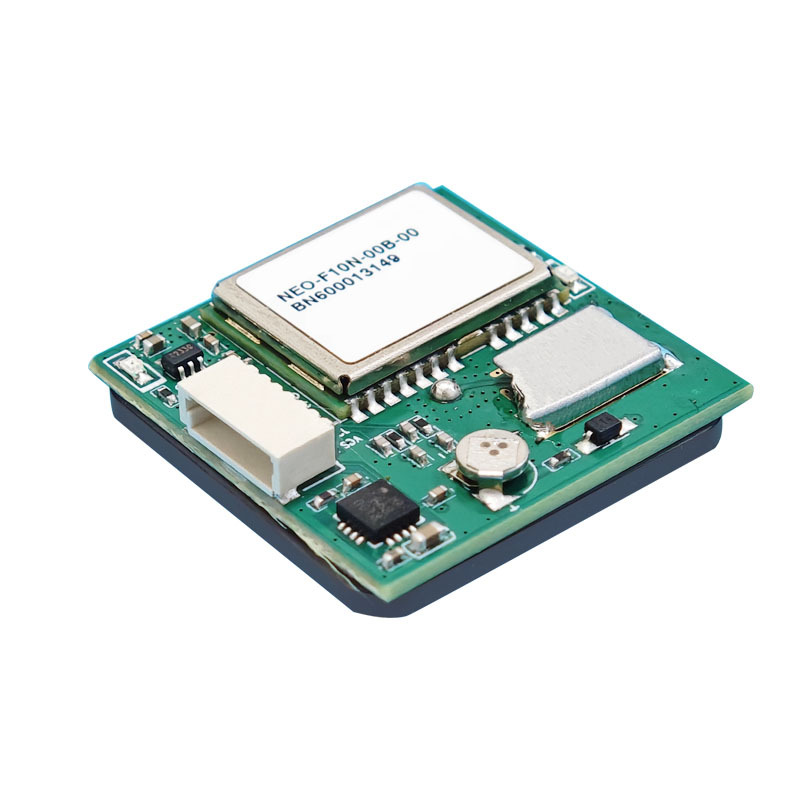

The DL25F10NQ is a high-precision GNSS module based on the ubx NEO-F10N chip, designed for centimeter-level positioning applications. Supporting multi-system, multi-frequency signal reception including GPS, BDS, GLONASS, Galileo, and QZSS, it delivers exceptional positioning accuracy and stability. This module is an ideal choice for UAV navigation, precision agriculture, high-precision mapping, and IoT positioning devices.
Precision Positioning Performance
Featuring an advanced GNSS chip architecture, the DL25F10NQ maintains excellent signal acquisition and tracking capabilities even in complex environments. With support for up to 10Hz data update rates, it provides stable and reliable position information to meet the demanding requirements of high-speed UAV flight and precision agriculture.
Optimized System Integration
Utilizing standard TTL level interfaces and I2C communication protocol, with a built-in QMC5883L magnetometer, it is compatible with mainstream flight controllers and embedded platforms. The 6pin SH1.0mm connector design facilitates quick integration into various smart devices.
Reliable Industrial-Grade Performance
With -167dBm tracking sensitivity and robust anti-interference capability, the DL25F10NQ excels in challenging signal environments. The industrial-grade temperature range (-35°C to +75°C) ensures stable operation in extreme conditions.
Core Advantages
Multi-System Positioning Support
Supports five major satellite navigation systems for all-weather, global precise positioning
Compact Design

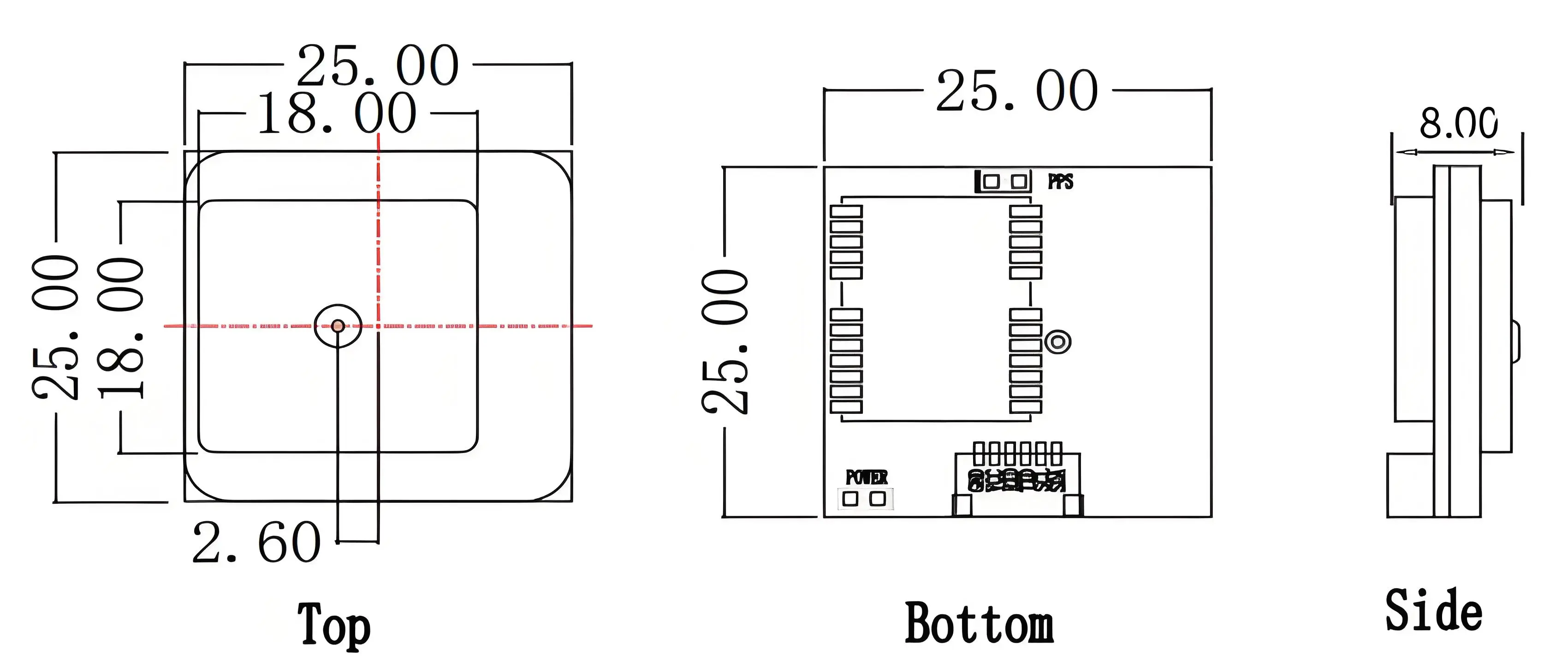

Ultra-small 25×25×8mm size, weighing only 12g, suitable for space-constrained applications
Low Power Consumption
Operating power below 100mW with 3.3V-5V wide voltage input, extending device battery life
Accurate Direction Sensing
Integrated QMC5883L 3-axis magnetometer provides precise heading information
Integrate DL25F10NQ today and empower your smart devices with precise positioning!
