丨 Product Introduction
1. Multi mode solution: Supports joint solution of five modes such as Beidou and GPS, with good global positioning compatibility and fast and reliable initialization.
2. High data rate: 5Hz data output rate, high-performance processing, fast response to dynamic environments.
3. A-GPS compatibility: Supports A-GPS services such as Assist Now Online and Assist Now Offline.
4. Antenna characteristics: Built in ceramic antenna with specific specifications, lightweight, high gain, high precision, and strong anti-interference.
丨 Specification parameters
|
Specification parameters
|
|
Chip characteristics
|
1
|
chip
|
Dual frequency chip
|
|
2
|
Signal channel
|
96 channels
|
|
3
|
working frequency
|
GPS L1 C/A, L5
GLONASS G1
BDS B1I, B1C*, B2a
Galileo E1, E5a
QZSS L1, L5
|
|
4
|
First Time of Positioning
(TTFF) 1
|
Cold start:<26 seconds
Hot start:<2 seconds
Re capture:<2 seconds
|
|
5
|
sensitivity
|
Tracking: -162 dBm
Re capture: -160 dBm
Cold start: -148 dBm
Hot start: -158 dBm
|
|
6
|
Positioning accuracy (CEP) 1
|
Plane: 1.5 meters (dual frequency four system)
|
|
7
|
Speed accuracy
|
0.05m/s
|
|
8
|
1PPS
|
20ns
|
|
9
|
Data update rate
|
1Hz-5Hz（default）1Hz
|
|
IMU gyroscope
|
1
|
range
|
±250°/s
|
|
2
|
Zero bias stability
|
3.5°/h
|
|
IMU accelerometer
|
1
|
range
|
±8g
|
|
2
|
Zero bias stability
|
25μg（x,y） 100μg（z）
|
|
Antenna characteristics
|
1
|
Ceramic size
|
35*35*4/25*25*4
|
|
2
|
Maximum gain of antenna
|
2.5dBi
|
|
3
|
Polarization mode
|
Right-handed circular polarization
|
|
4
|
Noise coefficient
|
≤0.8dB
|
|
5
|
LNA gain
|
L1：20±2dB
|
|
Job characteristics
|
1
|
working voltage
|
3.3V-5.5V DC (typical value: 5.0V)
|
|
2
|
power waste
|
<100mW @5V
|
|
3
|

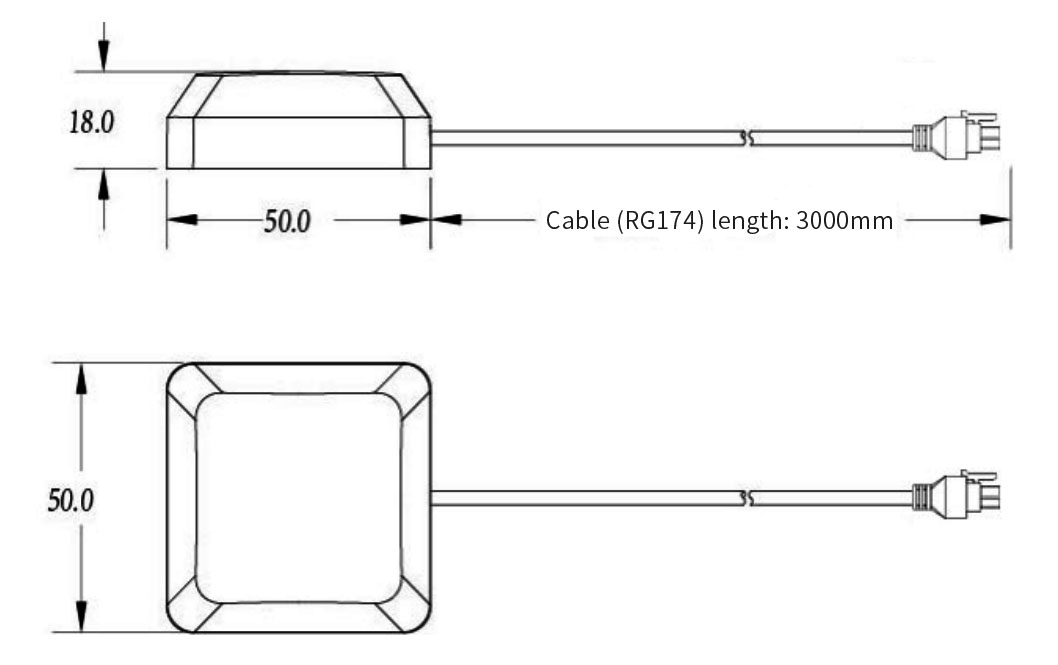

Overall size
|
50*18mm
|
|
4
|
weight
|
89.6g
|
|
5
|
Line length
|
3m
|
|
6
|
interface
|
Pitch 3.0mm Public Housing 2x02P
|
|
7
|
Agreement
|
RS232
|
|
8
|
working temperature
|
-40℃-85℃
|
|
9
|
Storage temperature
|
-40℃-85℃
|

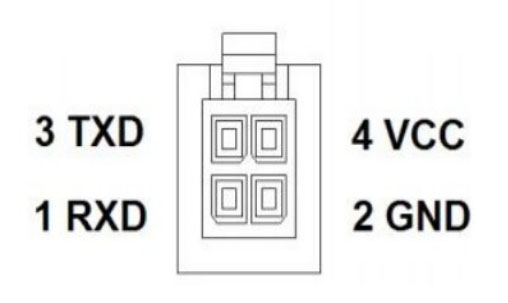

Table 1: Interface Definition Explanation Diagram
|
PIN Name
|
describe
|
|
RXD
|
RS232 interface data input
|
|
GND
|
Grounding
|
|
TXD
|
RS232 interface data output
|
|
VCC
|
Power input, DC+5V
|
|
Connector model
|
Pitch 3.0mm Public Housing 2x02P
|
Multi-System High-Precision Positioning Module

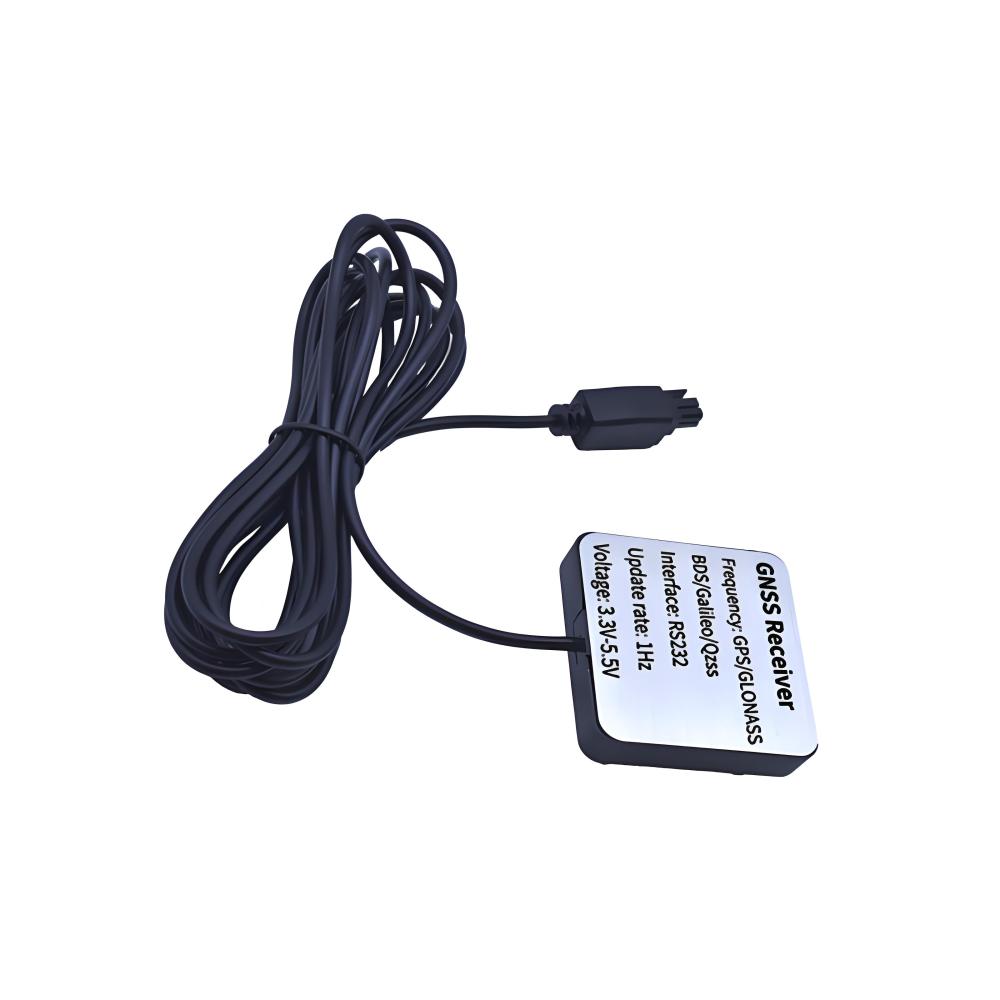

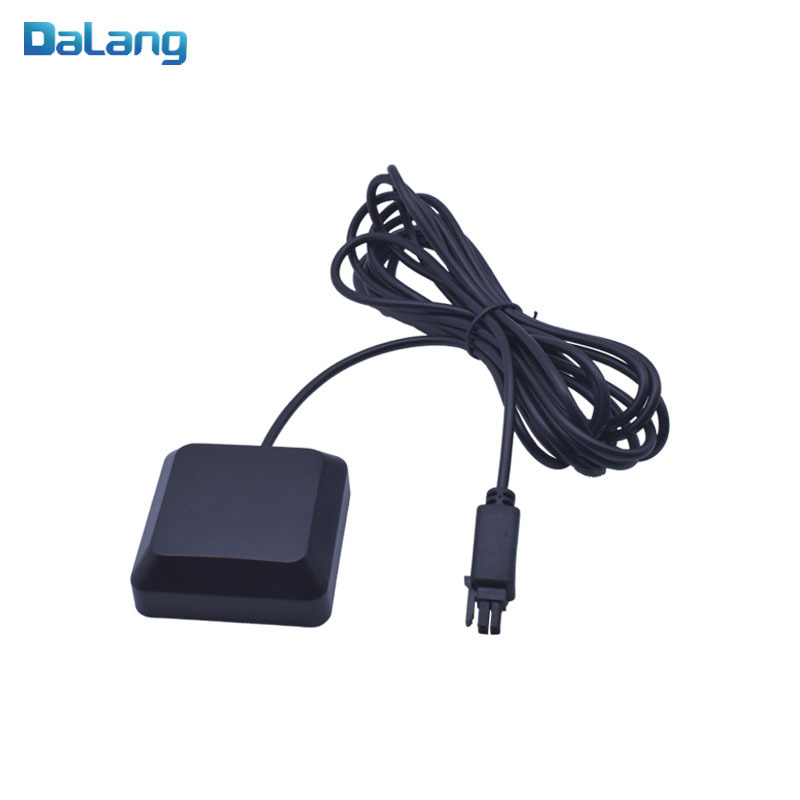

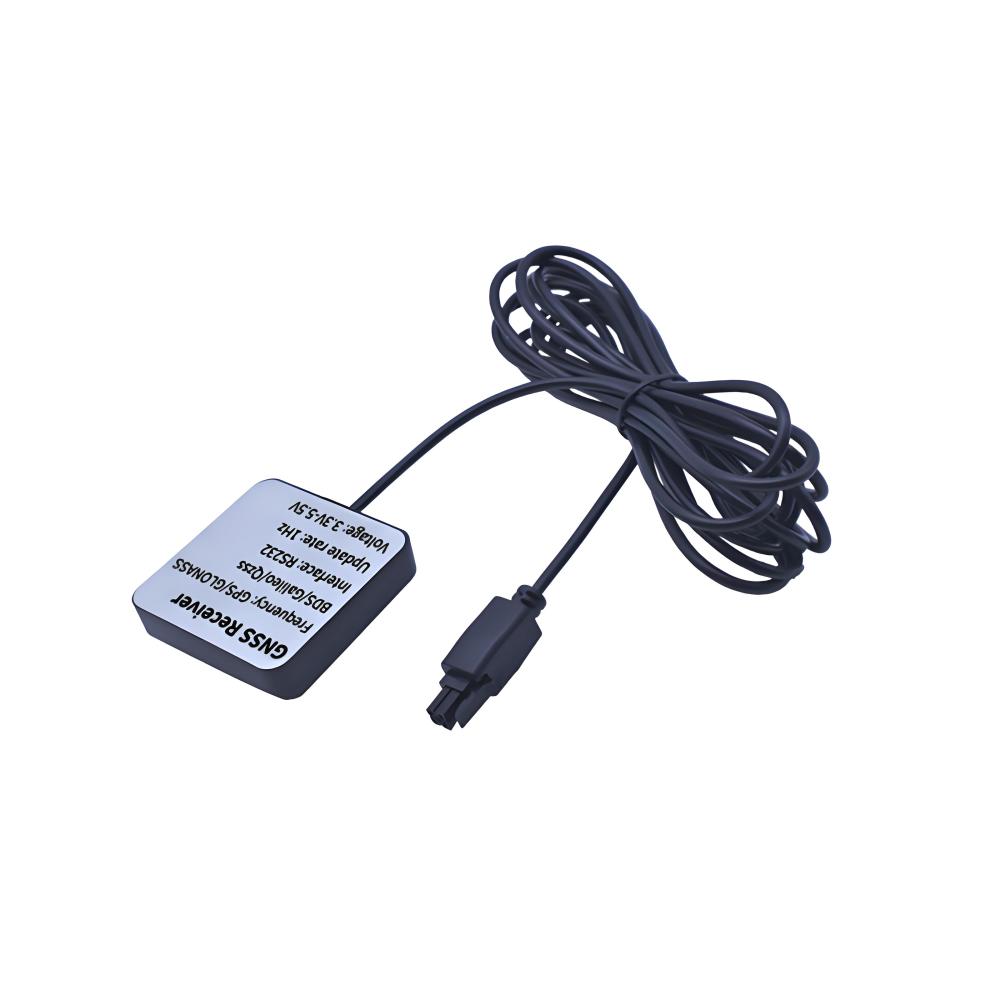

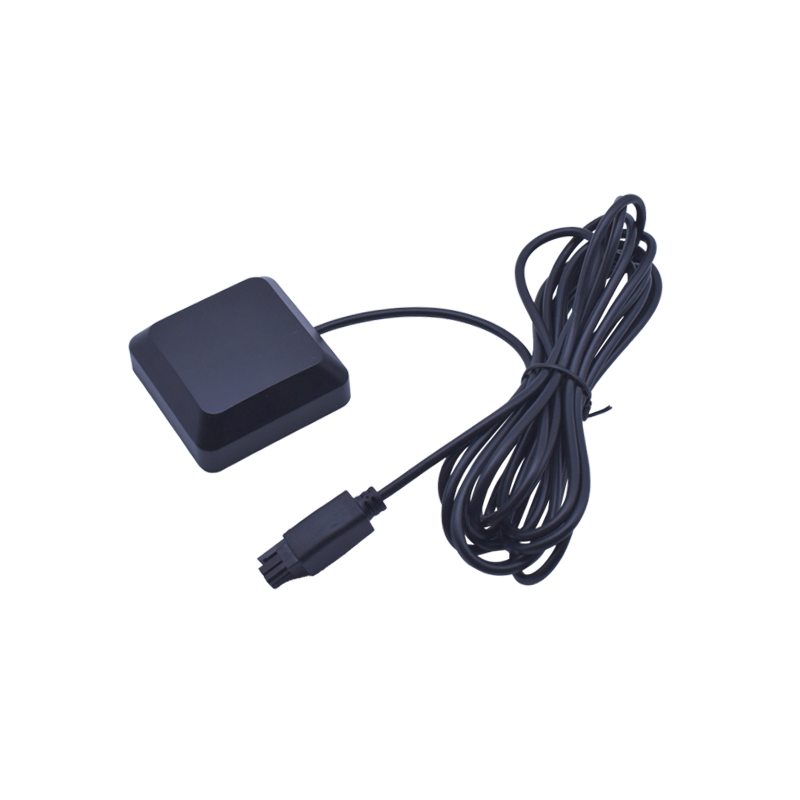

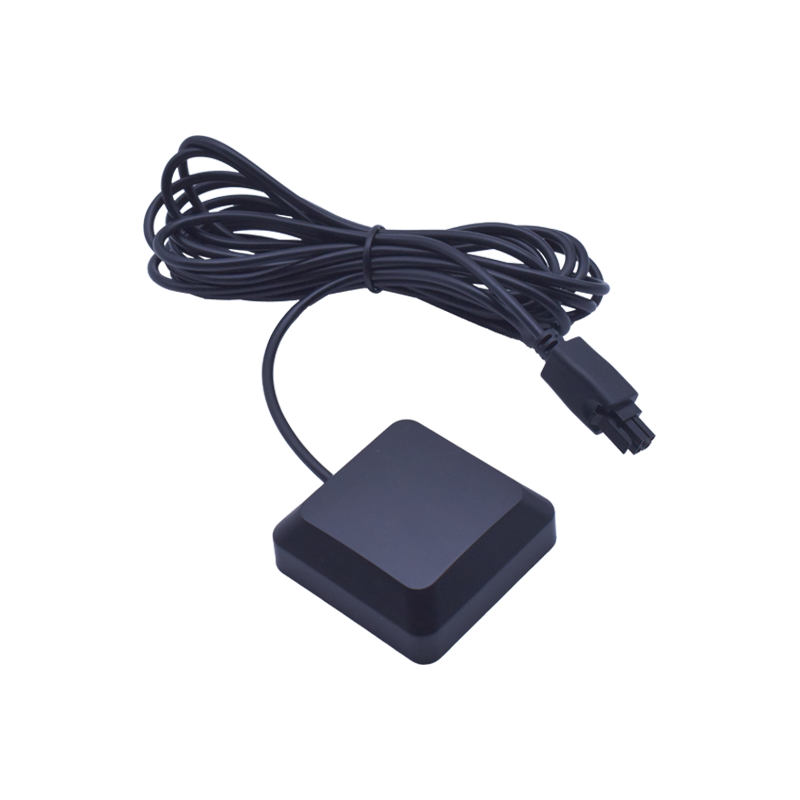

The AK188 is a high-performance GNSS receiver equipped with high-performance ceramic antenna, supporting five-system positioning including BeiDou, GPS, Galileo, GLONASS, and QZSS. This module maintains stable positioning even in complex urban environments, with planar accuracy of 1.5 meters and data update rate up to 5Hz, making it an ideal positioning solution for UAVs, UGVs, and other mobile platforms.
Advanced Positioning Technology
Features 96 signal channels, cold start time <26 seconds, hot start only 2 seconds. Built-in high-performance ceramic antenna provides excellent signal reception capability.
Industrial-Grade Reliability
Industrial-grade low-noise RF circuit design, operating temperature range -40°C to 85°C, power consumption <100mW, ensuring stable operation in harsh environments.
Easy Integration
Provides RS232 interface, uses standard connector, 3-meter cable length, facilitating various system integrations.
Product Advantages
Five-System Positioning
Supports five major satellite systems
Fast Positioning Response
Cold start <26s, hot start only 2s
Stable & Accurate
Planar accuracy 1.5m, update rate up to 5Hz
Industrial-Grade Quality
Wide temperature operation, strong anti-interference
Plug & Play
Standard interface, easy integration
Need reliable positioning solution? AK188 meets your requirements！
