丨 Product Introduction

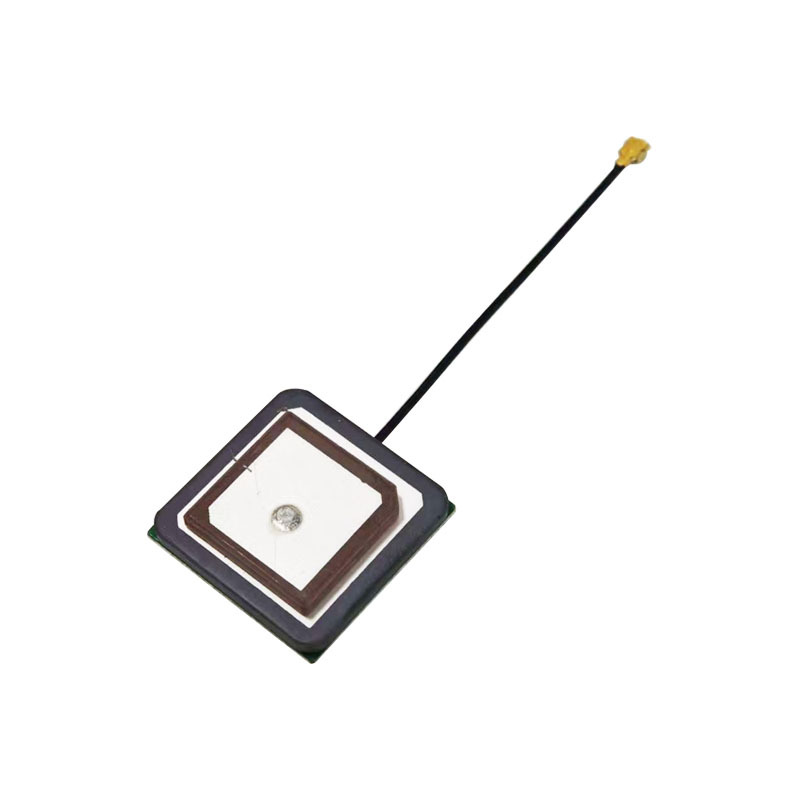

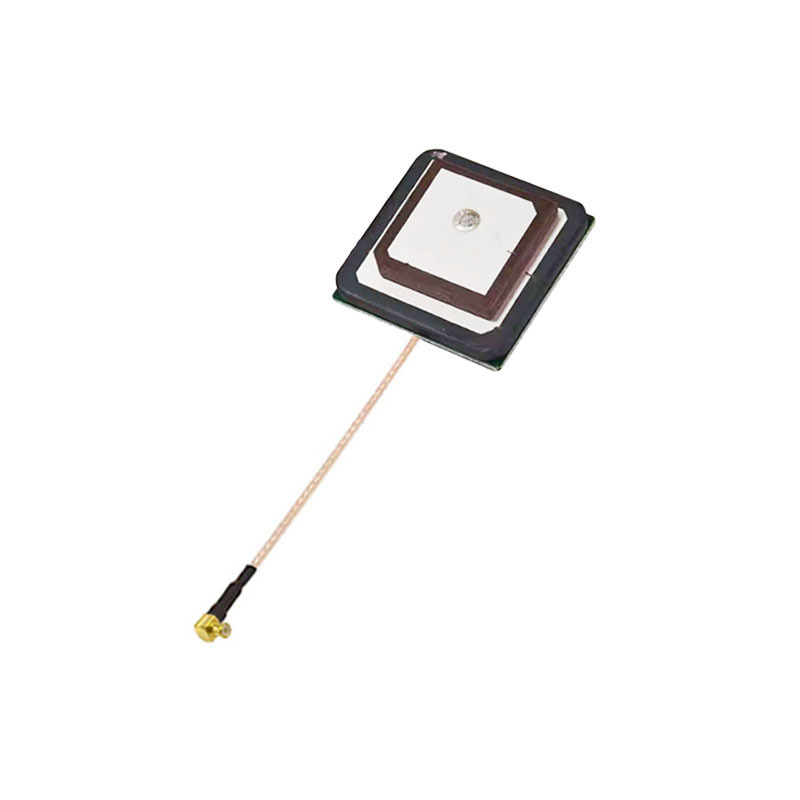

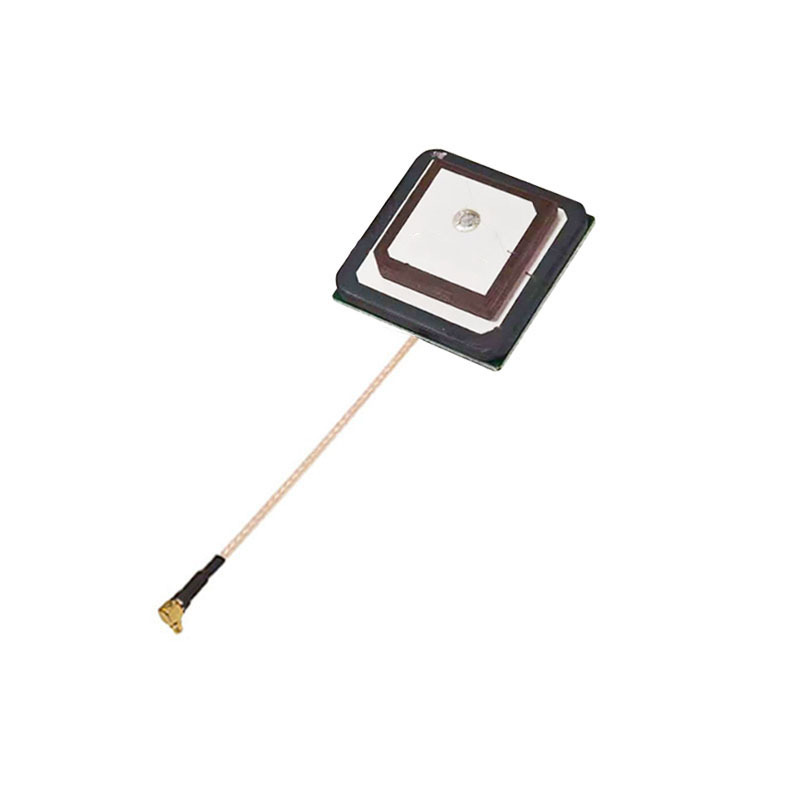

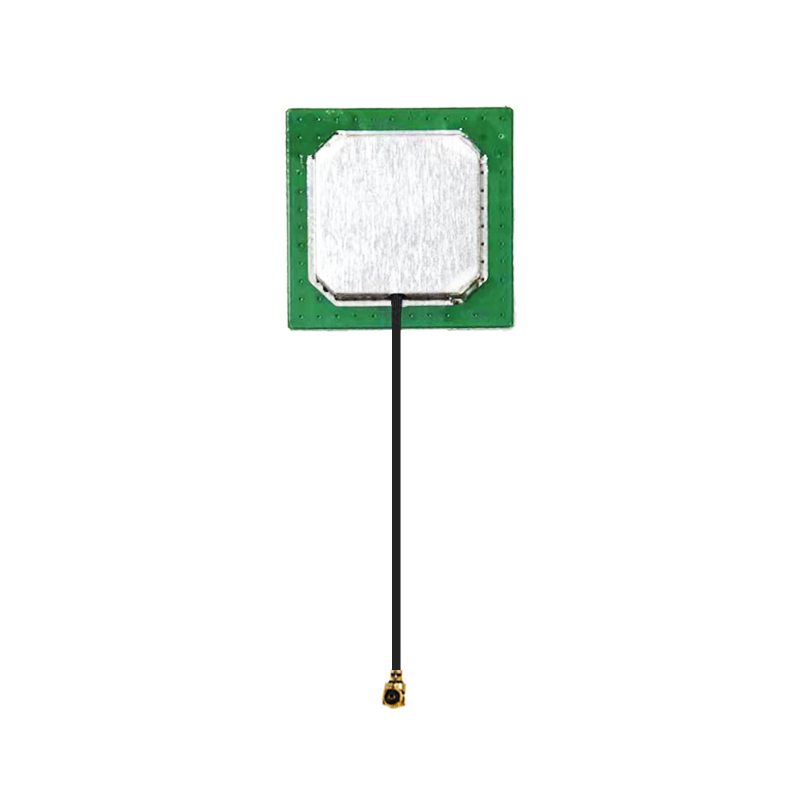

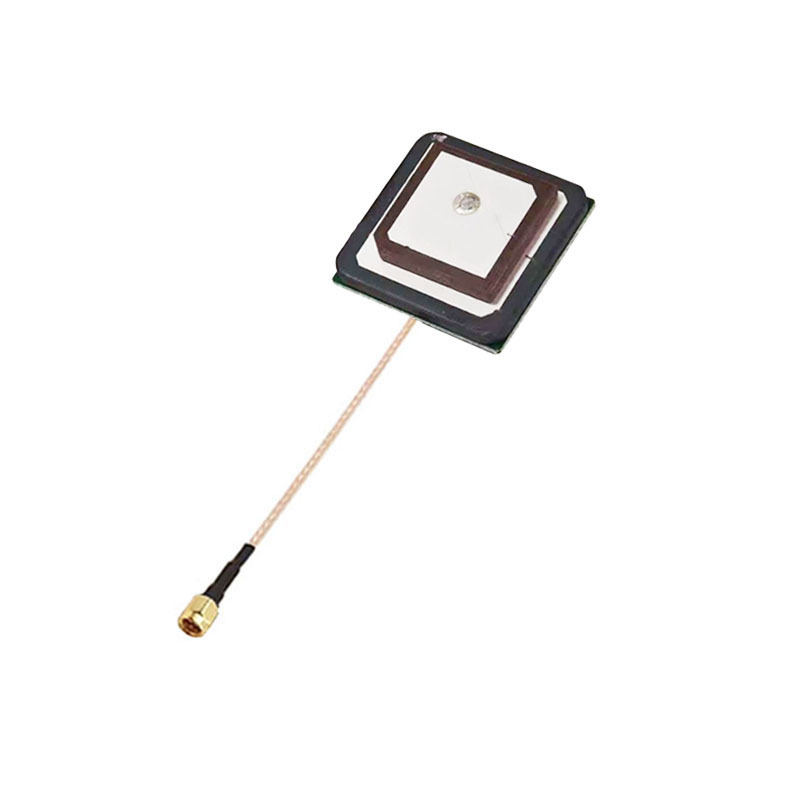

This product AK521 supports L1/L5 dual frequency bands, using high-performance ceramic media and optimized radiation structure, providing excellent multi frequency satellite signal reception capability. Suitable for high-precision positioning, navigation, surveying and other professional fields, meeting the application needs of drones, intelligent driving, precision agriculture and other fields.
characteristic:1. Dual frequency positioning: supports GPS L1/L5+Beidou B1/B2, and is resistant to multipath interference
2. High precision: Ceramic medium design, stable and reliable signal
3. Compact design: ultra small size, easy to carry and install
4. Low power consumption: 3-5V power supply, power consumption<25mA
丨 Specification parameters
|
Specification parameters
|
|
Antenna
|
1
|
Antenna model
|
GNSS Antenna
|
|
2
|
Ceramics Size (mm)
|
25*25*2/18*18*2
|
|
3
|
Nominal frequency
|
GPS: L1：1575.42±1.023MHz，
L5：1176.45±1.023MHz
GLONASS: L1:1602+0.5625*K(MHz)
BDS: B1 1561±1.023MHz
GALILEO: E1: 1575
|
|
5
|
Gain (Peak gain on70*70mm Ground Plane facing Zenith.)
|
L1:3±1dBi L5:2±1dBi
|
|
6
|
V.S.W.R
|
≤2
|
|
7
|
-10dB Bandwidth MHz min
|
10min
|
|
8
|
impedance
|
50Ω
|
|
9
|
Polarization
|
RHCP
|
|
10
|
Frequency Temperature Coefficient
|
20ppm/deg.℃ max
|
|
LNA
|
|
|
|
|
1
|
Gain
|
L1:20±2dBi L5:18±2dBi
|
|
2
|
Noise coefficient
|
<1dB
|
|
3
|
Input V.S.W.R
|
<2.0
|
|
4
|
Output V.S.W.R
|
<2.0
|
|
5
|
Voltage
|
DC 3~5V
|
|
6
|
Current
|
15~25mA
|
|
7
|
Impedance
|
50Ω
|
|
Physical
parameters
|
1
|

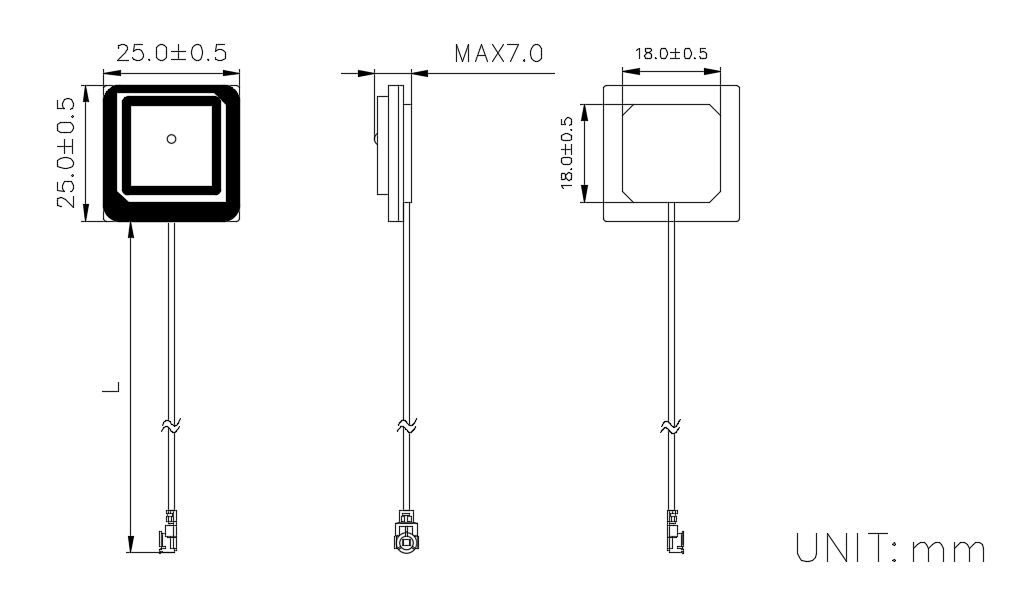

Size
|
25*7mm
|
|
2
|
weight
|
10.8g
|
|
3
|
Line type
|
RG1.13(Customizable)
|
|
4
|
Line Length
|
L=65mm(Customizable)
|
|
5
|
Linear interface
|
IPEX(Customizable)
|
|
6
|
Antenna
|
ceramics
|
|
7
|
pcb
|
FR4
|
|
Environmental
characteristics
|
1
|
Working Temp
|
-40℃～+85℃, 10%～95% RH
|
|
2
|
Storage Temp
|
-55℃～+100℃, 10%～95% RH
|
|
3
|
Vibration
|
Sine sweep @1.5mmAM
10~55Hz each Axis
|
Packaging and Delivery：
DALANG AK521 High-Precision GNSS Antenna
The DALANG AK521 is an ultra-compact GNSS antenna specifically designed for drone and agricultural applications, supporting multi-system dual-frequency navigation including GPS L1/L5, BDS B1, GLONASS L1, and Galileo E1. Featuring a 25×7mm stacked ceramic design with high-gain low-noise amplifier, it delivers stable and reliable high-precision positioning performance in complex environments, making it an ideal antenna solution for space-constrained devices.
Dual-Frequency High-Precision Positioning Performance
Supporting L1/L5 dual-frequency bands with 20±2dB gain and <1dB noise figure, the antenna significantly improves signal reception quality and anti-multipath interference capability, providing continuous and stable centimeter-level positioning data for drone navigation and agricultural operations.
Ultra-Compact Design for Easy Integration
With an ultra-small size of just 25×7mm and lightweight design of 10.8g, it supports IPEX interfaces and customizable cables, allowing flexible integration into various compact devices, perfectly suited for drones, portable surveying equipment, and agricultural IoT terminals.
Industrial-Grade Environmental Adaptability
Featuring an operating temperature range of -40℃ to +85℃ and excellent vibration resistance, coupled with RoHS environmental certification, it ensures long-term stable operation in harsh outdoor environments.
Product Advantages
-
Dual-Frequency Multi-System Compatibility
Comprehensive support for four major satellite systems and L1/L5 dual bands, significantly improving positioning accuracy and reliability
-
High Gain and Low Noise Design
Optimized RF front-end and stacked ceramic technology ensure excellent signal quality even in weak signal environments
-
Ultra-Compact Structure
Extremely compact size and lightweight design provide high-performance antenna solutions for space-sensitive devices
-
Industrial-Grade Durability
Wide temperature design and strong vibration resistance adapt to demanding working environments of mobile platforms like drones and agricultural machinery
Looking for a high-performance GNSS antenna for your drone or agricultural system? DALANG AK521 delivers professional-grade positioning performance with ultra-compact design!
