丨 Product Introduction

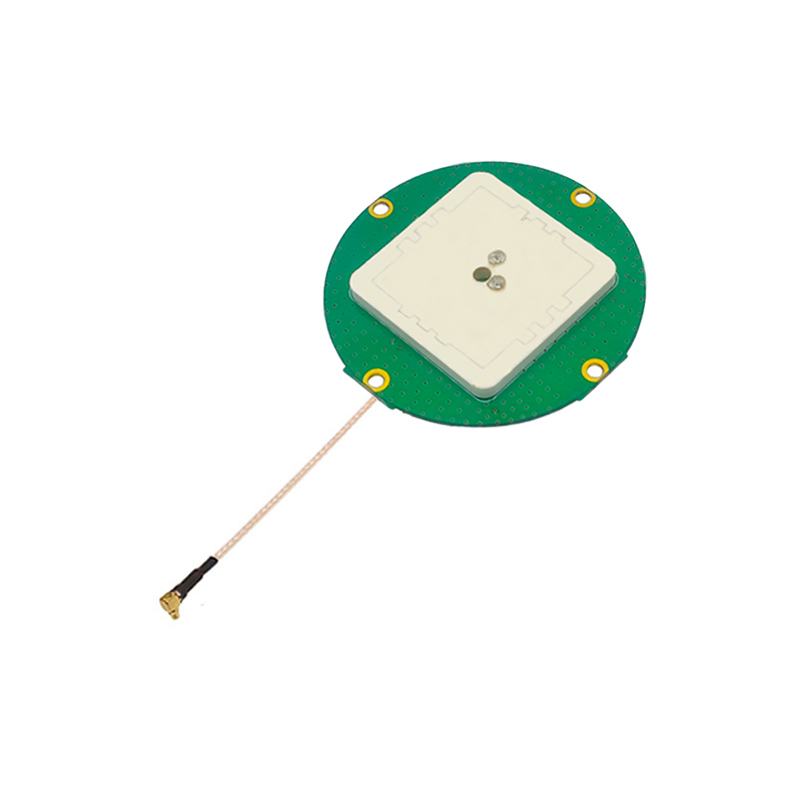

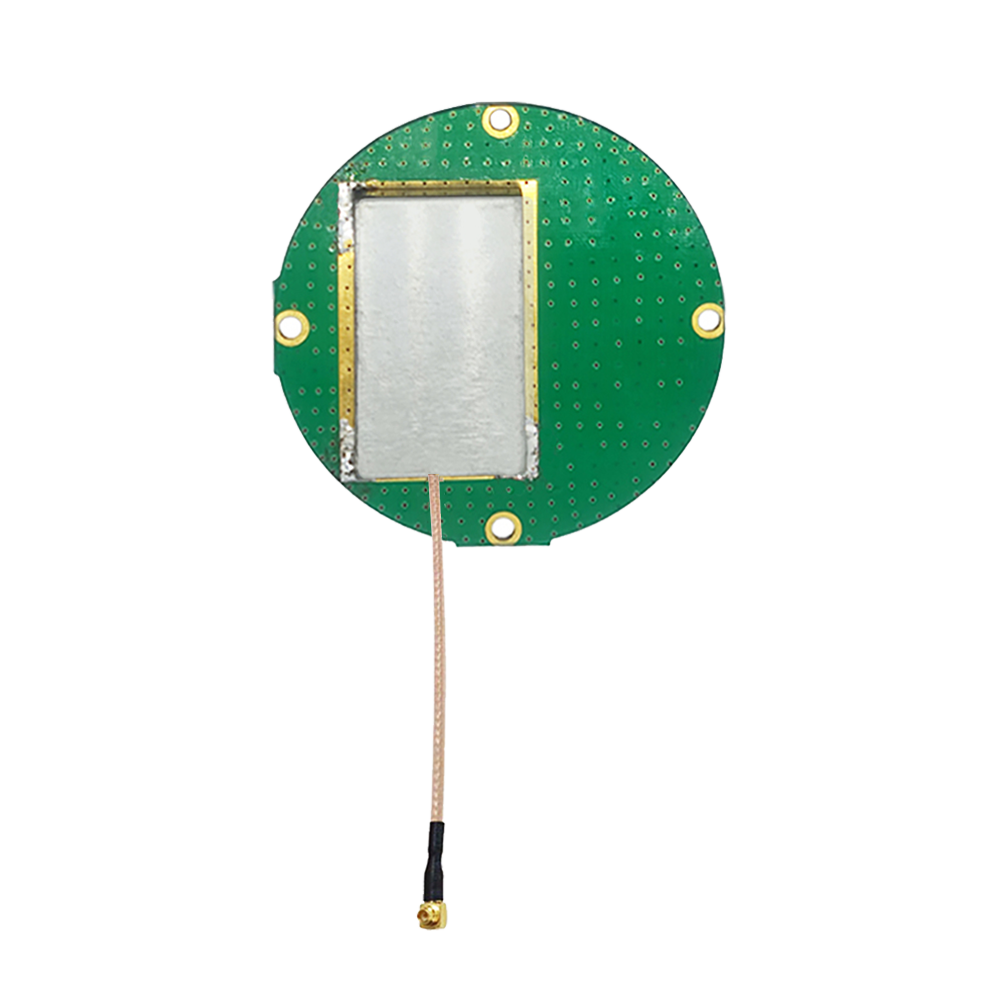

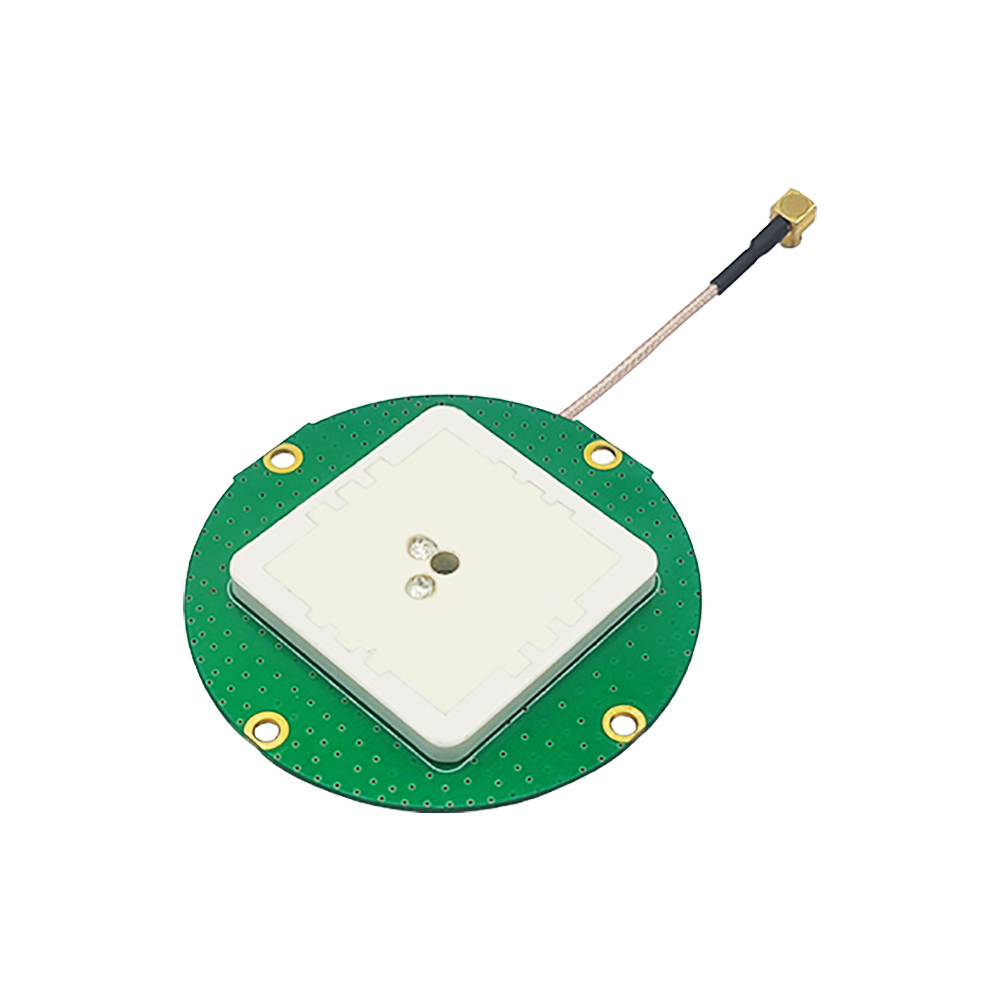

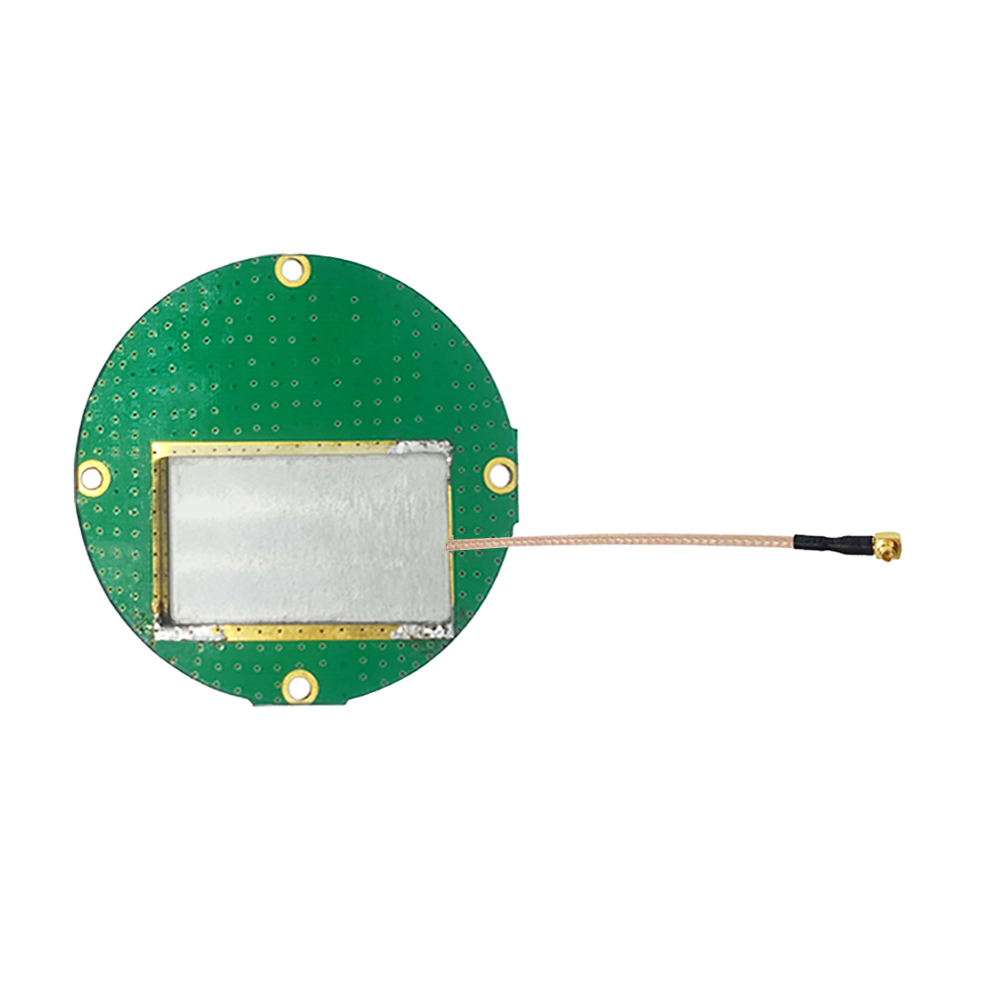

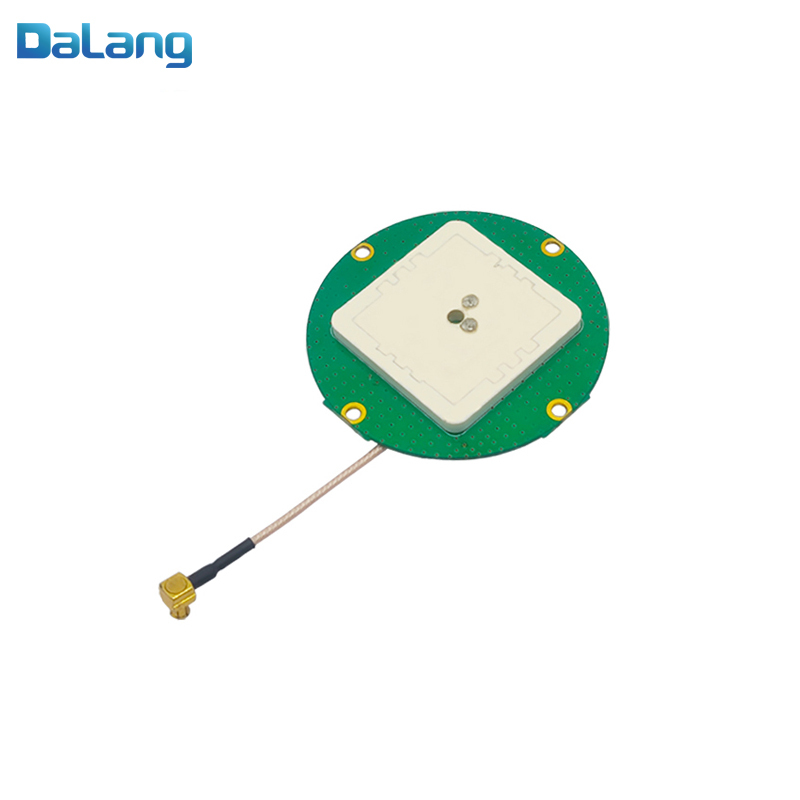

AK411 It features high gain, low SWR, low noise figure for sub-meter precision positioning, plus compact size, easy integration, good stability and weather resistance. Adopting right-handed circular polarization for strong anti-interference, it is widely used in vehicle positioning, intelligent transportation, mechanical control, deformation monitoring, GIS and surveying.
Product Features:
1. Signal Processing: L1 band support, sub-meter accuracy, high weak-signal sensitivity, built-in LNA noise reduction for precise positioning.
2. Compatibility: Multi-satellite system (GPS, BeiDou, etc.) L1 signal support, stable reception in complex scenarios, improved positioning reliability.
3. Physical Characteristics: Compact & easy-integrated, stable ceramic build, temp/water/dust-proof, anti-electromagnetic interference, reliable in harsh environments.
4. Flexible Adaptation: Customizable structural parameters, stable performance, long lifespan, low long-term cost.
5. High Frequency Stability: Stable L1 signal reception amid temp/humidity changes, anti-frequency drift, sustained sub-meter positioning accuracy.
丨 Specification parameters
|
Specification parameters
|
|
Antenna
|
1
|
Antenna model
|
Ceramic Antenna
|
|
2
|
Ceramic size
|
40*40*4
|
|
3
|
Usage frequency
|
GPS L1：1575.42±1.023MHz，
GLONASS L1:1602+0.5625*K(MHz)
BDS: B1 1561±1.023MHz
GALILEO E1: 1575
|
|
5
|
Gain (peak gain of 70 * 70mm ground plane facing zenith)
|
4±2dBic
|
|
6
|
V.S.W.R
|
≤2.0
|
|
7
|
-10dB Bandwidth MHz min
|
10 min
|
|
8
|
impedance
|
50Ω
|
|
9
|
Polarization mode
|
RHCP
|
|
10
|
Frequency Temperature Coefficient
|
20ppm/deg.℃ max
|
|
LAN
|
1
|
parameter
|
specifications
|
|
2
|
gain
|
34±2dB
|
|
3
|
figure
|
<1.5dB
|
|
4
|
VSWR
|
<2.0
|
|
5
|
output vswr
|
<2.0
|
|
6
|
voltage
|
DC 3~5V
|
|
7
|
electric current
|
<8mA
|
|
8
|
impedance
|
50Ω
|
|

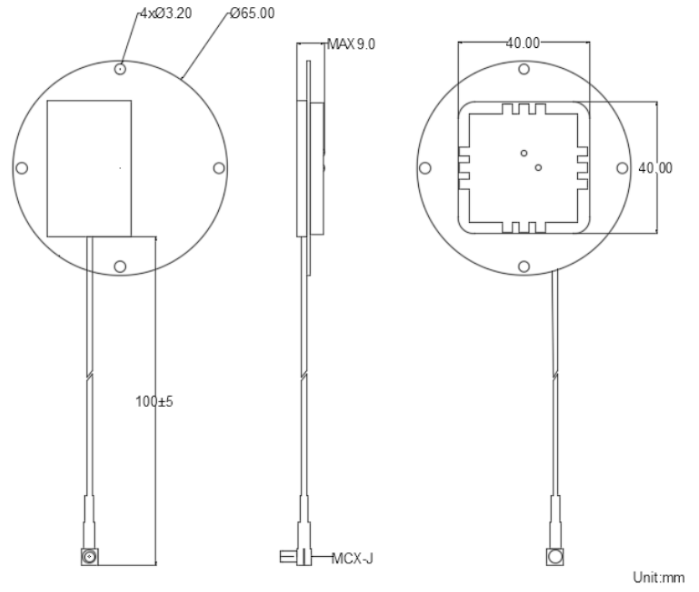

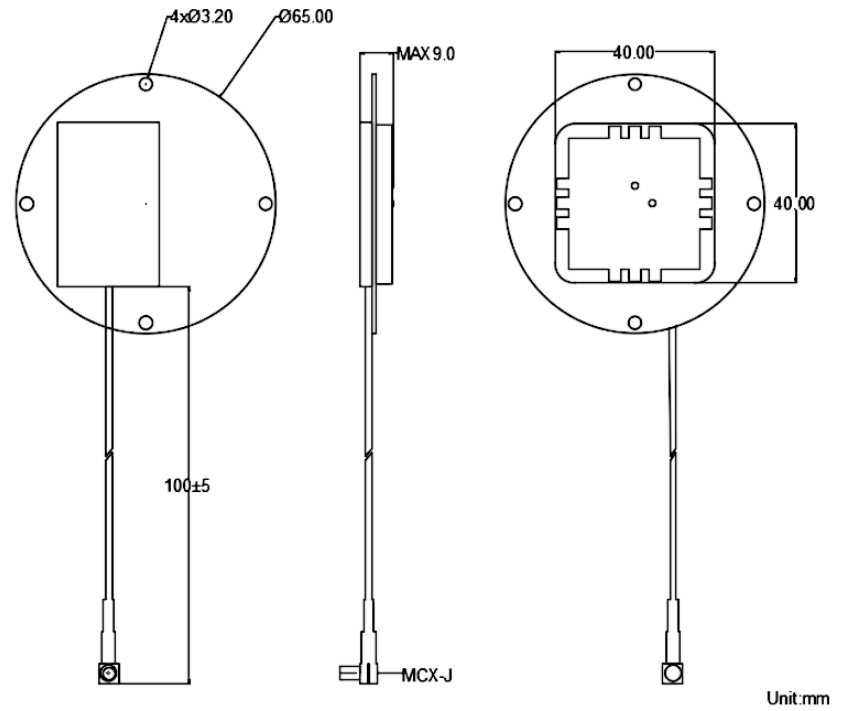

Physical
parameters
|
1
|
Product size
|
65*9mm
|
|
2
|
Product weight
|
16g
|
|
3
|
Line length
|
L=10cm (customizable)
|
|
4
|

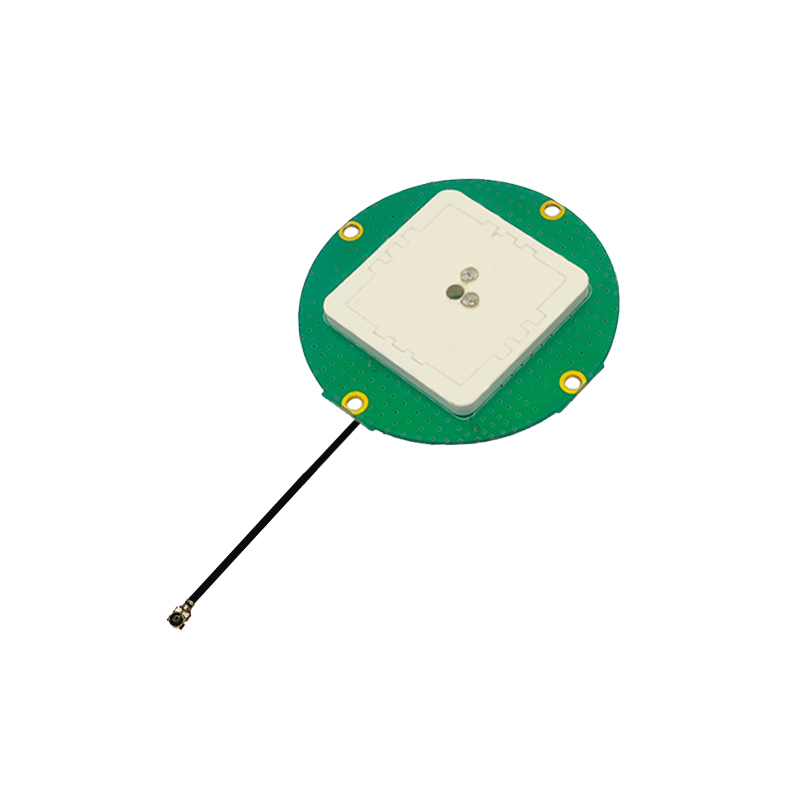

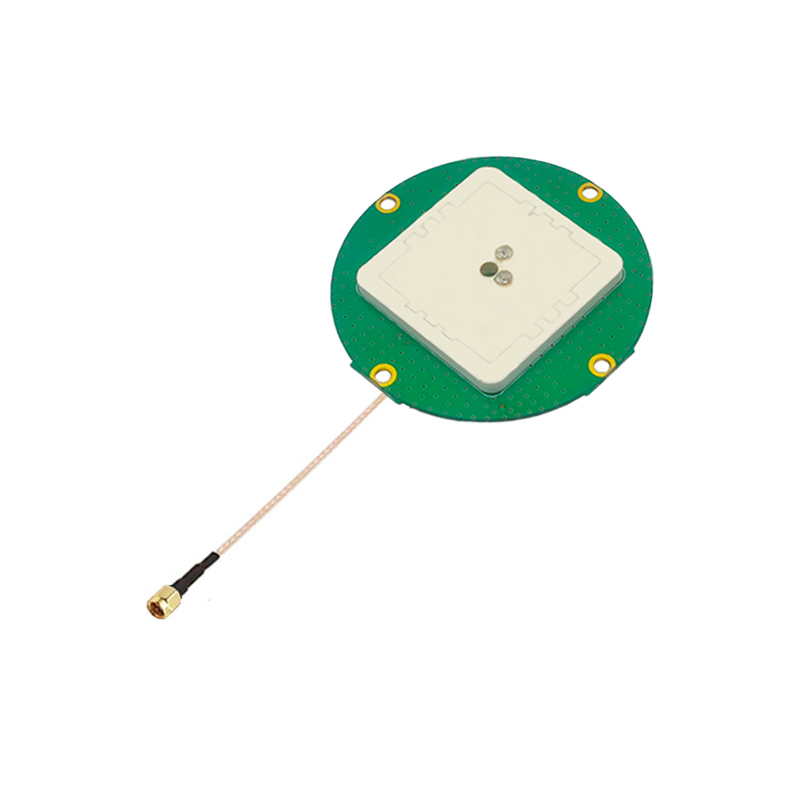

Linear interface
|
RG178 MCX elbow
|
|
Component
|
1
|
Part name
|
SPEC
|
|
2
|
antenna
|
ceramics
|
|
3
|
pcb
|
FR4
|
|
Environment
|
1
|
work environment
|
-40℃～+85℃, 10%～95% RH
|
|
2
|
Environment
|
-55℃～+100℃, 10%～95% RH
|
|
3
|
vibrate
|
Sine scan @ 1.5mm AM, 10~55Hz per axis
|
