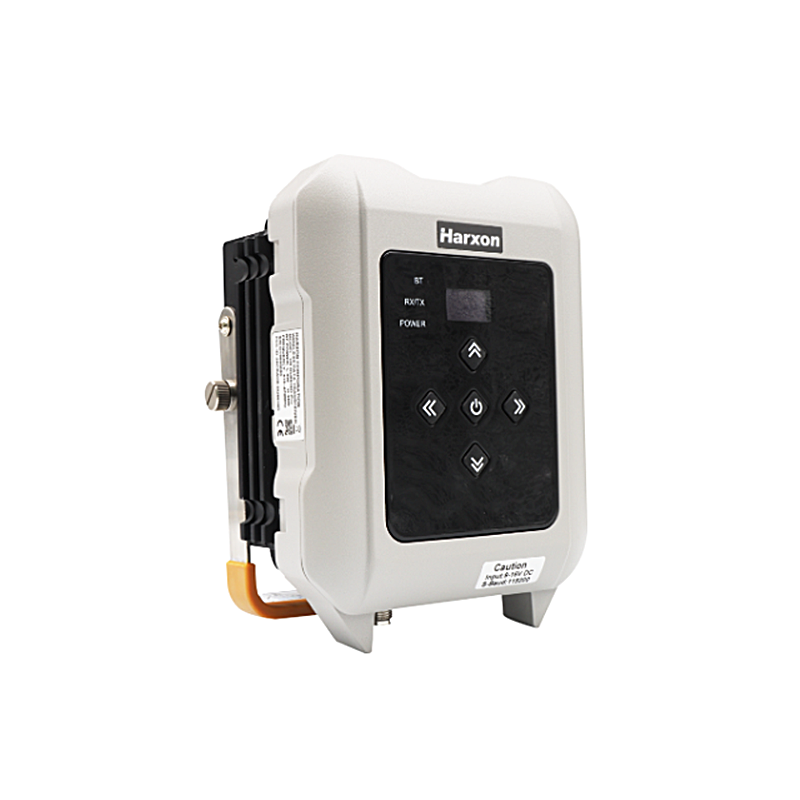

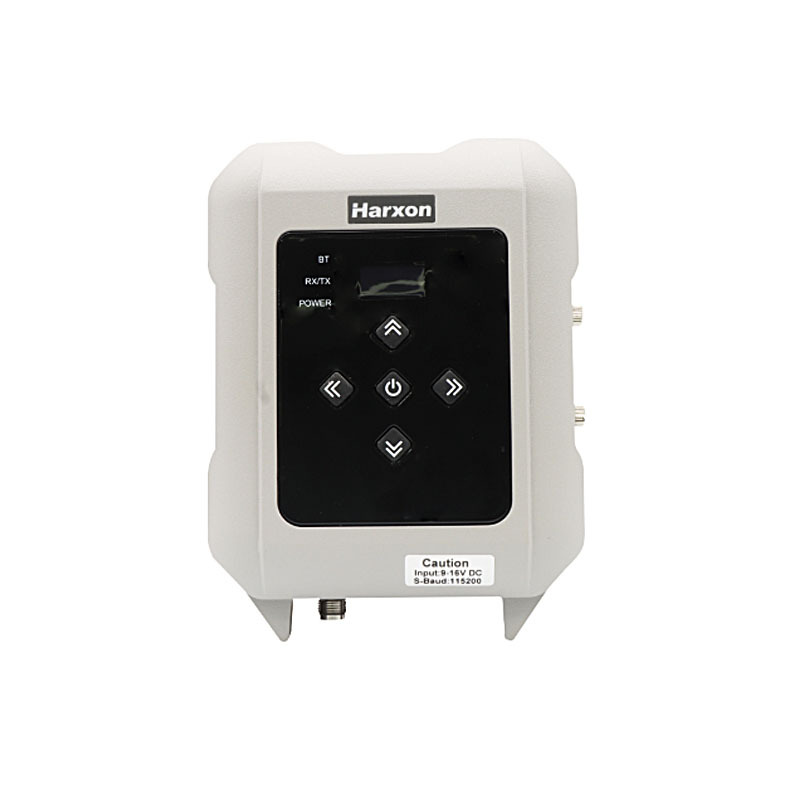

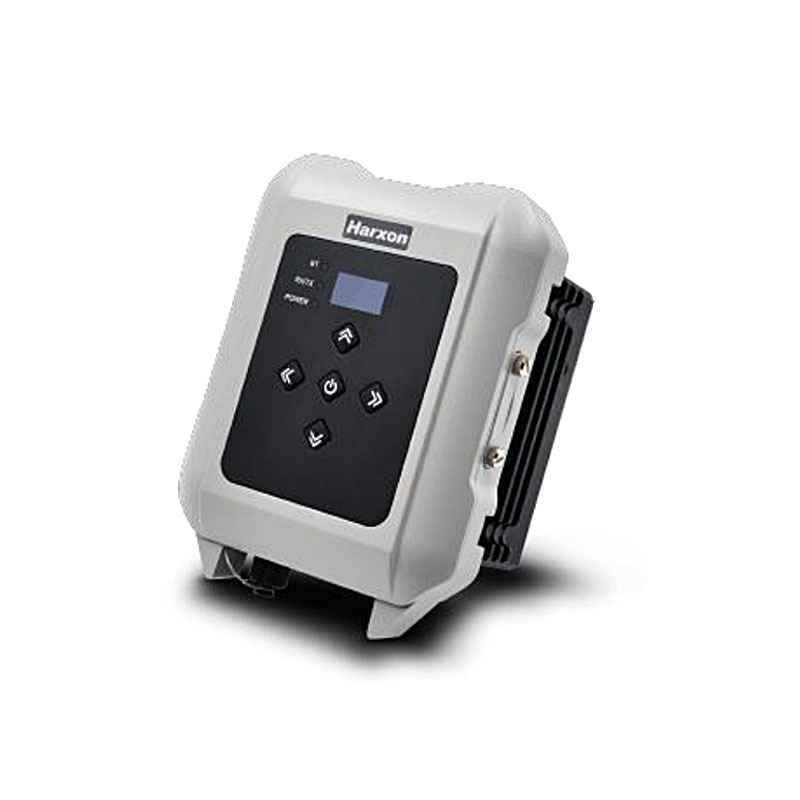

HX-DU8616D High-power transmitting radio station, surveying and mapping, precision agriculture, automatic driving, Trimble and Satel protocols

Name: HX-DU8616D High-power transmitting radio station, surveying and mapping, precision agriculture, automatic driving, Trimble and Satel protoco
Brand: Dalang Communication
SKU: HX-DU8616D
Price: 552 USD
Availability: InStock

0.0 (0)

0 Sold

$552.00

Tax excluded

Model：HX-DU8616D
Frequency range: 410-470MHz
Working mode: Integrated transmission and reception, single shot, radio relay
Signal interval: 25KHz, 12.5KHZ
Modulation method: GMSK/4FSK
Number of channels: Supports 32 editable channels
Working voltage: 9-16V
Size: φ 175 * 135 * 86.5
Weight: 2kg
Antenna interface: TNC, female head
Antenna interface impedance: 50ohm
Data interface: LEMO 5pin

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

丨 Product Introduction

1.Serial baud rate intelligent recognition function

2.Support for multiple working modes

3.Support for OLED display to configure radio operations

4.Self-developed and efficient ETALK communication protocol

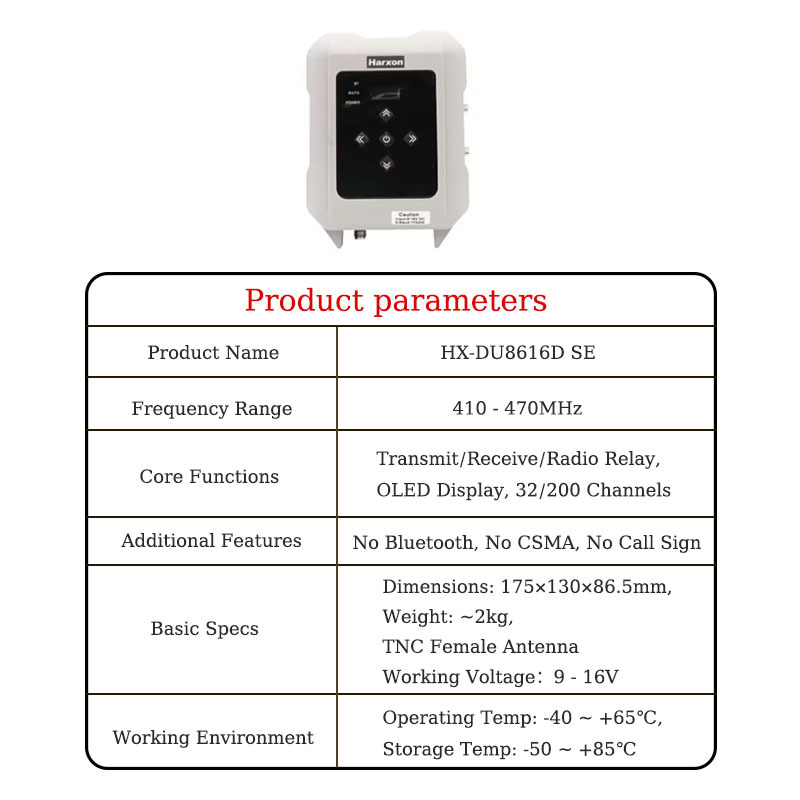

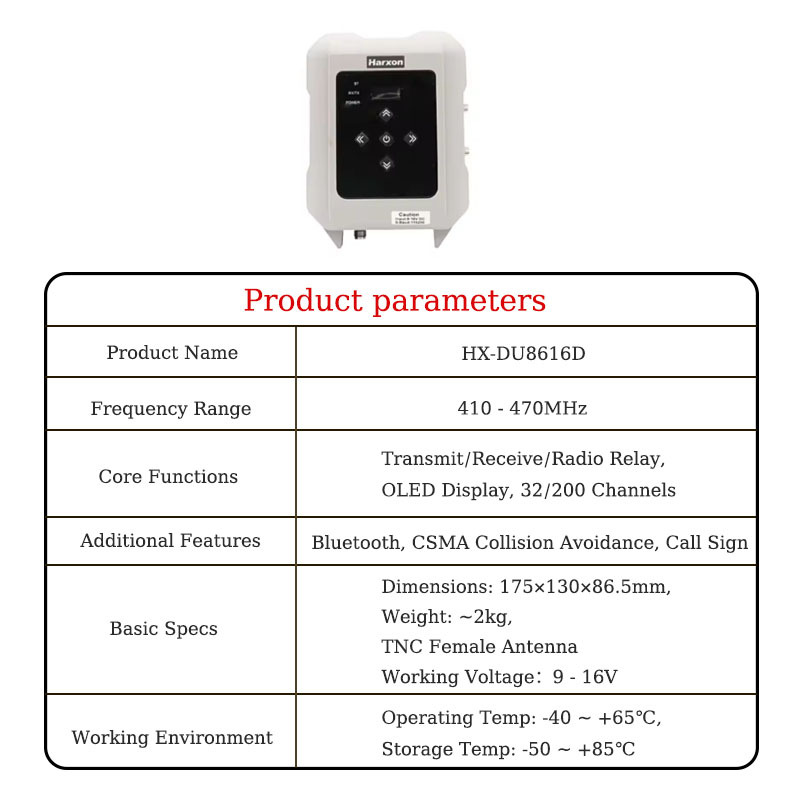

丨 Specification parameters

Overall Performance Specifications

Parameter	Value
Frequency Range	410 - 470MHz
Working Modes	Transceiver integrated, single - transmit, radio relay
Channel Spacing	25KHz, 12.5KHz
Modulation Mode	GMSK/4FSK
Number of Channels	Supports 32 editable channels
Working Voltage	9 - 16V
Power Consumption (Typical Value)	High - power transmission (28W): 78W@12V DC Medium - power transmission (22W): 60W@12V DC Low - power transmission (5W): 35W@12V DC Standby: 2W@12V DC
Frequency Stability	<±1ppm

Transmitter Performance Specifications

Parameter	Value
RF Output Power (410 - 470MHz)	High power (28W): 44.5±0.5dBm@DC 12V Medium power (22W): 43.4±0.5dBm@DC 12V Low power (5W): 37±1dBm@DC12V
RF Power Stability	±1dB
Adjacent Channel Power	>50dB

Receiver Performance Specifications

Parameter	Value
Sensitivity	Better than - 114dBm@BER 10⁻³, 9600bps
Co - channel Rejection	> - 12dB

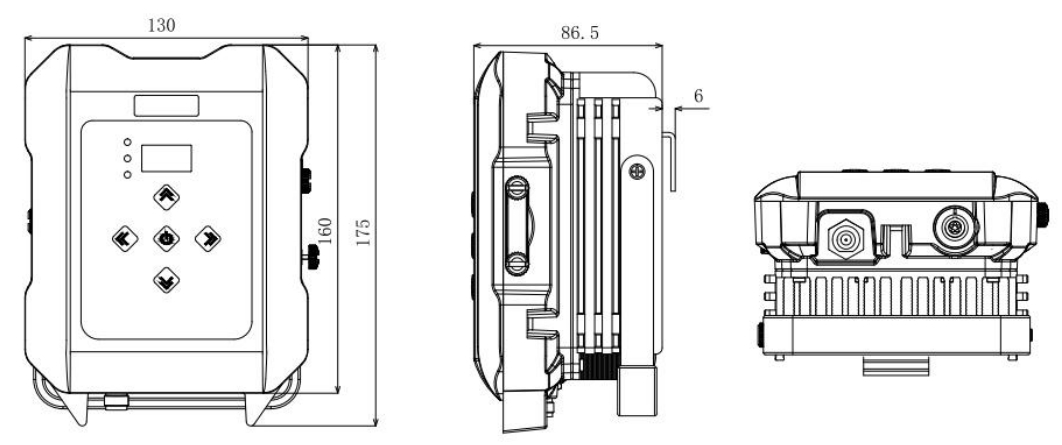

Structural Characteristics

Parameter	Value
Dimensions	175(length)×130(width)×86.5(height)mm
Weight	Approximately 2kg
Antenna Interface	TNC, female
Antenna Interface Impedance	50ohm

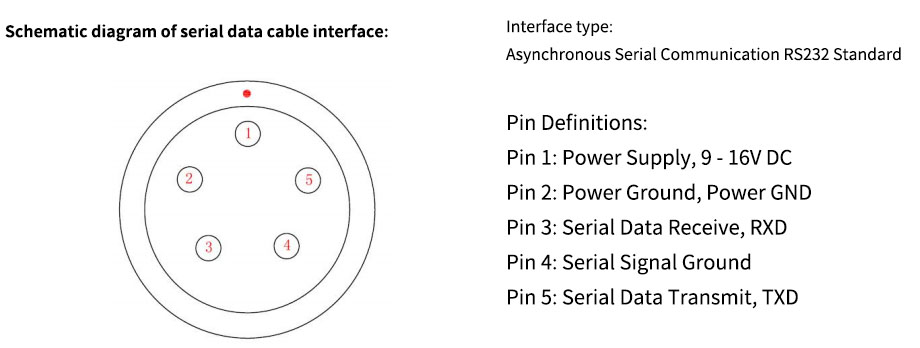

Data Interface	LEMO 5pin

Modulator and Demodulator

Parameter	Value
Air Rate	4800bps/9600bps/19200bps
Serial Port Rate	9600, 19200, 38400, 57600, 115200bps

Working Environment

Parameter	Value
Working Temperature	- 40 - + 65°C
Storage Temperature	- 50 - + 85°C

丨 product mix

Optimized for Precision Users and Field Professionals
The Huaxin HX-DU8616D radio station serves users needing robust communication for GNSS RTK receiver systems. Perfect for precision agriculture operators, surveyors, and autonomous vehicle developers, it supports seamless integration with equipment using Trimble and Satel protocols. This device addresses demands for reliable data links in outdoor environments where accuracy and connectivity are essential. Whether you are looking to buy GNSS receiver accessories or upgrade your communication setup, this radio station delivers consistency needed for advanced positioning tasks.

Advanced Technical Features for Reliable Transmission
Designed to operate between 410 and 470 MHz, the HX-DU8616D provides up to 28W of radio frequency power, enabling extensive communication distances without signal degradation. Featuring a modular design with an OLED display, it offers configurable settings across 32 channels, supporting both GMSK and 4FSK modulation. It incorporates the proprietary ETALK communication protocol developed to maximize data transfer efficiency and stability. This device operates reliably in harsh temperature ranges from -40°C to +65°C, ensuring performance in challenging field conditions that demand a durable GNSS RTK receiver link.

Broad Industry Applications Enhancing Workflow Efficiency
This radio station is well-suited for demanding survey, mapping, and precision farming operations, where uninterrupted data transmission is critical. It reliably supports autonomous driving systems and surveying equipment, especially GNSS RTK receiver configurations that depend on crisp, interference-free signals. By supporting Trimble and Satel protocols, the HX-DU8616D integrates easily into existing workflows, ensuring data integrity and efficient communication across remote work sites. It is also effective as a relay in complex radio environments, delivering continuous connectivity for mapping and precision agriculture innovations.

Use Scenarios

Long-Range Communication in Precision Agriculture
In precision agriculture environments, where large fields require extensive monitoring, the HX-DU8616D acts as a crucial communication hub connecting GNSS RTK receiver units across broad terrain. The radio station’s powerful 28W output and multi-channel support enable stable, interference-resistant data links vital for autonomous machinery navigation and crop management. By integrating with Trimble and Satel-based GNSS equipment used by farm managers and agronomists, it facilitates real-time corrections and decision-making processes critical to improving yield and efficiency under varying weather and terrain conditions.

Reliable Radio Link for Surveying and Mapping Projects
Surveyors and geomatics professionals rely on dependable data transmission in remote or obstructed locations to maintain accuracy in high-precision mapping. The HX-DU8616D radio station supports this need by providing stable connections for GNSS RTK receiver devices through its compliant frequency range and modulation modes. Its robust design withstands harsh conditions commonly encountered in fieldwork, preserving signal integrity during long-duration surveys. Integration with existing Trimble and Satel GNSS infrastructure ensures seamless workflow integration, allowing survey teams to maintain uninterrupted communications essential for project success and regulatory compliance.

FAQ

What makes the Huaxin HX-DU8616D suitable for harsh environments?
The HX-DU8616D maintains stable operation between -40°C and +65°C and features durable construction for field use. Its wide frequency range and strong 28W RF power ensure dependable signal quality in challenging conditions, making it a reliable choice for users looking to buy GNSS receiver compatible devices for outdoors.

Can the HX-DU8616D be customized for specific GNSS setups?
Yes, the device supports 32 editable channels and multiple modulation modes (GMSK/4FSK), allowing tailored configuration to fit specific measurement and mapping needs. Its compatibility with Trimble and Satel protocols ensures smooth integration with various GNSS RTK receiver systems.

How is the HX-DU8616D installed and configured onsite?
The radio station includes an OLED display for easy configuration of working modes, channels, and communication parameters. Designed with field deployment in mind, it enables users to adjust settings quickly without specialized tools, supporting efficient system setup for precision agriculture or autonomous driving.

What are the key maintenance considerations for the HX-DU8616D?
Routine checks on connections, especially the TNC antenna interface and LEMO 5-pin data interface, help maintain performance. Given its robust design, minimal maintenance is required, but ensuring clean contacts and proper voltage supply prevents issues for reliable long-term use when investing in a GNSS RTK receiver system.
