丨 Product Introduction
1. High gain: Optimize antenna structure and adopt active technology to enhance signal transmission and reception, expand coverage range and strength.
2. Low profile: Single layer compact structure, small size, easy to install and integrate, suitable for space limited scenarios.
3. Good directionality: Excellent radiation characteristics in specific directions, concentrated energy transmission, and reduced signal loss and interference.
4. Easy to integrate: The structure is simple, the size is small, and it is easy to integrate with other system devices, which is conducive to building communication or radar systems.
丨 Specification parameters
|
Specification parameters
|
|
Antenna characteristics
|
1
|
Antenna model
|
GNSS antenna
|
|
2
|
Ceramic size
|
35*35*4
|
|
3
|
Usage frequency
|
GPS: L1：1575.42±1.023MHz
GLONASS: L1:1602+0.5625*K(MHz)
BDS: B1 1561±1.023MHz
GALILEO : E1: 1575
|
|
4
|
Gain (Peak gain of 70 * 70mm facing the zenith plane.)
|
6dBic
|
|
5
|
V.S.W.R
|
≤1.5
|
|
6
|
-10dB bandwidth MHz minimum
|
25 min
|
|
7
|
Impedance
|
50Ω
|
|
8
|
polarization
|
RHCP
|
|
9
|
tcf
|
20ppm/deg.℃ max
|
|
Low noise amplifier (LAN) performance indicators
|
1
|
parameter
|
specifications
|
|
2
|
gain
|
32±2dB
|
|
3
|
figure
|
<1.5dB
|
|
4
|
VSWR
|
<2.0
|
|
5
|
output vswr
|
<2.0
|
|
6
|
voltage
|
DC 3~5V
|
|
7
|
electric current
|
<20mA
|
|
8
|
impedance
|
50Ω
|
|

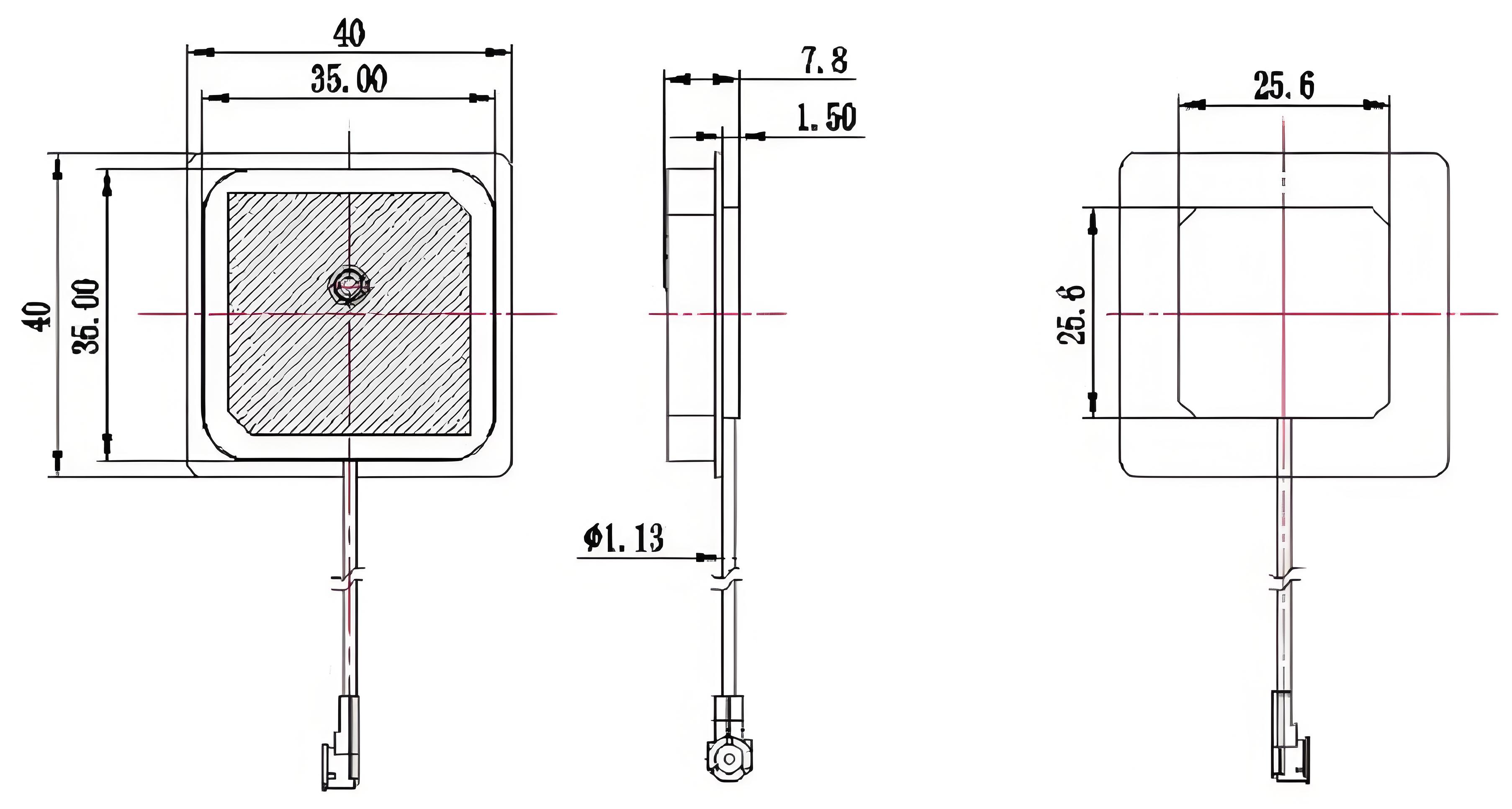

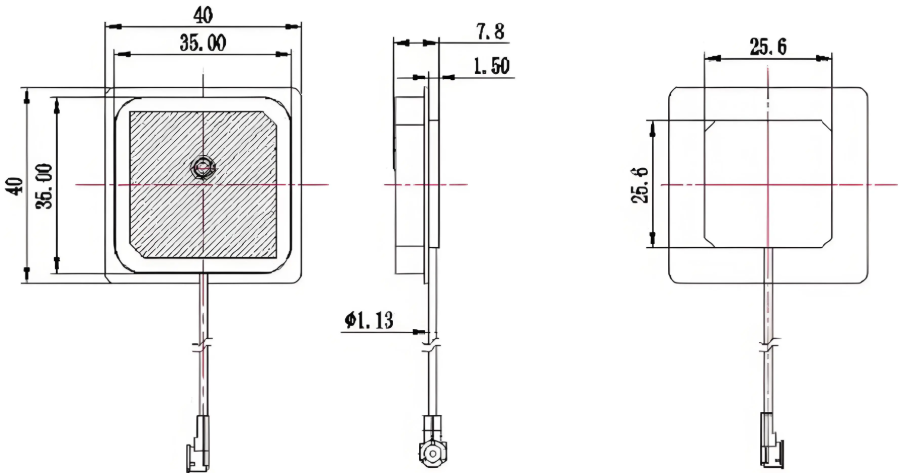

Physical parameters
|
1 |
Overall size
|
φ40*7.8mm
|
| 2 |
weight
|
15g
|
| 3 |
Line length
|
L=15cm / L=25cm(Customizable)
|
| 4 |
Line type
|
RG1.13 / RG178(Customizable)
|
| 5 |
interface
|
IPEX / SMA / MCX / MMCX(Customizable)
|
|
component
|
1
|
Part name
|
specifications
|
|
2
|
antenna
|
ceramics
|
|
3
|
pcb
|
FR4
|
|
Environmental
|
1
|
work environment
|
-40℃～+85℃, 10%～95% RH
|
|
2
|
storage environment
|
-55℃～+100℃, 10%～95% RH
|
|
3
|
vibrate
|
Sine scan @ 1.5mm AM 10~55Hz per axis
|
丨 product mix
Packaging and Delivery：

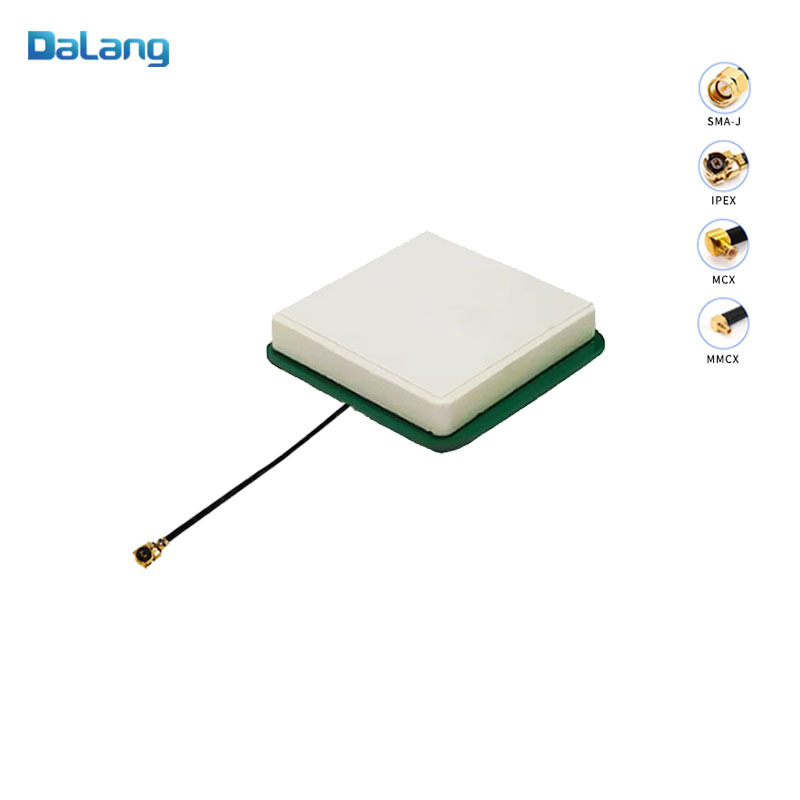

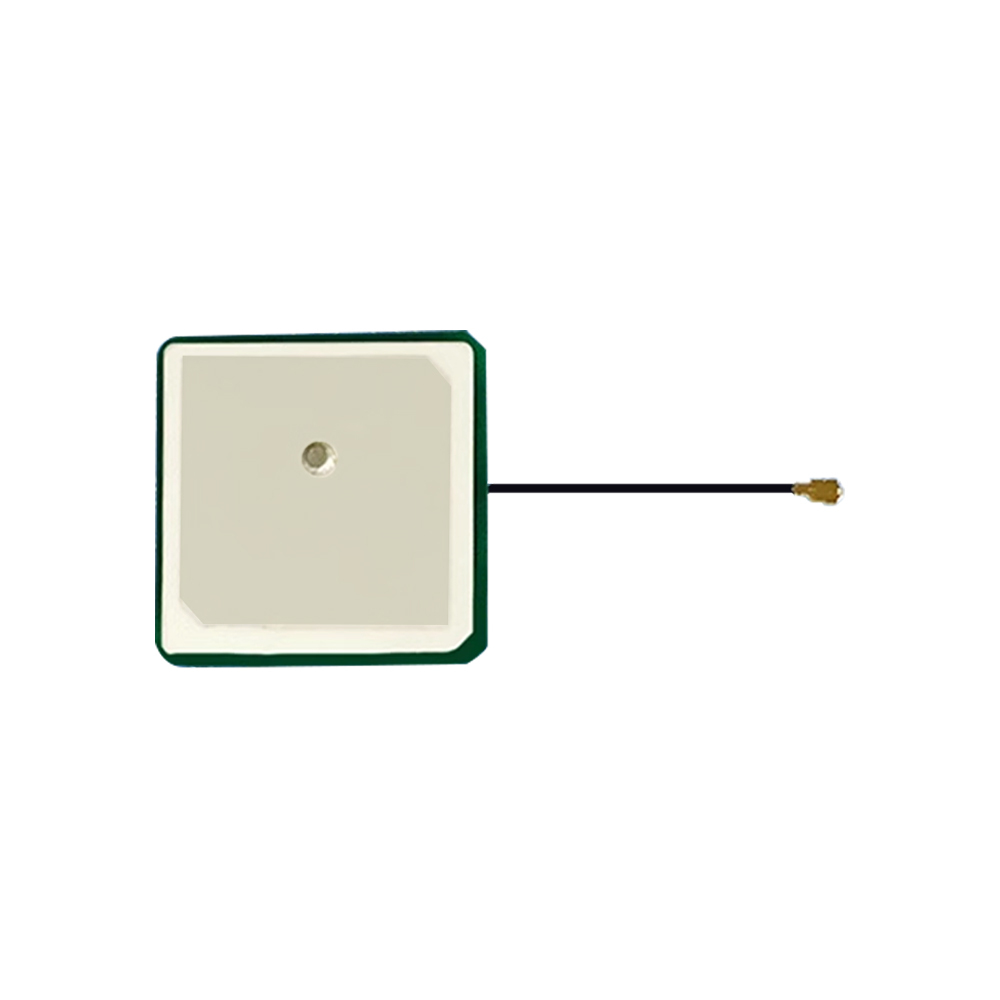

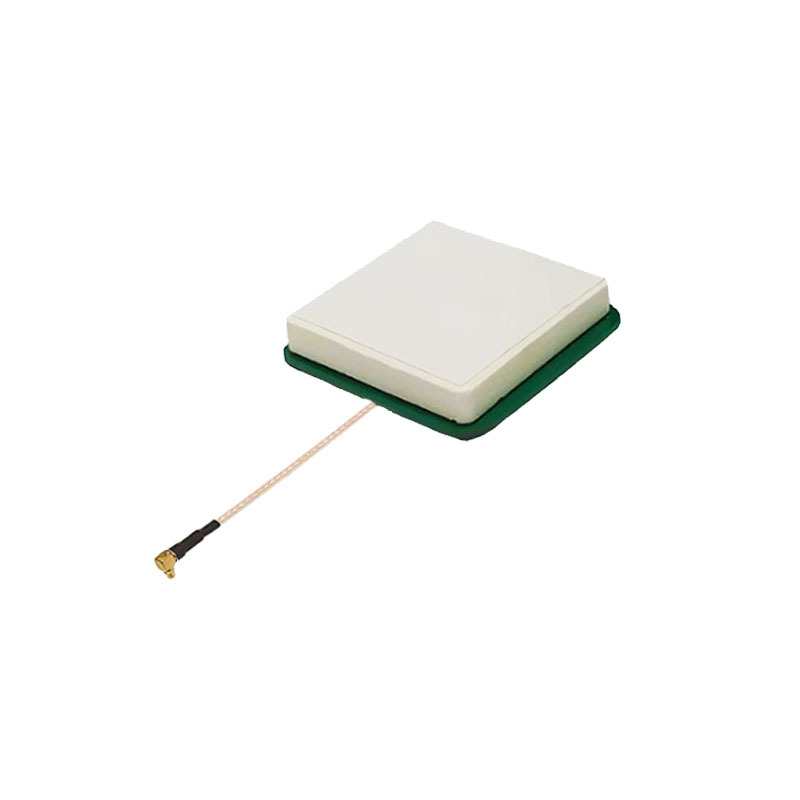

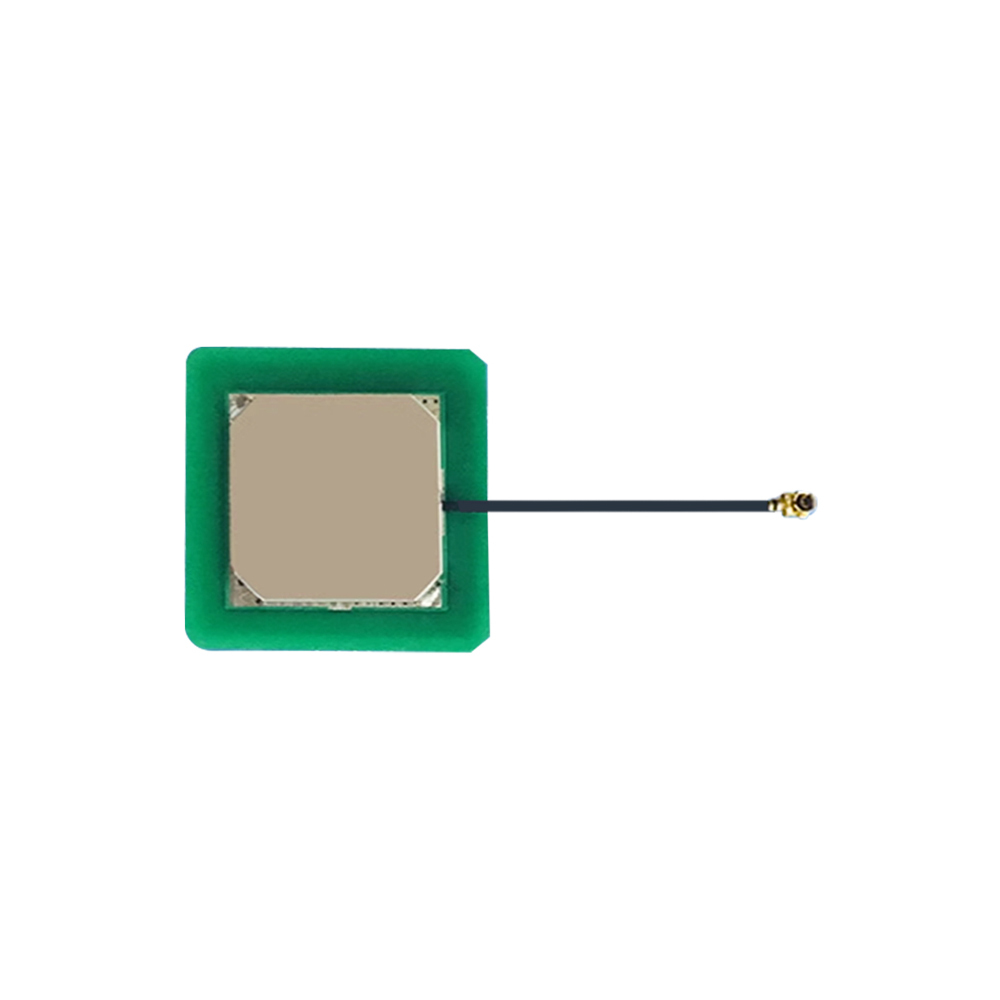

AK351 GNSS Antenna
Product Overview
The AK351 is a high-performance GNSS antenna designed with a 35mm ceramic base, capable of simultaneously receiving signals from mainstream satellite systems including GPS, GLONASS, BDS, and GALILEO. Featuring high gain and low noise characteristics, it is suitable for positioning applications in vehicle terminals, portable devices, drones, and other scenarios with space and performance requirements.
Product Features
-
Multi-system compatibility: Supports mainstream GNSS frequency bands, enhancing positioning reliability and continuity in complex environments
-
High-sensitivity design: Built-in low-noise amplifier with noise figure <1.5dB, improving weak signal reception capability
-
Excellent RF matching: Optimized impedance matching with VSWR ≤1.5, ensuring signal transmission efficiency and stability
-
Compact and lightweight: Small size, weighing only 15g, with short cable and IPEX interface for easy integration and installation
-
Wide temperature and vibration resistance: Operating temperature range of -40℃ to +85℃, suitable for complex environments such as vehicle-mounted and outdoor applications
Application Scenarios
-
Vehicle navigation and positioning terminals
-
Portable positioning devices
-
Drones and agricultural machinery
-
Intelligent transportation and surveying equipment
For stable satellite signal reception in compact spaces, the AK351 GNSS antenna is your ideal choice.
