丨 Product Introduction
1. High precision positioning: Meet the requirements of high-precision GNSS antenna positioning applications and provide accurate location information.
2. Single polarization antenna design: Adopting the 20204 single polarization antenna to enhance phase center stability and signal reception capability.
3. High gain and wideband: With high gain and wideband range, it improves signal reception quality and coverage.
4. Compliance with environmental standards: Compliant with RoHS requirements, with environmental performance standards, suitable for the global market.
丨 Specification parameters
|
Specification parameters
|
|
Antenna
characteristics
|
1
|
Antenna model
|
GNSS antenna
|
|
2
|
Antenna size
|
20*20*4mm
|
|
3
|
Usage frequency
|
GPS：L1:1575.42±1.023MHZ
GLONASS：L1:1602+0.5625MHz
BDS: B1:1561±1.023MHz
GALILEO：E1:1575
|
|
4
|
bandwidth
|
10 MHz min. @S11£-10 dB
|
|
5
|
In band standing wave
|
≤2.0
|
|
6
|
Antenna gain
|
2dBic
|
|
7
|
Polarization form
|
R.H.C.P.
|
|
8
|
Axis ratio
|
≤6.0 dB Typ.
|
|
LNA
performance index
|
1
|
gain
|
32±1.5dB
|
|
2
|
Noise coefficient
|
1.5dB typ.
|
|
3
|
output vswr
|
＜2.0 typ.
|
|
4
|
Voltage
|
DC 3.3-15V
|
|
5
|
electric current
|
<10mA
|
|
6
|
impedance
|
50Ω
|
|
Working
characteristics
|
1
|

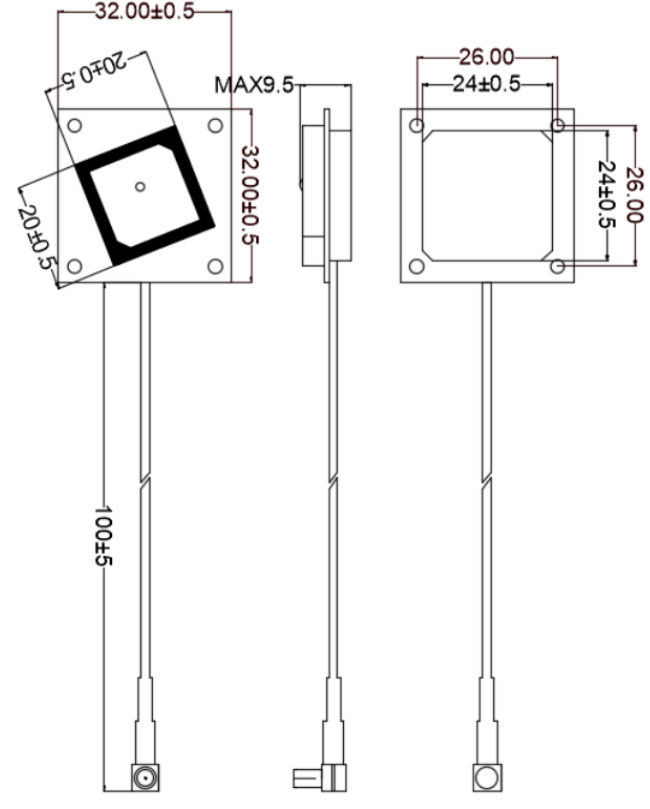

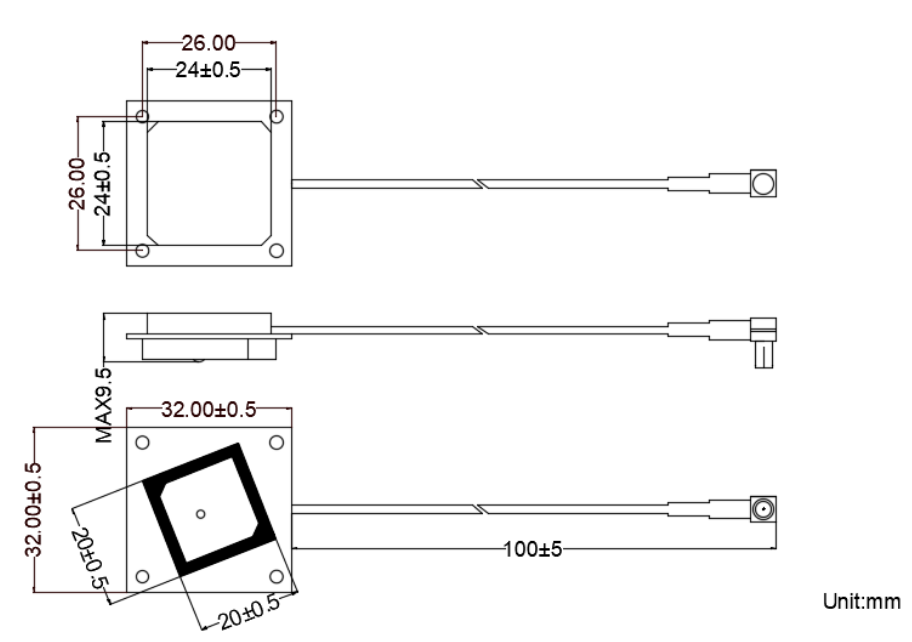

size
|
32*32*9.5*mm
|
|
2
|
Product weight
|
12.8g
|
|
3
|
Connector
|

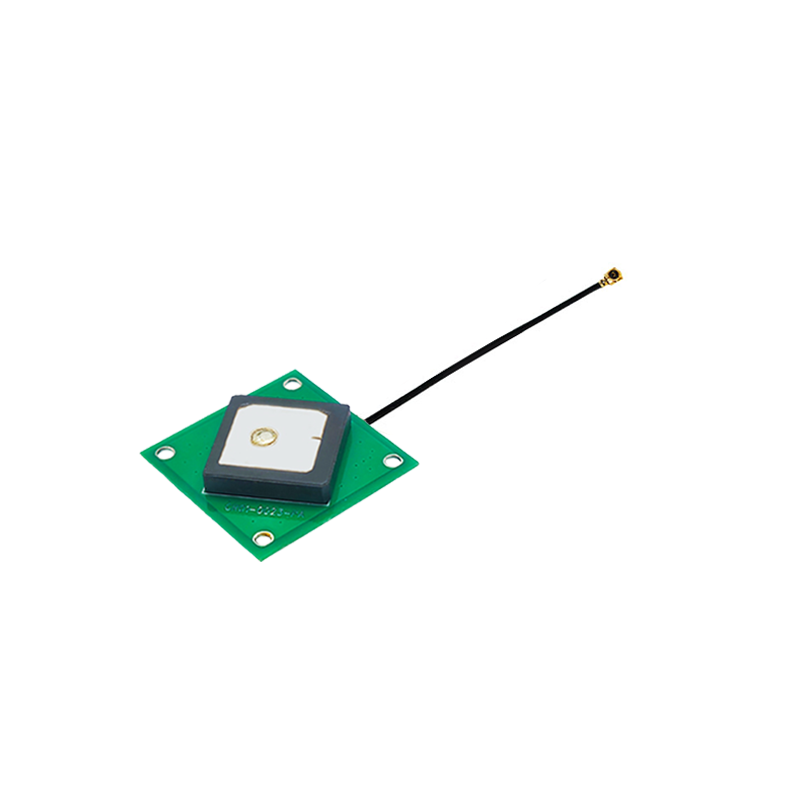

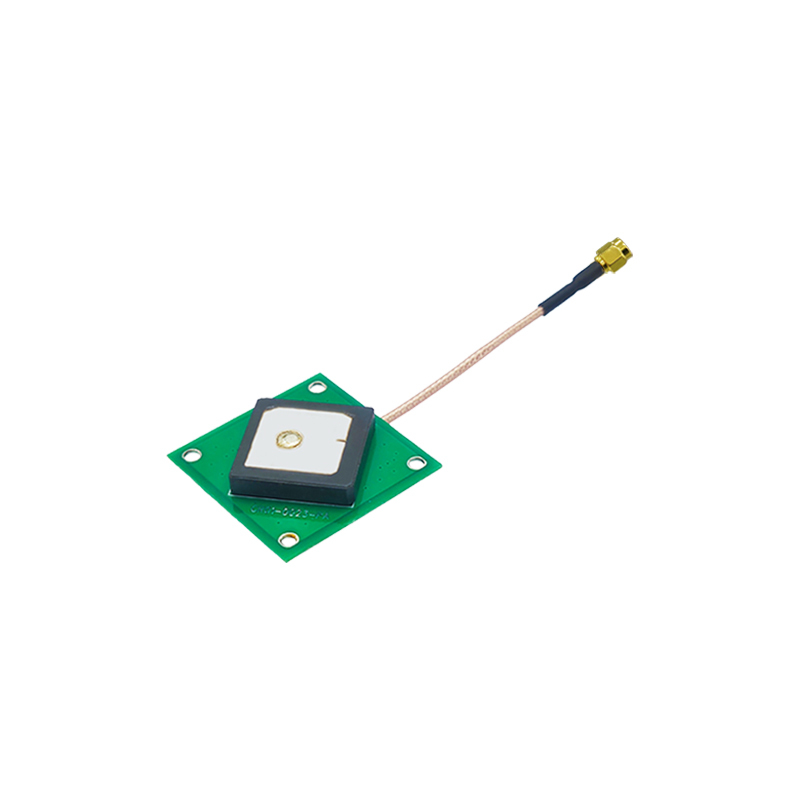

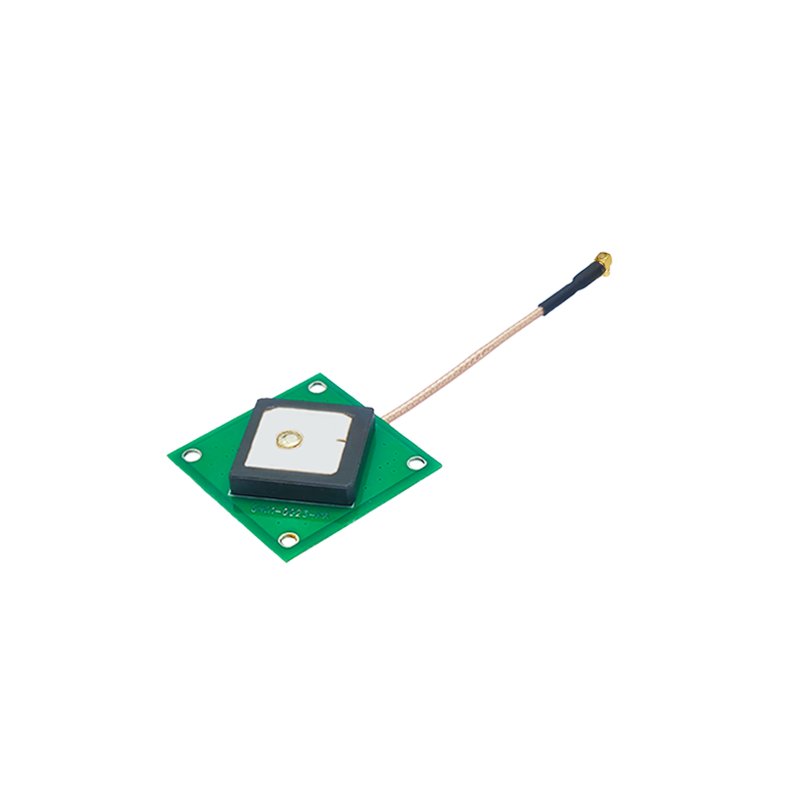

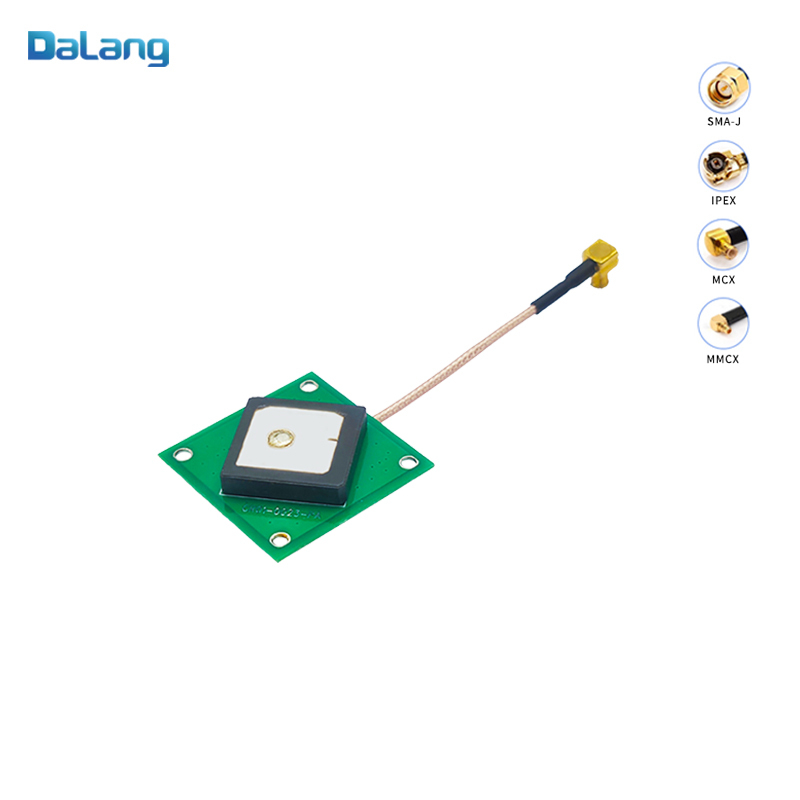

MCX elbow / MMCX / SMA / IPEX（customizable）
|
|
4
|
wire rod
|
RG178 / RG1.13（customizable）
|
|
5
|
Line length
|
15cm / 25cm（customizable）
|
|
6
|
PCB
|
FR4
|
|
7
|
work environment
|
-40℃~+85℃，10%~95%RH
|
|
8
|
Storage environment
|
-40℃~+85℃，10%95%RH
|
丨 product mix
Packaging and Delivery：
AK153 GPS Antenna
Product Overview

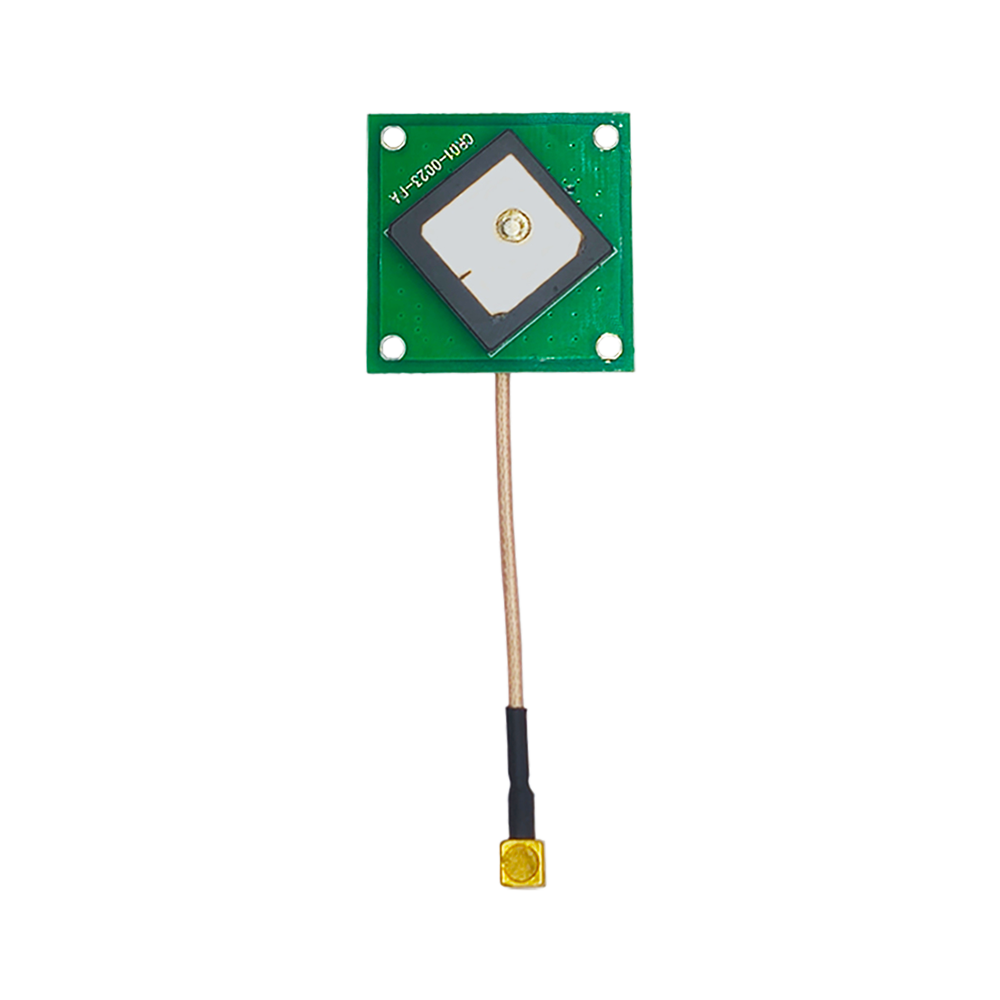

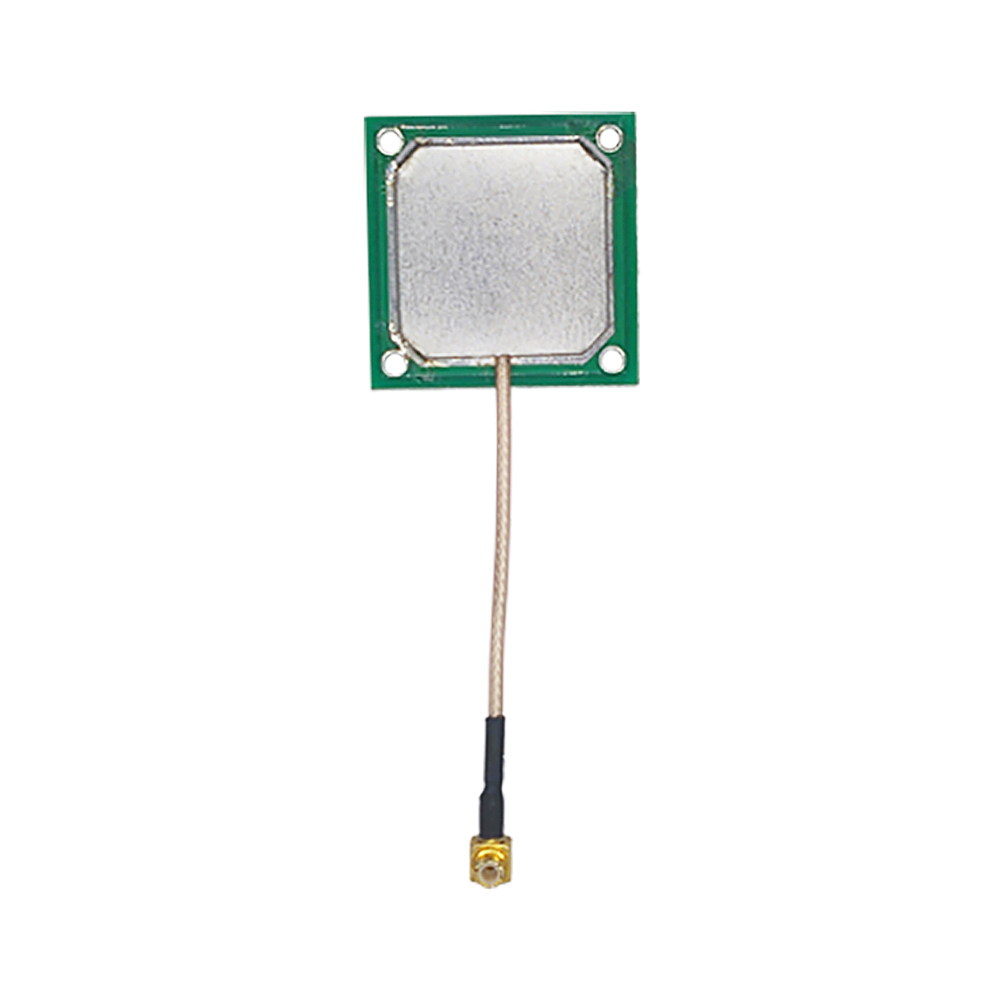

The AK153 is a high-performance single-polarization ceramic GPS antenna with a compact design, supporting multi-system positioning including GPS, BDS, GLONASS, and Galileo. This antenna is specifically designed for automotive navigation, portable devices, and security monitoring systems, providing stable and reliable position signal reception.
Compact Design for High-Precision Positioning
The AK153 utilizes a 20×20mm ceramic base with single-polarization design that enhances phase center stability, maintaining high-precision positioning performance even in complex environments.
Optimized for Automotive and Portable Devices
With its small size and light weight, paired with MCX elbow connector and RG178 cable, it is easy to integrate into various vehicle terminals and portable devices.
Reliable Operation in Harsh Environments
Operating temperature range from -40℃ to +85℃, suitable for harsh conditions such as high temperature and humidity, ensuring long-term stable performance in automotive and outdoor applications.
Product Advantages
-
Single-polarization ceramic design improves positioning accuracy
-
Multi-system compatibility for more reliable signal reception
-
Compact and lightweight for easy device integration
-
Wide temperature operation adaptable to various application scenarios
Need stable GPS signal reception for automotive or portable devices? Choose DALANG AK153 GPS antenna to provide reliable support for your positioning system.
