丨 Product IntroductionIt can simultaneously receive GPS and Beidou satellite signals, convert the radio signals emitted by satellites into electrical signals that can be processed by the receiver, and provide positioning, navigation, and timing functions for devices. It is widely used in fields such as car navigation, intelligent transportation, surveying, and handheld positioning devices.
characteristic:1. Dual system compatibility: Simultaneously receiving GPS and Beidou signals to enhance positioning reliability and accuracy.
2. High sensitivity: Built in LNA to enhance weak signal reception capability.
3. Strong anti-interference ability: Resist electromagnetic interference and ensure signal stability.
4. High gain: Enhance signal strength, accelerate positioning speed, and improve accuracy.
丨 Specification parameters
|
Specification parameters
|
|
Antenna characteristics
|
1
|
Antenna model
|
GNSS antenna
|
|
2
|
Ceramic size
|
25*25*4
|
|
3
|
Usage frequency
|
GPS L1：1575.42±1.023MHz，
GLONASS L1:1602+0.5625*K(MHz)
BDS B1 1561±1.023MHz
GALILEO E1: 1575
|
|
4
|
Gain (70 * 70mm ground peak gain facing the zenith plane)
|
5dBic
|
|
5
|
V.S.W.R
|
≤1.5
|
|
6
|
-10dB bandwidth MHz minimum
|
10min
|
|
7
|
impedance
|
50Ω
|
|
8
|
Polarization mode
|
RHCP
|
|
9
|
tcf
|
20ppm/deg.℃ max
|
|
LAN
|
1
|
parameter
|
specifications
|
|
2
|
gain
|
24±2dB
|
|
3
|
figure
|
<1.5dB
|
|
4
|
VSWR
|
<2.0
|
|
5
|
output vswr
|
<2.0
|
|
6
|
voltage
|
DC 3~5V
|
|
7
|
electric current
|
3~6mA
|
|
8
|
impedance
|
50Ω
|
|
Physical parameters
|
1
|
size
|
49.2*37.7*16mm
|
|
2
|
weight
|
45g
|
|
3
|
Line length
|
L=3m
|
|
4
|
Linear interface
|
SMA
|
|
5
|
antenna
|
ceramics
|
|
6
|
pcb
|
FR4
|
|
Environmental
|
1
|
work environment
|
-40℃～+85℃, 10%～95% RH
|
|
2
|
Storage environment
|
-55℃～+100℃, 10%～95% RH
|
|
3
|
vibrate
|
Sine scan @ 1.5mm AM
10~55Hz per axis
|
Packaging and Delivery：

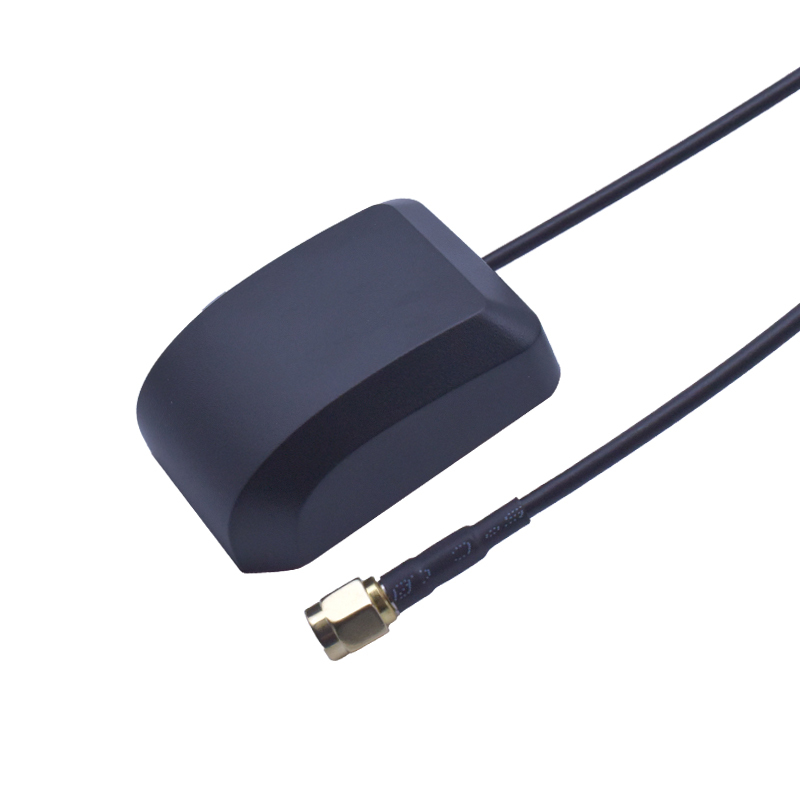

DALANG AK201 High-Precision GNSS External Antenna
The DALANG AK201 is a multi-system GNSS external antenna designed for high-performance positioning requirements, offering comprehensive support for GPS L1, BDS B1, GLONASS L1, and Galileo E1 navigation bands. Featuring a 25×25×4mm ceramic antenna design and an 18±2dB high-gain low-noise amplifier, it provides a stable and reliable high-precision positioning solution for automotive navigation, drone positioning, and agricultural equipment.
Excellent Signal Reception Performance
With 3dBic antenna gain and <1.5dB noise figure, the AK201 maintains exceptional signal reception quality even in complex environments. The optimized RF front-end design ensures a voltage standing wave ratio ≤1.5, significantly improving signal transmission efficiency.
Wide Voltage Adaptation and Low Power Consumption
Supports 3-5V wide voltage input with operating current of only 3-6mA, meeting the low-power requirements of various mobile devices. The right-hand circular polarization design effectively suppresses multipath interference, ensuring positioning stability.
Industrial-Grade Protection and Easy Installation
Features a rugged housing with IPEX/SMA standard interfaces and 1.5-meter RG174 cable for convenient installation. Operating temperature range of -40℃ to +85℃ with excellent shock and moisture resistance, suitable for harsh outdoor environments.
Product Advantages
-
Multi-System High-Precision Positioning
Comprehensive support for four major satellite navigation systems ensures stable and reliable high-precision positioning in any region
-
Excellent Anti-Interference Capability
Optimized RF design and RHCP technology effectively suppress signal interference, improving positioning stability in complex environments
-
Low Power Consumption and Wide Voltage Design
3-5V wide voltage range and milliampere-level power consumption meet the requirements for prolonged operation of automotive devices and mobile terminals
-
Industrial-Grade Durability
Wide temperature design and shock-resistant structure ensure long-term stable operation in harsh environments
Need a high-performance GNSS antenna for your automotive navigation or mobile devices? DALANG AK201 meets your precise positioning requirements with exceptional performance!
