丨 Product IntroductionAK330 supports full-band signal reception for Beidou, GPS, and GLONASS; multi-constellation collaboration enhances positioning stability and accuracy in complex environments. It features a 9~36V wide-voltage power supply compatible with vehicle-mounted and outdoor scenarios, plus industrial-grade RS485 and Bluetooth dual transmission for stable long-distance anti-interference data transfer and flexible short-distance debugging, ideal for surveying, precision agriculture, UAV operations, and geohazard monitoring.
Product Features:
-
Built-in advanced all-system, all-frequency GNSS module.
-
Supports BDS, GPS, GLONASS, Galileo, and QZSS.
-
Can be used as a rover station.
-
Supports Bluetooth 2.0 transparent transmission.
-
Adopts vehicle-standard 9‑36V wide‑voltage input.
-
Supports RS485 output for long‑range anti‑interference transmission.
丨 Product Structure
Interface Description
|
5 line markings
|
Feature Introduction
|

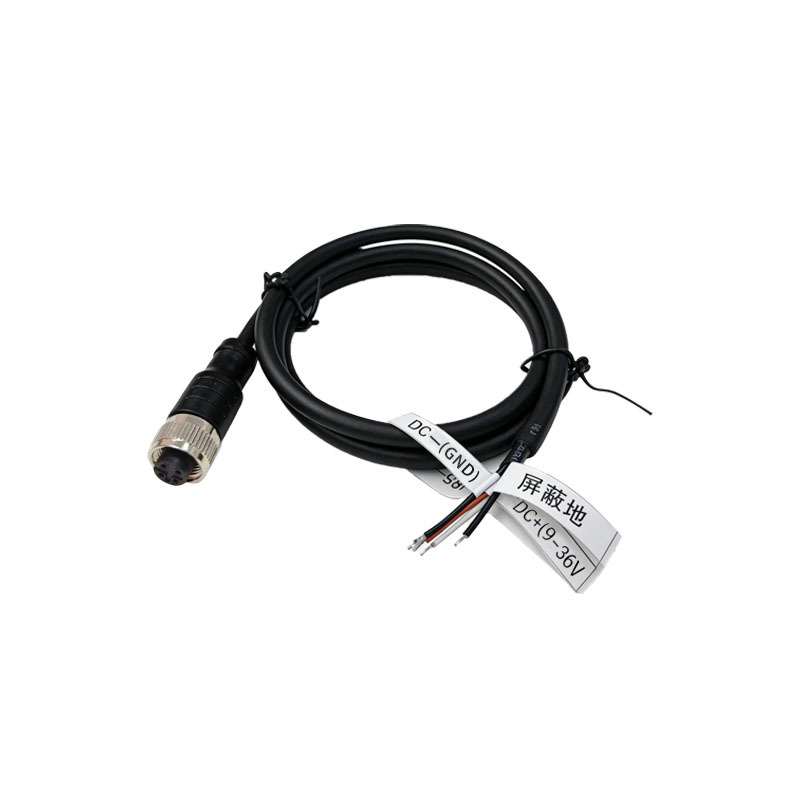

4-core aviation connector connection end
|
|
DC+(9-36V)
|
positive power terminal
|
Aviation connector power supply+terminal
|
|
485-
|
RS485 signal negative terminal
|
Aviation connector 485- end
|
|
485+
|
RS485 signal positive terminal
|
Aviation connector 485+end
|
|
DC-(GND)
|
Negative pole of power supply/signal ground
|
Aviation connector power supply - terminal
|
|
Shield ground
|
Anti interference grounding
|
-(handled separately)
|
丨 Specification parameters
|
Specification parameters
|
|
GNSS module
|
1
|
working frequency
|
BDS: B1I B2I B3I B1C B2a B2b
GPS: L1 C/A L1C L2P (Y) L2C L5
GLONASS: L1 L2
Galileo: E1 E5a E5b E6
QZSS: L1 L2 L5 L6
|
|
2
|
Receiving channel
|
1408 channel
|
|
3
|
Single point positioning
(RMS)
|
Plane: 1.5m
|
|
Elevation: 2.5m
|
|
4
|
DGPS(RMS)
|
Plane: 0.4m+1ppm
|
|
Elevation: 0.8m+1ppm
|
|
5
|
RTK(RMS)
|
Flat: 0.008m+1ppm
|
|
Elevation: 0.015m+1ppm
|
|
6
|
Observation accuracy(RMS)
|
BDS
|
GPS
|
GLONASS
|
Galileo
|
|
7
|
B1I/B1C/L1C/L1 C/A/E1/G1 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
8
|
B1I/B1C/L1C/L1 C/A/E1/G1 Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
9
|
B3I/L2P(Y)/L2C/G2 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
10
|
B3I/L2P(Y)/L2C/G2Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
11
|
B2I/B2a/ B2b/L5/E5a/E5b pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
12
|
B2I/B2a/ B2b/L5/E5a/E5b Carrier Phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
13
|
Time accuracy (RMS)
|
10ns
|
|
14
|
Speed accuracy (RMS)
|
0.03m/s
|
|
15
|
cold boot
|
＜10s
|
|
16
|
Initialization time
|
<5s (typical value)
|
|
17
|
Initialize reliability
|
＞99.9%
|
|
Bluetooth module
|
1
|
Bluetooth version
|
2.0
|
|
2
|
operating frequency band
|
2.4G
|
|
3
|
air speed
|
2Mbps
|
|
4
|
reference distance
|
10m
|
|
Data format
|
1
|
Differential data
|
RTCM3.X
|
|
2
|
output format
|
NMEA-0183, RTCM3.X
|
|
3
|
Data update rate
|
1Hz-20Hz(default 1Hz)
|
|
Electrical
performance
|
1
|
Power Supply
|
DC +9V ~ +36V
|
|
2
|
power waste
|
＜3W
|
|
Physical
parameters
|
1
|
size
|
Φ156.6*61mm
|
|
2
|
weight
|
551g
|
|
3
|
output interface
|
RS485
|
|
Environmental
Specifications
|
1
|
working temperature
|
-25℃ ~ +75℃
|
|
2
|
Storage temperature
|
-55℃ ~ +85℃
|
|
3
|
humidity
|
100% fully sealed, anti condensation
|
