丨 Product Introduction
1. High precision positioning: Meet the high-precision GNSS antenna positioning requirements and provide accurate location information.
2. Stacked antenna: a combination of doubly single fed antennas to enhance signal reception and stability.
3. High gain broadband: improves signal reception quality and coverage range.
4. Environmental compliance: Compliant with RoHS directive and meets environmental performance standards.
丨Specification parameters
|
Ⅱ. Specification
|
|
Antenna
Characteristics
|
1
|
Antenna Model
|
GPS antenna
|
|
2
|
Ceramic Dimensions
|
50*50*4/40*40*4
|
|
3
|
Operating Frequency
|
GPS：
L1:1575.42±1.023MHZ
L2:1227±1.023MHZ
Bei Dou：
B1:1561±2.046MHz
B2:1207±2.046MHz
GLONASS：
L1:1602+0.5625*k（MHz）
L2:1246+0.4375*k（MHz）
GALILEO: E1:1575
|
|
4
|
Frequency Range
|
1170-1238/1559-1612MHz
|
|
5
|
Axial Ratio
|
Elevation angle 90 degrees; ≤3,
Elevation angle 15 degrees
|
|
5
|
V.S.W. R
|
≤2
|
|
6
|
Gain
|
Elevation angle 90 degrees; ≥6,
Elevation angle 20 degrees
|
|
7
|
Front-to-back Ratio
|
±60 degrees ≥15dB
|
|
8
|
Out-of-band Rejection
|
1238＋100MHz≥50db
1170＋100MHz≥50db
1602＋100MHz≥50db
1561-100MHz≥50db
|
|
9
|
In-band Flatness
|
±1dB
|
|
10
|
Impedance
|
50Ω
|
|
11
|
Polarization Mode
|
RHCP
|
|
12
|
Voltage
|
3.3~12V
|
|
13
|
Current
|
25~40mA
|
|
14
|
Noise Figure
|
＜1.0
|
|
Bill Of Materials (BOM)
|
1
|

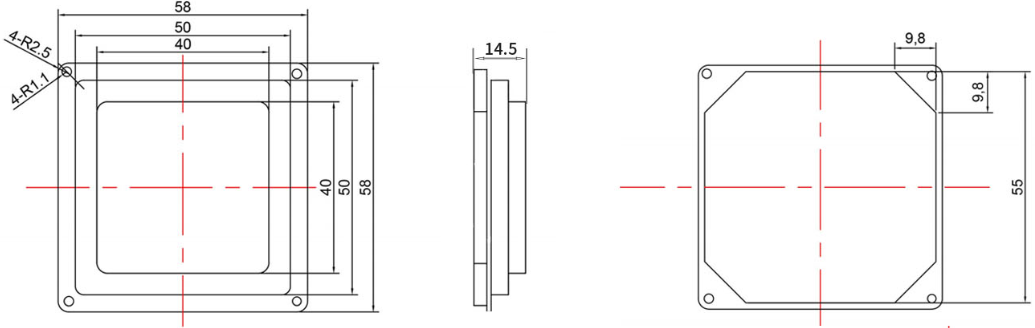

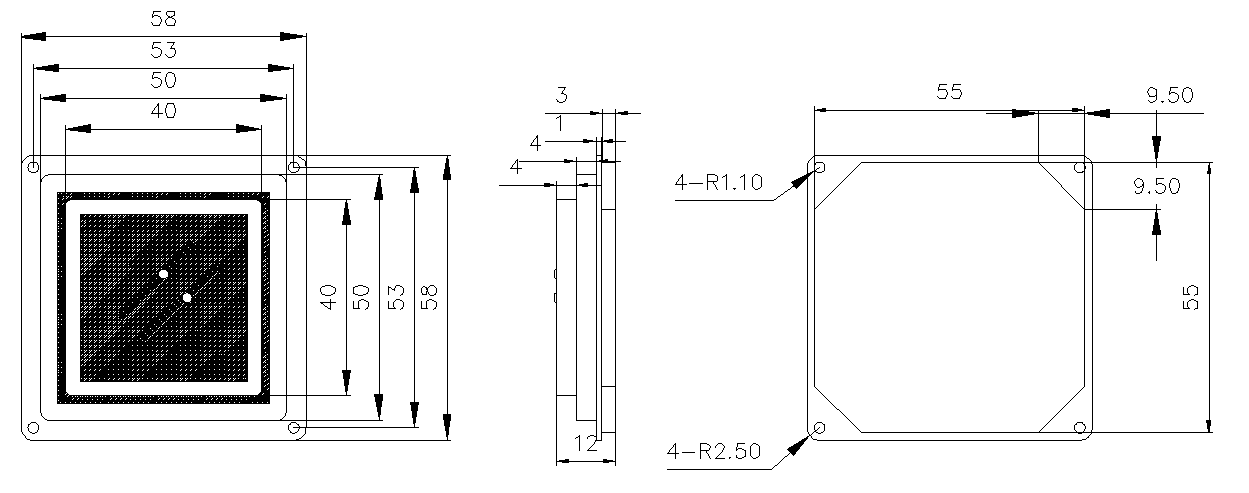

Antenna volume (mm)
|
58*14.5mm
|
|
2
|
Product weight
|
86.8g
|
|
3
|

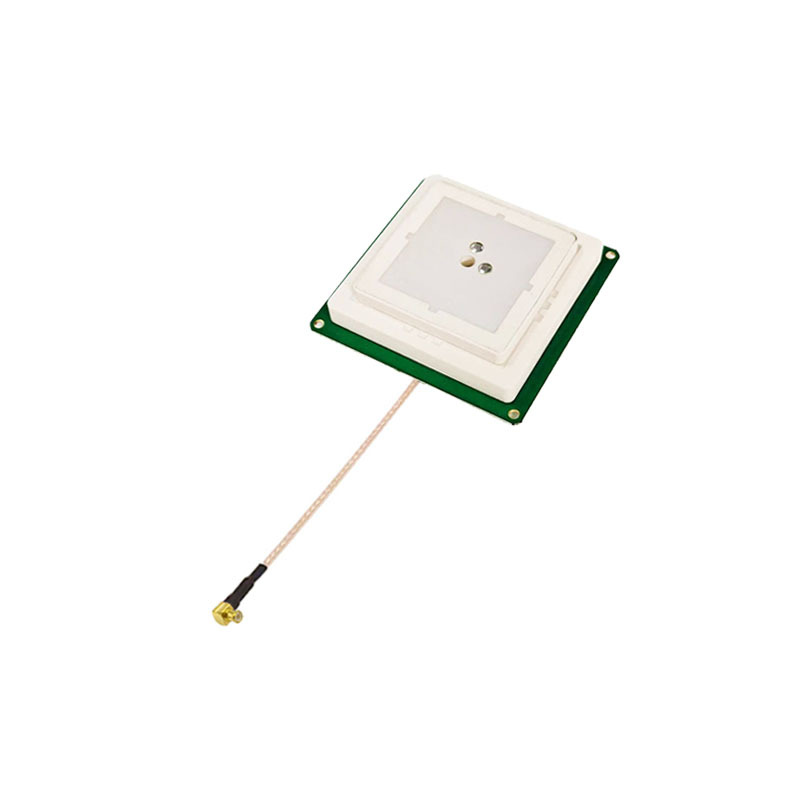

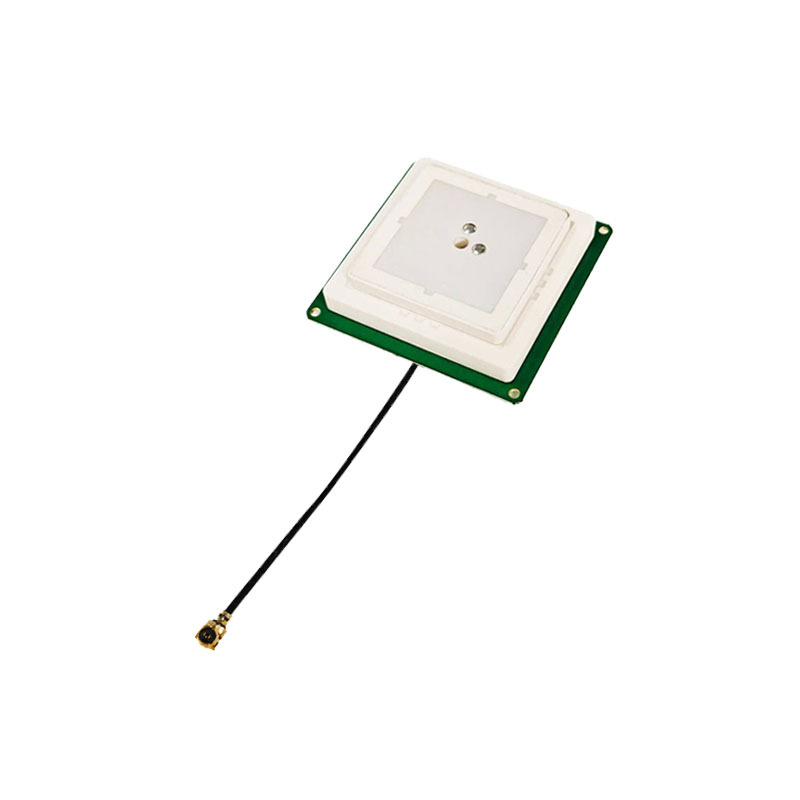

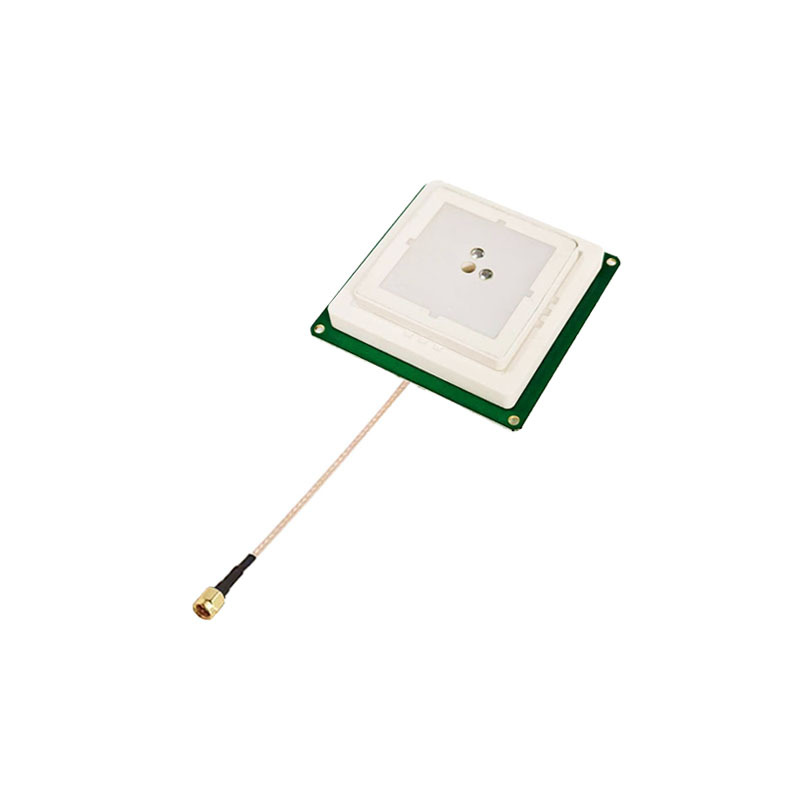

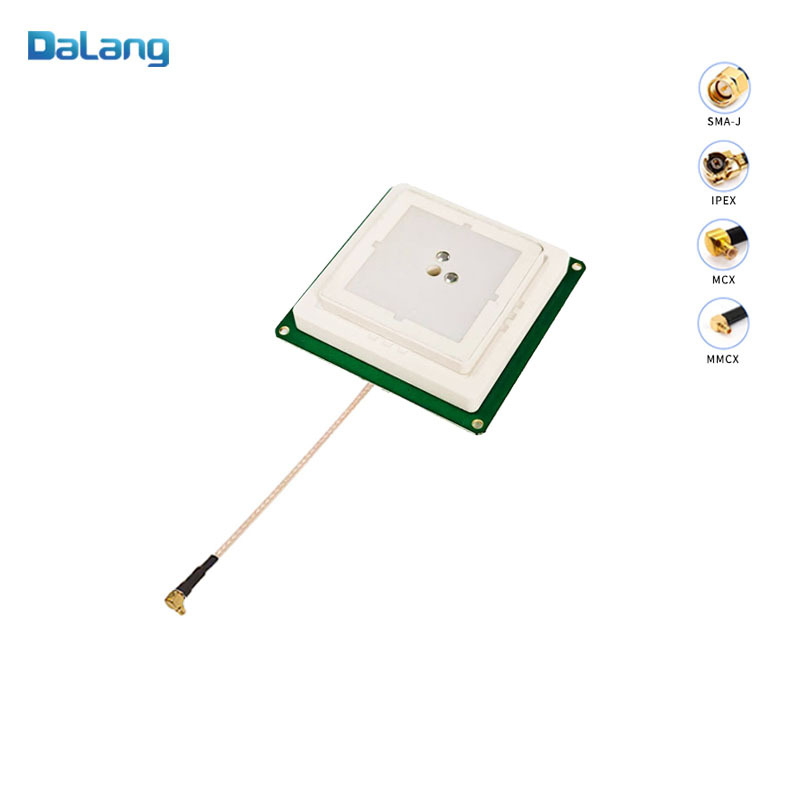

joint
|
MCX / MMCX / SMA / IPEX (customizable)
|
|
4
|
wire rod
|
RG178 / RG1.13 (customizable)
|
|
5
|
Line length
|
150mm / 250mm (customizable)
|
|
6
|
PCB
|
FR4
|
|
Operating
Environment
|
1
|
Working Environment
|
-40℃~+85℃，10%~95%RH
|
|
2
|
Storage Environment
|
-55℃+100℃，10%95%RH
|
丨product mix
Packaging and Delivery：
Product Overview

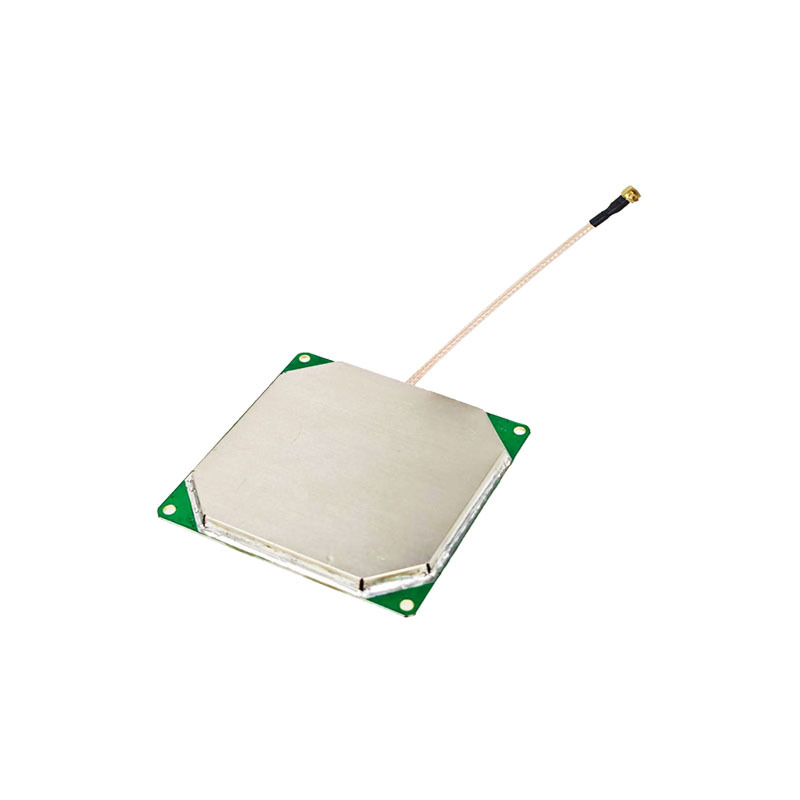

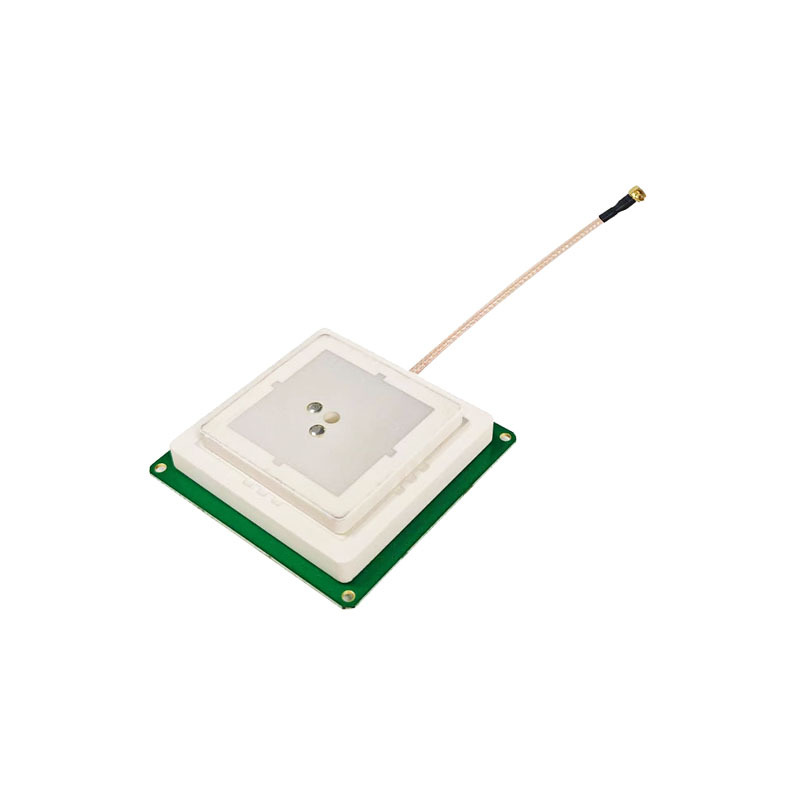

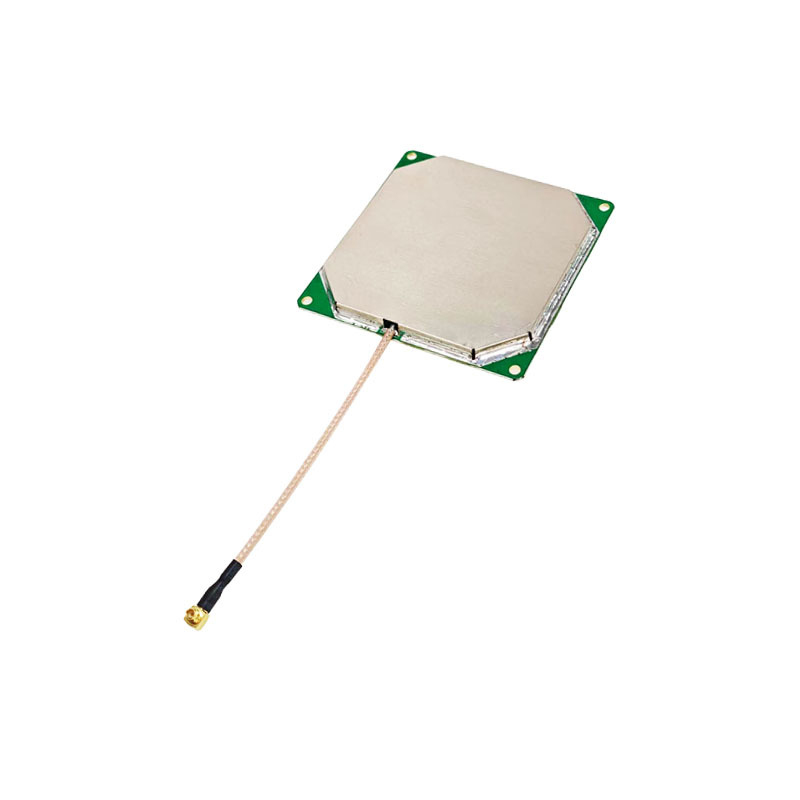

The AK622 is a dual-frequency active antenna with a stacked ceramic structure (50×50×4/40×40×4mm), specifically designed for high-precision positioning with BeiDou and GPS systems. It simultaneously receives GPS L1/L2 and BeiDou B1/B2 frequency band signals, suitable for high-precision positioning applications such as vehicle navigation, UAV positioning, and precision agriculture.
Dual-Frequency High-Precision Positioning
Supports dual-frequency signal reception for GPS L1/L2 and BeiDou B1/B2, providing more stable and accurate positioning performance to meet high-precision GNSS application requirements.
Stacked Antenna Design for Stronger Signal Reception
Utilizes a dual-feed stacked ceramic antenna design to enhance signal reception capability and stability, featuring high gain and wide bandwidth for effective signal coverage extension.
Compact Structure and Strong Environmental Adaptability
Compact antenna size of 58×58×14.5mm, weight 86.8g, operating temperature range from -40℃ to +85℃, suitable for various outdoor and vehicle-mounted harsh environments.
Product Advantages
High Gain and Excellent Axial Ratio
High antenna gain and optimized axial ratio (≤3 at 90° elevation), improving signal reception efficiency and positioning accuracy.
Strong Anti-Interference Capability
Excellent out-of-band rejection performance (≥50dB), effectively filtering out interference signals to ensure signal purity.
Flexible Customization Options
Supports customization of MCX connector, RG178 cable, and cable length for easy integration into different devices.
Environmentally Compliant
Complies with RoHS environmental standards, meeting global market access requirements.
Looking for a high-performance dual-frequency GPS antenna for your vehicle, UAV, or agricultural equipment?
The AK622 provides a stable, high-precision, and strong anti-interference signal reception solution. Contact us for samples and technical support.
