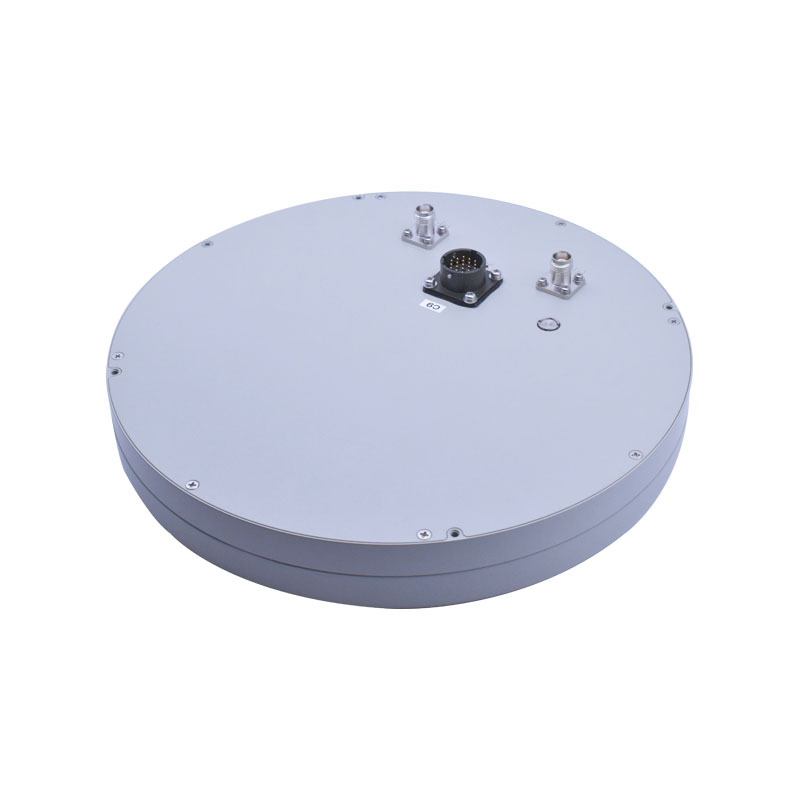

丨 Product Introduction1. Multi frequency and multi-channel processing: 8-channel reception and processing of Beidou B1, GPS L1, and Galileo L1 signals.
2. Strong anti-interference ability: can suppress 7 external broadband interferences.
3. Clear RF output: Output two filtered signals.
丨 Specification parameters
|
Antenna array
|
1
|
Antenna array
|
8 Beidou B1/GPS L1/Galileo L1 antenna array elements
|
|
2
|
VSWR
|
＜2.0
|
|
3
|
Polarization
|
RHCP
|
|
4
|
Coverage
|
azimuth: 0-360 °, pitch: 0-90 °
|
|
5
|
Antenna vertex gain
|
≥2.0 dBi
|
|
LNA
|
1
|
GAIN
|
Beidou B1/GPS L1/Galileo L1：25±3dB（customizable)
|
|
2
|
Noise Figure
|
≤2.5dB
|
|
3
|
Out-of-band inhibition
|
≥ 50dB@f0±50MHz
|
|
4
|
VSWR
|
≤ 2.0
|
|
5
|
RF input power limiting
|
10W
|
|
6
|
Feed voltage
|
5V±10%
|
|
7
|
Feed current
|
＜100mA@5V
|
|
Anti-jam processing
|
1
|
function
|
Used for GNSS Beidou B1/GPS L1/Galileo L1
|
|
2
|
Mitigates multiple CW, partial band, broadband and pulsed jammers even under
high dynamics；
|
|
3
|
Greater than 95 dB J/S of jamming suppression against single jammer
|
|
4
|
Greater than 80 dB J/S of jamming suppression against 7 jammers.
|
|
RF output power
|
1
|
2 RFout
|
Filtered Beidou B1/GPS L1/Galileo L1
|
|
2
|
Out Power
|
-75dBm～-55dBm (customizable)
|
|
Power supply
|
1
|
Input voltage
|
12V~36V（28V default）
|
|
2
|
Supply power
|
≤20W
|
|
Temperature
|
1
|
Operation temperature
|
-40℃~85℃
|
|
2
|
Storage temperature
|
-40℃~85℃
|
|
Physical and Electrical
|
1
|
dimension
|

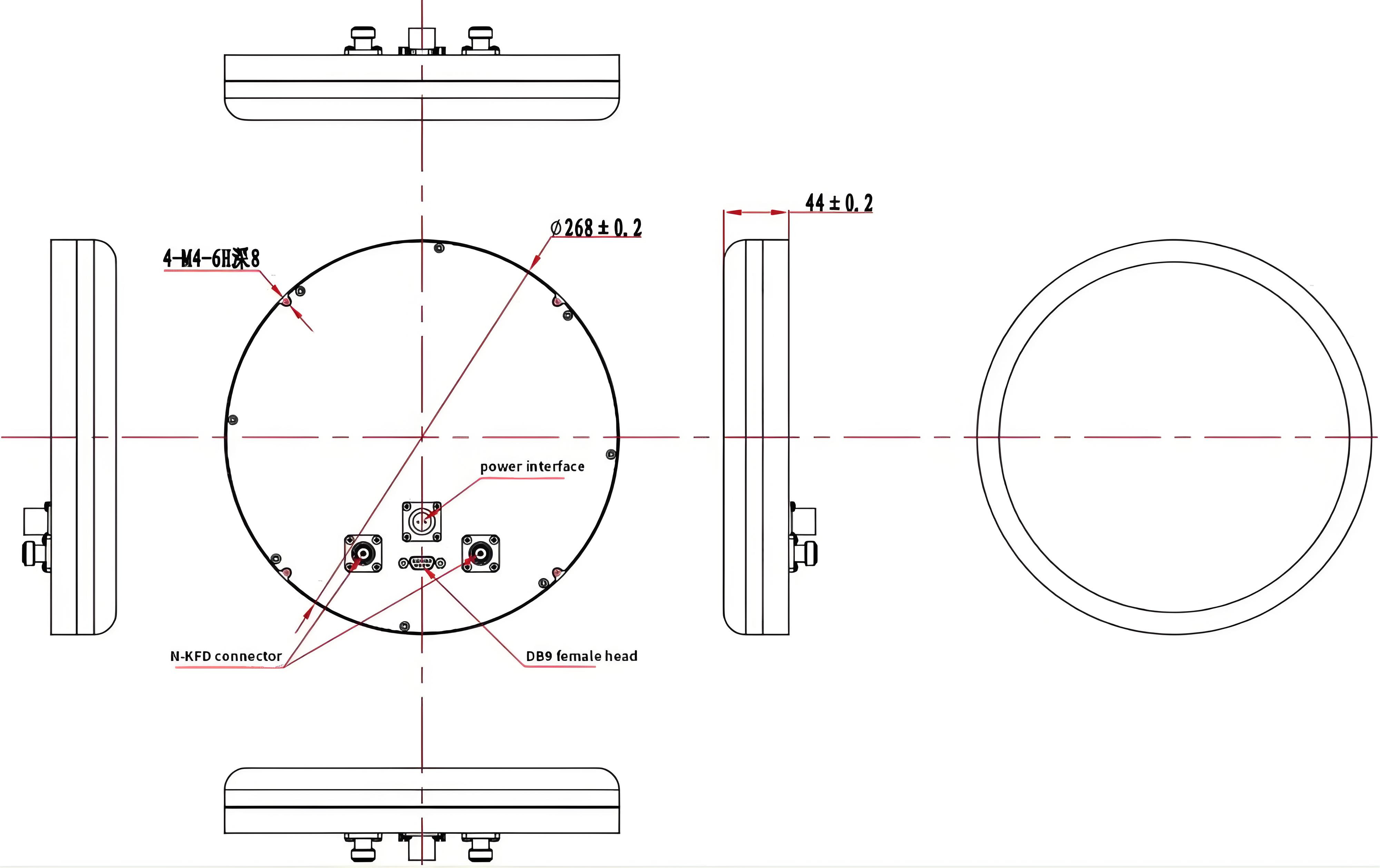

268*44mm
|
|
2
|
weight
|
＜2.5Kg
|
|
3
|

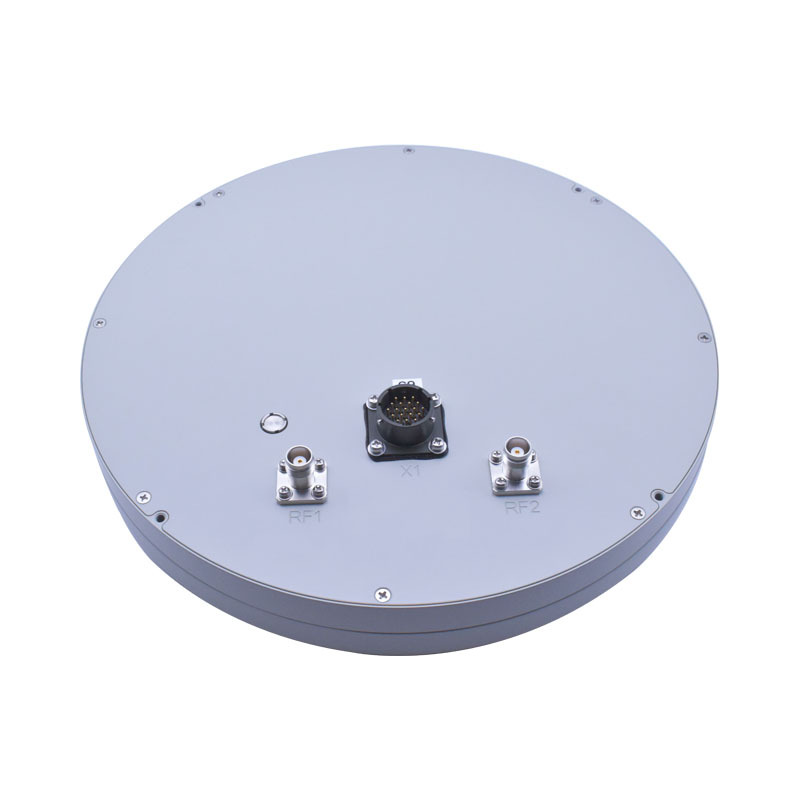

interface
|
2 RF TNC connectors
|
|
4
|
1 DB9 female serial connector
|
|
5
|
1 power connector (customizable)
|

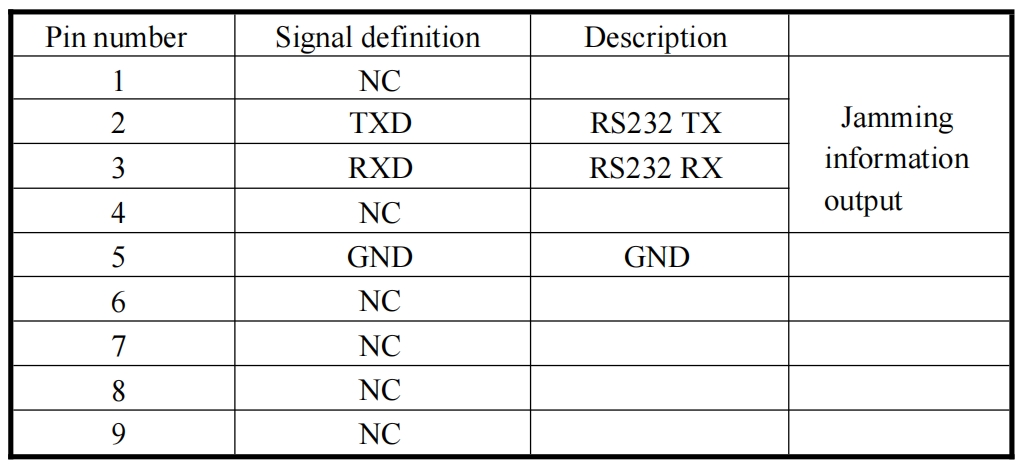

DB9 female connector signal definition:

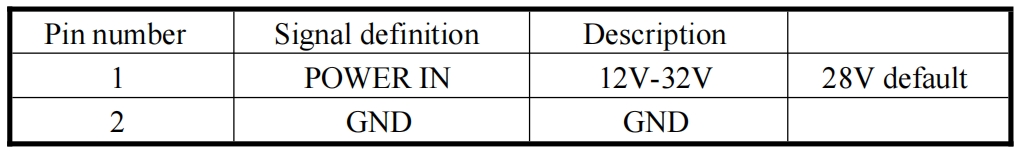

Power connector (The power interface is customizable):
