丨 Product Introduction
1. High integration of signal processing: Highly integrated with BDS-B1, GPS-L1, GAL-E1 frequency signal processing modules, it can complete 4-channel signal reception, amplification, down conversion, filtering, and anti-interference processing.
2. Excellent performance parameters: It has the characteristics of low noise figure, high gain, good element consistency, and small mutual coupling.
3. Size and power consumption advantage: The product has a small size and low power consumption.
4. Easy and Wide Application: Easy to apply, suitable for multiple fields such as mobile vehicles, ships, aircraft, and unmanned platforms, improving anti-interference performance.
丨 Specification parameters
|
Antenna array S
|
1
|
Antenna array element
|
4-channel B1/L1/E1
|
|
2
|
input frequency
|
B1 input frequency: 1561.098MHz ± 2.046MHz;
L1 input frequency: 1575.42MHz ± 1.023MHz;
E1 input frequency: 1575.42MHz ± 24.55MHz;
|
|
TECHNICAL INDEX
|
1
|
RF Output Power
|
-55dBm～65dBm
|
|
2
|
impedance
|
50Ω
|
|
3
|
Anti interference bandwidth
|
20MHz
|
|
Anti interference processing
|
1
|
Number of channels
|
4 B1/L1/E1 channels
|
|
2
|
Anti interference type
|
Ability to resist various suppression interferences such as broadband, sweep, and pulse in the BDS-B1, GPS-L1, and GAL-E1 frequency bands
|
|
3
|
Number of anti-interference devices
|
Simultaneously counter 1-3 interference sources from different directions
|
|
4
|
Anti single broadband interference capability
|
Gan Xin ratio ≥ 95dB@-130dBm
|
|
5
|
Anti three broadband interference capability
|
Gan Xin ratio ≥ 85dB@-130dBm
|
|
Reliability
|
1
|
Mean Time Between Failures (MTBF)
|
≥9000h
|
|
2
|
Continuous working hours
|
≥24h
|
|
Environment
|
1
|
work environment
|
-40 ℃~+70 ℃, 10%~90% RH (no condensation)
|
|
2
|
Environment
|
-45 ℃~+75 ℃, 10%~95% RH (no condensation)
|
|
Electrical
|
1
|

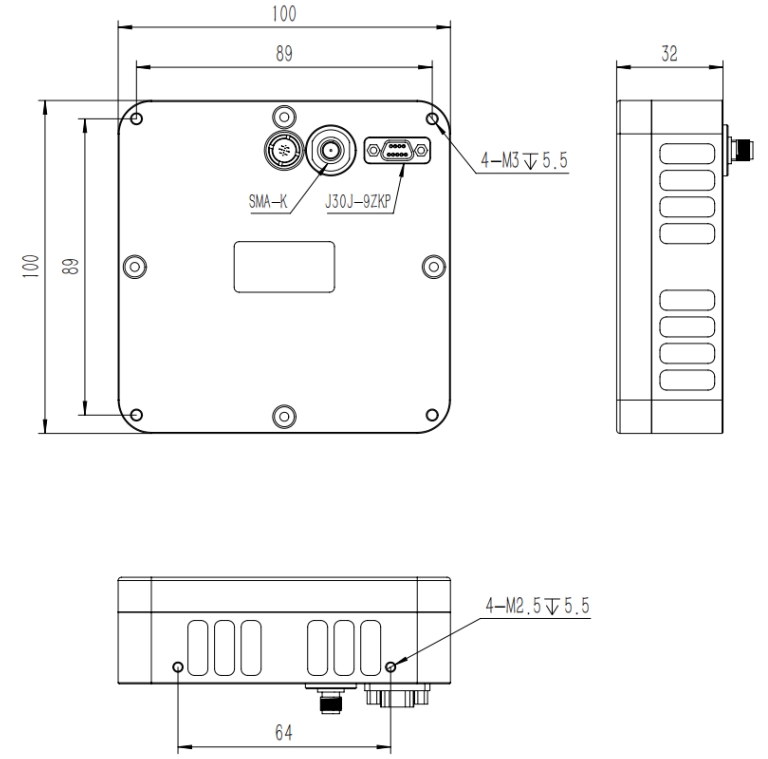

size
|
100*32mm
|
|
2
|
weight
|
≤400g
|
|
3
|
power consumption
|
≤9W
|
|
4
|

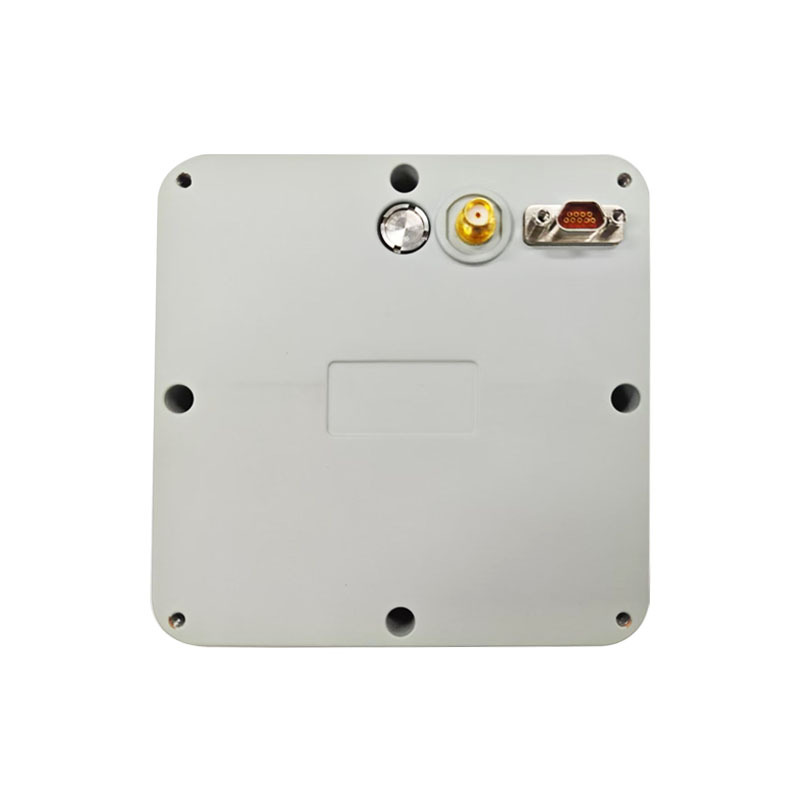

interface
|
1 J30J low-frequency digital and power interface
|
|
5
|
1 SMA-K RF interface
|
|
6
|
Power data interface
|
J30J-9ZK connector
|
The power data interface is J30J-9ZK connector, with a total of 9 PIN signals defined as follows：
|
NO.
|
Signal definition
|
Signal Description
|
Describe
|
|
1
|
+9V~ +32V
|
power input
|
Antenna power supply
|
|
2
|
+9V~ +32V
|
power input
|
|
3
|
GND
|
Power Ground
|
|
4
|
GND
|
Power Ground
|
|
5
|
RS422 RX-
|
RS422 Receive
|
data transmission
|
|
6
|
RS422 RX+
|
RS422 Receive
|
|
7
|
RS422 TX-
|
RS422 Transmit
|
|
8
|
RS422 TX+
|
RS422 Transmit
|
|
9
|
NC
|
NC
|
