丨 Product Introduction
1. High precision: Accurately receive satellite signals, achieve centimeter to millimeter level positioning accuracy, adapt to surveying, engineering surveying, etc.
2. Strong Reception: The antenna unit has high gain and small gain roll off, which is conducive to receiving low elevation satellite signals.
3. Adapt to complex environments: Superior design, good signal reception in obstructed environments.
4. Strong anti-interference ability: Specially designed to resist electromagnetic interference, stable operation in complex electromagnetic environments.
丨 Specification parameters
|
Ⅱ. Specification
|
|
Antenna
Characteristics
|
1
|
Operating Frequency
|
GPS: L1C/A, L1C, L2P, L2C, L5
BDS-2: B1I, B21, B31
BDS-3: B1I, B31, B1C, B2a, B2b
GLONASS: G1, G2, G3
Galileo: E1, E5b, E5a, E5AltBoC, E6c
QZSS: L1C/A, L2C, L5, L1C
SBAS: L1C/A
IRNSS: L5
|
|
2
|
Antenna Specifications
|
GPS, Bei Dou，GLONASS,GALILEO
|
|
3
|
Frequency Range
|
1165-1278/1559-1612MHz
|
|
4
|
V.S.W. R
|
≤2.0
|
|
5
|
Axial Ratio
|
Elevation angle 90 degrees: ≤3
Elevation angle 15 degrees: ≤5
|
|
6
|
Gain
|
Elevation angle 90 degrees: ≥6
Elevation angle 20 degrees: ≥0 (plane)
|
|
7
|
Front to back power
|
±60 degrees: ≥15dB
|
|
8
|
Phase Center (mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
|
3
|
Noise Figure
|
＜1.5
|
|
4
|
DC Voltage
|
3.3~18V
|
|
5
|
Current
|
＜35 mA
|
|
Mechanical
Structure
|
1
|
Component Name
|
SPEC
|
|
2
|
Antenna Connector
|

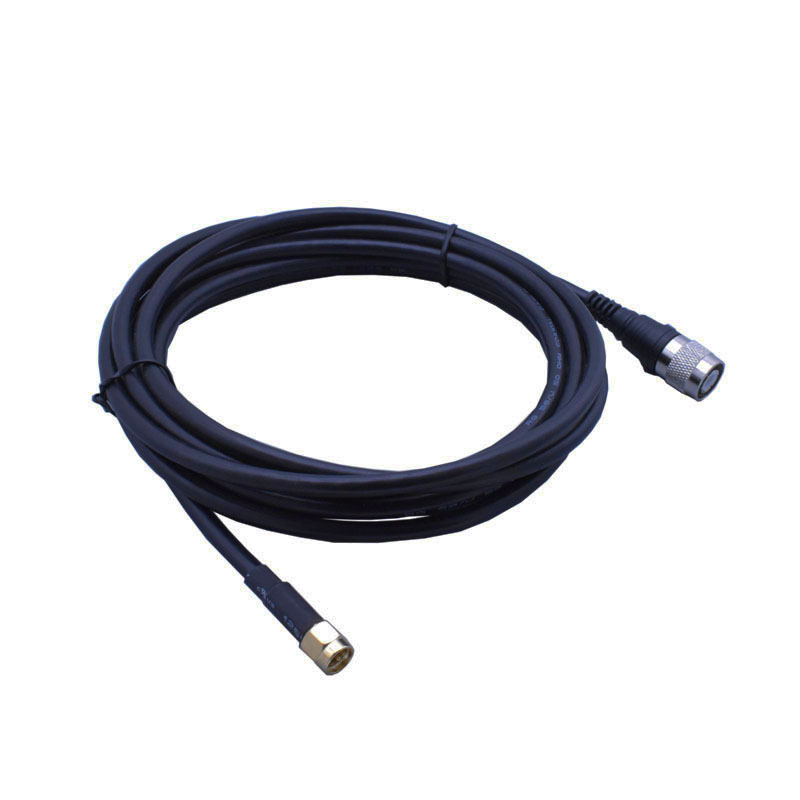

TNC / SMA
|
|
3
|

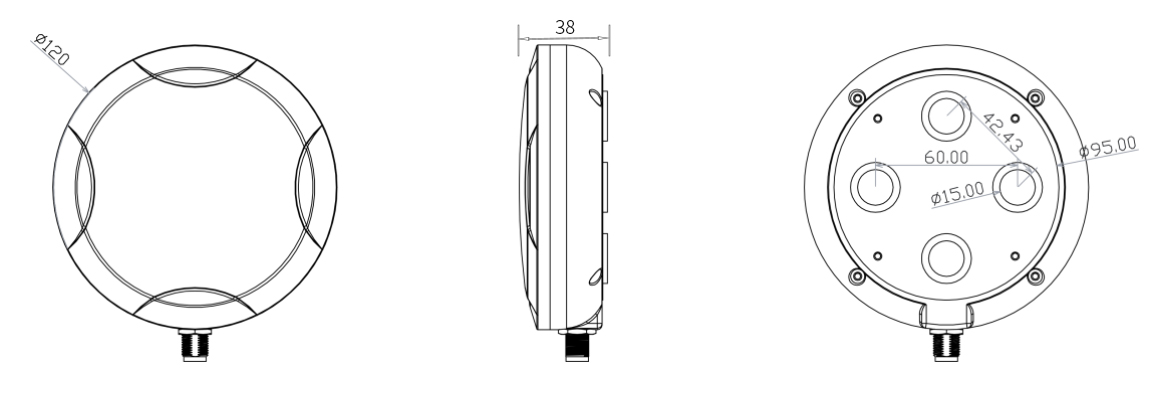

Antenna Dimensions
|
Φ120*38mm
|
|
4
|
weight
|
313.8g
|
|
5
|
PCB board
|
FR4
|
|
Environmental Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Vibration
|
Sine sweep @1.5mmAM
10~55Hz each Axis
|
丨 product mix

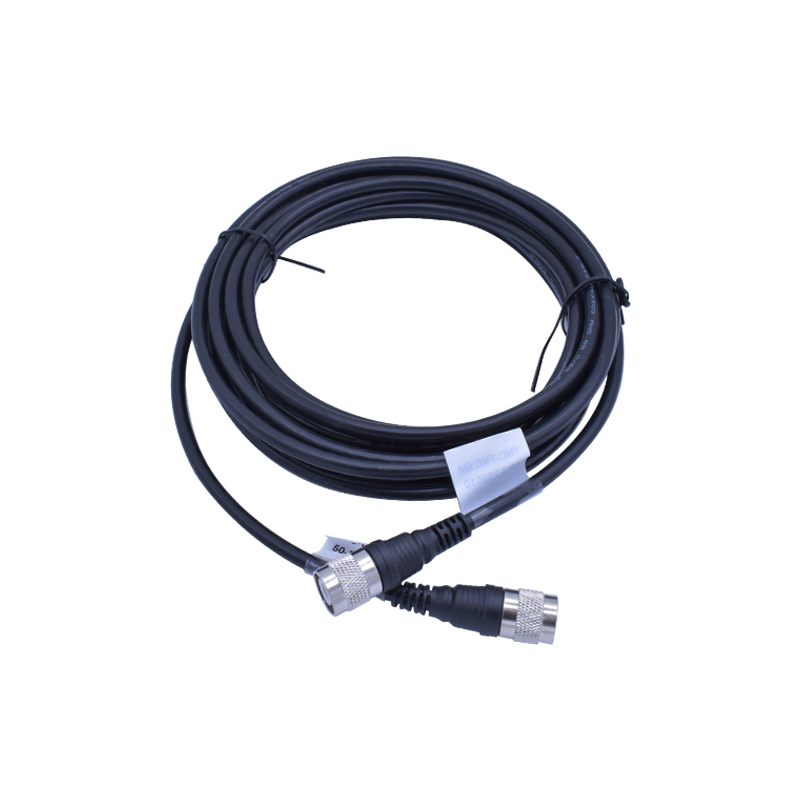

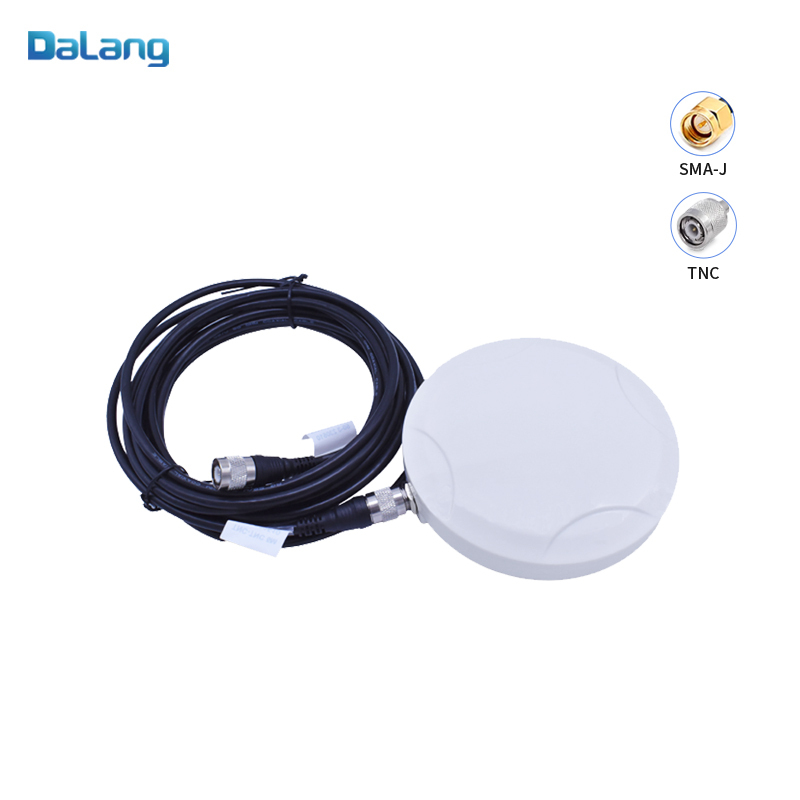

Packaging and Delivery：

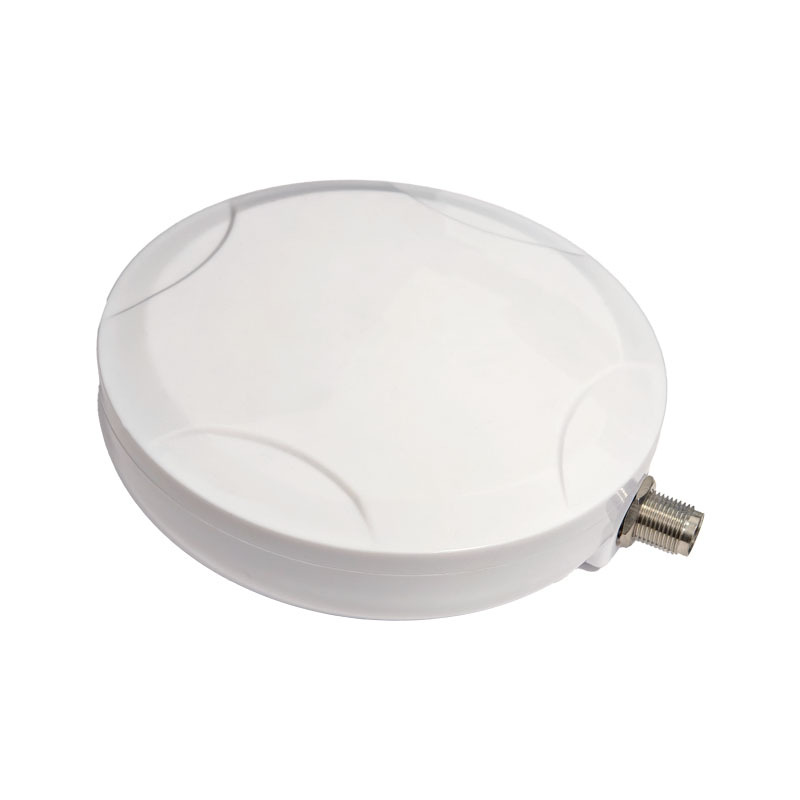

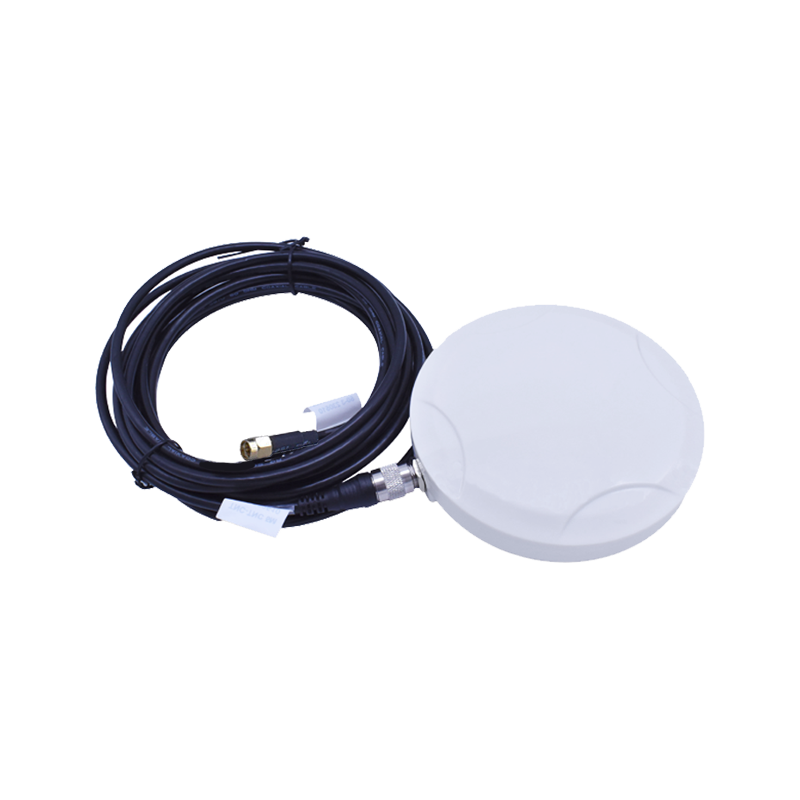

High Precision GNSS Antenna for Driving SystemsThe DALANG AK628 GNSS antenna is engineered for accurate positioning in driver training, RTK vehicle testing, and Subject 2 driving simulation. Designed for use with UM982/980 modules, this high precision GNSS antenna ensures sub-meter accuracy under real-world conditions.Optimized for RTK Differential ApplicationsThis compact and reliable GNSS antenna is built for stable signal reception in RTK differential systems. Whether used in autonomous driving modules or driving test platforms, it delivers consistent performance with industry-standard antenna module support and fast satellite acquisition.Anti-Jamming and Reliable Signal IntegrityThe AK628 features an anti jamming antenna design that filters out EMI and signal noise, keeping positioning stable even in complex urban or training environments. For test systems or development kits, this makes it an ideal GPS antenna for sale at a low total cost.Seamless Compatibility with UM982/UM980 ModulesPair the AK628 with DALANG’s UM982 or UM980 for high-precision, real-time performance. This GNSS antenna is fully tested and integrated with DALANG RTK systems, making it a high-efficiency antenna module for fleet testing, vehicle R&D, and autonomous driving validation.Product Advantages
High Precision GNSS Antenna for Test VehiclesEngineered for centimeter-level accuracy, this high precision GNSS antenna delivers dependable signal reception for driver training and vehicle tracking. It’s a trusted solution in systems requiring reliable GNSS antenna integration.Anti-Jamming Performance for Urban UseThe integrated anti jamming antenna technology shields against interference, providing clean GNSS signals in noise-heavy environments. Whether on a test course or public roads, this GNSS antenna maintains signal integrity.Compatible with DALANG UM982 and UM980This antenna module pairs perfectly with DALANG’s UM982/980 RTK modules, ensuring seamless installation and high-quality RTK correction support. It’s a smart, low-cost GPS antenna for sale optimized for DALANG RTK ecosystems.Robust Construction for Outdoor UseDesigned with rugged components and a weather-resistant shell, this GNSS antenna withstands the vibrations and conditions of driving test scenarios. A professional-grade antenna module built to last.Need affordable, field-tested accuracy for vehicle positioning? Order the DALANG AK628 GNSS antenna today and elevate your RTK-enabled driving systems with confidence.
