丨 Product Introduction
1. Accurate positioning: within ± 0.5 meters in open environments, 1-2 meters in urban environments, suitable for autonomous driving, etc.
2. Multi star compatibility: Supports mainstream satellite systems, with excellent global signals and reliable positioning.
3. Low power consumption: Typical current of tens of milliamps, power consumption is reduced by 30% -40%, saving electricity.
4. Strong anti-interference: resistant to electromagnetic and base station interference, stable positioning in complex environments.
丨 Specification parameters
|
Chip
characteristics
|
chip
|
UBLOX-NEO-F10N
|
|
working frequency
|
GPS: L1 C/A(1575.42MHZ)
GLONASS: L1OF(1602+0.5625*K MHZ)
BeiDou: B1 1/C(1561.098MHZ)
Galileo: E1 B/C (1575.42MHZ)
QZSS: L1-C/A/S，SBAS L1C/A
|
|
Receiving channel
|
92 channels
|
|
sensitivity
|
track
|
-167 dBm
|
|
Re capture
|
-159 dBm
|
|
cold boot
|
-148 dBm
|
|
Hot start
|
-159 dBm
|
|
First positioningtime TTFF
|
cold boot
|
25s
|
|
Hot start
|
3s
|
|
Re capture
|
1s
|
|
accuracy
|
Horizontal
Accuracy
|
Position: 2.5 m CEP
|
|
SBAS: 2.0m CEP
|
|
Speed accuracy
|
0.5m/s
|
|
Dynamic heading accuracy
|
0.3 deg
|
|
Second pulse accuracy
|
30ns
|
|
Operation
restrictions
|
Dynamic characteristics
|
≤ 4 g
|
|
Height measurement
|
80,000 m
|
|
velocity measurement
|
500 m/s
|
|
output data
|
Baud rate
|
38400bps (default)
|
|
Output Protocol
|
NMEA0183
|
|
update frequency
|
0.25Hz-10Hz (default 1Hz)
|
|
Carrier phase output
|
Support, output RAWX statement
|
|
FLASH
|
built-in
|
|
Electrical
specifications
|
working voltage
|
3.3V-5V DC
|
|
power waste
|
<100mW
|
|
Physical
parameters
|
size
|
35*25*4mm
|
|
weight
|
3.8g
|
|
Connector
|
2.54mm pin socket * 4
|
|
Antenna connector
|
IPEX
|
|
environment
|
working temperature
|
-40℃-85℃
|
|
Storage temperature
|
-40℃-85℃
|
丨 product mix
Table 1 PIN pin functions
|
Pin Number
|
Signal Name
|
Signal Description
|
|
1
|
VCC
|
Main Power Input 3.0-5.5V for COM1
|
|
2
|
RXD
|
Receive Data Pin used to receive data sent from other devices
|
|
3
|
TXD
|
Transmit Data Pin used to send data to other devices
|
|
4
|
GND
|
Ground Pin used as a common electrical reference point
|
|
LED
Indicators
|
1
|
POWER
|
POWER - Indicates power supply status
|
|
2
|
PPS
|
PPS - Pulse Per Second (PPS) output, flashes when positioned to indicate second pulse output
|
Table 2 Interface Characteristics
|
NO.
|
Name
|
Symbol
|
Minimum value
|
Typical values
|
Maximum value
|
Unit
|
|
1
|
Main power supply
|
Vcc
|
2.7
|
3.3
|
5.0
|
V
|
|
3
|
RF port feeding
|
VRF
|
3.0
|
3.1
|
3.3
|
V
|
|
4
|
Input high level
|
VIH
|
2.0
|
|
|
V
|
|
5
|
Input low level
|
VIL
|
|
|
0.7
|
V
|
|
6
|
Output high level
|
VOH
|
3.2
|
|
|
V
|
|
7
|
Input low level
|
VOL
|
|
|
0.1
|
V
|
|
8
|
Main serial port baud rate
|
Baud
|
|
38400
|
|
bps
|
GNSS Positioning Module for Mass Consumption and IoT Applications

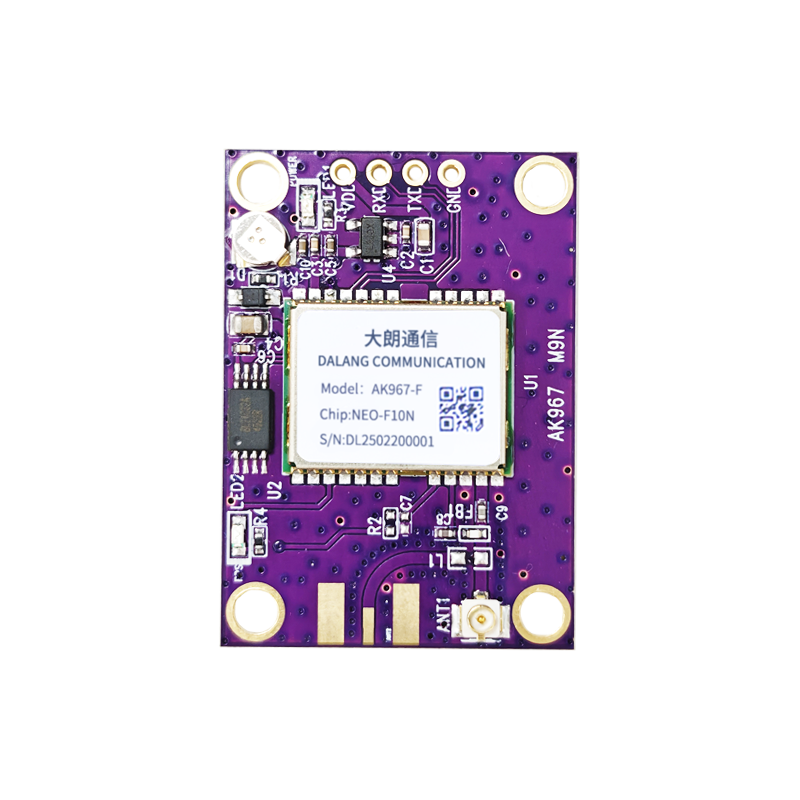

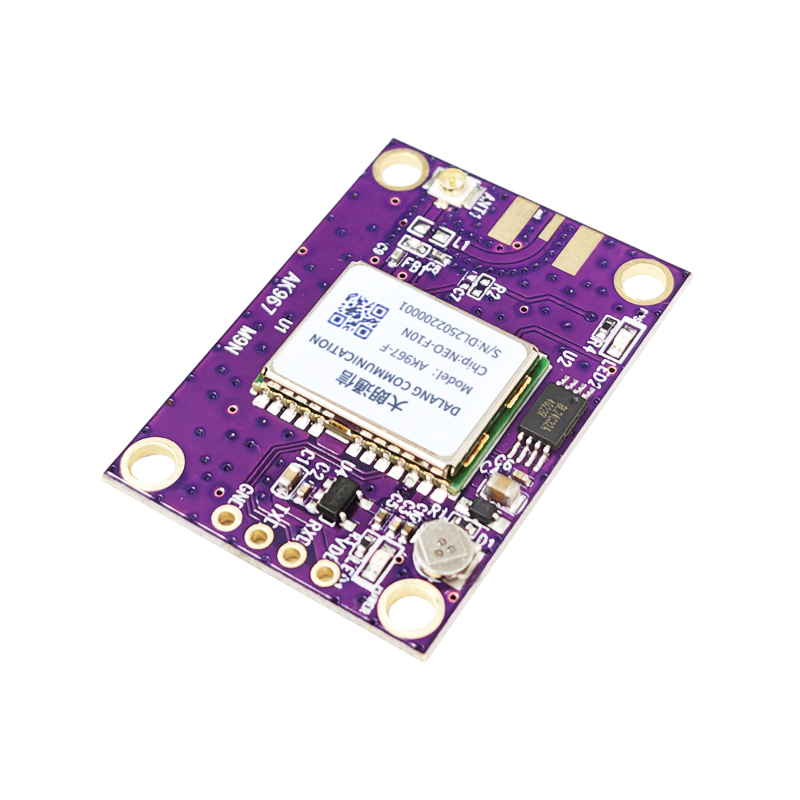

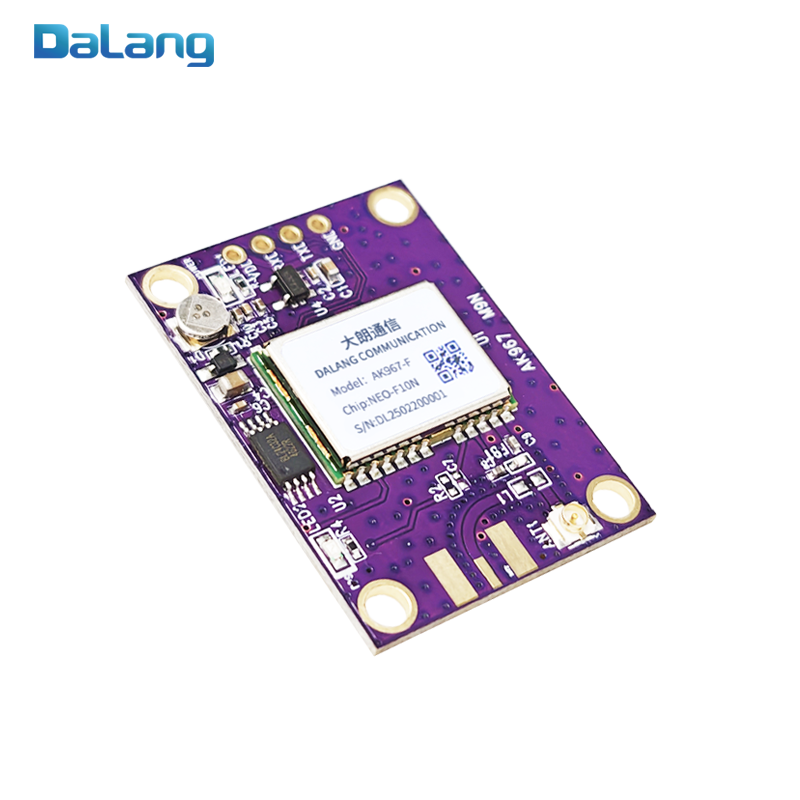

The DALANG AK967-F (NEO-F10N) module is a standard precision positioning module based on the UBLOX chipset. It offers a horizontal positioning accuracy of 2.5m CEP, which can be improved to 2.0m CEP with SBAS enabled. This module provides stable and reliable positioning services for mass-market applications such as vehicle navigation, personal trackers, shared devices, and data loggers.
Multi-System Support & High Sensitivity
The module supports all four major global satellite navigation systems: GPS, GLONASS, Galileo, and BeiDou, with 92 receiving channels. Its cold start sensitivity is -148dBm, and acquisition sensitivity is -160dBm, aiding in faster position acquisition in weak signal environments like urban canyons and under tree cover.
Fast Start & Low Power Consumption
Cold start Time To First Fix (TTFF) is approximately 25 seconds, and hot start is under 3 seconds, enabling quick operational readiness. With a typical power consumption of less than 100mW and a low-power design, it is ideally suited for battery-powered portable devices and always-on IoT terminals.
Compact & Robust with Industrial-Grade Endurance
The module measures 35×25×4mm and weighs only 3.8 grams, featuring a compact structure. Its operating temperature range spans from -40°C to 85°C, allowing it to adapt to various harsh outdoor and automotive environments, ensuring long-term stable operation.
Product Advantages
Stable and Reliable Positioning Performance
Horizontal accuracy of 2.5m CEP, support for SBAS improving accuracy to 2.0m CEP, meeting the positioning requirements of most commercial and consumer applications.
Powerful Global Signal Reception
Supports all four major systems: GPS, GLONASS, Galileo, and BeiDou, ensuring good satellite coverage anywhere in the world.
Excellent Weak Signal Acquisition
High-sensitivity design ensures positioning capability even in challenging signal environments.
Fast Positioning and Reacquisition Times
Cold start <25s, Hot start <3s, Reacquisition <1s, providing users with quick location service response.
Low Power Consumption & High Integration
Ultra-low power design, built-in Flash, and small form factor greatly facilitate product integration and design.
Looking for a stable, reliable, and cost-effective positioning module for your automotive, IoT, or consumer products? Inquire about the DALANG AK967-F today to equip your product with precise location capabilities.
