丨 Product Introduction
1. Dual-frequency (L1/L5) positioning: meets the positioning requirements of standard GNSS antennas and provides reliable location information.
2. Stacked antenna: a combination of doubly single fed antennas to enhance signal reception capability and stability.
3. High gain broadband: improves signal reception quality and coverage range.
4. Environmental compliance: Compliant with the RoHS directive, meets environmental standards, and is suitable for the global market.
丨 Specification parameters
|
Ⅱ. Specification
|
|
Electrical
Characteristics
|
1
|
Operating Frequency
|
GPS: L1, L2
BDS: B1I, B2I
GLONASS: L1, L2
Galileo: E1, E5a
|
|
2
|
Impendence
|
50Ω
|
|
3
|
Polarization
|
RHCP
|
|
4
|
LNA GAIN @90°
|
1.L1:25DB
2.L2:26DB
|
|
5
|
LNA Noise Figure @+25℃±5°TYP
|
＜2.0
|
|
6
|
LNA VSWR
|
2.0 MAX
|
|
7
|
DC Voltage
|
3~5V
|
|
8
|
Current
|
15~22Ma
|
|
Bill of Materials
|
1
|
Dimensions
|

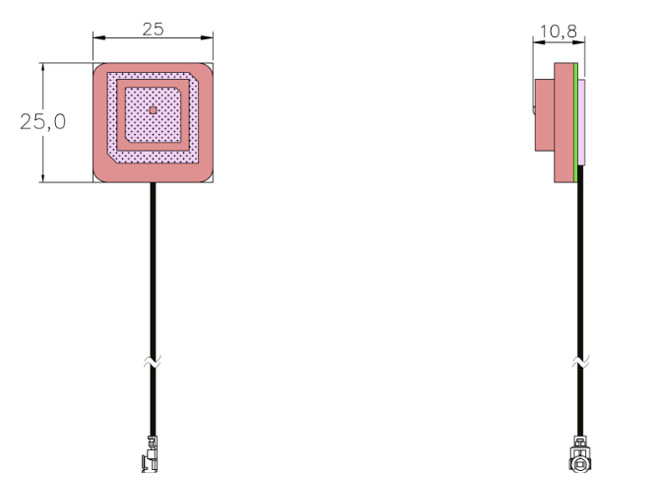

25*25*10.8
|
|
2
|
Product Weight
|
18.2g
|
|
3
|
Connector |

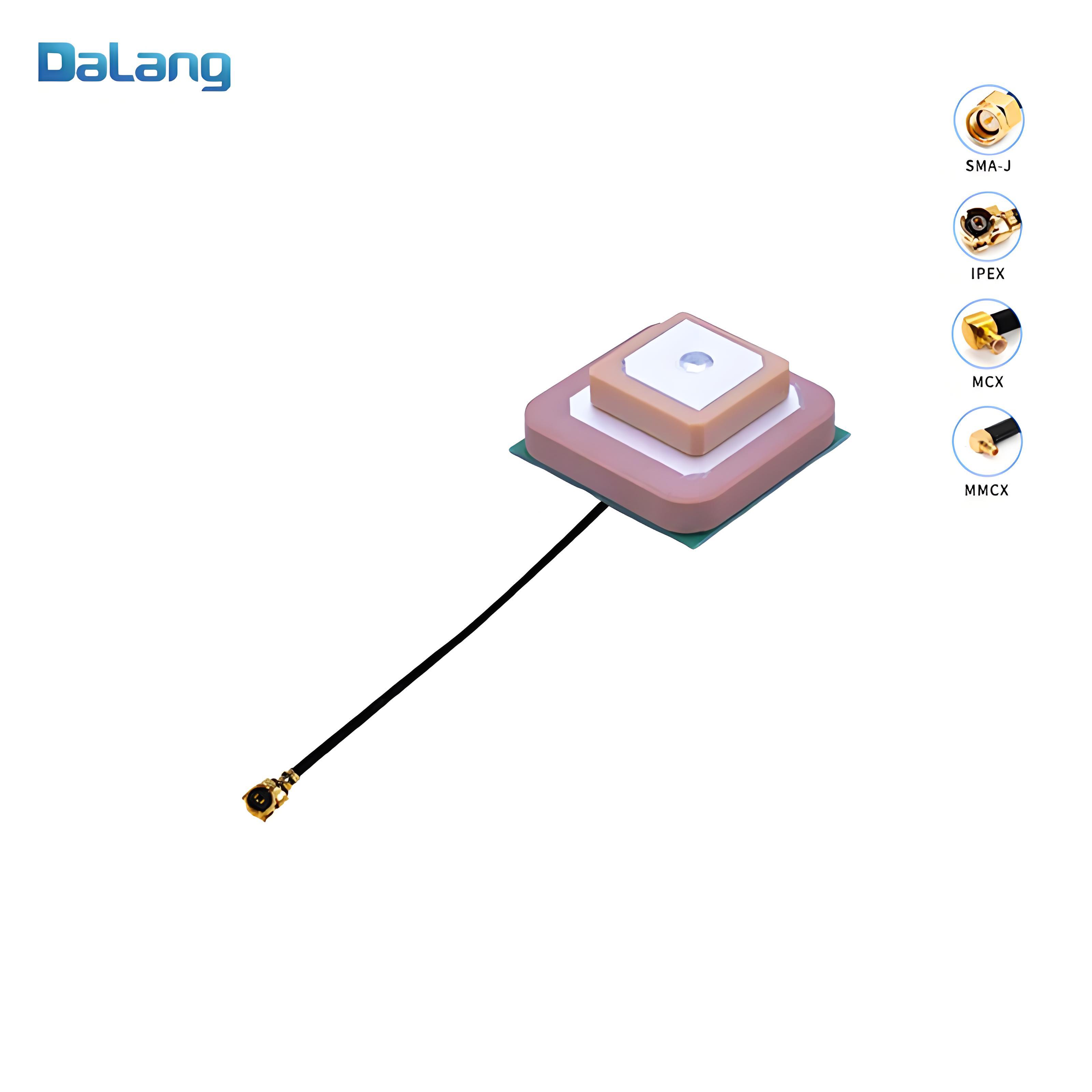

IPEX / SMA / MCX / MMCX(Customizable) |
|
4
|
Cable Material
|
RG1.13 / RG178 Cable(Customizable)
|
|
5
|
Cable Length
|
150mm / 250mm(Customizable)
|
|
Environmental
Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Humidity
|
40％~95％
|
Packaging and Delivery：
Product Overview
The AK520-P is a high-performance GNSS active antenna designed with multi-layer ceramic technology, supporting multi-band signal reception including GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2, and Galileo E1/E5a. Specifically designed for high-precision positioning systems, it is suitable for applications with stringent requirements for signal stability and accuracy, such as vehicle navigation, UAV positioning, and precision agriculture.

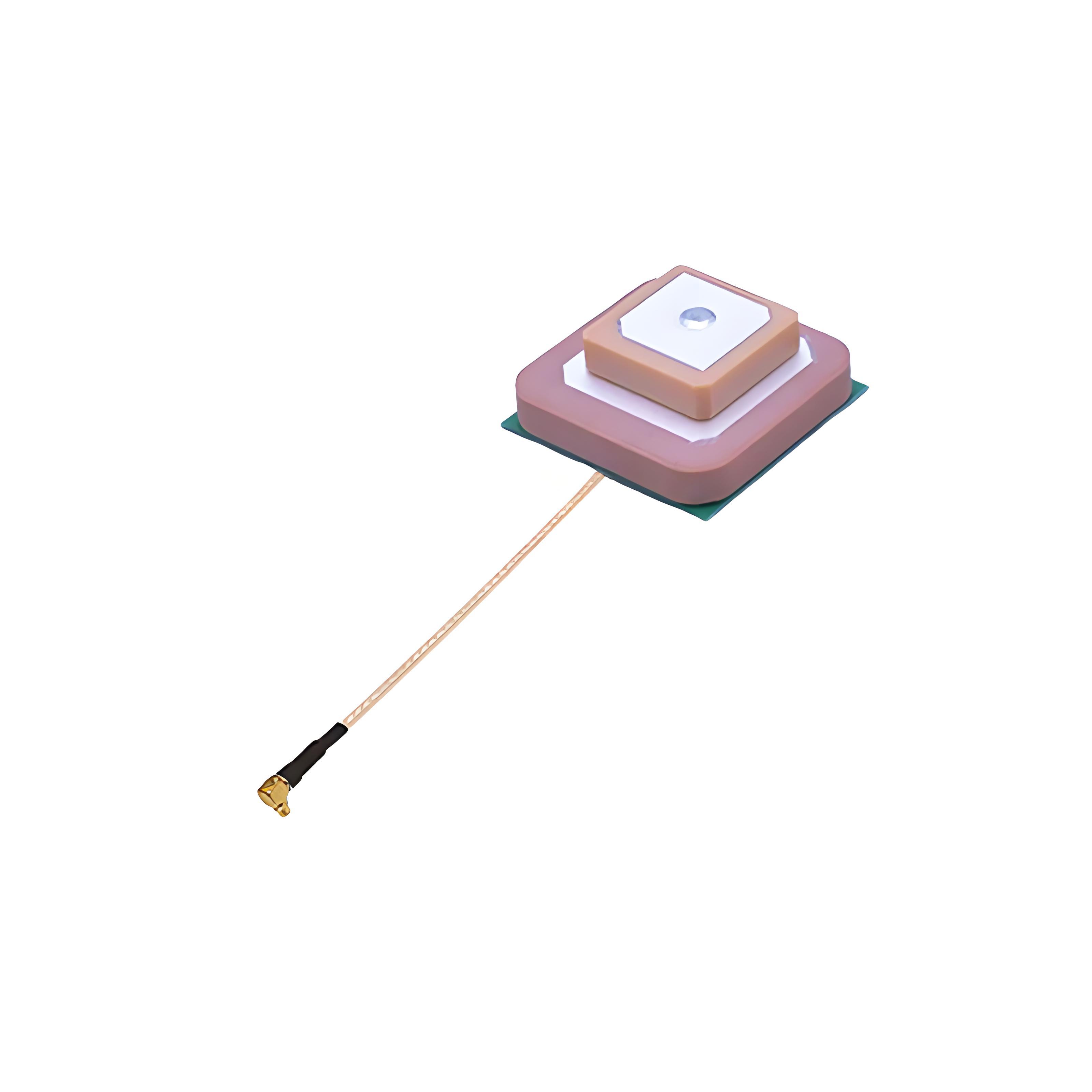

Multi-Layer Ceramic Structure for Stable and Reliable Signals
Utilizes a multi-layer ceramic stacked antenna design to enhance signal reception bandwidth and stability, maintaining high-precision positioning even in complex electromagnetic environments.
Multi-Band High-Precision Positioning
Supports multi-frequency signals from four major satellite systems, covering bands such as L1, L2, B1, B2, E1, and E5a, providing more comprehensive and reliable positioning data.
Compact Design for Easy Integration
Compact dimensions of 25×25×10.8mm, weight 18.2g, equipped with IPEX connector and RG1.13 micro cable, suitable for integration into various embedded and compact devices.
Product Advantages
High Gain and Low Noise
LNA gain reaches 25dB in the L1 band and 26dB in the L2 band, with a noise figure <2.0, effectively improving signal reception sensitivity.
Low Power Consumption Design
Operating voltage 3–5V, current only 15–22mA, achieving a balance between high performance and low power consumption in a compact size.
Strong Environmental Adaptability
Operating temperature range from -40℃ to +85℃, suitable for high humidity and vibration environments, meeting the needs of vehicle-mounted and outdoor applications.
Flexible Customization Options
Supports customization of connector, cable type, and length for easy adaptation to different system architectures.
Looking for a high-performance multi-band GNSS antenna for your vehicle, UAV, or agricultural equipment?
The AK520-P offers a signal-stable, easy-to-integrate, and environmentally adaptable antenna solution. Contact us for samples and technical documentation.
