UAV Video Transmitter Module Five Power Levels 25mW to 2500mW TBS Protocol Wide Voltage 7V to 36V

Name: UAV Video Transmitter Module Five Power Levels 25mW to 2500mW TBS Protocol Wide Voltage 7V to 36V
Brand: Dalang Communication
SKU: AK1100
Price: 50 USD
Availability: InStock

0.0 (0)

0 Sold

$50.00

Tax excluded

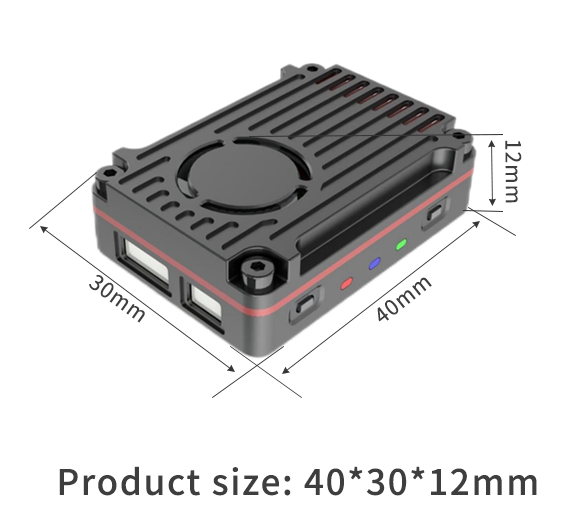

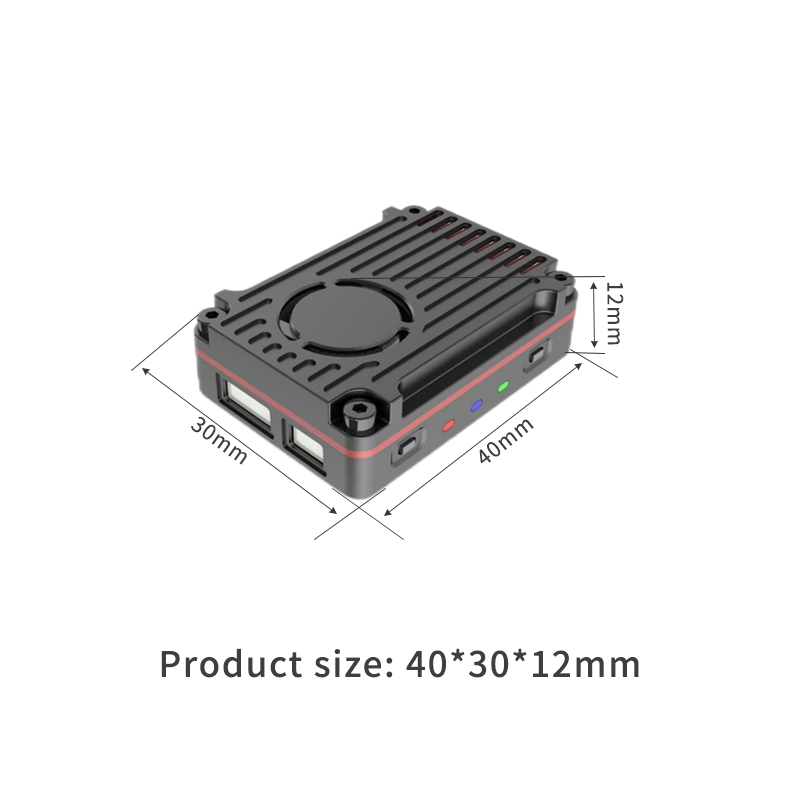

Size: 41 (L) mmX30 (D) mmX12 (H) mm
Weight: 18 grams
Installation hole position: 20mmX20mm
Output power: 25mW/200mW/600mW/1600mW/2500mW/PIT
Frequency: 4.9G~6.1G

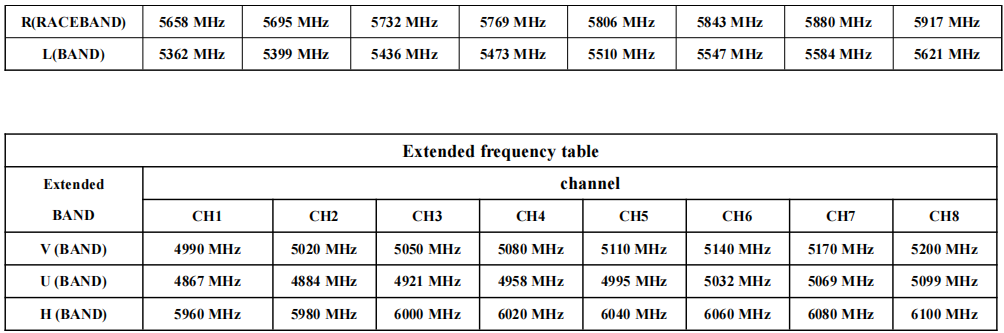

Number of channels: 72CH (48CH standard frequency+24CH extended frequency)
Input voltage: DC7V~36V (2S~8S)
Control Protocol: TBS (SmartAudio)
Antenna interface: MMCX

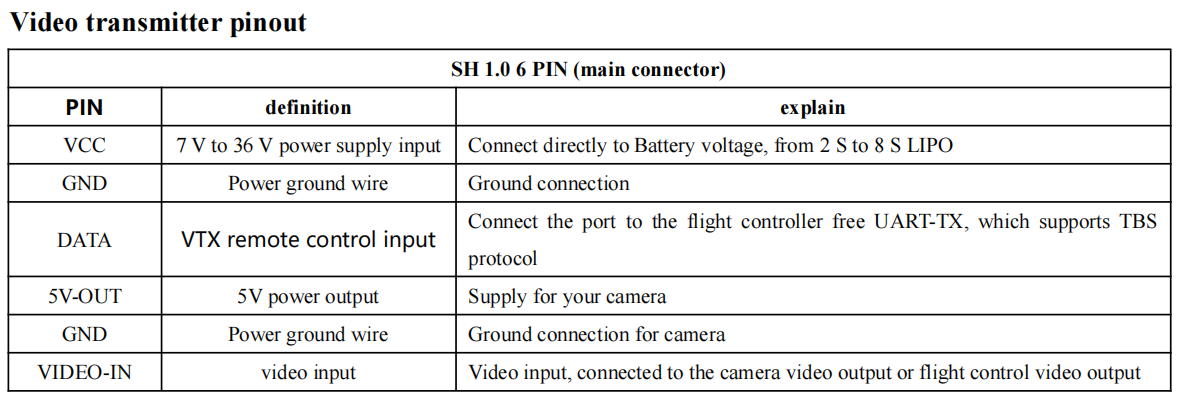

Cable interface: SH1.06PIN
Video format: PAL/NTSC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

丨 Product Introduction

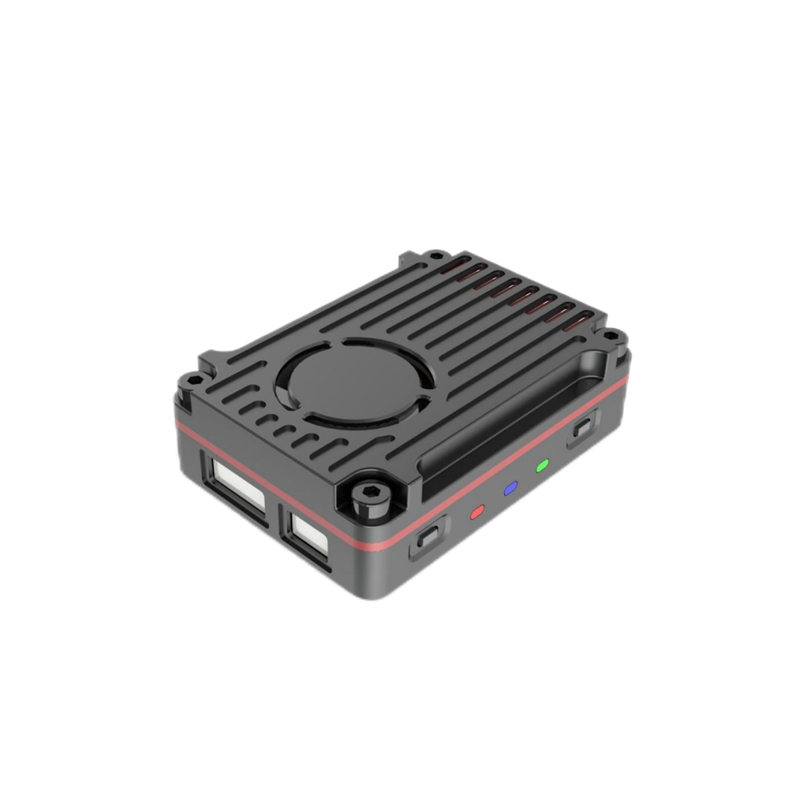

This high-power 3W (2500mW) video transmitter delivers exceptional 15km long-range transmission in open areas, operating across 4.9-6.1GHz with 72 programmable channels (48 standard + 24 extended). Engineered for intense FPV operations, it features an aerospace-grade aluminum alloy housing integrated with a turbofan and thermal protection to prevent overheating. Control power output (25mW-2500mW/PIT mode) and switch bands/frequencies via physical buttons or OSD configuration using TBS SmartAudio protocol. Compatible with 2S-8S batteries (7-36V input) and all PAL/NTSC cameras through MMCX antenna interface. Ideal for racing drones and long-range aerial photography.

Key Features：
（1）High Power Output: Up to 2,500mW, enabling long-distance transmission (<15km in open environments).

（2）Wide Frequency Range: 72 channels (4.9G–6.1G), including standard and expanded bands.

（3）Voltage Compatibility: Supports 7V–36V input (2S–8S batteries).

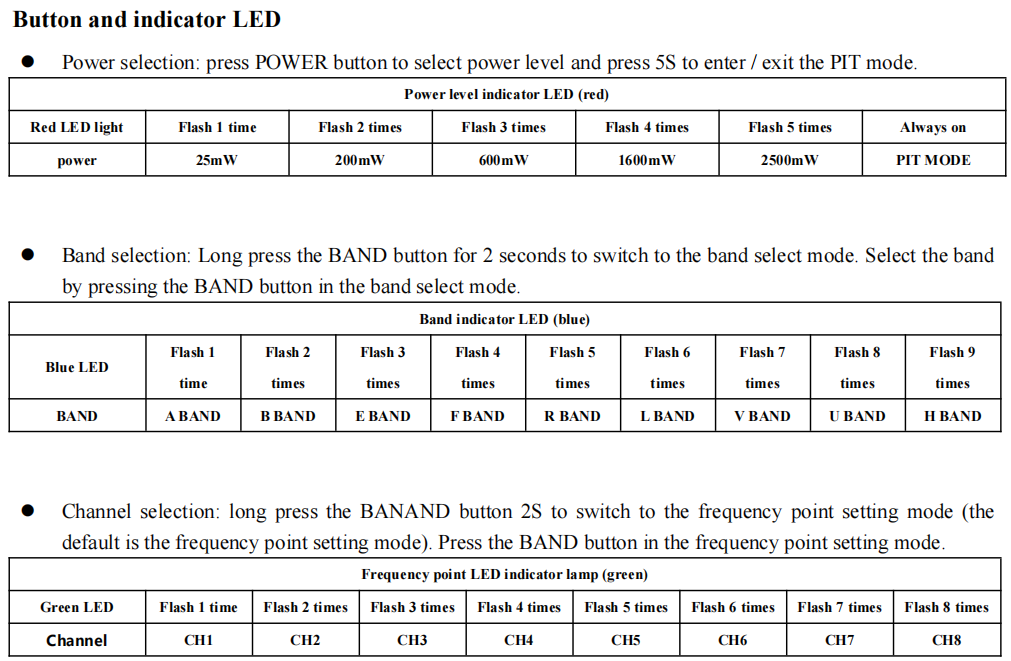

（4）OSD Configuration: Adjustable via TBS protocol. Quick Controls: 2 physical buttons for fast power/band switching. 3 LED indicators (power/band/channel status).

（5）Thermal Protection: Temperature control to prevent chip damage. Aluminum alloy casing + high-speed turbine fan for active cooling.

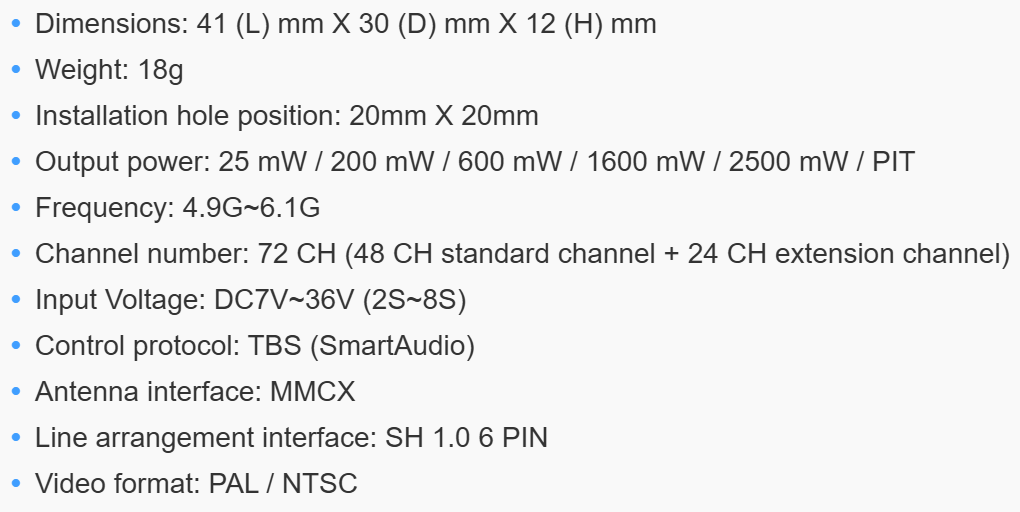

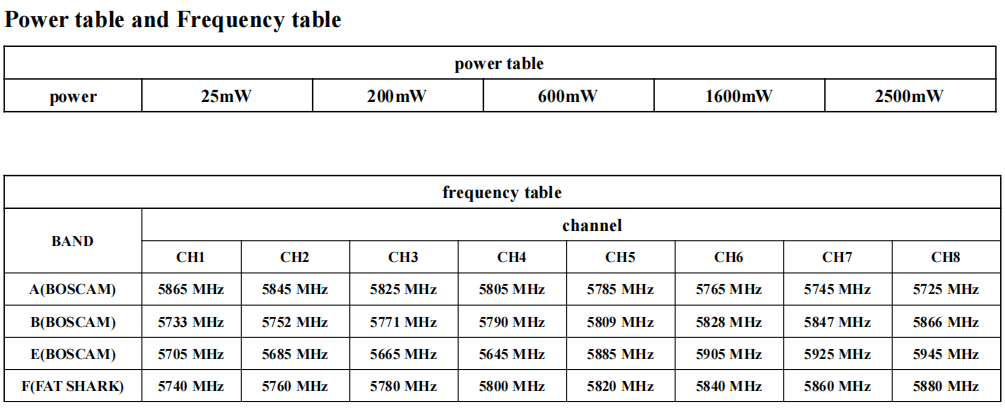

丨 Specification parameters

丨 product mix

Packaging and Delivery：

Designed for Enhanced FPV Drone Adventures
This Drone-Specific 3W Video Transmitter is tailored for drone enthusiasts seeking dependable and long-distance video feeds. Whether you're into drone racing or aerial photography, you’ll appreciate its ability to deliver clear visuals over extended ranges. The transmitter supports 72 channels across a broad frequency spectrum, helping you avoid signal disruptions through superior Anti-Interference capabilities. Its OSD Configuration lets you easily tweak settings mid-flight, making it ideal for hobbyists who value flexibility and convenience during their outdoor activities.

Advanced Features for Unmatched Reliability
Focusing on performance, this transmitter offers adjustable power outputs up to 2500mW and covers 4.9 to 6.1 GHz with 72 programmable channels. Its aerospace-grade aluminum body paired with an integrated turbofan and temperature protection guards against overheating, ensuring durable operation during demanding use. The simple interface with physical buttons and OSD Configuration, enabled by the TBS SmartAudio protocol, streamlines setup and control. Supporting input voltages from 7V to 36V, it’s compatible with popular battery setups, providing a robust and adaptable solution for various drone models.

Versatile Usage Across Aerial Applications
This transmitter excels in multiple drone scenarios, from high-speed FPV racing in congested frequency bands to cinematic aerial photography requiring steady footage. Its extensive channel options and Anti-Interference technology improve transmission stability in urban or radio-noisy environments. For custom drone builders and professional flyers, the embedded OSD Configuration enhances system integration and user control. This product supports extended flight times through its efficient thermal management, delivering both performance and peace of mind during critical airborne operations.

Use Scenarios

Long-Range FPV Drone Racing Environment
In competitive drone racing, maintaining a stable video link is critical. This Drone-Specific 3W Video Transmitter operates effectively within densely populated frequency spectrums by offering 72 Anti-Interference programmable channels, allowing racers to quickly switch bands and avoid congested frequencies. Its thermal protection system guarantees continuous output during intense high-speed flights. Integrating easily with existing FPV systems, the device’s OSD Configuration allows pilots to fine-tune settings on the fly, reducing downtime and ensuring real-time responsiveness essential for race conditions in open or obstacle-rich courses.

Aerial Photography in Variable Signal Environments
For professional aerial photography, consistent video quality is paramount even in environments crowded with wireless signals. This transmitter’s broad frequency range and multiple output power levels adapt to changing conditions, minimizing signal loss. Its rugged aerospace housing and turbofan cooling system enable extended shooting sessions without overheating concerns. Through OSD Configuration, photographers can adjust parameters quickly to optimize feed clarity when recording or streaming. The transmitter smoothly integrates with PAL/NTSC cameras and supports different drone power supplies, making it a reliable component for creative workflows in urban, rural, or industrial aerial imagery tasks.

FAQ

What materials are used in the construction of the Drone-Specific 3W Video Transmitter?
The Drone-Specific 3W Video Transmitter features an aerospace-grade aluminum alloy housing, ensuring strong durability and effective heat dissipation to provide reliable performance during long flights and competitive drone racing.

Can the power output and frequency settings be customized on this video transmitter?
Yes, users can easily adjust power output and select from 72 channels using either physical buttons or OSD configuration via the TBS SmartAudio protocol. This OSD configuration allows for flexible tuning to reduce interference and optimize video transmission.

How easy is it to install this video transmitter on different drones?
Installation is straightforward thanks to compact dimensions (41x30x12 mm) and a standardized 20 mm x 20 mm mounting hole pattern. The transmitter supports input voltages from 7V to 36V, compatible with 2S to 8S batteries, fitting a wide range of drone setups with ease.

What ongoing maintenance is required to ensure longevity of the transmitter?
The device includes temperature protection and an integrated turbofan that manage heat during use, reducing risk of overheating. Regularly checking cooling components and ensuring proper cable connections will maintain optimal function of this Anti-Interference video transmitter.
