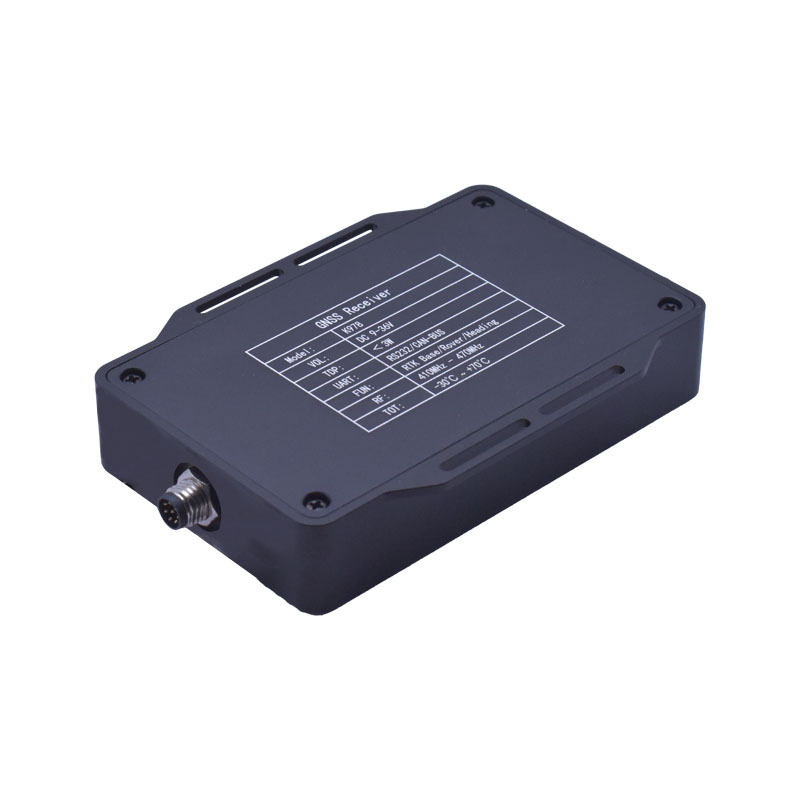

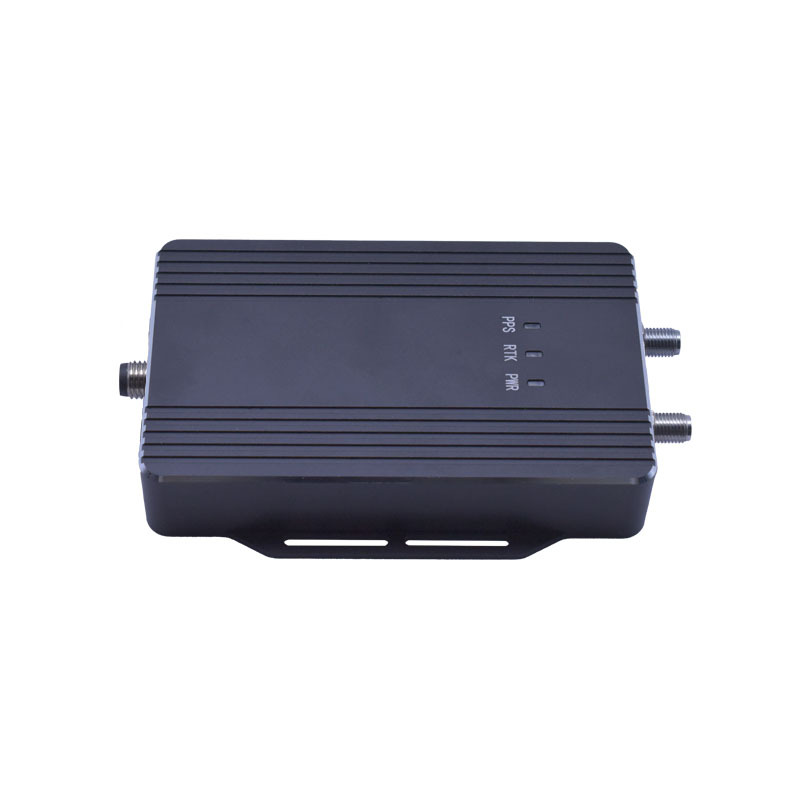

丨 Product Introduction
1. Built in advanced full system full constellation GNSS module.
2. Supports BDS, GPS, GLONASS, Galileo, and QZSS.
3. Can be used as a base station or mobile station.
4. Adopt on-board standard 9-36V wide voltage input.
5. Adopt industrial grade 2W wireless transmitter module.
丨 Specification parameters
|
Specification parameters
|
|
GNSS module
|
1
|
working frequency
|
BDS: B1I B2I B3I B1C B2a B2b
GPS: L1 C/A L1C L2P (Y) L2C L5
GLONASS: L1 L2
Galileo: E1 E5a E5b E6
QZSS: L1 L2 L5 L6
|
|
2
|
Receiving channel
|
1408 channel
|
|
3
|
Single point positioning
(RMS)
|
Plane: 1.5m
|
|
Elevation: 2.5m
|
|
4
|
DGPS(RMS)
|
Plane: 0.4m+1ppm
|
|
Elevation: 0.8m+1ppm
|
|
5
|
RTK(RMS)
|
Flat: 0.008m+1ppm
|
|
Elevation: 0.015m+1ppm
|
|
6
|
Observation accuracy (RMS)
|
BDS
|
GPS
|
GLONASS
|
Galileo
|
|
7
|
B1I/B1C/L1C/L1 C/A/E1/G1 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
8
|
B1I/B1C/L1C/L1 C/A/E1/G1 carrier phase
|
1mm
|
1mm
|
1mm
|
1mm
|
|
9
|
B3I/L2P (Y)/L2C/G2 pseudorange
|
10cm
|
10cm
|
10cm
|
10cm
|
|
10
|
B3I/L2P(Y)/L2C/G2
|
1mm
|
1mm
|
1mm
|
1mm
|
|
11
|
carrier phase
|
10cm
|
10cm
|
10cm
|
10cm
|
|
12
|
B2I/B2a/B2b/L5/E5a/E5b pseudorange
|
1mm
|
1mm
|
1mm
|
1mm
|
|
13
|
Time accuracy (RMS)
|
10ns
|
|
14
|
Speed accuracy (RMS)
|
0.03m/s
|
|
15
|
cold boot
|
＜10s
|
|
16
|
Initialization time
|
<5s (typical value)
|
|
17
|
Initialize reliability
|
＞ 99.9%
|
|
Radio module
|
1
|
frequency range
|
410-470MHz
|
|
2
|
Channel spacing
|
12.5KHz
|
|
3
|
Working mode
|
half-duplex
|
|
4
|
Frequency stability
|
1.5ppm
|
|
5
|
modulation mode
|
CSS
|
|
6
|
Airborne baud rate
|
12Kbps
|
|
7
|
Protocol type
|
LoRa
|
|
8
|
Serial port baud rate
|
4800/9600/19200/38400/115200bps
|
|
9
|
Maximum data transmission and reception size per second
|
1000Byte
|
|
10
|
Receive current
|
50mA
|
|
11
|
Emission current
|
＜2A
|
|
12
|
Transmission power
|
33dBm±1.5dB
|
|
Interface
|
1
|
Radio interface
|
SMA ports
|
|
2
|
GNSS antenna interface
|
SMA ports
|
|
3
|
Data/power interface
|
8-core LEMO ports
|
|
Data format
|
1
|
Differential data
|
RTCM3.X
|
|
2
|
output format
|
NMEA-0183, RTCM3.X
|
|
3
|
Data update rate
|
1Hz-20Hz(default 1Hz)
|
|
power supply
|
1
|
Voltage
|
DC +9V～36V
|
|
2
|
power waste
|
＜3W
|
|
3
|
indicator light
|
1power，1PPS，1RTK
|
|
Physical
parameters
|
1
|
size
|
100mm*61.8mm*18.75mm
|
|
2
|
weight
|
180g
|
|
3
|
Shell material
|
aluminium
|
|
Environmental
Specifications
|
1
|
working temperature
|
-30℃ ～ +70℃
|
|
2
|
Storage temperature
|
-55℃ ～+85℃
|
|
3
|
humidity
|
95%condensation
|
|
4
|
Protection grade
|
IP66
|
|
5
|
Seismic resistance
|
Resist the impact of a 1-meter free fall
|

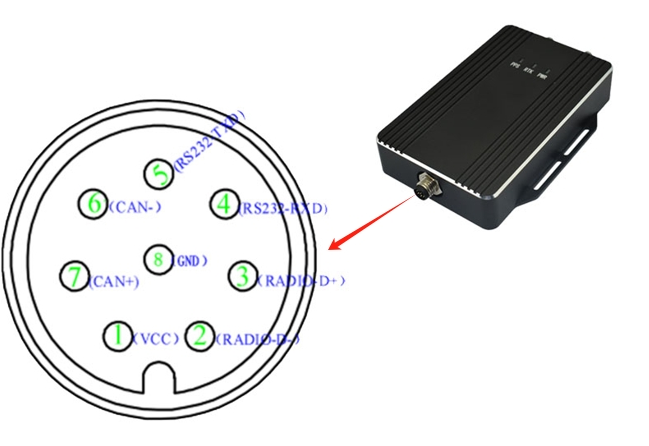

Table 1 M8 Interface Definition
|
M8-8P Male Interface Description
|
|
No.
|
Interface Name
|
Function Description
|
|
1
|
VCC
|
Input voltage 9-36V (typical value 12V), current 3A
|
|
2
|
RADIO-D-
|
Radio serial port USB D-
|
|
3
|
RADIO-D+
|
Radio serial port USB D+
|
|
4
|
RS232-RXD
|
GNSS module RS232 RXD
|
|
5
|
RS232-TXD
|
GNSS module RS232 TXD
|
|
6
|
CAN-
|
NC
|
|
7
|
CAN+
|
NC
|
|
8
|
GND
|
Mainboard GND
|
|

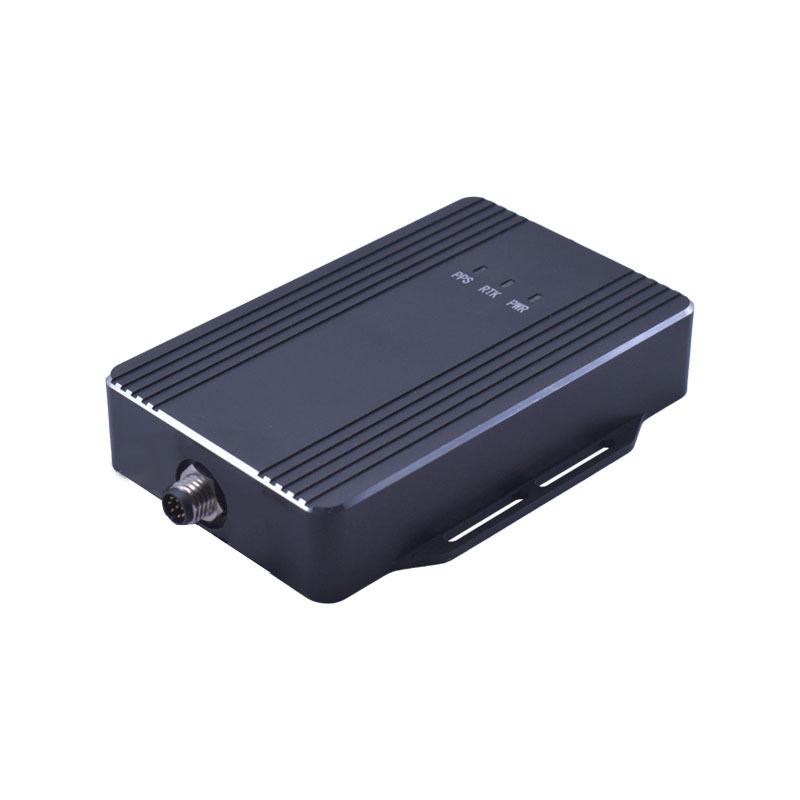

LED Indicator Interaction
|
|
1
|
PWR
|
Power indicator, solid red when operating normally
|
|
2
|
RTK
|
Differential positioning indicator, solid blue in FIX state
|
|
3
|
PPS
|
Positioning indicator, green light flashes, provides an output pulse per second (1PPS) signal with adjustable pulse width and polarity
|
|
Antenna Interface Definition
|
|
1
|
GNSS Antenna
|
SMA female, primarily receives GNSS antenna signals, antenna power supply 5V
|
|
2
|
Radio Antenna
|
SMA male, primarily receives/transmits 410-470MHz antenna signals
|

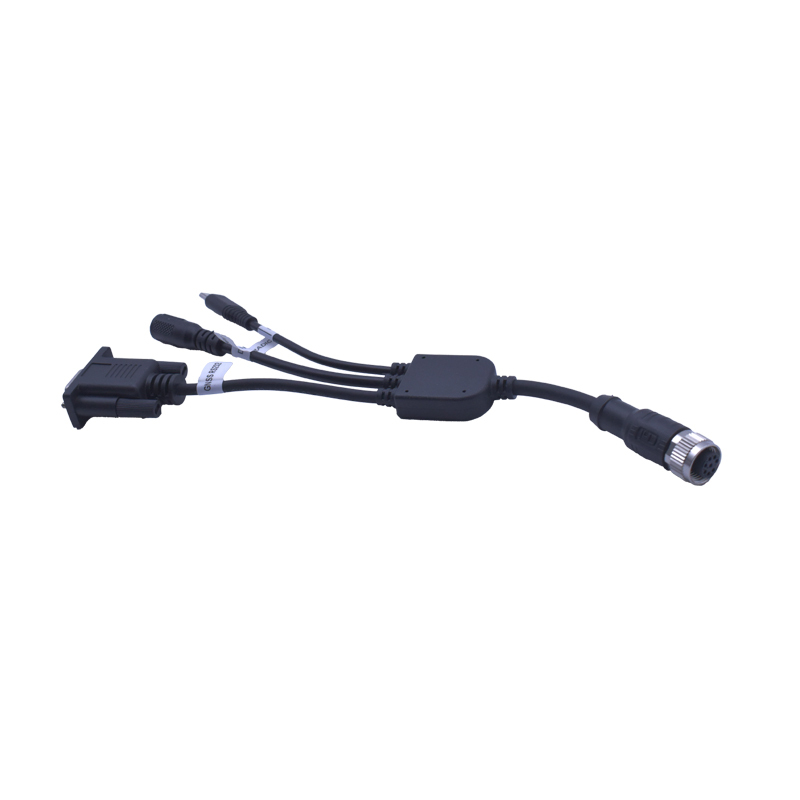

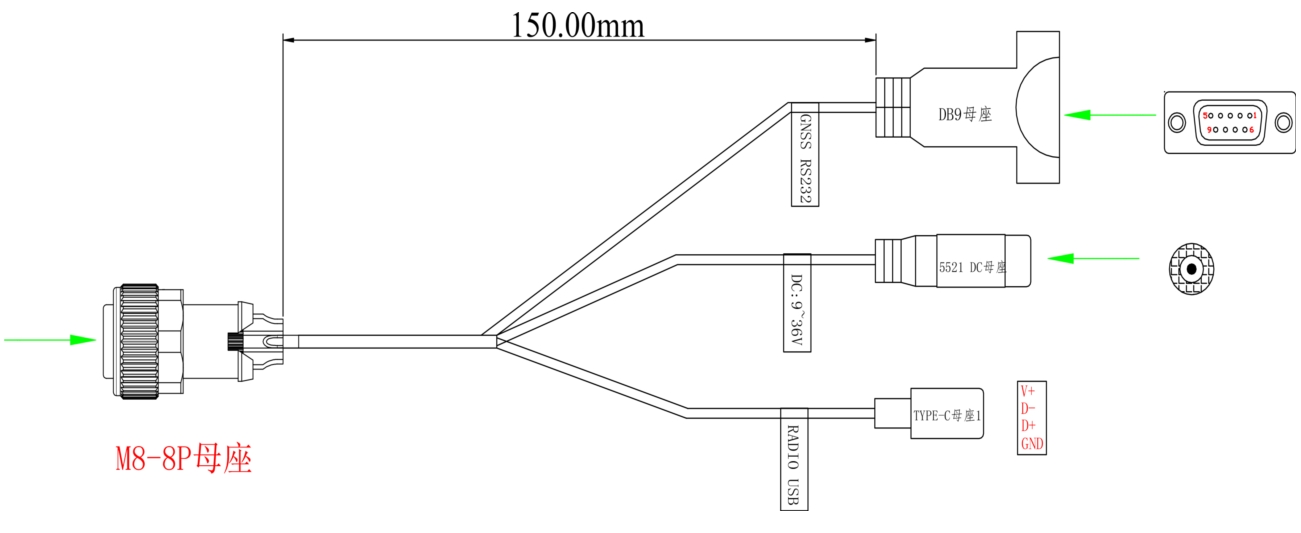

Structural diagram of connecting cables：

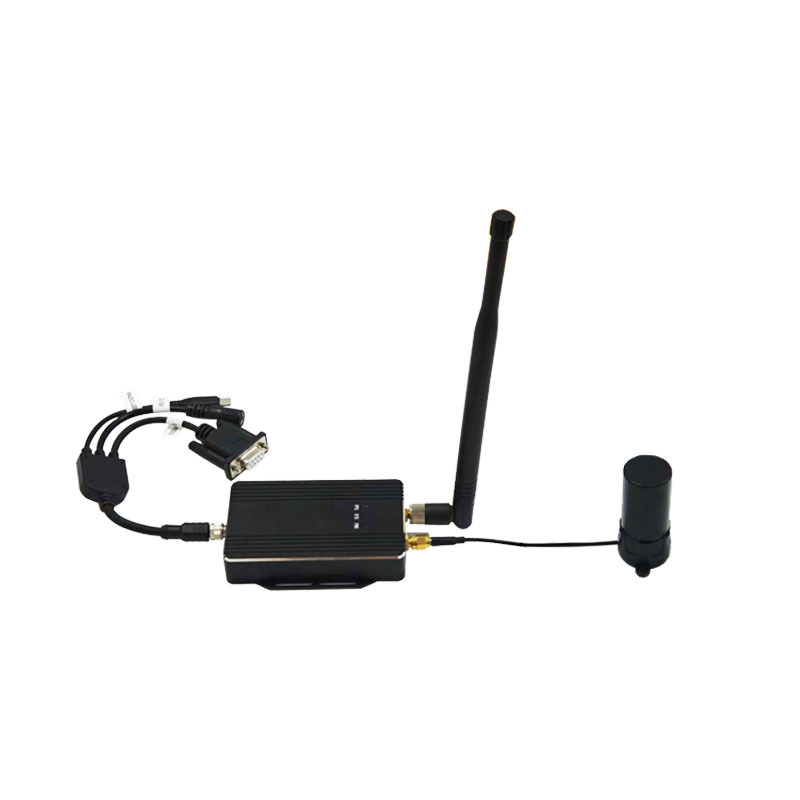

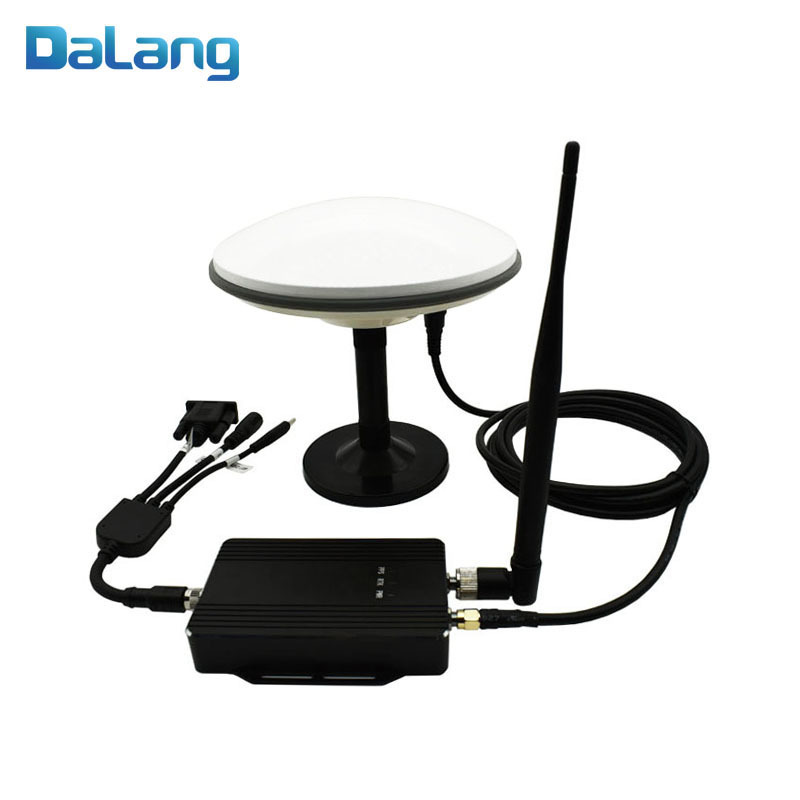

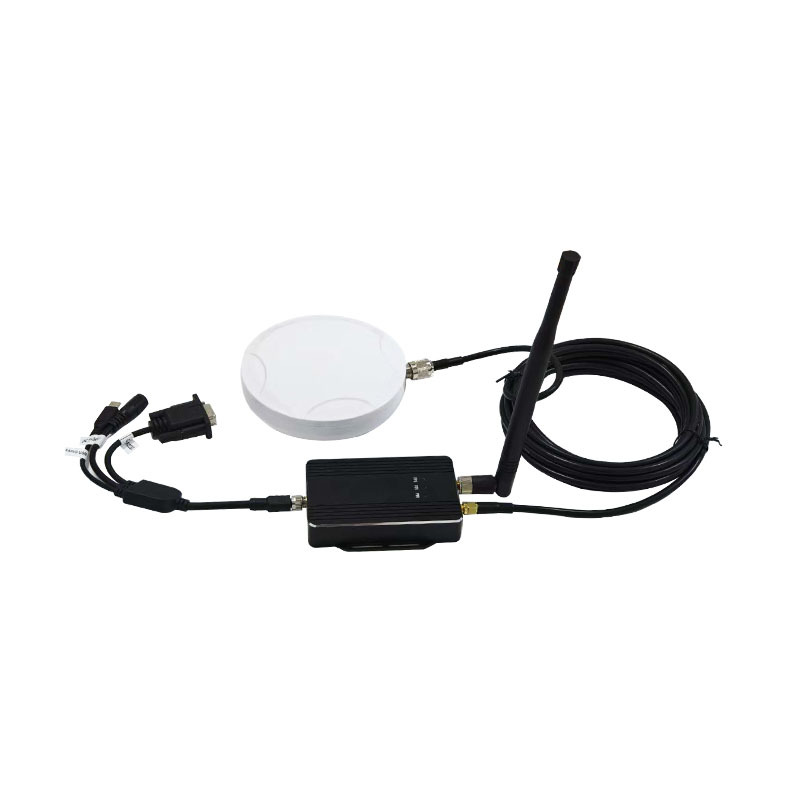

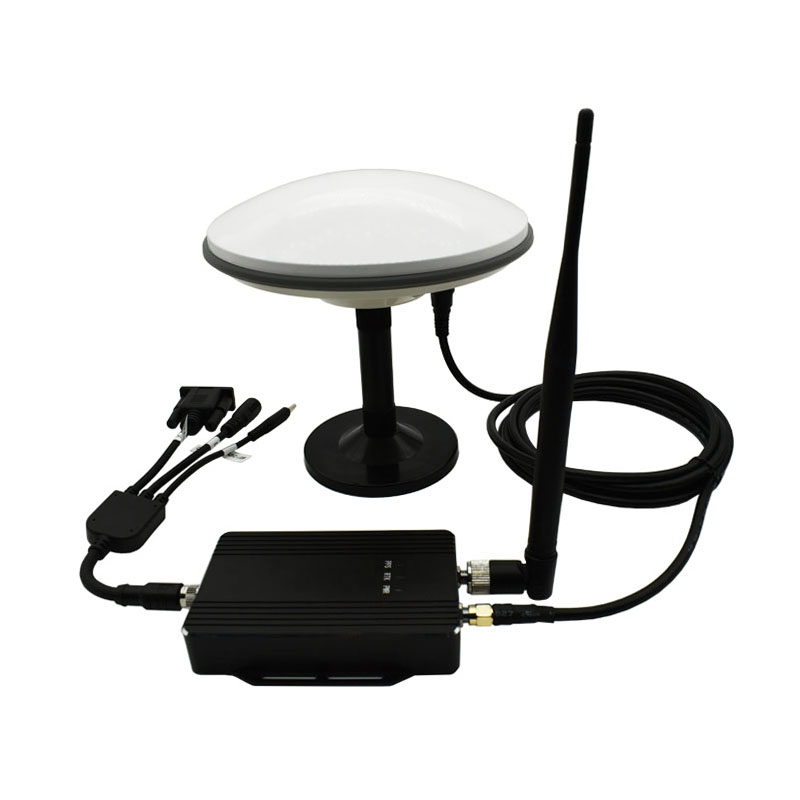

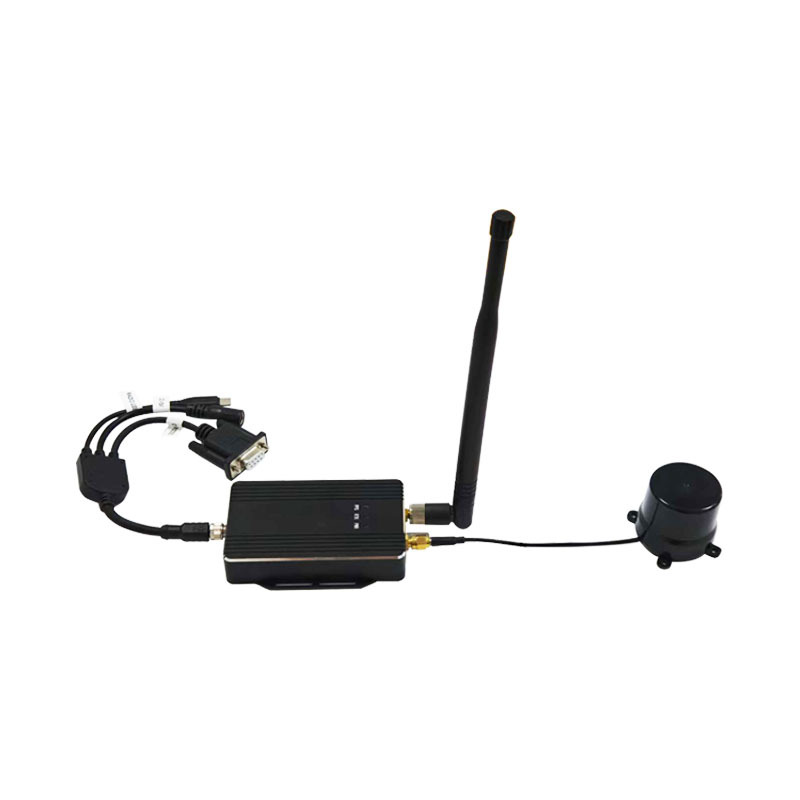

Complete scheme display：
Table 2 Complete Component Description
|
No.
|
Product Name
|
Function Description
|
|
1
|
Connection Cable
|
8-pin aviation connector to Type-C; DC-DC power
DB9 female connector
|
|
2
|
Receiver
|
Built-in GNSS module and Radio module
|
|
3
|
Radio Antenna
|
433±20MHz antenna
|
|
4
|
GNSS Antenna
|
All-system, all-frequency antenna
|
|
5
|

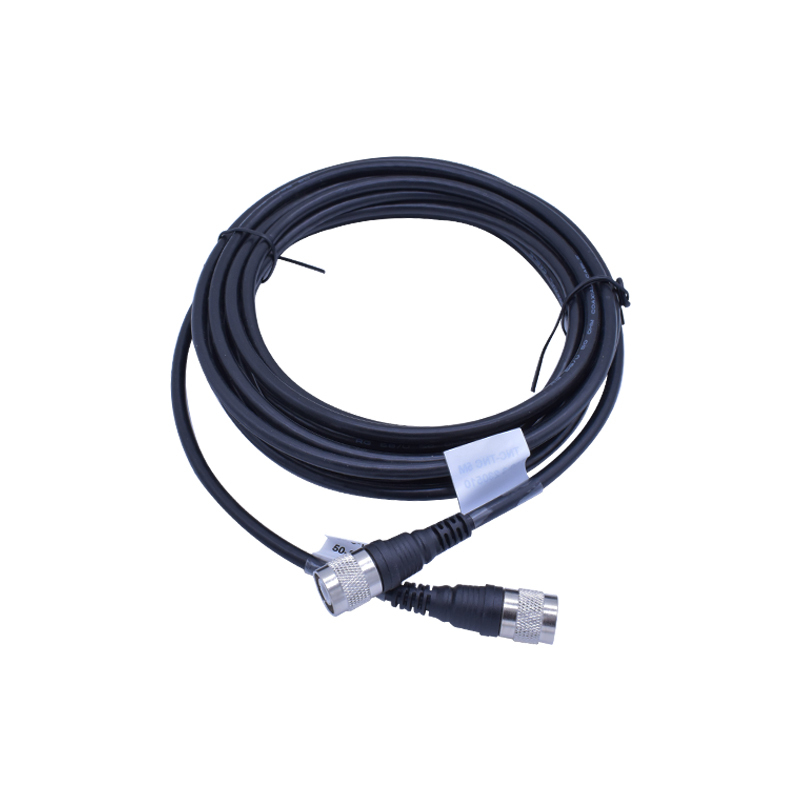

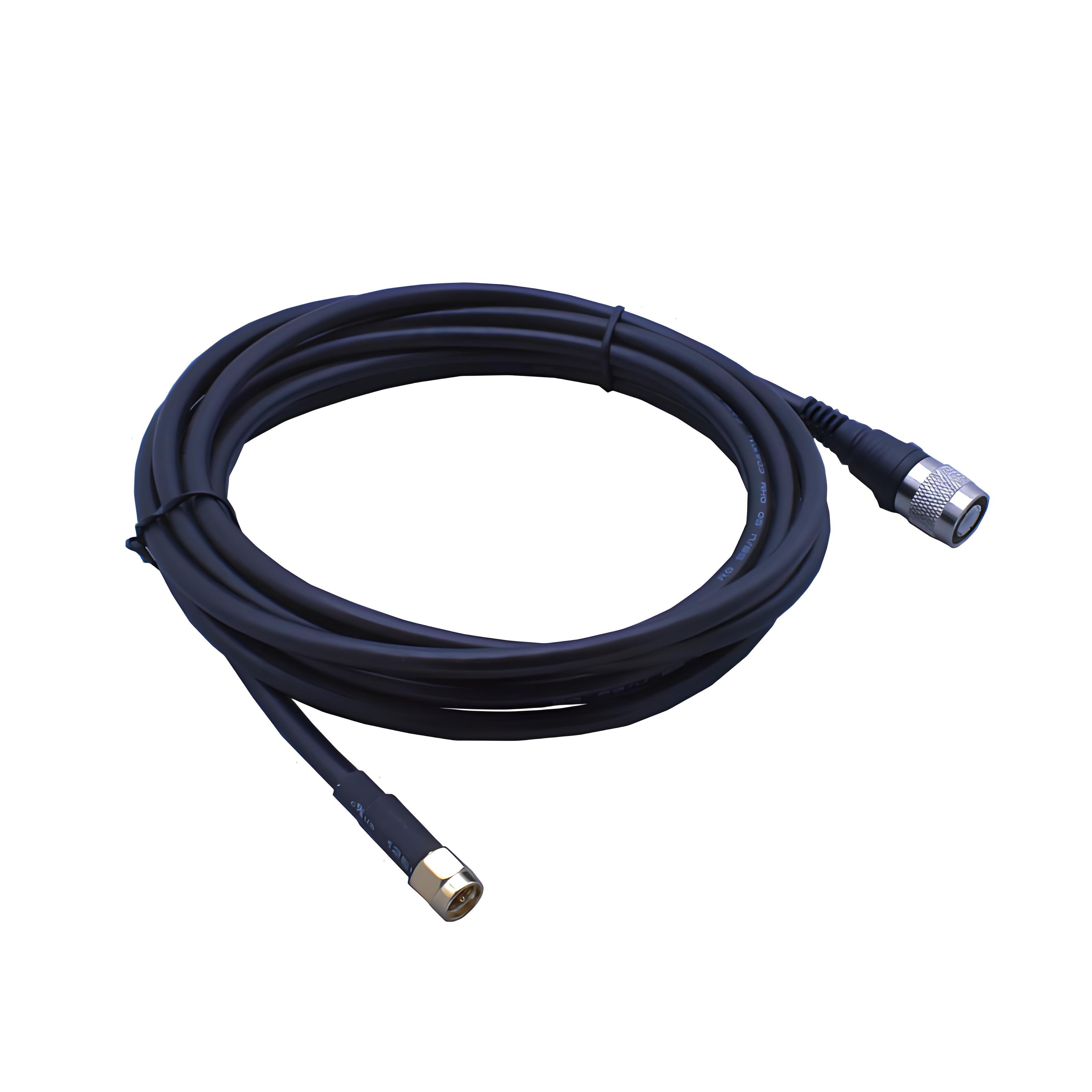

Coaxial Cable
|
5m TNC to SMA, 50-3 cable
|
antenna parameters：
  |
|
Electrical
Characteristics
|
1
|
Frequency Range
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
L-BAND
|
|
2
|
Output Standing Wave
|
≤2.0
|
|
3
|
Antenna Axial Ratio
|
≤3dB
|
|
4
|
Maximum Gain
|
5.5dBi
|
|
5
|
Phase Center
|
±2mm
|
|
6
|
Impedance
|
50Ω
|
|
7
|
Polarization Mode
|
RHCP
|
|
LNA
Specifications
|
1
|
LNA
|
L1:38±2dB
L2:38±2dB
|
|
2
|
VSWR
|
≤2.0
|
|
3
|
Noise Figure
|
≤1.8dB
|
|
4
|
In-band Flatness
|
1dB
|
|
5
|
Operating Voltage
|
3.3～12V
|
|
6
|
Operating Current
|
≤45 mA
|
|
7
|
Differential Transmission Delay
|
≤5ns
|
|

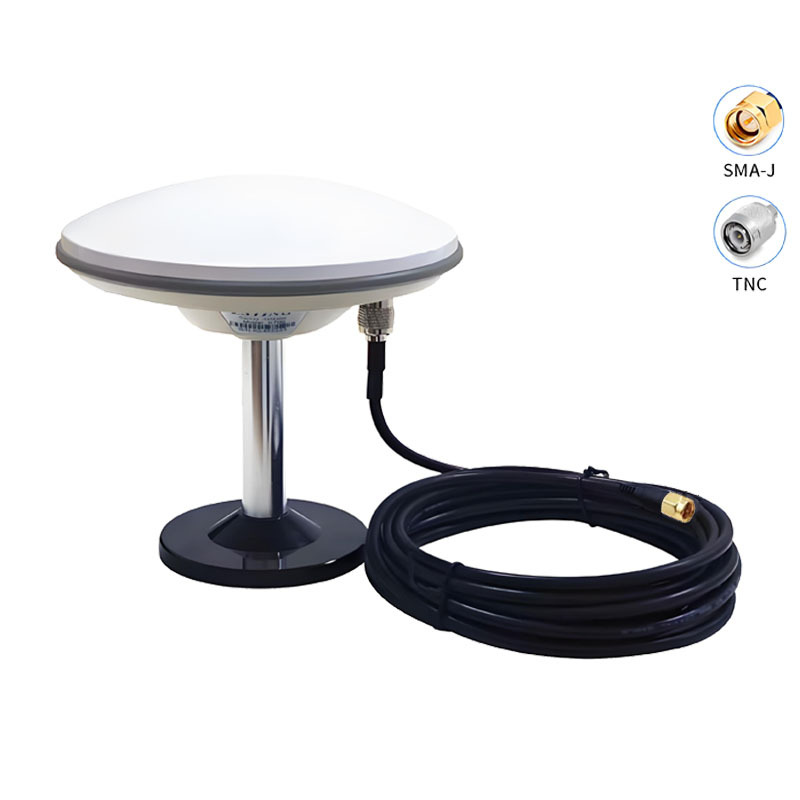

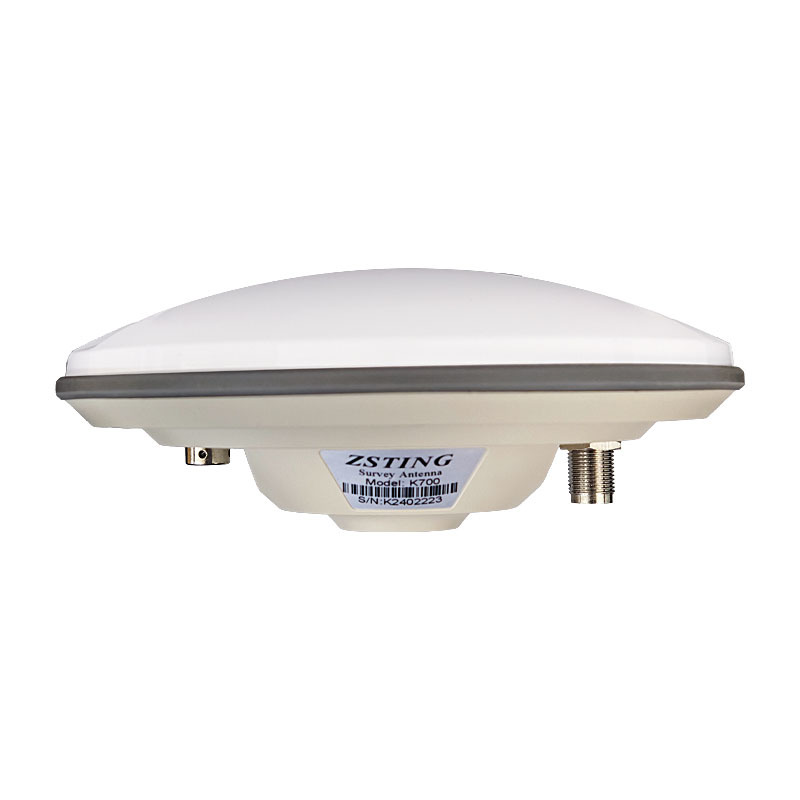

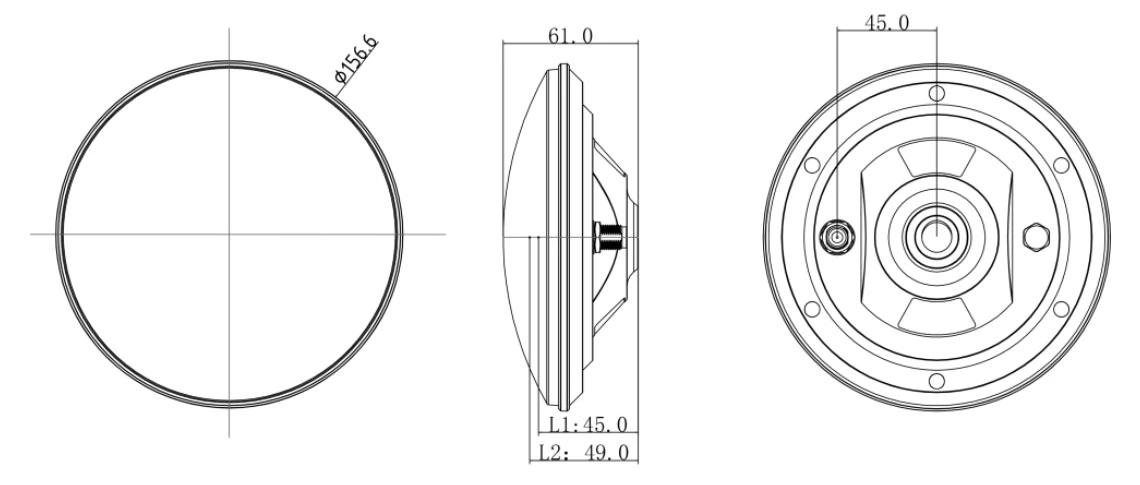

Structural Characteristics
|
1
|
Antenna Size
|
Φ159*61mm
|
|
2
|
Weight
|
≤380g
|
|
3
|
Connector Type
|
TNC
|
|
4
|
Thread Specification
|
Unified National Coarse (UNC) 5/8''×11 (Imperial)
|
|
5
|

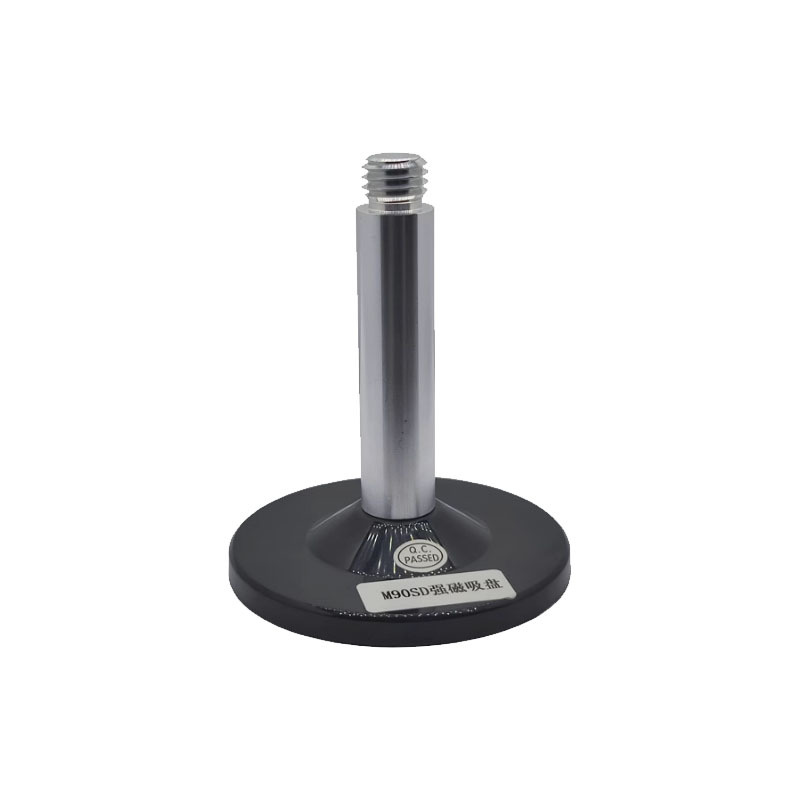

Mounting Method
|
centering rod mounting
|
|
Environmental Conditions
|
1
|
Operating Temperature
|
-40℃～+85℃
|
|
2
|
Storage Temperature
|
-55℃～+85℃
|
|
3
|
Humidity
|
95% non-condensing
|
  |
|

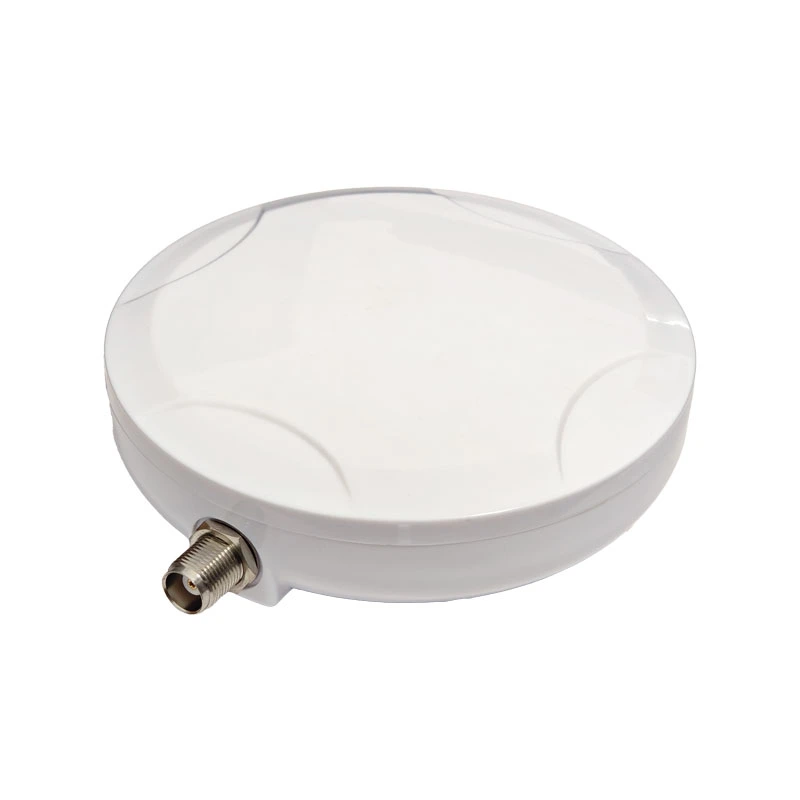

Antenna
Characteristics
|
1
|
Operating Frequency
|
GPS: L1C/A, L1C, L2P, L2C, L5
BDS-2: B1I, B21, B31
BDS-3: B1I, B31, B1C, B2a, B2b
GLONASS: G1, G2, G3
Galileo: E1, E5b, E5a, E5AltBoC, E6c
QZSS: L1C/A, L2C, L5, L1C
SBAS: L1C/A
IRNSS: L5
|
|
2
|
Antenna Specifications
|
GPS, Bei Dou，GLONASS,GALILEO
|
|
3
|
Frequency Range
|
1165-1278/1559-1612MHz
|
|
4
|
V.S.W. R
|
≤2.0
|
|
5
|
Axial Ratio
|
Elevation angle 90 degrees: ≤3
Elevation angle 15 degrees: ≤5
|
|
6
|
Gain
|
Elevation angle 90 degrees: ≥6
Elevation angle 20 degrees: ≥0 (plane)
|
|
7
|
Front to back power
|
±60 degrees: ≥15dB
|
|
8
|
Phase Center (mm)
|
<2
|
|
9
|
Impendence
|
50Ω
|
|
10
|
Polarization
|
RHCP
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
|
3
|
Noise Figure
|
＜1.5
|
|
4
|
DC Voltage
|
3.3~18V
|
|
5
|
Current
|
＜35 mA
|
|

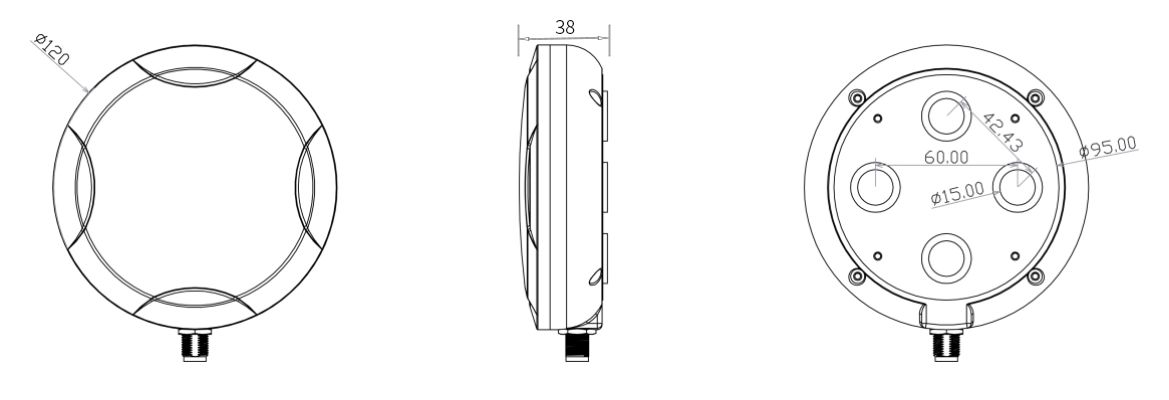

Mechanical
Structure
|
1
|
Component Name
|
SPEC
|
|
2
|
Antenna Connector
|
TNC / SMA
|
|
3
|
Antenna Dimensions
|
Φ120*38mm
|
|
4
|
weight
|
313.8g
|
|
5
|
PCB board
|
FR4
|
|
Environmental Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-55℃~+100℃, 10%~95% RH
|
|
3
|
Vibration
|
Sine sweep @1.5mmAM
10~55Hz each Axis
|
|
|
1
|
|
|
|
|
Electrical
Characteristics
|
1
|
Operating Frequency
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
GPS: L1, L2, L5
BDS: B1I, B2I, B3I, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5b, E5a, E6
QZSS: L1, L2, L5, L6
IRNSS: L5
|
|
2
|
Frequency Range
|
1170-1278/1559-1612MHz
|
1170-1278/1559-1612MHz
|
|
3
|
V.S.W. R
|
≤2.0
|
≤2.0
|
|
4
|
Axial Ratio
|
Elevation at 90 degrees: ≤ 3,
Elevation at 15 degrees: ≤ 5
|
At elevation angle 90 degrees:
≤3, at elevation angle 15 degrees: ≤5
|
|
5
|
Gain
|
Elevation at 90 degrees: ≥ 6 dB,
Elevation at 20 degrees: ≥ 0 dB
|
At an elevation angle of 90 degrees:
≥6, at an elevation angle of 20 degrees: ≥0 plane
|
|
6
|
Phase Center
|
<2mm
|
<2
|
|
7
|
Impendence
|
50Ω
|
50Ω
|
|
8
|
Polarization
|
RHCP
|
RHCP
|
|
9
|
Out-of-Band Suppression
|
1268+100MHZ≥50db,
1170-100MHZ≥50db，
1602+100MHZ≥50db,
1561-100MHZ ≥50db.
|
1268+100MHZ≥50db,
1170-100MHZ≥50db，
1602+100MHZ≥50db,
1561-100MHZ ≥50db.
|
|
LNA
|
1
|
LNA GAIN
|
38±2dB
|
38±2dB
|
|
2
|
V.S.W. R
|
＜2
|
＜2
|
|
3
|
Noise Figure
|
＜2.0
|
＜2.0
|
|
4
|
DC Voltage
|
3.3~16V
|
3.3~16V
|
|
5
|
Current
|
＜35 mA
|
＜35 mA
|
|

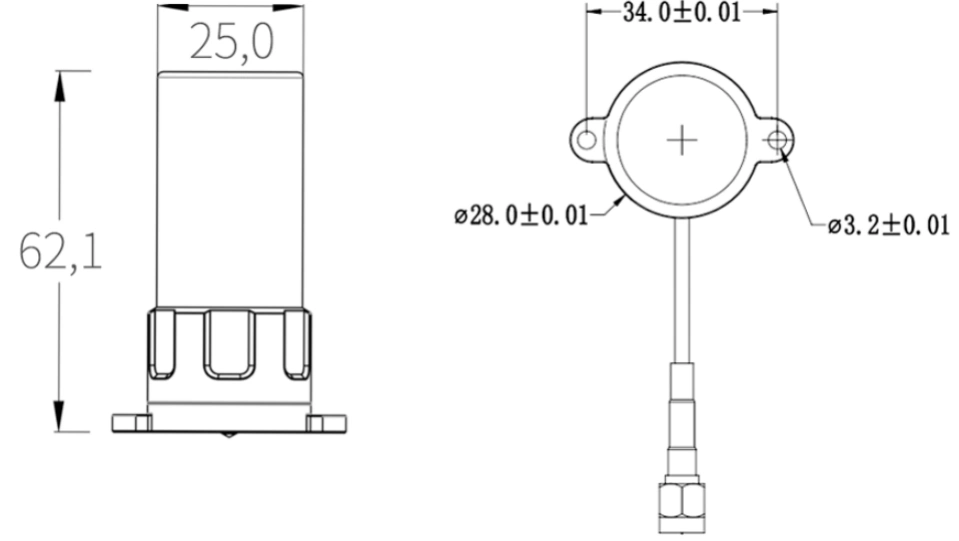

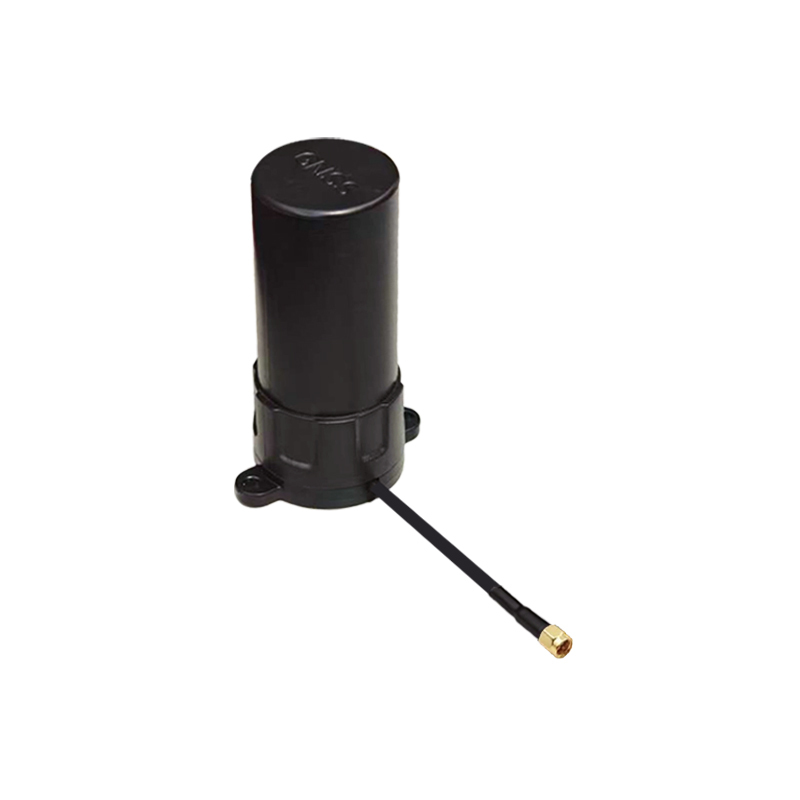

Mechanical
Structure
|
1
|
Part Name
|
SPEC
|
SPEC
|
|
2
|
Antenna
|
FPC
|
FPC
|
|
3
|

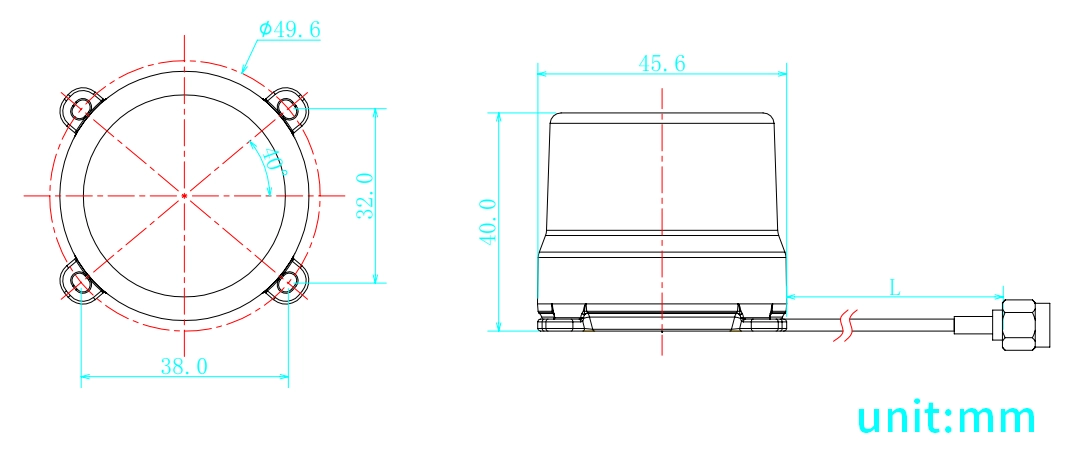

Antenna Dimensions
|
Φ45.6*40mm
|
Φ62.1*25mm
|
|
4
|
Product Weight
|
25.8g
|
25.4g
|
|
5
|
Coaxial line
|
RG316 / RG1.13(customizable)
|
RG316 / RG1.13(customizable)
|
|
6
|
Line length
|
L=150mm / L=250mm(customizable)
|
L=150mm / L=250mm(customizable)
|
|
7
|
RF Output Interface
|
SMA-J / IPEX / MCX / MMCX(customizable)
|
SMA-J / IPEX / MCX / MMCX(customizable)
|
|
8
|
Antenna Housing
|
ABS+PC
|
ABS+PC
|
|
9
|
PCB Board
|
FR4
|
FR4
|
|
Environmental
Characteristics
|
1
|
Operating Temperature
|
-40℃~+85℃, 10%~95% RH
|
-40℃~+85℃, 10%~95% RH
|
|
2
|
Storage Temperature
|
-40℃~+85℃, 10%~95% RH
|
-40℃~+85℃, 10%~95% RH
|
|
3
|
Humidity
|
Sine sweep
@1.5mmAM 10~55Hz each Axis
|
Sine sweep
@1.5mmAM 10~55Hz each Axis
|
|
4
|
Vibration Resistance
|
95％ No-condensing
|
95％ No-condensing
|

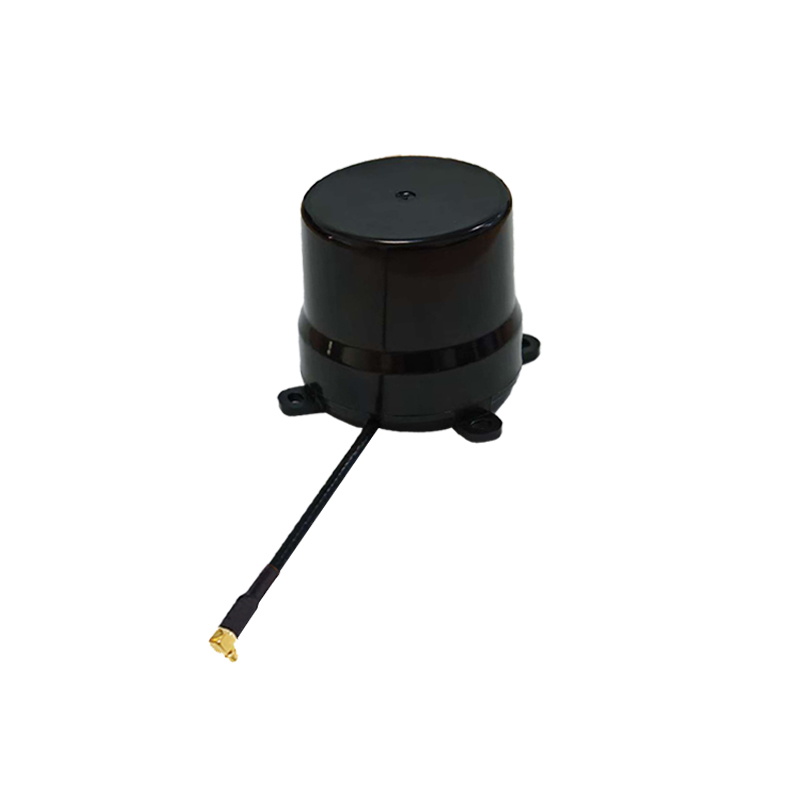

AK181：
AK161：
Packaging and Delivery：
High-Precision GNSS Receiver for Surveying and UAV Applications
The DALANG AK977K is a high-performance GNSS receiver with a built-in multi-system, multi-frequency GNSS module that supports BeiDou, GPS, GLONASS, Galileo, QZSS, and SBAS signal tracking. Delivering excellent multi-frequency, multi-constellation tracking capabilities, it maintains high-precision positioning even in complex environments. Ideal for surveying, precision agriculture, UAVs, and autonomous robots, it is the perfect choice for professional high-precision applications.
Real-Time High-Precision Positioning Engine
Utilizing advanced GNSS technology and supporting RTK centimeter-level positioning, it achieves horizontal accuracy of 8mm+1ppm and elevation accuracy of 15mm+1ppm. With a cold start time of <10 seconds, initialization time of <5 seconds, and initialization reliability of >99.9%, it ensures fast acquisition of stable and accurate positioning data.
Industrial-Grade Design
Features 9-36V wide voltage input and integrates a 2W industrial-grade data transmission module supporting the 410-470MHz frequency band with LoRa protocol. Equipped with SMA antenna interfaces and an 8-pin LEMO data/power interface, it boasts an aluminum alloy shell, IP66 rating, and resistance to 1-meter free fall impact, making it suitable for harsh field environments.
Product Advantages
-
Full-System, Full-Frequency Support
Supports all major satellite navigation systems for global high-precision positioning
-
High-Power Data Radio
2W industrial-grade wireless module for longer transmission distance and better anti-interference capability
-
Exceptional Positioning Performance
Centimeter-level RTK positioning, fast initialization, high reliability
-
Easy Integration
Standard interface design, compatible with mainstream flight control systems for easy integration
Providing a reliable high-precision positioning solution for your surveying, agricultural, or UAV projects. Contact us today for a professional customized solution!
