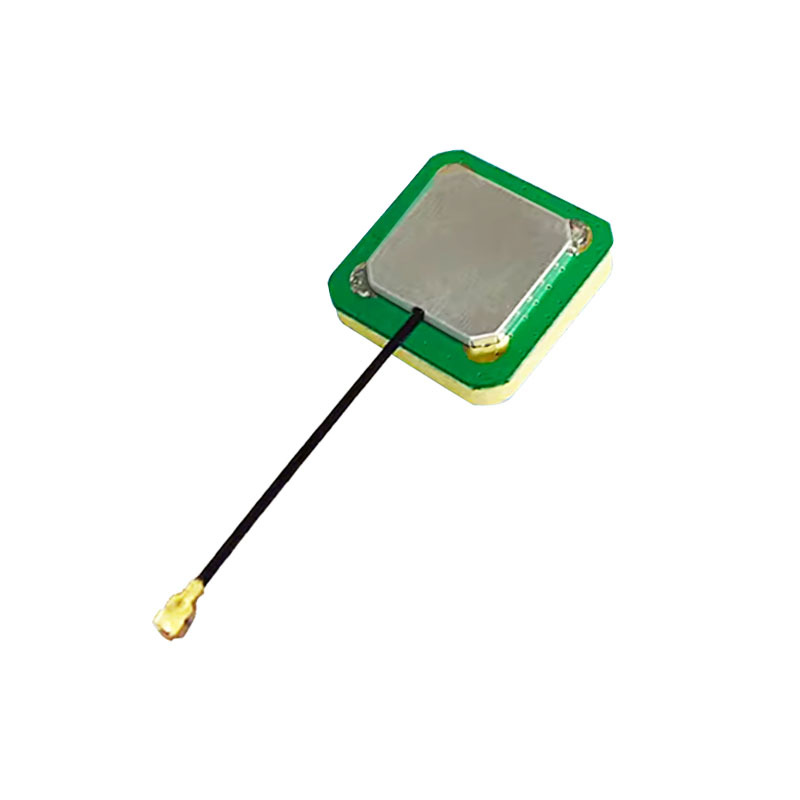

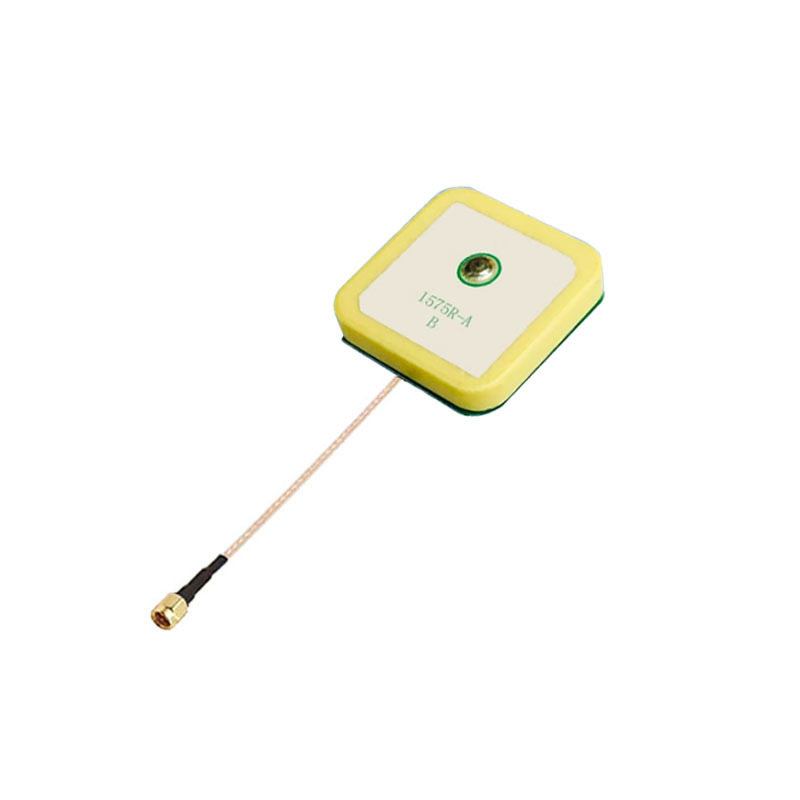

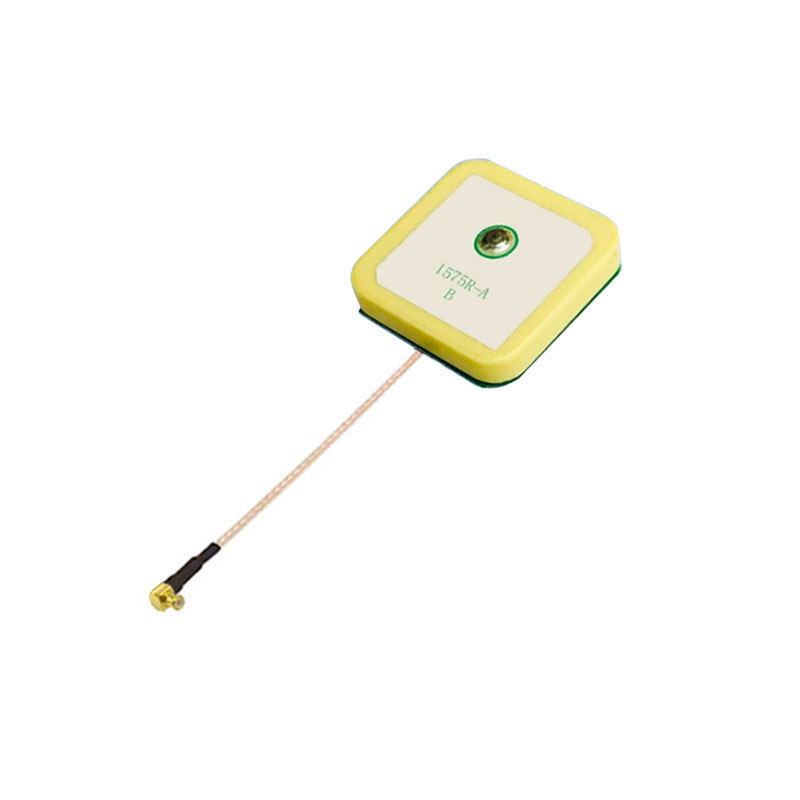

丨 Product IntroductionThis product AK255 adopts high-performance ceramic media and low-noise amplification technology, providing excellent signal reception capability. Its ultra-thin and compact structure is suitable for space limited application scenarios such as car navigation, drones, smart wearables, asset tracking, and IoT terminals, ensuring high-precision positioning and stable performance.
characteristic:1. High sensitivity: Built in low-noise amplifier, strong signal reception capability
2. Compact design: ultra small size, saving equipment space
3. Stable and reliable: ceramic material, excellent anti-interference performance
4. Low power consumption: 3-5V wide voltage supply, energy-saving and efficient
丨 Specification parameters
GPS L1 performance indicators:
|
parameter
|
specifications
|
|

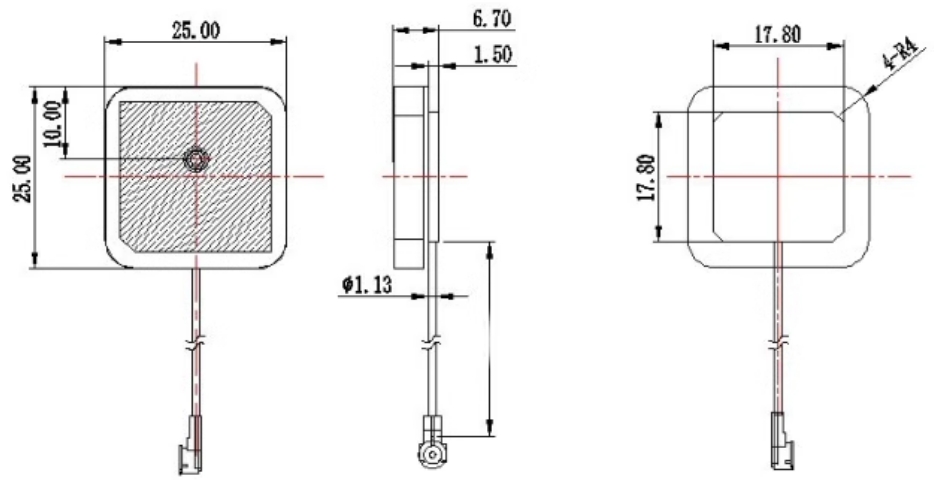

Dimension (mm)
|
25X25X4
|
|
Frequency(MHz)
|
1575.42±2.5
|
|
-10dB Bandwidth(MHz)
|
10 min
|
|
Gain at Zenith (dBic)
|
5 typ. (Grounding area: 70X70mm)
|
|
SWR(At Center Frequency)
|
<1.5
|
|
Polarization
|
R.H.C.P
|
|
Package
|
40Pcs/tray；800Pcs/box
|
LAN performance indicators:
|
parameter
|
specifications
|
|
gain
|
19±1.5dB
|
|
figure
|
1.5dB typ.
|
|
output vswr
|
<2.0 typ.
|
|
voltage
|
DC 3～5V
|
|
electric current
|
<5mA
|
|
impedance
|
50Ω
|
Packaging and Delivery：
DALANG High-Performance GNSS Antenna
The DALANG High-Performance GNSS Antenna is a compact antenna designed for in-vehicle navigation and portable devices, supporting the GPS L1 band (1575.42±2.5MHz). Featuring a 25×25×4mm ceramic design and a high-gain low-noise amplifier, it delivers stable and reliable positioning signals in various usage environments.
Excellent Signal Reception Performance
The antenna incorporates an optimized RF design with outstanding gain performance and a low-noise amplifier, ensuring consistent and stable positioning signals during movement. Excellent voltage standing wave ratio (VSWR) characteristics guarantee signal transmission efficiency, maintaining reliable positioning performance even in complex environments.
Energy-Efficient and Eco-Friendly Design
With low power consumption design, the operating current is controlled at the milliampere level, meeting the power requirements of in-vehicle and portable devices. Right-hand circular polarization (RHCP) technology effectively enhances anti-interference capability, ensuring stable operation in complex electromagnetic environments.
Compact and Robust Structural Design
The compact size allows for easy integration into in-vehicle and portable devices, while the sturdy design adapts to various usage environments, providing a convenient and reliable solution for device manufacturers.
Product Advantages
-
High-Quality Signal Reception
Optimized gain design and signal processing technology ensure stable positioning performance in mobile environments.
-
Low Power Consumption Design
Low power consumption meets the energy efficiency requirements of various electronic devices, extending usage time.
-
Reliable Transmission Performance
Excellent electrical characteristics ensure signal transmission quality, improving the reliability of positioning systems.
-
Easy Integration and Use
Compact size and robust design facilitate quick integration into various devices.
Looking for a reliable GPS antenna solution for your devices? DALANG High-Performance GNSS Antenna delivers stable performance to meet your positioning needs!
