1. Dual-frequency (L1/L5) positioning: meets the positioning requirements of standard GNSS antennas and provides reliable location information.
2. Stacked antenna: a combination of doubly single fed antennas to enhance signal reception capability and stability.
3. High gain broadband: improves signal reception quality and coverage range.
4. Environmental compliance: Compliant with the RoHS directive, meets environmental standards, and is suitable for the global market.
丨 Specification parameters
|
Specification parameters
|
|
Antenna
characteristics
|
1
|
antenna model
|
GNSS antenna
|
|
2
|
Usage frequency
|
GPS：
L1:1575.42±1.023MHZ
L5:1176.45±1.023MHZ
GLONASS：L1:1602+0.5625MHz
BDS: B1:1561±1.023MHz
GALILEO：E1:1575
|
|
3
|
Gain
|
28±2db
|
|
4
|
V.S.W.R
|
≤2
|
|
5
|
impedance
|
50Ω
|
|
6
|
Polarization mode
|
RHCP
|
|
7
|
voltage
|
DC 3~5V
|
|
8
|
electric current
|
15~25mA
|
|
Mbom
|
1
|

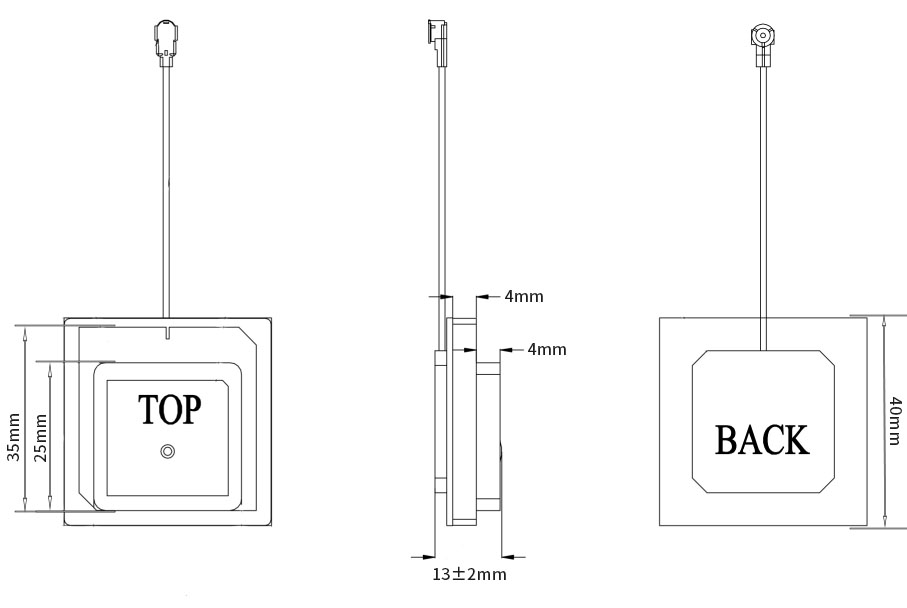

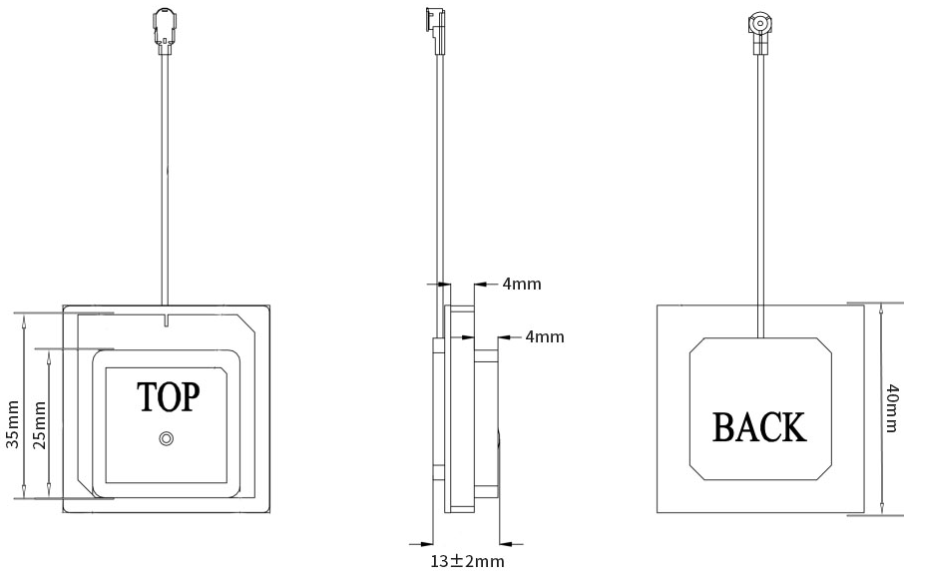

Overall size
|
40*40*13mm
|
|
2
|
Product weight
|
15g
|
|
3
|
joint
|

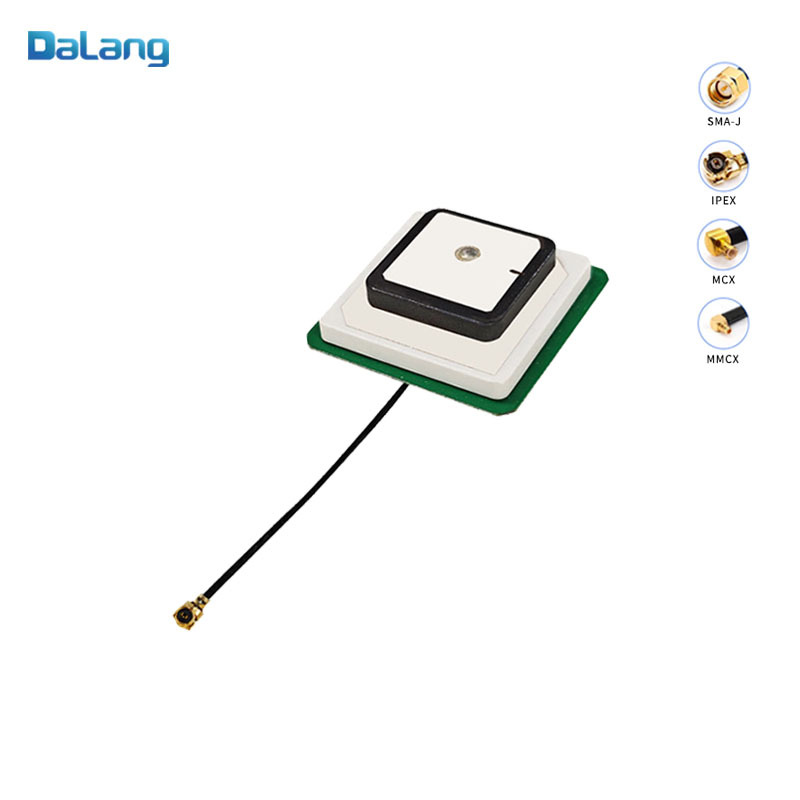

IPEX / SMA / MCX / MMCX (customizable)
|
|
4
|
wire rod
|
RG1.13 / RG178(customizable)
|
|
5
|
Line length
|
150mm / 250mm(customizable)
|
|
6
|
PCB
|
FR4
|
|
Work
environment
|
1
|
work environment
|
-40℃~+85℃，10%~95%RH
|
|
2
|
Environment
|
-55℃+100℃，10%95%RH
|
|
3
|
vibrate
|
Sine scan @ 1.5mm AM, 10~55Hz per axis
|
丨 product mix
Packaging and Delivery：
Product Overview

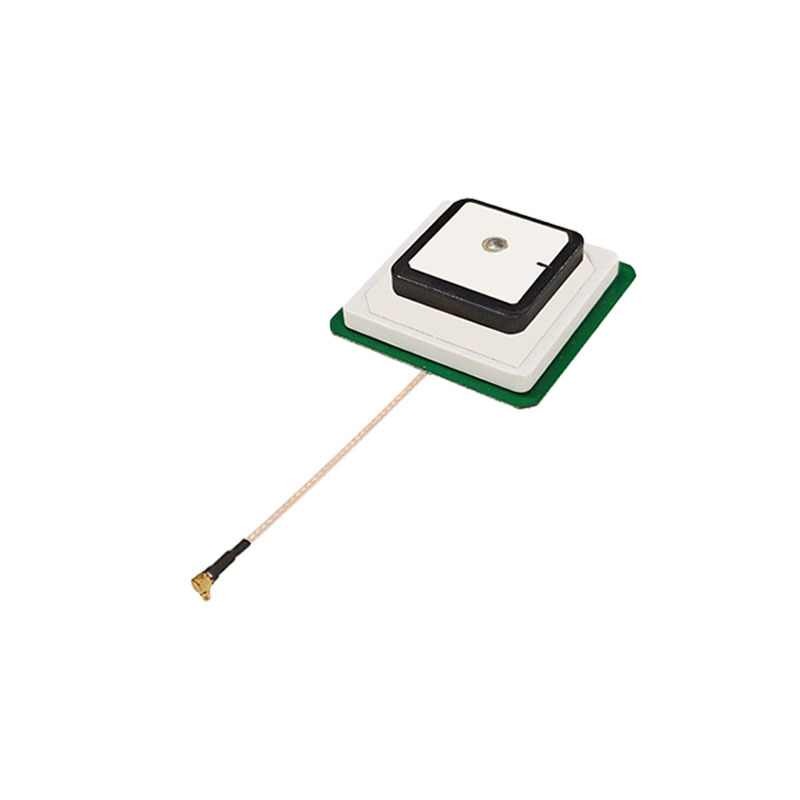

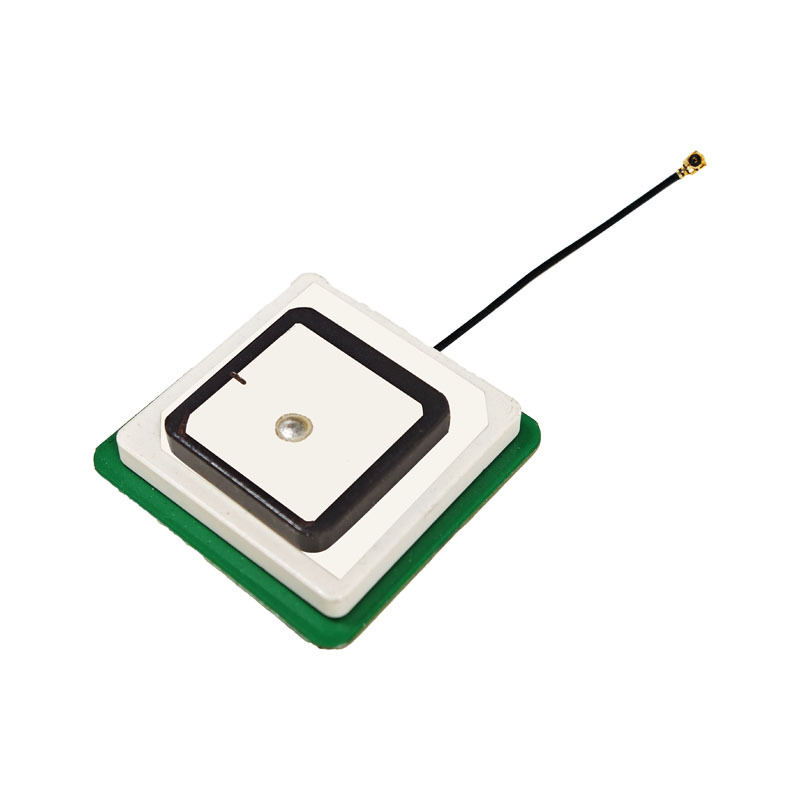

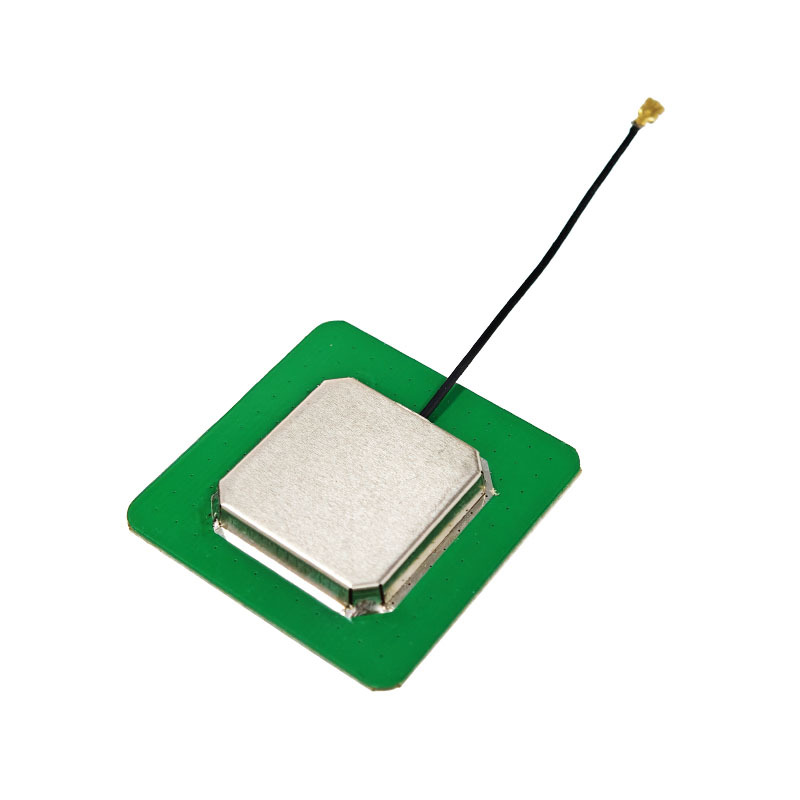

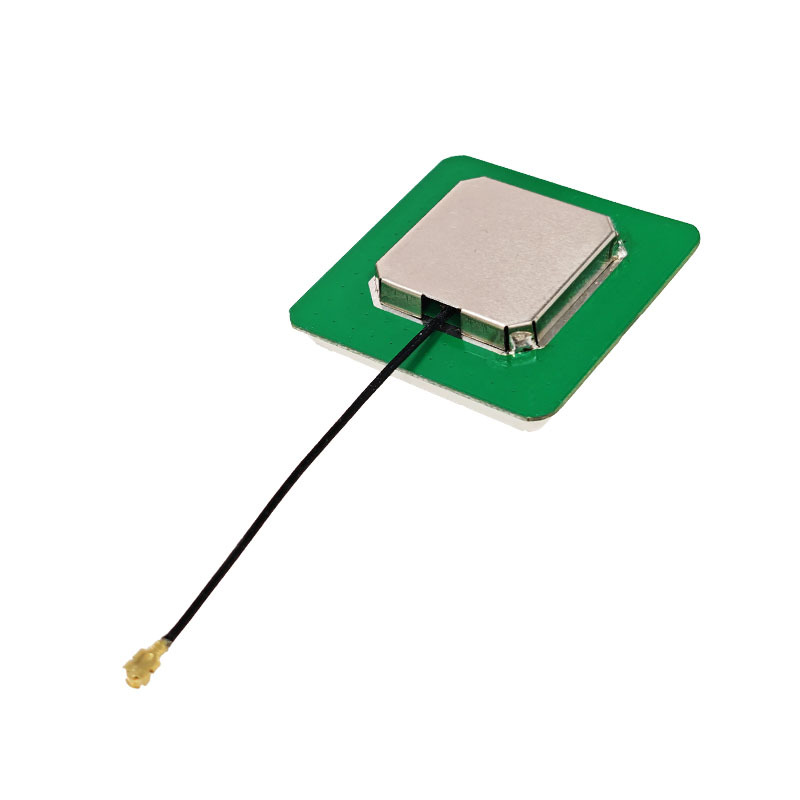

The AK520-Q is a dual-frequency active antenna with a multi-layer ceramic stacked structure (35×35×4/25×25×4mm), specifically designed for high-precision positioning with BeiDou and GPS systems. It supports GPS L1/L5 and BeiDou B1 frequency band signal reception, featuring a compact structure and stable performance, suitable for applications requiring both size and precision such as vehicle navigation, UAV positioning, and precision agriculture.
Multi-Layer Ceramic Design for Stable Signal Reception
Utilizes multi-layer ceramic stacking and dual-feed design to enhance antenna bandwidth and signal stability, maintaining high-precision positioning performance even in complex environments.
Dual-Frequency High-Precision Positioning
Supports dual-frequency signals including GPS L1/L5 and BeiDou B1, providing more reliable positioning data suitable for high-dynamic and multipath interference environments.
Compact and Lightweight for Easy Integration
Overall dimensions of only 40×13mm, weight 15g, equipped with IPEX connector and RG1.13 micro cable, suitable for integration into space-constrained embedded devices.
Product Advantages
High Gain and Low Voltage Operation
Antenna gain up to 28±2dB, operating voltage only 3–5V, current 15–25mA, achieving efficient signal reception in a compact design.
Wide Temperature Operation and Environmental Durability
Operating temperature range from -40℃ to +85℃, with good vibration resistance, suitable for harsh environments such as vehicle-mounted and outdoor applications.
Customizable Design
Supports customization of connector, cable type, and length for flexible adaptation to different device structures.
Environmentally Compliant
Meets RoHS environmental requirements, suitable for global market applications.
