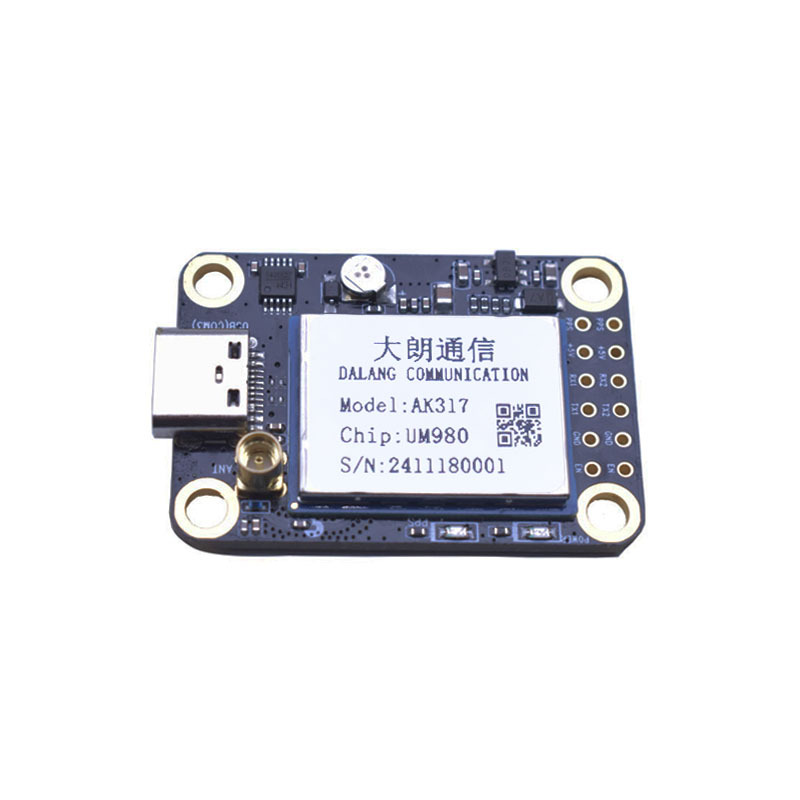

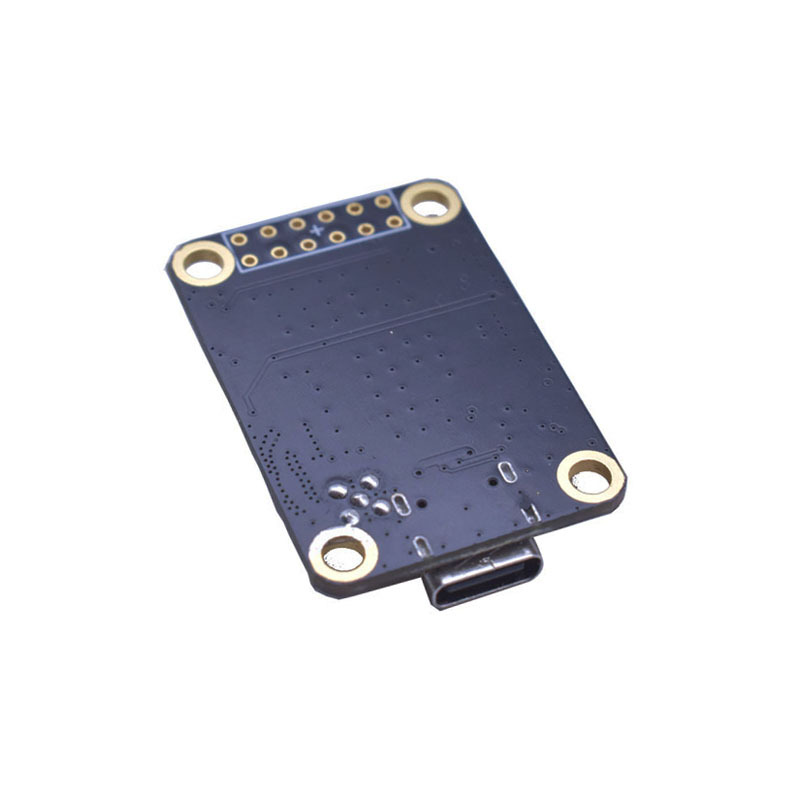

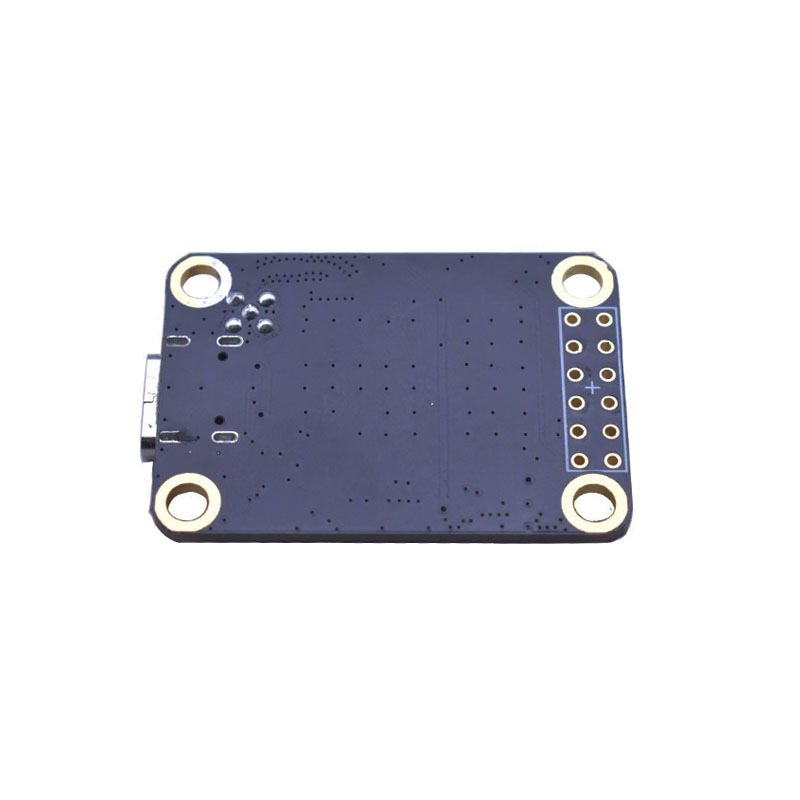

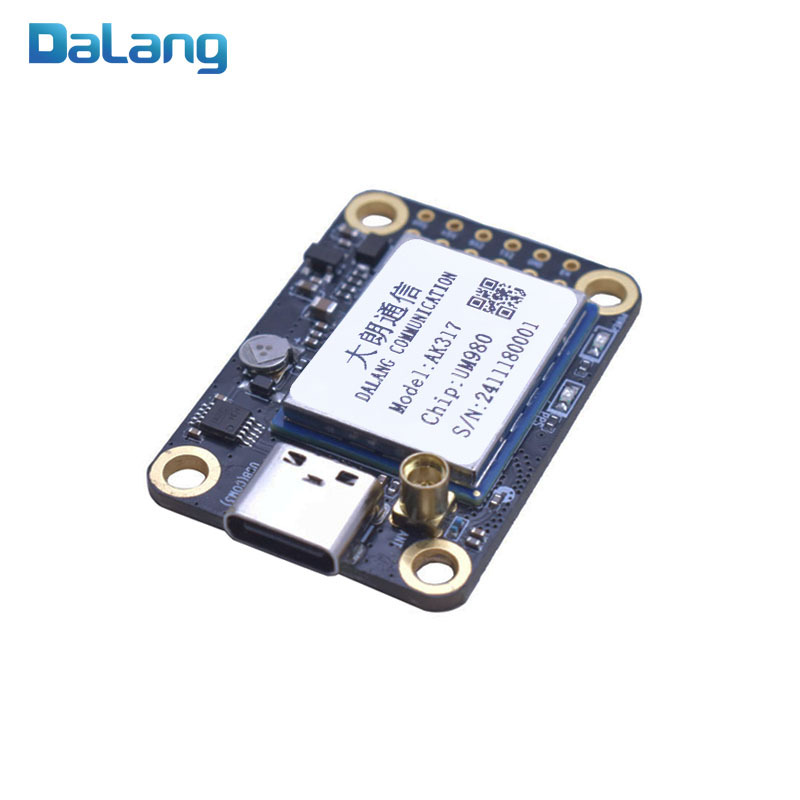

UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation

SKU:
0.0 (0)
0 Sold
$180.00 $0.00
Chip: UM980
Working frequency band: BDS/GPS/GLONASS/GALILEO/QZSS
Baud rate: 115200bps (default)
Update frequency: 1Hz-20Hz (default 1Hz)
Cold start: ＜10s
Speed accuracy: 0.03m/s
Working voltage: 5V DC
Power consumption: 800mW
Size: φ36.58*25.66*7.6mm
Weight: 5.6g
Connector: TYPE-C / Pin connector*12
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
1/1
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • UM980 GNSS board RTK high-precision positioning module instantaneous RTK initialization full system full frequency anti-interference technology unmanned aerial vehicle precise positioning agricultural machinery automatic navigation
  • Description


丨 Product Introduction

1. Advanced chip technology: based on UM980 series, using Nebula IV ™ RF baseband and GNSS SoC chip.

2. Multi system compatibility: It can receive signals from multiple satellite navigation systems such as BDS and GPS, improving coverage and positioning accuracy.

3. Fast positioning: Real time RTK initialization, achieving high-precision positioning in seconds and adapting to complex environments.

4. Strong anti-interference ability: Independently tracking satellite frequencies, 60 dB narrowband anti-interference, ensuring accurate positioning in complex environments.



丨 Specification parameters

Chip

characteristics

chip

UM980

working frequency

BDS: B1I B2I B3I B1C B2a B2b

GPS: L1 C/A L1C L2P (Y) L2C L5

GLONASS: L1 L2

Galileo: E1 E5a E5b E6

QZSS: L1 L2 L5 L6

Receiving channel

1408 channel

Accuracy

Single point positioning (RMS)

Plane: 1.5m

Elevation: 2.5m

DGPS(RMS)

Plane: 0.4m

Elevation: 0.8m

RTK(RMS)

Flat: 0.8cm+1ppm

Elevation: 1.5cm+1ppm

Observation accuracy (RMS)

BDS

GPS

GLONASS

Galileo

B1I/B1C/L1C/L1 C/A/E1/G1 pseudorange

10cm

10cm

10cm

10cm

B1I/B1C/L1C/L1 C/A/E1/G1 Carrier Phase

1mm

1mm

1mm

1mm

B3I/L2P(Y)/L2C/G2 pseudorange

10cm

10cm

10cm

10cm

B3I/L2P(Y)/L2C/G2

Carrier Phase

1mm

1mm

1mm

1mm

B2I/B2a/ B2b/L5/E5a/E5b pseudorange

10cm

10cm

10cm

10cm

B2I/B2a/ B2b/L5/E5a/E5b Carrier Phase

1mm

1mm

1mm

1mm

Time accuracy (RMS)

10 ns

Speed accuracy (RMS)

0.03 m/s

Start Time

cold boot

＜ 10 s

Initialization time

<5s (typical value)

Initialize reliability

＞ 99.9%

Output data

Baud rate

115200bps (default) [Optional: 4800-921600]

Output interface

TTL

Output Protocol

NMEA0183、RTCM 3.3

update frequency

1Hz-20Hz (default 1Hz)

Differential

data

Differential data

RTCM 3.3/3.2/3.1/3.0

Carrier phase output

Support, output RAWX statement

FLASH

built-in

Electrical

specifications

working voltage

5V DC

power waste

800mW

Physical

parameters

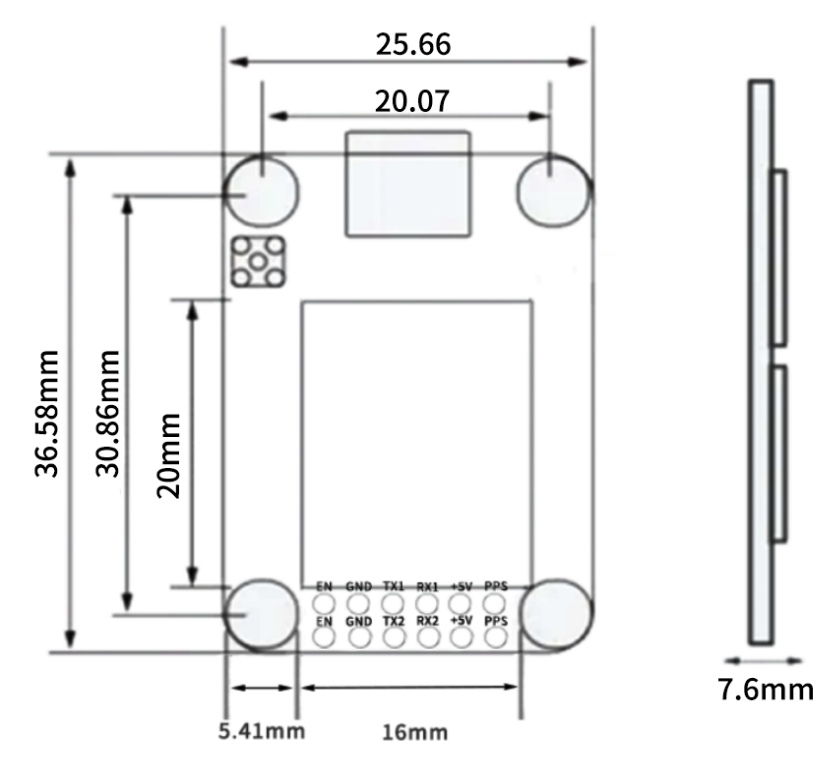

size

36.58*25.66*7.6mm

weight

5.6g

Connector

USB/Pin connector*12

Antenna connector

MMCX

Environment

working temperature

-35℃-80℃

Storage temperature

-40℃-95℃




丨 product mix

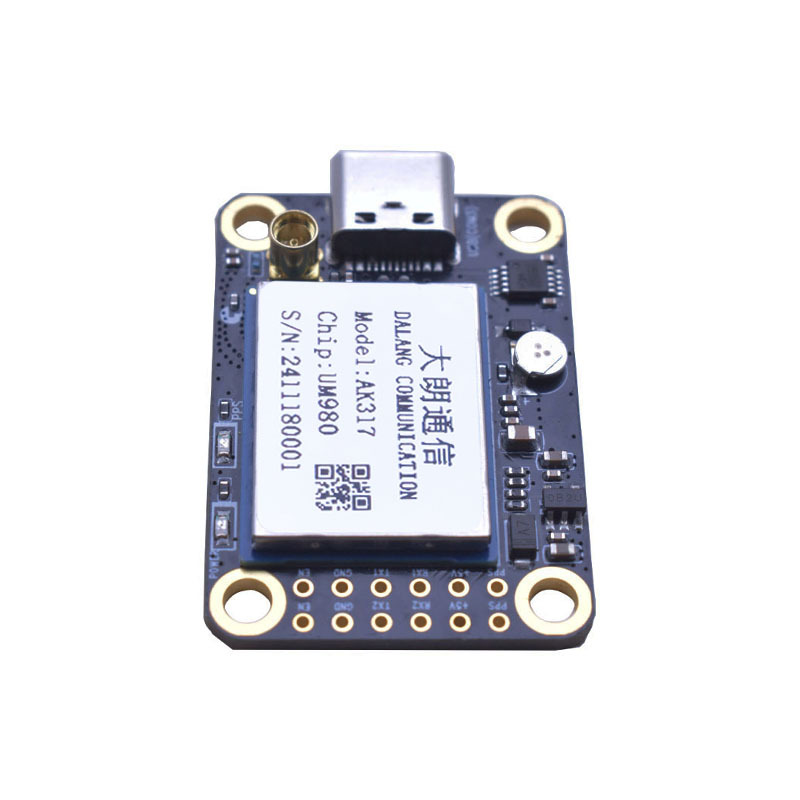

                                                 Table 1 PIN Functionality

NO.

Signal name

Signal Description

1

PPS

Second pulse

2

VCC

Power input, DC+5V

3

RX1

Serial port 1 data input

4

TX1

Serial port 1 data output

5

GND

Grounding

6

EN

High level enable pin

7

PPS

Second pulse

8

VCC

Power input, DC+5V

9

RX2

Serial port 2 data input

10

TX2

Serial port 2 data output

11

GND

Grounding

12

EN

High level enable pin

13

TYPE-C

COM3 output interface
